MJSF 270V/280V fingerless single facer(Vacuum Suction) carton box making machine prices

Product Overview

Description

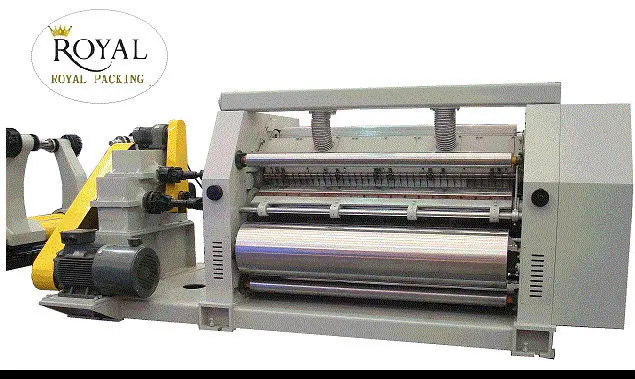

MJSF-270V/280V Single Facer (Vacuum Suction)



Inrodution:



Single Facer is the main machine for producing the corrugated paperboard. Vacuum suction

model single facer has very good production precision.



The choose of the machine is directly effecting the quality of the corrugated paperboard



Characteristic:

1. Cover vacuum suction.

2. Corrugating roll is made of high quality alloy steel 48CrMo, the surface is medium-frequency quenched and chrome-plated. Hardness can reach HRC55~60, which ensures good wear-resistance and long life service.

3. Independent transmission box, transmit by shaft coupling.

4. Glue roll is lifted and lowered pneumatically.

5. Independent glue clean device and electric glue-separate board to control the width of glue.

6. Manually regulate or electrically regulate the display device.

7. Lubricated by high temperature lubricate grease.

8. Surface of all dancing rolls and preheating rolls is grinded and chrome-plated.

9. Pressure roll is medium- frequency quenched and chrome-plated.

10. Width 1400mm~2000mm.

11. Preheating rolls, pressure rolls and corrugating rolls all meet the National Standard of Pressure Vessel. Working pressure is 1.1MPa.



Technological Parameters:



Working Width	1600mm		1800mm		2000mm		2200mm
Heating method	Oil heating / Steam heating/electrical heating
Design speed	60-100m/min
Economical speed	40-80 m/min
Compress-air pressure	0.4-0.9MPa
Flute type	Standard flute		UV Flute
	Standard spec.		A,B,C,E,F
	For other type and model, we can produce as customer’s requirement.
Corrugated roll diameter	268mm
Wall Thickness	130mm
Type	Vacuum Absorb
Roller material	48CrMo alloy, Heat treated
Machine Size (mm)	3300*1300* 1700	3550*1300* 1700		3800*1300* 1700		4050*1300* 1700
