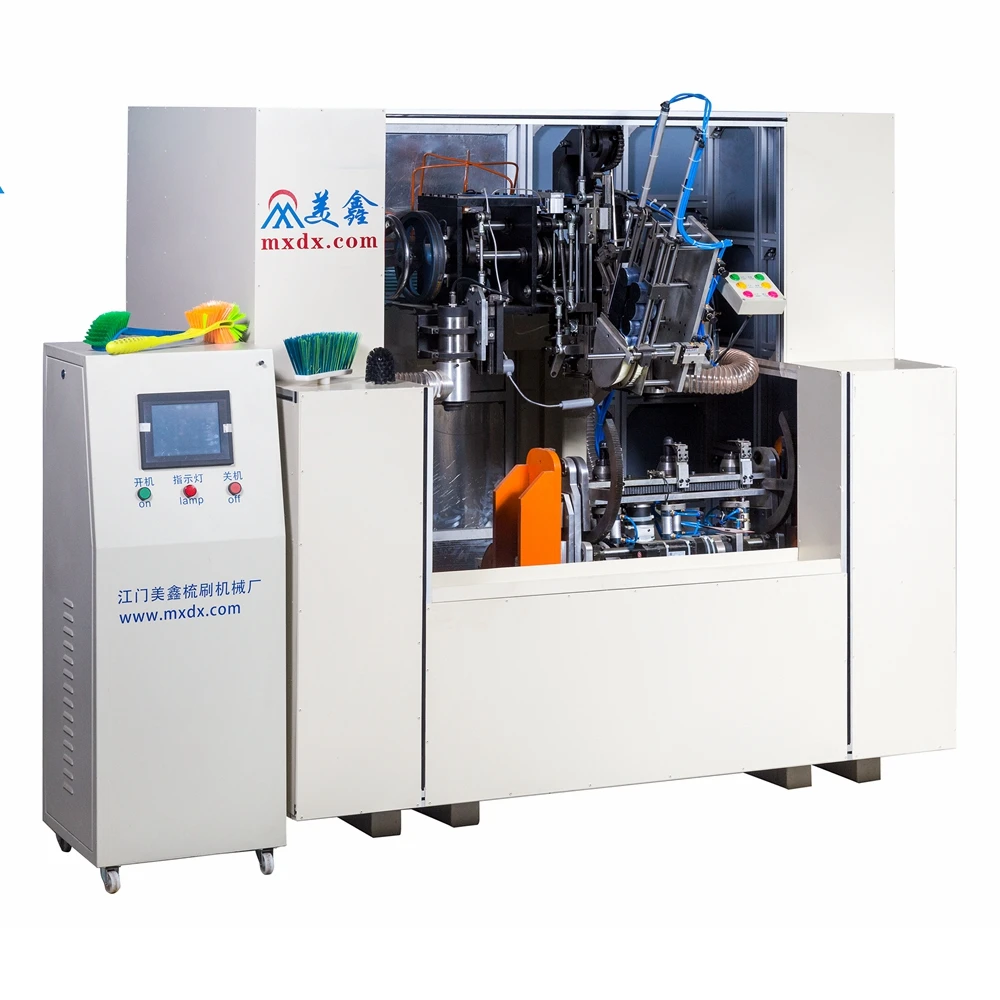

2019 hot sale dish washing brush making machine for sale

Product Overview

Description

Meixin Comb Brush Manufacture

           Our factory is located in xinhui district,jiangmen city,long history and is a famous hometown of oversea Chinese.We are specialized in producing 3 to 5 axis single(double) colour CNC tufting machine,CNC horse nail machine,CNC drilling and tufting combination machine,trimming machine, filament cutting machine.Our products mainly are widely used in all kinds of brushes, for example:electric toothbrush,travel toothbrush,cosmetic brush,nail polish brush,roller brush,dish washing brush,hair series of comb brush,massage brush,wooden brush,barbecue copper wireb brushes,electrical series of vacuuming brush production industry.

Machine paremeter:



Item	Model	MX260
1	axis	5-axis
2	The stroke of X	1000mm
	The swing angle of Z axis	120°
	The height of A axis	300mm
3	X-Y stroke	300mm*300mm
4	Hole diameter	4-6mm
5	FIber box	double colors o three colours
6	Application	to make short handle brush
7	The length of filament	30-115mm
8	Maximum Tufting Speed	5-6holes/second
9	head motor	Italy brake motor
10	main power input	2 phase 220V,3phase 380vor220V
11	gross weight	about 300kg

Control System	CNC controller
Disturbance display	english editiion
Safety protection	overload,short circuit protection
Driving screw	TBI ball screw
Lubrication	TBI original linear guide
driving motor	servo motor
Main speed control	Frequency inverter
Fiber box	double or three colour



Technical characteristics:



1.installed with one tufting motor head,high speeding processing,high volume,cost effective



2.this machine can produce many different kinds of brushes or brooms which have different filling angles, by changing specific platform



3.hole diameter : 4mm to 6mm



4. filament by:round nails or flat nails



5.types of platform can be chosen:



Platform for bowl brushes and semi-spherical brushes(such as toilet brushes and “Swedish style”dish-washing brushes)



Platform for rollers and hair brushes



6. PLC and Touch Panel Control System of Man-Machine, Chinese and English display, simple to understand.



7.allow to save as 2000 procedure and easy for the creation of new models



8. Wearing parts and spare parts are standardized designs to reduce hair mechanic technology dependence



9.our machine can produce either one colour or two colours or three colours brush,and also drill or tuft separately
