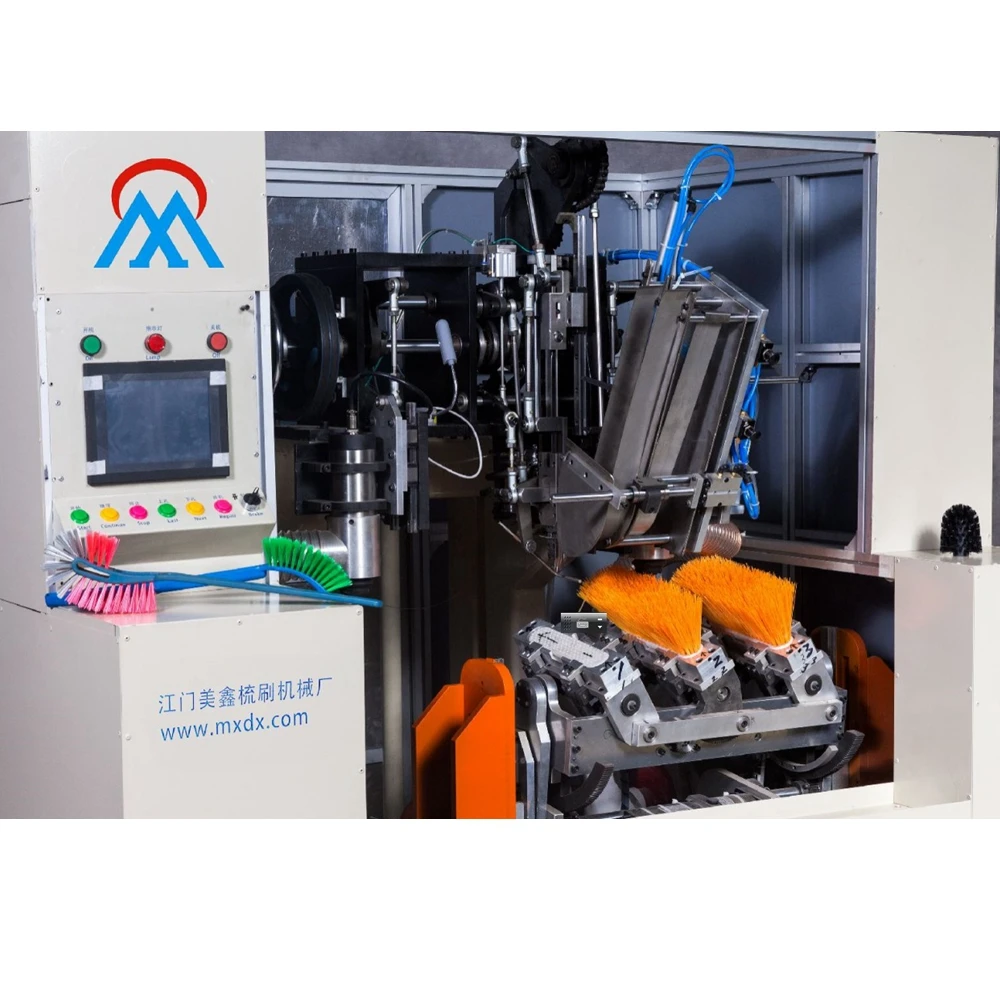

CNC automatic plastic brush drilling and tufting machine

Product Overview

Description

         Meixin Comb Brush Manufacturer

          Our factory is located in xinhui district,jiangmen city,long history and is a famous hometown of oversea Chinese.We are specialized in producing 3 to 5 axis single(double) colour CNC tufting machine,CNC horse nail machine,CNC drilling and tufting combination machine,trimming machine, filament cutting machine.Our products mainly are widely used in all kinds of brushes, for example:electric toothbrush,travel toothbrush,cosmetic brush,nail polish brush,roller brush,dish washing brush,hair series of comb brush,massage brush,wooden brush,barbecue copper wireb brushes,electrical series of vacuuming brush production industry.

      Our factory has abundant brush tufting processing technology,strong design capability, perfect after-sale service system.With guaranteed product quality all of our items are tested by using precision electronic instruments before packing and delivery to clients.

     Our products have been sold to Guangdong,Fujian,Henan,Guangxi,Zhejiang province and also exported to foreign countries(India,Vietnam,Indonesia,Cambodia,Venezuela and so on)

Meixin comb brush manufacturer adhere to people oriented,customer first.,we treat our every customers sincerely.

     Our service purpose  is :the best quality,the most affordable price,the most sincere after-sale service.



Machine Perameter:

Power	7KW
Power voltage380VAC/220VAC	380VAC/220VAC
Machine Power	7000W
Journey X axis	300mm
Journey Z axis	300mm
the swing angle of Y axis	90°
the swing angle of A axis	120°
the swing angle of B axis	360°
Size	3000*2000*2800mm
mininum order quantity	1 set
hole diameter	3-6mm
tufting speed	4-5holes/sed
brush box	double colour
Motor	servo motor
Weight	about 2000kg



Control System	CNC controller
Disturbance display	english editiion
Safety protection	overload,short circuit protection
Driving screw	TBI ball screw
Lubrication	TBI original linear guide
driving motor	servo motor
Main speed control	Frequency inverter
Fiber box	double or three colour





Technical characteristics:







1.installed with one tufting motor head,high speeding processing,high volume,cost effective







2.this machine can produce many different kinds of brushes or brooms which have different filling angles, by changing specific platform







3.hole diameter : 6mm to 7mm







4. filament by:round nails or flat nails







5.types of platform can be chosen:







Platform for bowl brushes and semi-spherical brushes(such as toilet brushes and “Swedish style”dish-washing brushes)







Platform for rollers and hair brushes







6. PLC and Touch Panel Control System of Man-Machine, Chinese and English display, simple to understand.







7.allow to save as 2000 procedure and easy for the creation of new models







8. Wearing parts and spare parts are standardized designs to reduce hair mechanic technology dependence







9.our machine can produce either one colour or two colours or three colours brush,and also drill or tuft separately



Machine main parts:
