1 Special for lab research, min 20-30ml liquid to finish one test

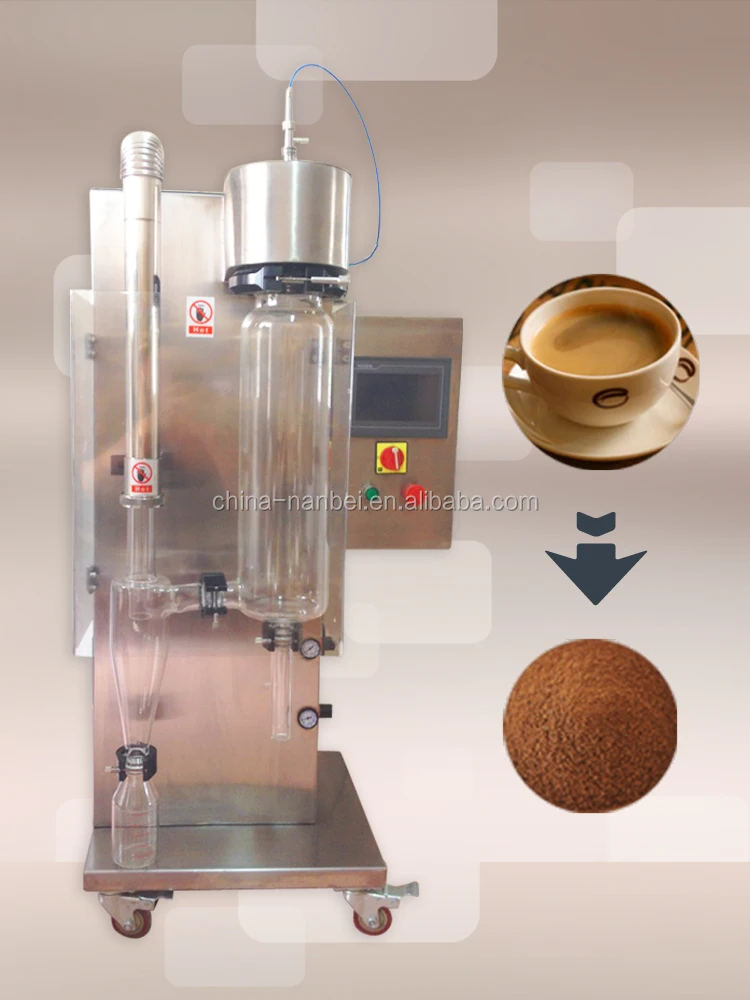

2 All borosilicate glass for easy visual monitoring of process status
3 Spray chamber, cyclone separator, receiving talk are all made of borosilicate glass which can resist strong acid/alkali, high temperature, it can work in a no-pollution and stable environment
4 Easy to clean and very simple to assemble and break down
5 The air compressor is no oil and don't pollute compress air, the sound is low than 50db and following the GMP understands.
6 Inlet/outlet temperature is accurate controlled by PID.
7 The unit is self contained and supplied complete and ready for immediate operation

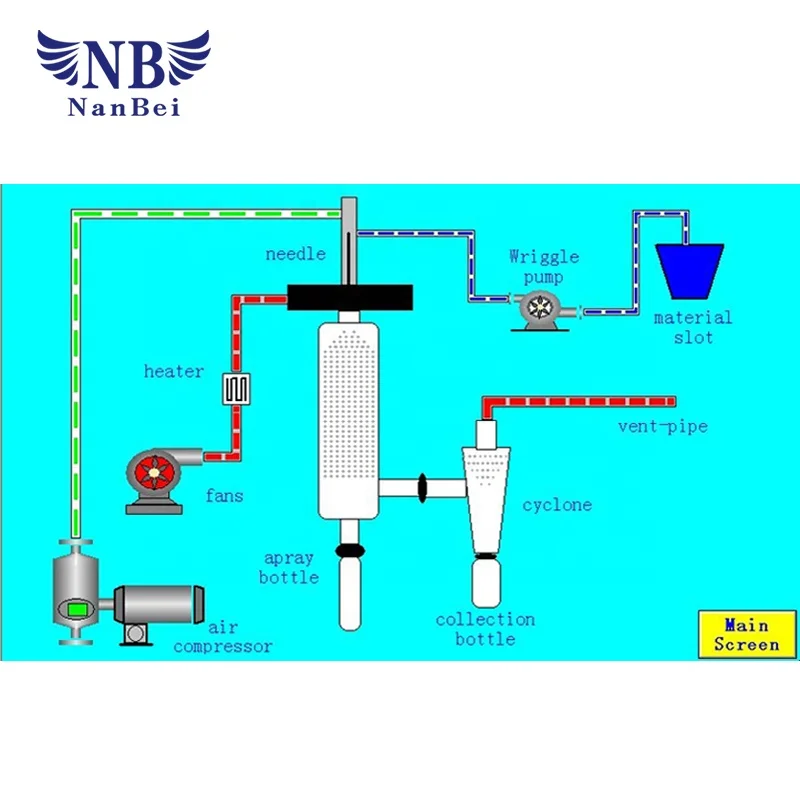

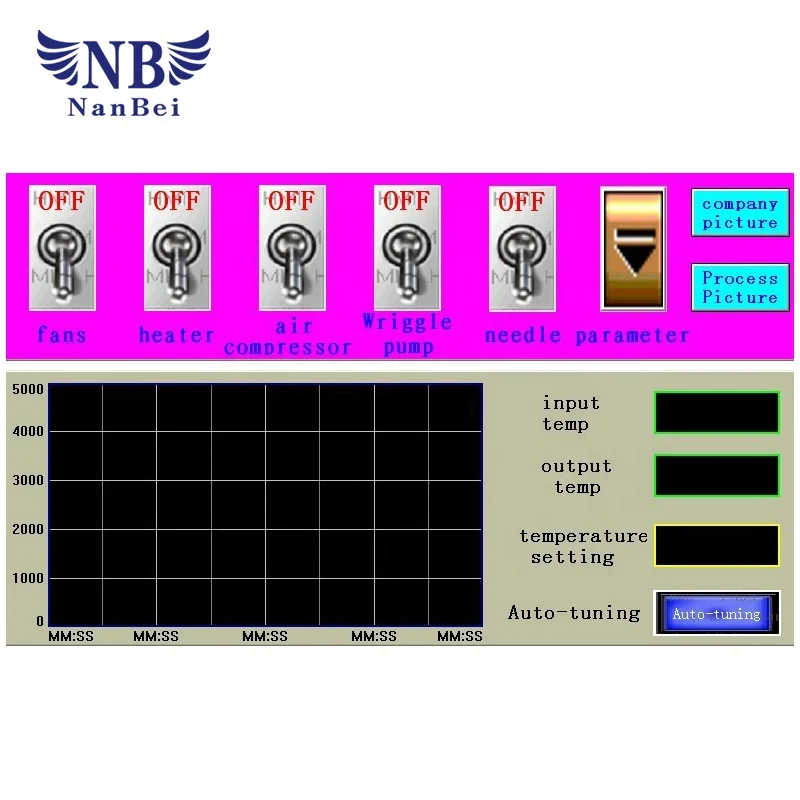

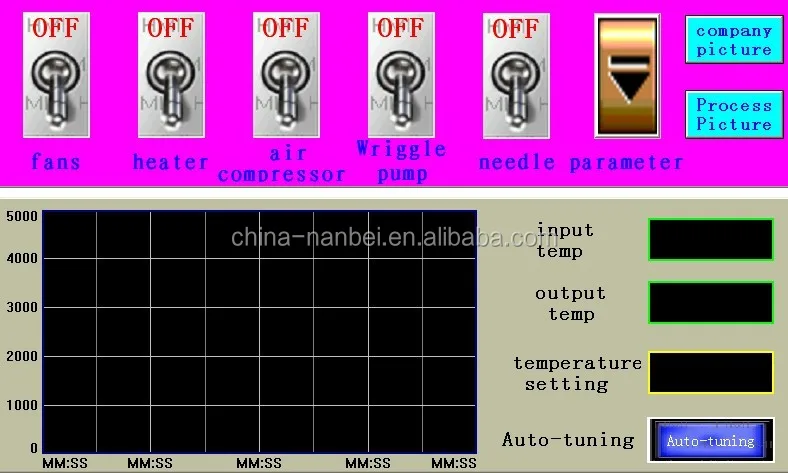

8 Using screed touchable face display operation, control temperature, airflow volume, air pressure, pump speed and de-blocker frequency
9 Product feeding with RS2559605 rotary pump, capacity is adjustable
10 Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled

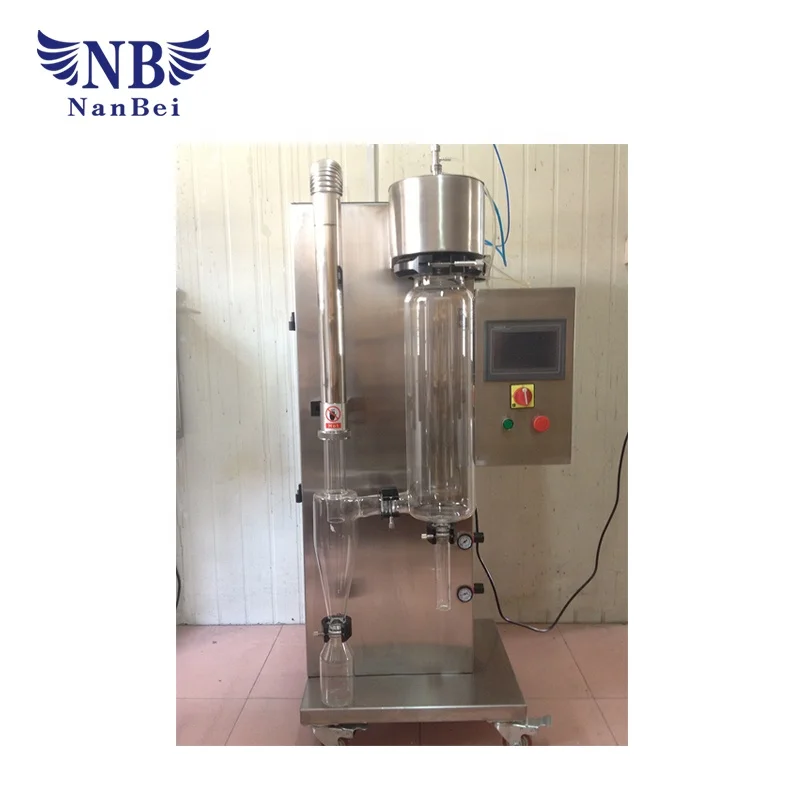

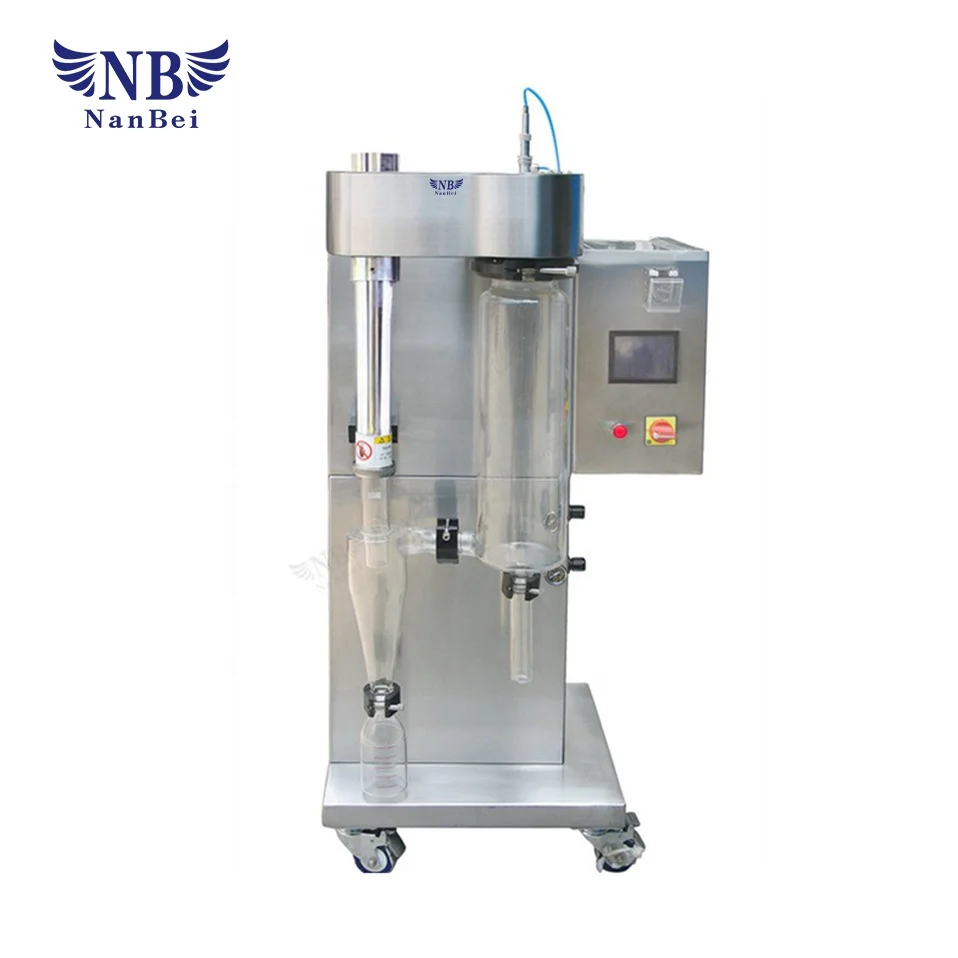

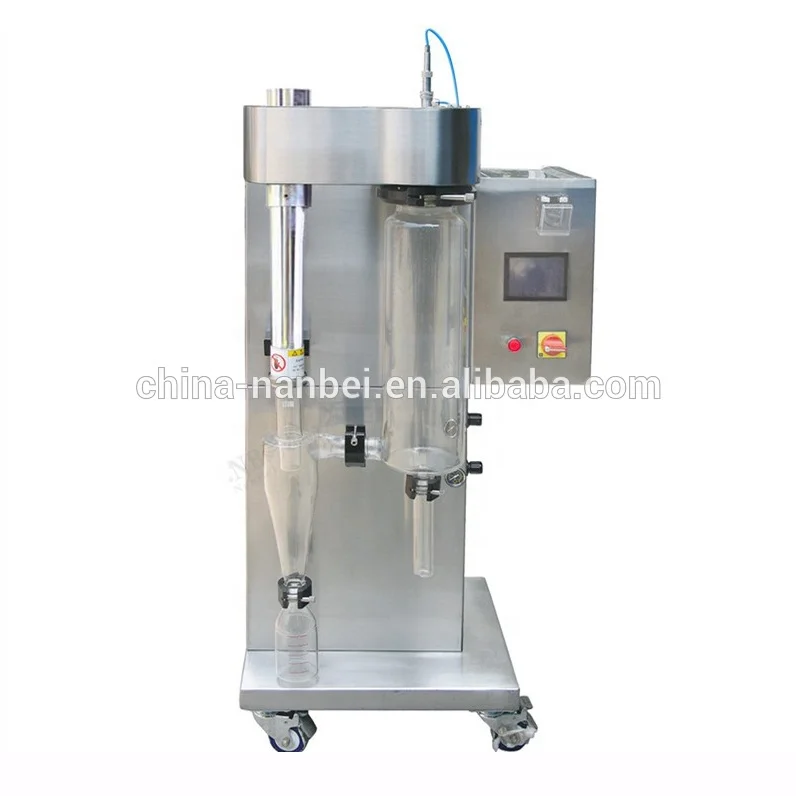

2.Picture for Our product
3.Usage and Application
Various fields where the production of a free powder sample is required
SP-1500 has successfully processed samples in the following areas: beverage, flavorous and colorings, milk and egg products, plant and vegetable extracts. pharmaceuticals, synthetics heat sensitive materials, plastics polymers and resins, perfumes, blood, ceramics and superconductors biochemicals, dyestuffs, soaps and detergents, foodstuffs, adhesives, oxides, textiles, bones, teeth and tooth amalgam and many others.

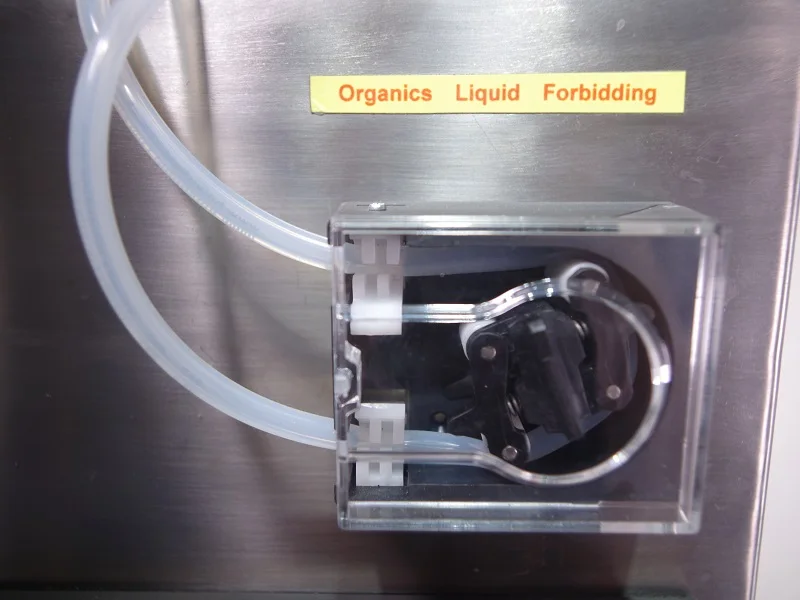

Standard peristaltic pump
Automatic feeding, simple and fast Feed volume can be adjusted by feed peristaltic pump, the minimum sample volume is 30ml
High quality borosilicate glass drying chamber,High temperature resistance, easy to clean. The entire spray drying experiment process is visible, which is convenient for controlling the experiment process

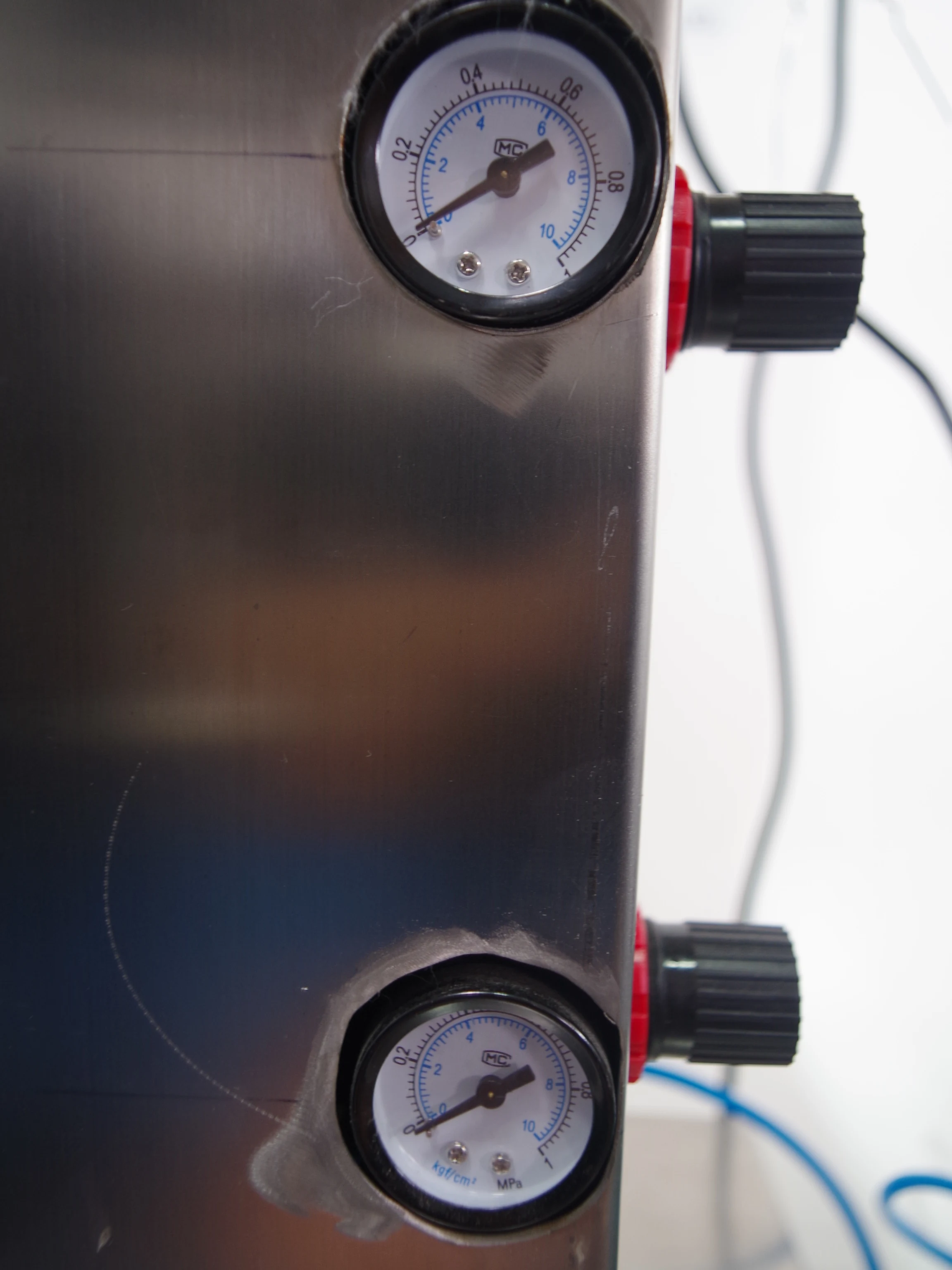

High precision vacuum Gauge,Control atomization pressure, Ensure safe operation,.factory has been adjusted to safety, no need to adjust by the user

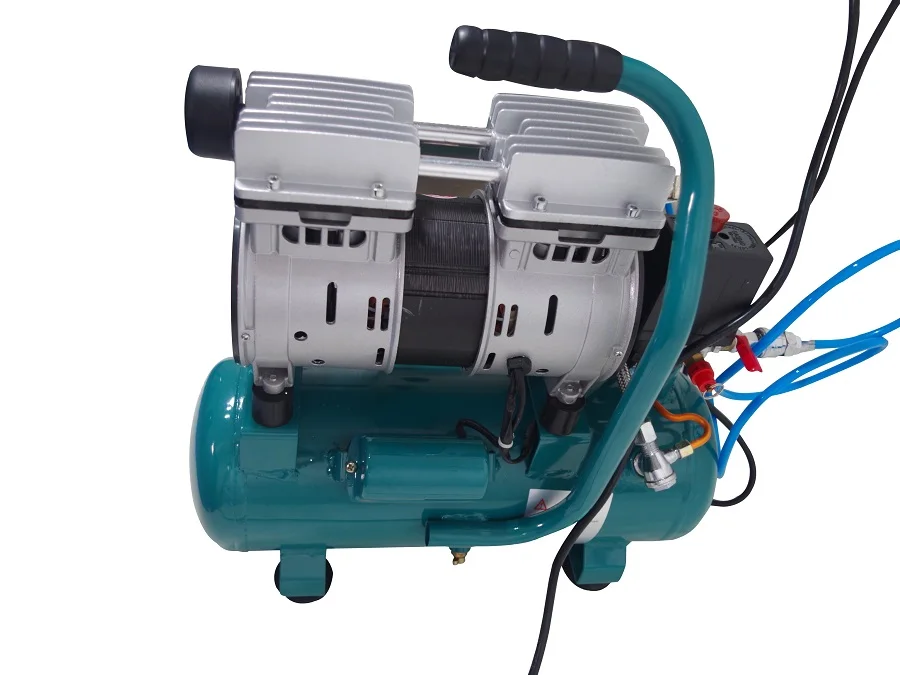

External air compressor,good for heat dissipation,Oil free,No noise, good stability, no oil protection reject secondary pollution of products
4.Technical data
Model
SP-1500
Max capacity
1500-2000ml/h
Temperature range of Inlet air
30℃ -280℃
Temperature range of outlet air
40℃ -120℃
Precision of temperature
± 1 ℃
Dryer time
1.0-1.5 S
Speed of squirmy pump
30-2000ml/h,
Consume of dryer air
0-330m3 /h, max pressure: 686Pa
Consume of spray air
0-4.2m3 /h, spray pressure: 2-5bar
Spray system
2 liquid nozzles with standard 0.7mm jet
options of 0.5/1.0/1.5/2.0/2.5mm
Spray direction
downwards co-current
Power
3.5KW 220V
Dimensions
650×500×1550 ( mm ) L x W x H
Our Company
1.Company Show
2.Factory Show
Our Services
1.Certification
2.Warranty and After-Sale Service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training.♥♥
