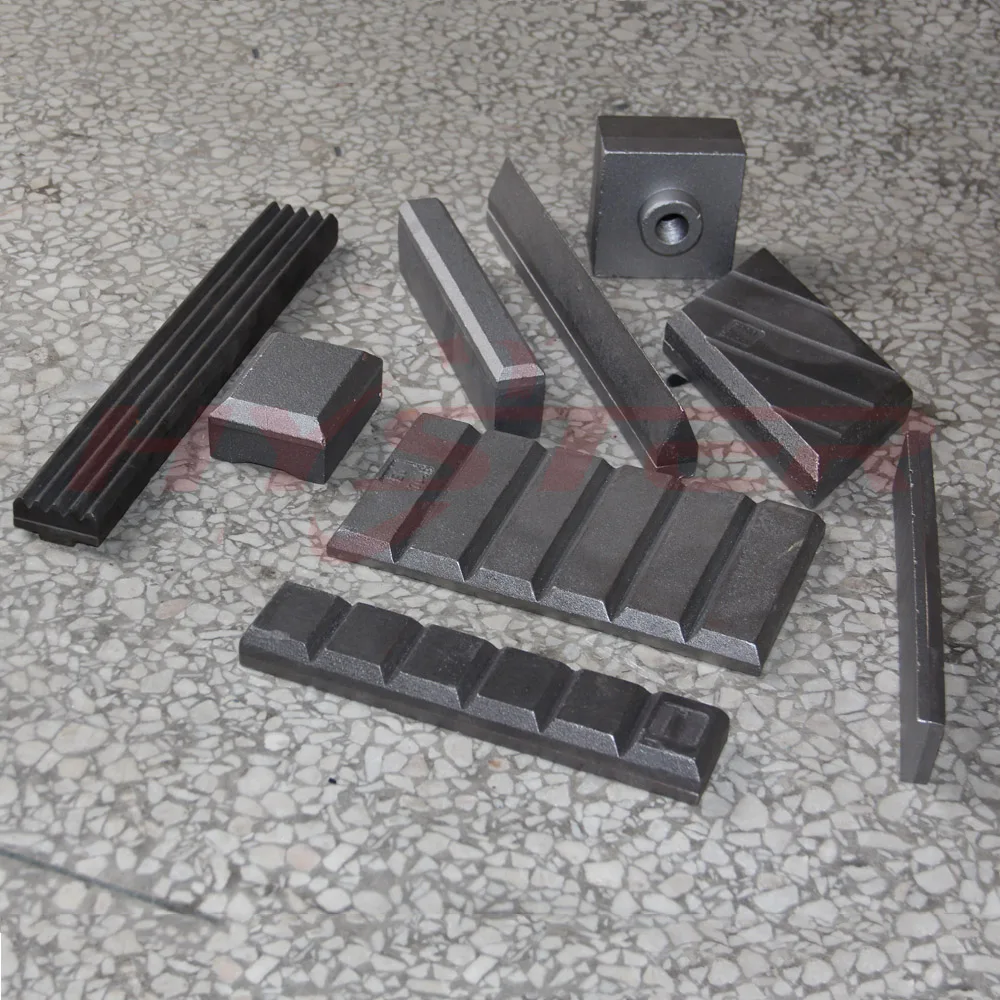

ASTM A532 15/3CrMo white iron wear blocks wear bars chockybars

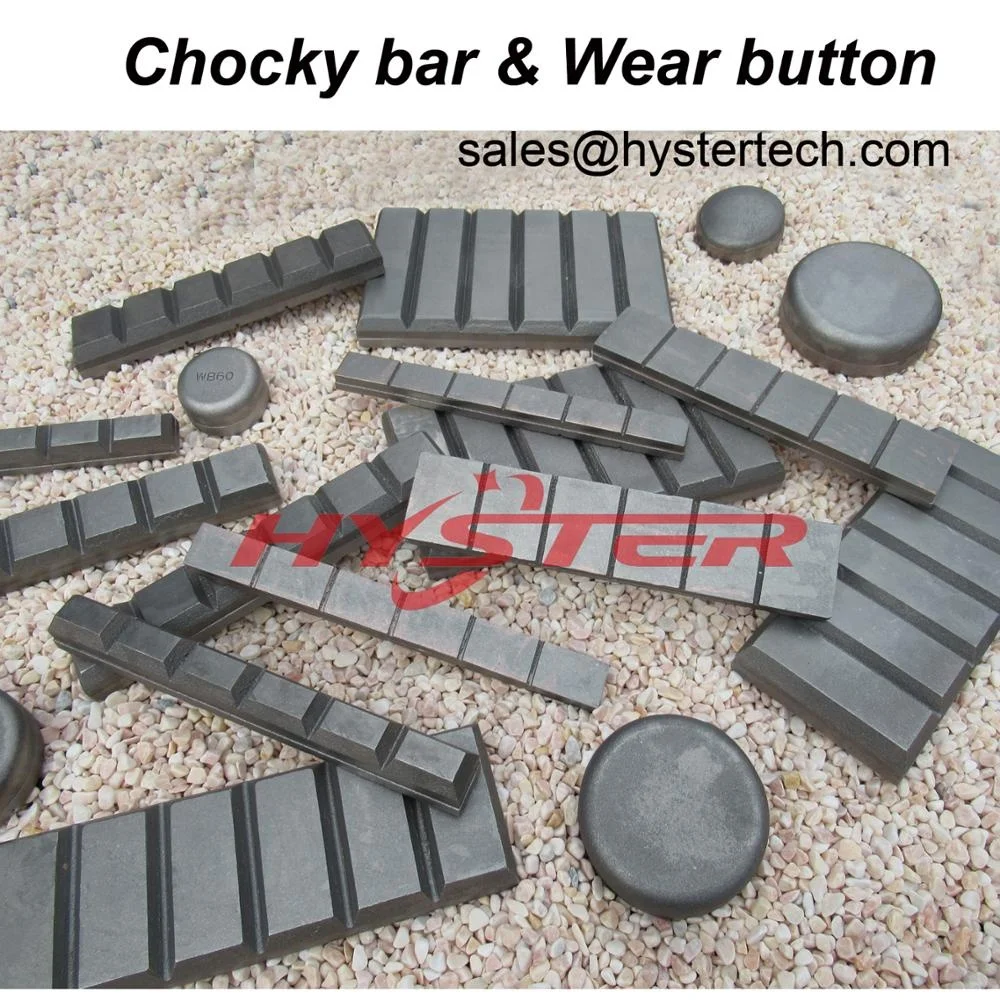

The unique, formable design of Hyster-Wear chocky bars are available in various lengths, grades and sizes and can also be customized as per the clients specific need. Applications for Chocky Bars are wide and varied, ranging from specific wear protection on buckets for loaders, excavators and draglines machines, or for weld-on hammer tips for the re-cycling industry, or chute linings and rock box edges.

They are easy to use and install. They can be bent, cut and formed to suit different surfaces.

The standard is 23mm thick, length is 240mm, width could be from 25mm from 150mm. We can also produce according to your special requests .

Type: Notched type and Non-notched type

**Other dimension is also available against your inquiry.**

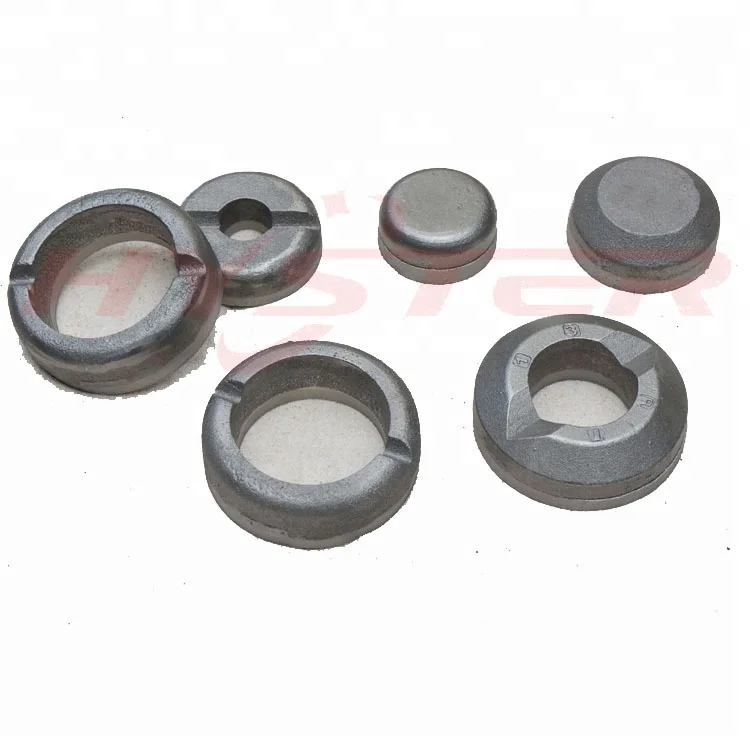

Hyster wear system is more than just a product. It is a combination of products, services and metallurgical expertise to provide superior wear protection for mining equipment and other industrial applications. A key part of this package is the Bimetallic Wear Products, a comprehensive offering of buttons, blocks, bars, runners, tiles and overlay plate to match any application.

Hyster White Iron Wear Block(700BHN-63HRC)-- Range of products based on a composite white iron wear surface metallurgically bonded to a weldable mild steel backing plate. Wear block is fixed to the surface of fixed and mobile plant equipment, such as mining buckets and chutes, where protection from severe abrasion is required.

Hyster Overlay Wear Plates--Chromium carbide clad wear plate manufactured in HYSTER and marketed worldwide. Overlay plate is well suited to fixed and mobile plant equipment associated with the construction, mining and resource industries; particularly iron ore, coal, cement and steel applications.

Hyster NiHard--Abrasion and high impact resistant product. It is often cast into billets and liners and used extensively in the mining, construction and mineral processes industries, particularly in bulk handling situations.

Hyster Tungsten Carbide—High standard abrasion resistant product. It is often used where the application has no impact force or very slightly impact.

Features and Benefits

Reduced Maintenance

• Protects any high wear area, eliminating the need for frequent rebuild or replacing wear plate

• Lasts longer than other wear protection

• Excellent alternative to hard facing which can lead to cracking of major structural components Increased Productivity

• Reduced maintenance ensures maximum machine availability

• Wide variety of shapes and sizes allows small areas to be protected, minimizing the affect on penetration and material flow

Lower Operating Cost

• Can be fit to flat or curved surfaces, eliminating the need to have wear plate formed to fit

• Bucket life is significantly increased, minimizing repair and new bucket orders

Typical Data Numbers:

>white iron wear blocks life is 50% greater than that of Ni Hard Irons.

>At least 7 times longer than A.R. type steels 360/400 BHN

>5 times the wear rate of Manganese Steel

>3 times the wear rate of Tapco Weld Hardfacing

>4 times the wear rate of Astralloy-Vulcan

>16 times the wear rate of Carbon Steel

>3 times the wear rate of 500 BHN A.R. Plate

Packing Material:

 Option 1. Poly-wood crates, Poly-wood pallets and Oil film, fastening belt.

 Option 2. Carton, PVC, fastening belt.

Packing Photos:

Delivery term:

 1) FOB Shanghai/Ningbo/Shenzhen/Guangdong, China. Other ocean port is also available.

 2) CFR/CIF ocean delivery to destination port.

 3) Express delivery such as DHL, UPS, TNT, FedEx.

 4) Ex-Work Changsha warehouse.

Q: Are you a trade company or a manufacturer?

A: We are ISO9001:2008 Certificated factory.

Q: How long is your delivery time?

A: Generally it is 5 days if the goods are in stock. or it is 15 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% in advance.,balance against copy of B/L, payable via T/T.

Mrs. Shing Xiao | sales manager
