PJK DE2A DIGITAL THEODOLITE SURVEYING INSTRUMENT WITH DISCOUNT PRICE

Product Overview

Description

PJK DE2A DIGITAL THEODOLITE SURVEYING INSTRUMENT WITH DISCOUNT PRICE



This have dual displays, and a detachable tribrach. Horizontal and vertical angles can be observed simultaneously on the large LCD displays. Other standard features include a horizontal angle zero set, automatic power off to conserve batteries, and a battery life indicator on the LCD display.



Features

1.Large LCD display.

2.Independent tilt sensor can auto-corrected.

3.International common function modes are adopted to make operation simple and standard.

4.Combined with various models of EDM’s to form total station system.

5.Connected with electronic book makes data to be auto-recorded and auto-processed maps.



PJK theodolite specifications:



Model	DE-2A
Accuracy	2"
Length	165mm
Objective lens aperture	45mm
Magnification	30X
Image	Erect
Field of view	1°30'
Resolving power	3.3"
Shortest sighting dictance	1m
Additive constant	0
Stadia proportion constant	100
Angle measurement
Minimum reading	1"/5"
Display
Display mode	Double sides display
Illuminiation	Provide
Compensator
Tilt sencor	A Provide / B unprovide
Compensating range	±3'
Optical plummet
Magnification	3X
Field of view	5°
Focusing range	0.5m~∞
Level sensitivity
Plate level	30"/2mm
Circle level	8'/2mm
Data output
Output interface	232C
Power supply
Battery Type
Rechargeable battery	1800mAh Ni-MH
Battery working time	10-20h
Others
Waterproof class	IP45
Tribrachtype	Detachable
Dimension	150X165X335
Weight	5kg
Working temperature range	-20°C~+50°C

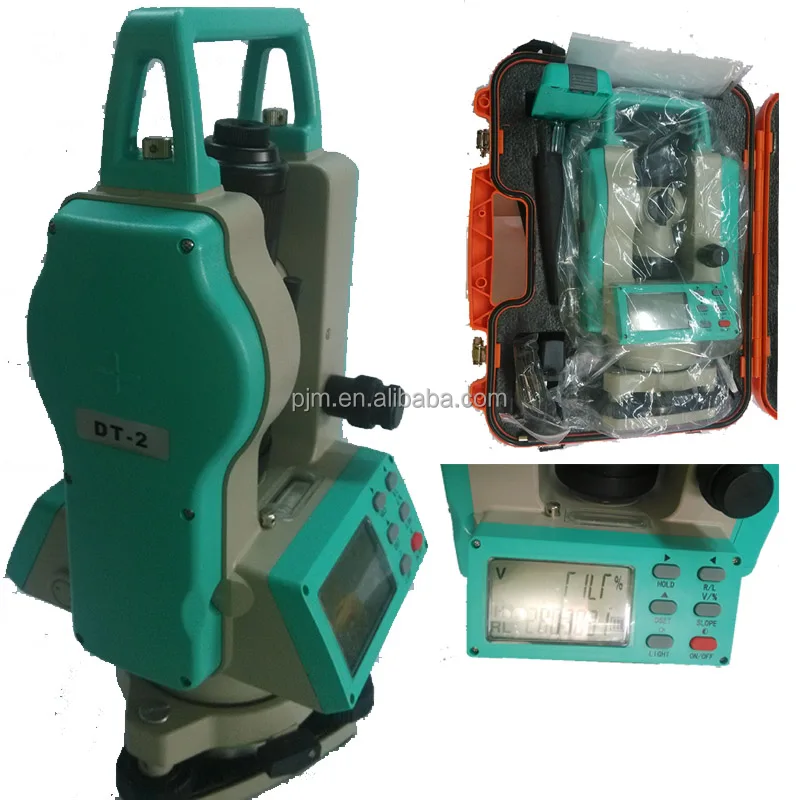

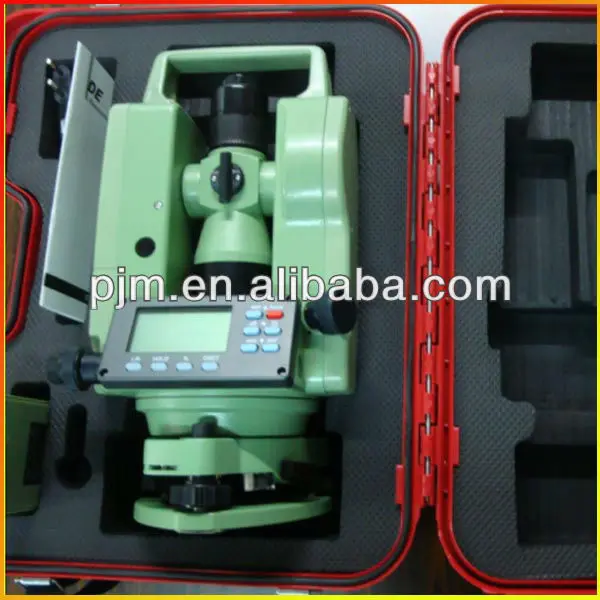

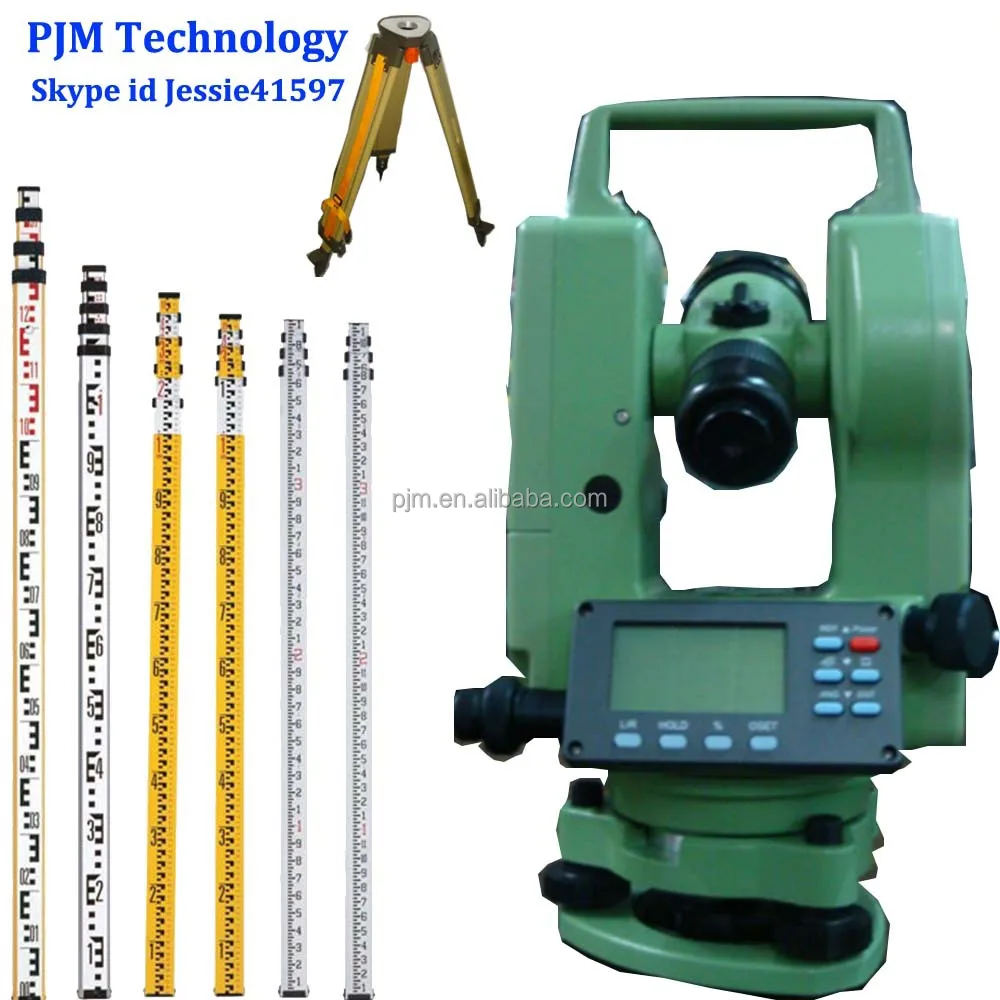

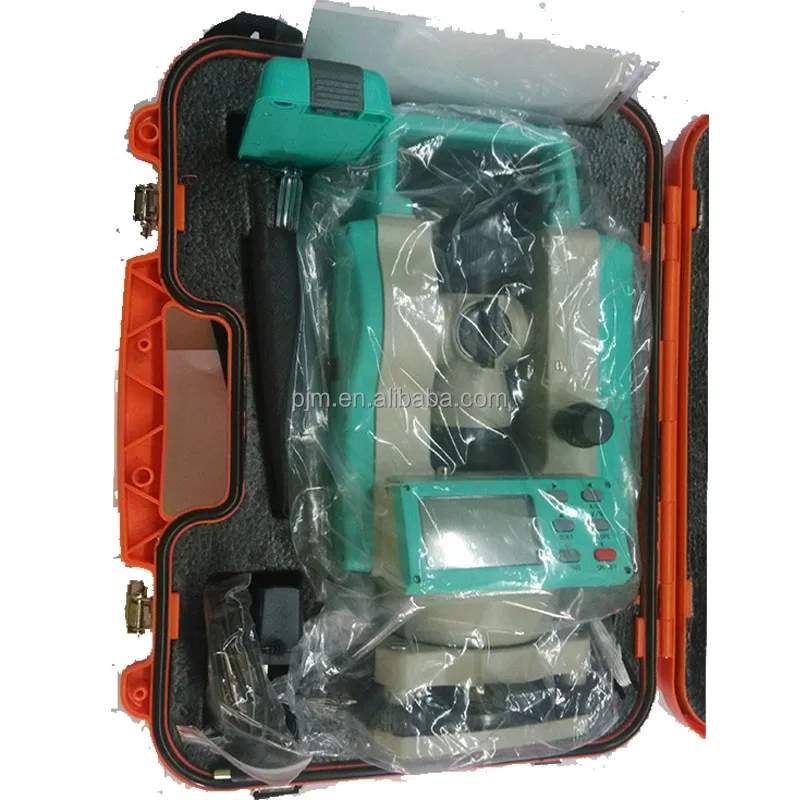

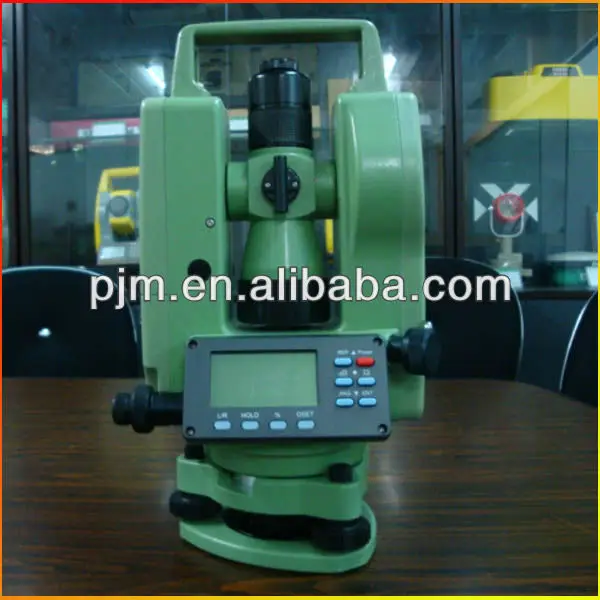

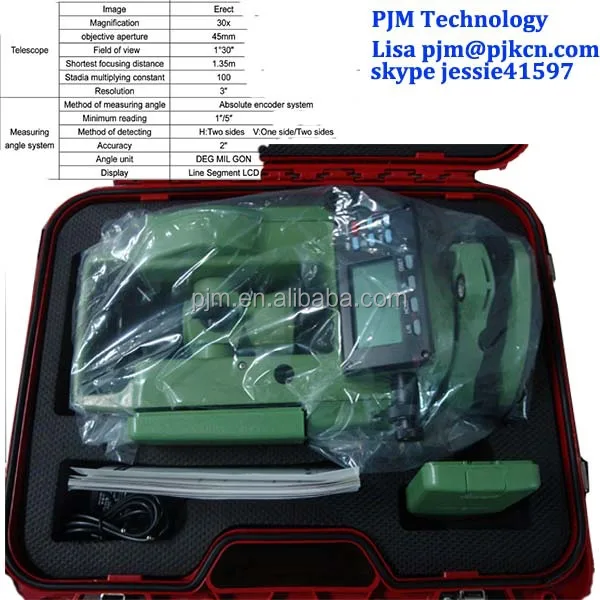

The laser theodolite pictures as below:







Payment Terms:

Delivery time: Ready Stock

Payment terms: T.T i advance, WU, ESCROW

WARRANTY: ONE year

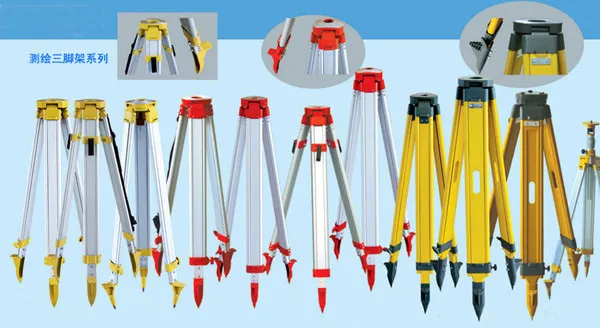

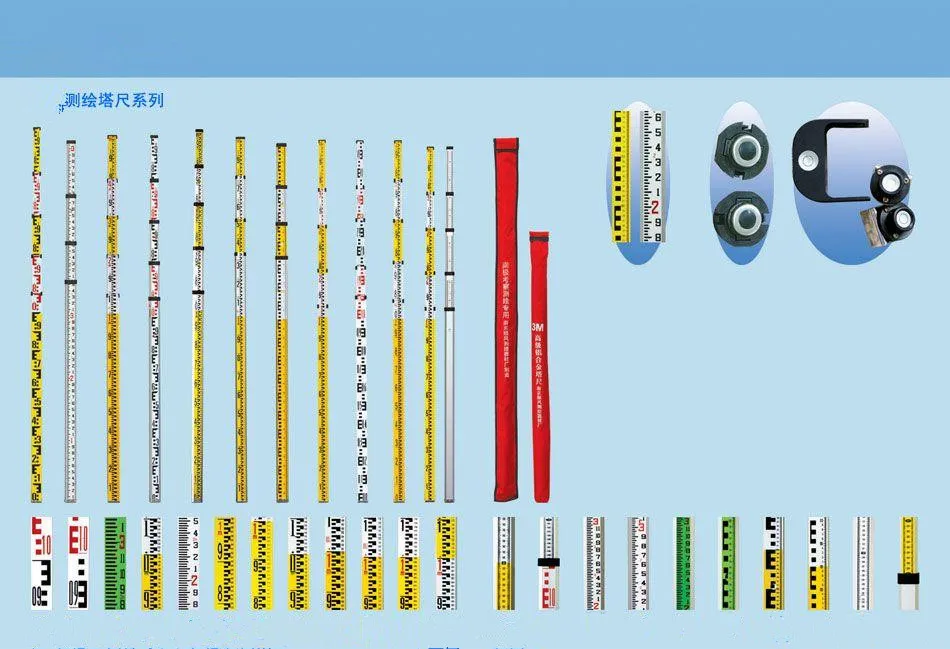

AVAILIABLE THEODOLITE ACCESSORIES AS BELOW;
