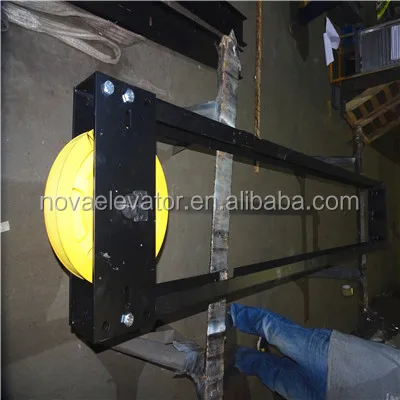

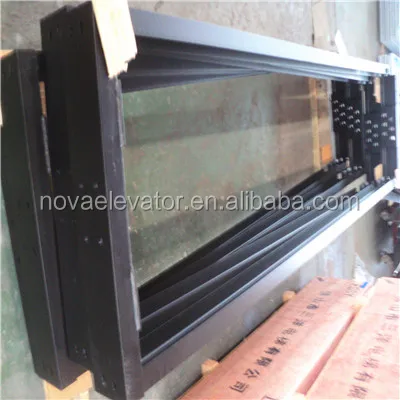

High quality Counter Weight Frame for Lift,Elevator Car Frame

Product Overview

Description

Elevator car frame, Elevator Cabin Frame, Lift Car Platform,Elevator Car Platform for Elevator Cabin, Car Frame for Passenger Elevators





Roping 1:1 and 2:1 Car/ Cabin Frame, Lift Car/ Cabin Frame, Elevator Accessories











Nova has been supplying roping 1:1 and roping 2:1 elevator car frame with different specifications and types as per customers’ request with its properties as below:

- For Passenger Car Lifts
- For Traction Car Lifts with roping 1:1, 2:1
- For Hydraulic Car Lifts, with direct & indirect actions
- For different capacities of 320 kg to 4000 kg
- For different dimensions of DBG
- Easy installation
- Standard export package

Nova standard car frame includes several assemblies listed as below:
1. Cross Beam(1 PC),Upright(2 PCS)and Bottom Beam(1 PC)
2. Limit Switch Touching Plate (1 PC)
3. Car Side Pulling Rod (4 PCS)
4. Oil Can (2 PCS)
5. Guide Shoes (4 PCS)
6. Lifting Pulling Rod For Safety Gear (1 PC or 2 PCS)
7. Safety Gear (1 Pair)
8. Safety Gear Linkage (1 PC)
9. Safety Gear Switch (1 PC)

Besides, we also supply extra assemblies as below:
10.Suppoting Bracket
11. Load Weighing Device
12. Buffer Striking End
13. Suspension Device (rope suspension or pulley sheave)

Nova can design and make elevator car frame as per customers' drawings.



Nova welcomes you to visit our website or email us to get elevator car frame preliminary inquiry sheet for your selection to meet your specific requirements.
