Современный дизайн, профессиональный производитель виллы, Лифт

Share on (60494401061):


Price:15 000,00 $ - 20 000,00 $

Quantity:


Product Overview

Description


modern design professional manufacturer villa lift



Product Description



Villa Lift Specification

Commodity name

Villa elevator/lift

Model

DEEOO-villa elevator

Loading of the elevator

320kg/400kg

Speed

0.4m/s

Car wall

Full sightseeing,mirror or titanium coated stainless steel

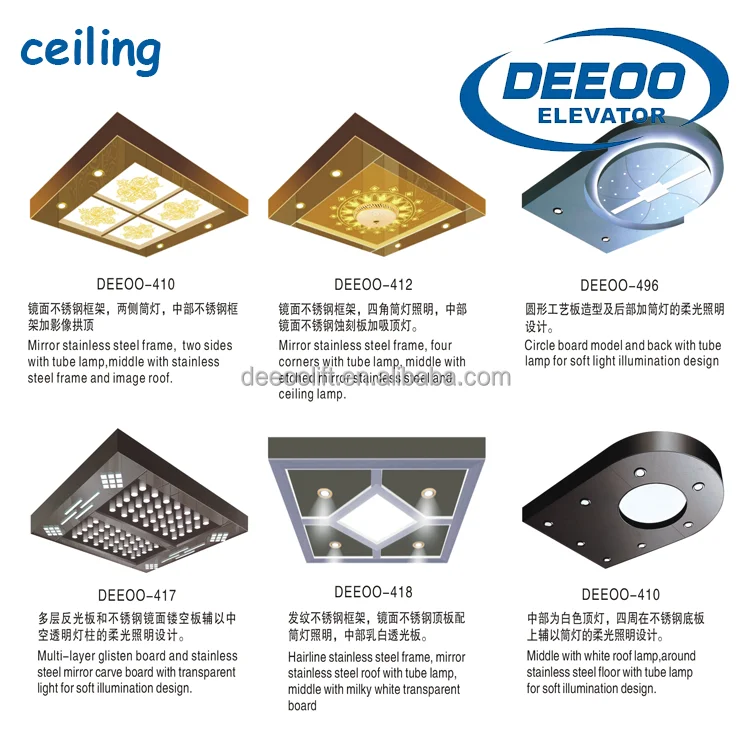

Car ceiling

Stainless steel frame with transparent tempered glass or wired glass

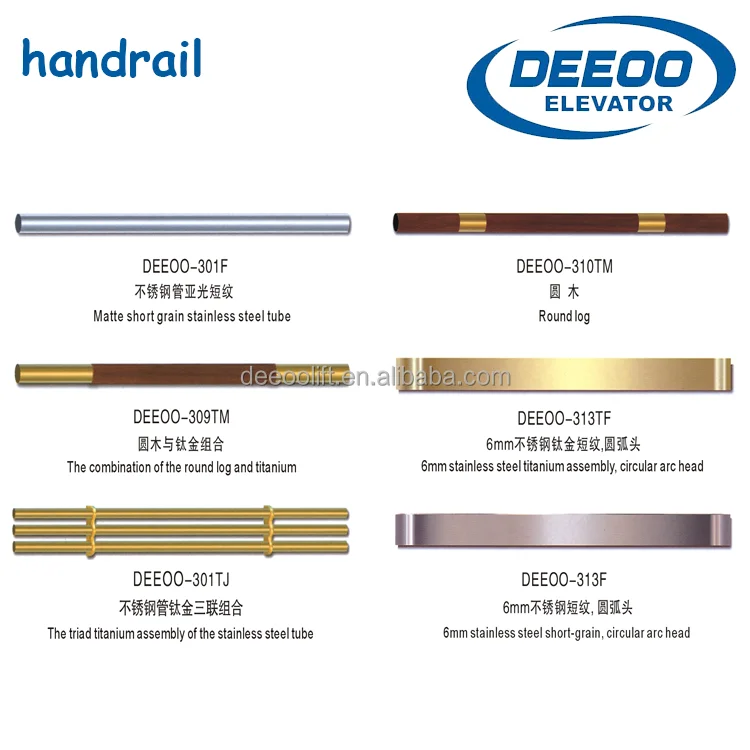

Handrail

Stainless steel single tube or optical

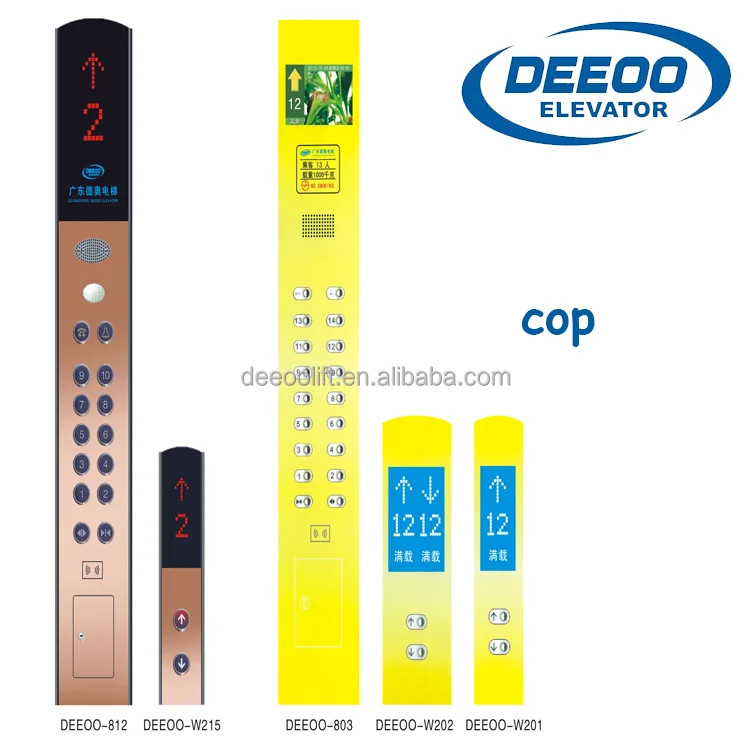

Car operation panel

option

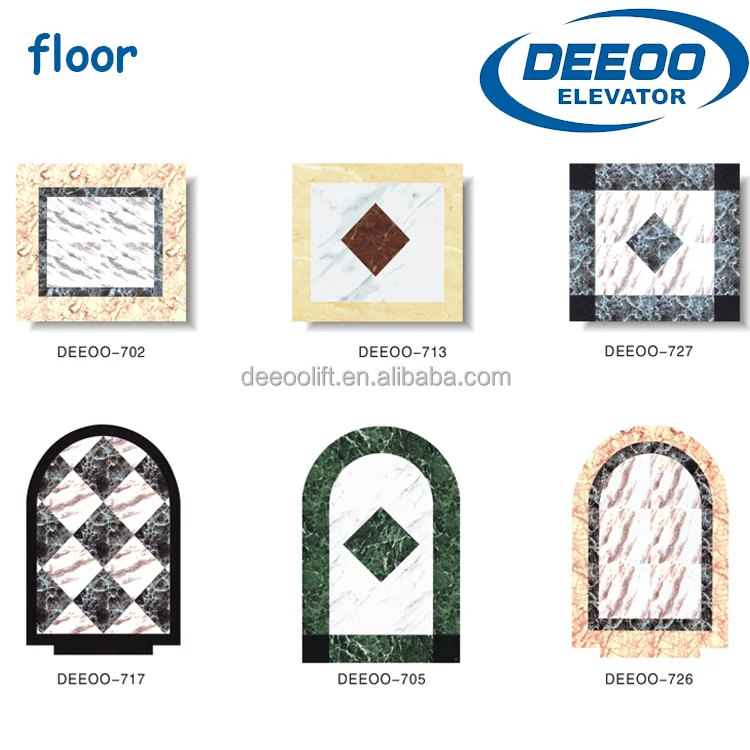

Floor

PVC floor



Villa Lift advantage



1.eco-friendly and save energy:using 220V and power consumption is low.

2.Unique:no pit and construction shaft.

3.Suitable:different villas with various structures.

4.Style:suitable all kinds of the decoration style.



Villa Lift Usage



Individual villa

Indoors

New construction

Twins villas

Outdoors

Repaired building

Jump layer residence



Villa Lift Element(option)



Villa elevator parts.jpg



Villa Lift Parameters



1.Counter weight post position

capacity

speed

Car size

(mm)

Door size

Min net height of overhead

Net pit depth

Door size

(mm)

kg

m/s

CW*CD(inner)

HW*HD

OH(mm)

PP(mm)

type

JJ*HH

320

0.4

1050*900

1600*1750

3000

1100

2pcs side open

700*2100

400

0.4

1200*950

1700*1800

3000

1100



2.counter weight side position

capacity

speed

Car size

(mm)

Door size

Min net height of overhead

Net pit depth

Door size

(mm)

kg

m/s

CW*CD(inner)

HW*HD

OH(mm)

PP(mm)

type

JJ*HH

320

0.4

900*1050

1650*1500

3000

1100

2pcs side open

700*2100

400

0.4

900*1200

1700*1900

3000

1100



Villa Lift Show

villa elevator.jpg

Packaging & Shipping

Package:

plywood suitable for export package and long ocean transportation.

Shipping:

45-60 days after signing the contract.

DEEOO elevator_packing and shipping.jpg

Our Services

Product Process

product process.jpg

Why Choose Us?

♥Professional services: we provide professional advice from the quotation till elevator installation finish.

♥High quality technology: we have professional R&D team and sales team.

♥Competitive price: we have done the elevator for more than 20 years and we can give you competitive price.

♥Good after-sale services: we provide fast and professional after-sale services when elevator installation and debugging.

Kindly noted that skilled engineer can be sent to customer place to guide elevator installation and debugging on customer demands.

All DEEOO elevators have 1 year warranty.

competitive advantage.jpg

Company Information

DEEOO elevator work teams & customers

DEEOO elevator_sales team.jpg

DEEOO elevator engineers at site

DEEOO elevator_engineers.jpg

DEEOO elevator working places

DEEOO elevator_working environment.jpg

DEEOO elevator samples

DEEOO elevator_sample room.jpg

DEEOO elevator_show.jpg

DEEOO elevator certifications

DEEOO elevator_certification.jpg

FAQ

Q1. Are the elevator wire ropes durable?

A:The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.

Q2.Is it dangerous for power failure suddenly during the elevator running?

A:If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure, elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.

Q3. Will us be hurt when it closed suddenly?

A:In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.

Q4.How the elevator running?

A:Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.

Q5. Do you have any certifications?

A:Yes, we do with CE, KLA,CSA and UL Certificates for u.

Q6.Does your company accept customized offer, we have special need?

A:DEEOO is a company that has more than 20 years OEM experience and strong capability in researching and manufacturing elevator . We are very willing to offer you highly-efficient customized elevator as long as you have certain amount of needs.

Q7.If your engineer come to our country to fix the elevator and do some training, how much will it cost?

A:The cost mainly contain the cost of round-trip flight tickets, board and lodging as well as visa fee. Staff cost is normally 200USD/day/person. But it will depend on a large equipment or installation and debugging of the complete elevator.

Q8:What is your payment terms?

We can accept T/T,Western Union,credit card,etc.

Deposit:50% of total contract amount within 3days after the contract day;

Balance:50% of total contract amount within 3days before the shipment.

Contact:Moon

If you like our elevators or want to vist our factory,plz kindly do not hesitate to contact me!

DEEOO elevator_contact.png
