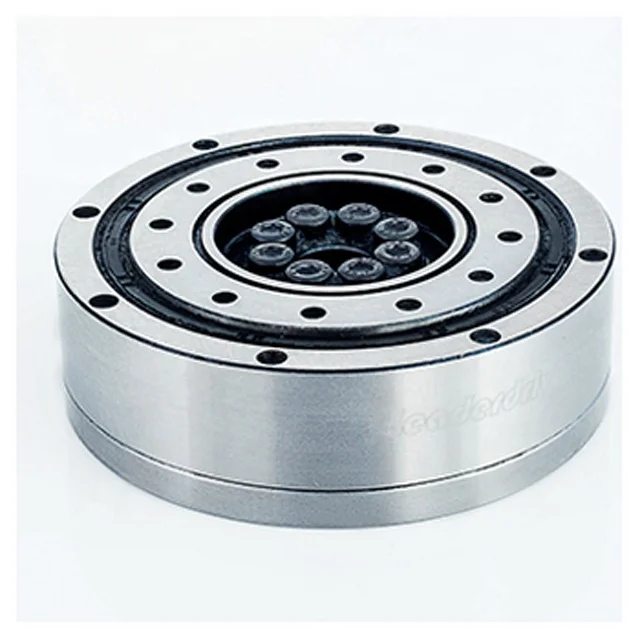

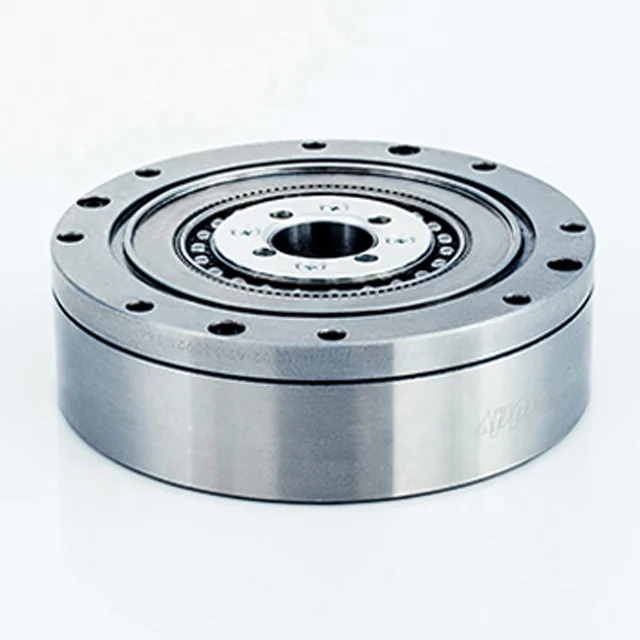

Ultra Flat XSD Series harmonic drive gearbox
- Category: Power Transmission >>>
- Supplier: Ningbo Totel Imp. & Exp. Co. Ltd.
Share on (1650200228):
Product Overview
Description
Overview
XSD-2UH series ,It's more compact than XSF Series/Gearheads type (2UH) which has the same torque capacity.
Furture:
High torque capacity
High rigidity
Backlash less than 20 arcmin
Model Ordering Code
|
XSD - |
20 - |
100 - |
2UH - |
SP |
|
1 |
2 |
3 |
4 |
5 |
|
1. |
Name of Model |
XSD Series |
|
2. |
Size |
14,17,20,25,32,40,50 |
|
3. |
Gear Ratio |
50, 100, 160 |
|
4. |
Model 2UH |
|
|
5. |
SP |
Used for Customized Specification only Standard product |
Lists of Ratings

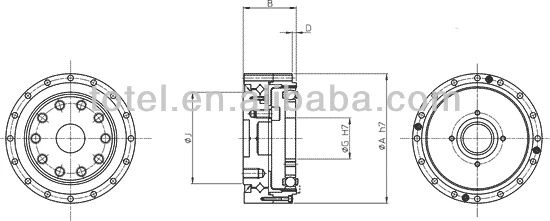

Product Drawings and Lists of Dimensions
Unit :mm
|
Symbol/ Size |
14 |
17 |
20 |
25 |
32 |
40 |
50 |
|
øA h7 |
55 |
62 |
70 |
85 |
112 |
126 |
157 |
|
B |
25 |
26.5 |
29.5 |
37.1 |
43 |
51.7 |
62.5 |
|
D |
2 |
2 |
2 |
3 |
3 |
4 |
4 |
|
øG H7 |
11 |
15 |
20 |
24 |
32 |
40 |
50 |
|
øJ |
31 |
38 |
45 |
58 |
78 |
90 |
112 |
|
Mass (kg) |
0.35 |
0.46 |
0.65 |
1.2 |
2.4 |
3.6 |
6.9 |
Position accuracy
