Автоклавный стерилизатор для мешков, бутылок, консервированных продуктов

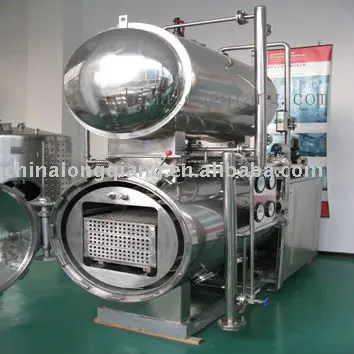

Retort sterilizer

Characteristics of the equipment

1. Uniform heat distribution, no dead angles

The circulating water in the double tank water tank retort continuously flows toward the up, down, left and right directions, thus making sure that every point in the retort gets the same temperature during the heating, temperature preservation and cooling processes. Therefore, the packed food in different position of baskets will be heated uniformly, effectively preventing the dead angles in the sterilization processing, which make sure the uniformity of temperature and heat exchange, lower the possibilities of over cooking and guarantee accurate F value.

2. High temperature and short time sterilization

This water tank retort adopts the double tank cycled hot water to sterilize. Firstly, it heats up the water to the required temperature in advance (except the multi period sterilization), thus shortening the sterilization time and achieving higher efficiency.

 3. High sterilizing temperature

Designed based on the latest technology, this water tank retort utilize recycling hot water to sterilize. During the sterilization processing, all the data like temperature, pressure, sterilization time, water and air, etc. are automatically controlled. The floating temperature is controlled to higher or lower than 0.5℃at most.

4. Energy saving

The medium water used during the sterilization can be used repeatedly, thus saving the energy, time, manpower and materials, and reducing the whole production cost.

5. Fully automated system

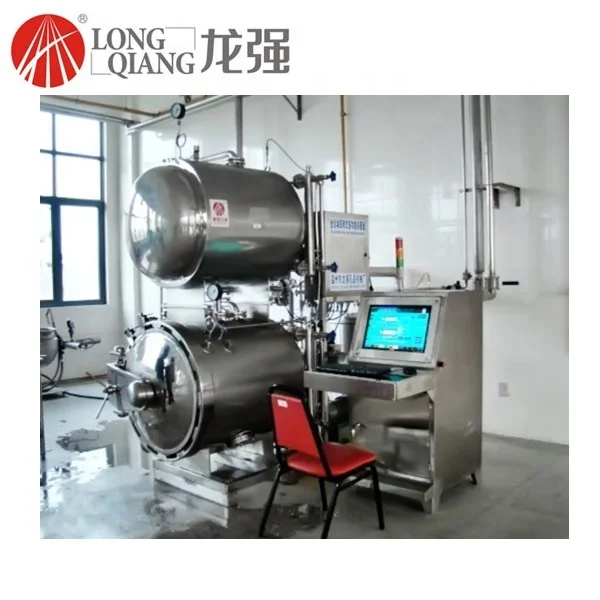

A. controlling through the touching screen and PLC

B. Controlled by the digital reactor and automatic valves during all the periods C. This water tank retort can fulfill the multi-period sterilization according to the technical requirements.

D. Pressure and temperature are digitally displayed.

E. All the processes can be recorded to the disks.

F. There are various sterilization modes pre-set for you to choose from. A maximum of 250 sterilization formulas are available. The whole sterilization processing is fully automated. So, our water tank retort is a labor saving sterilization solution.
6. This double tank water tank retort adopts the simulated temperature controlled system, so users can set multi-period heating modes.

According to different requirements of different food products, users can set different heating and cooling procedures, and use the multi period heating sterilization mode and secondary cooling mode.

7. F value measuring function (optional)

Each set of water tank retort can be designed with F value measuring function .Being treated by the data processing software, all the sterilization data, including sterilization conditions, F value, time-temperature curve and time-pressure curve will be saved or printed, which offers convenience to production management.

Technical Parameters
