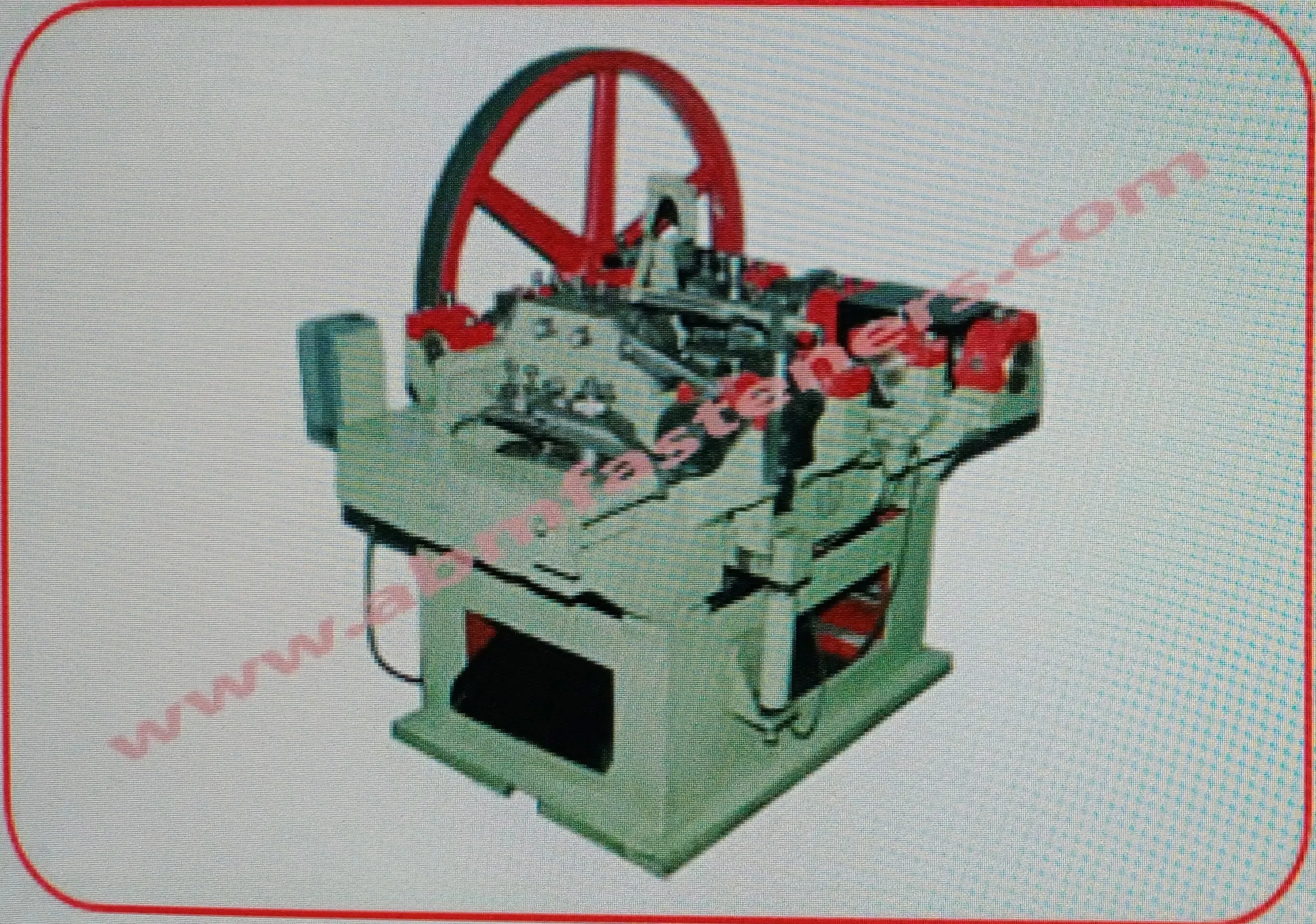

Автоматическая машина для производства гвоздей для конского башмака

Product Overview

Description

FEATURES

This machine is used to Forming Head and Stem.



SPECIFICATION



Item Code No.	ABM-FM-6620	ABM-FM-6621
Size of Nail (Length)	No. 2 (1.5"), No. 3 (1.75"), No. 4 (2") & No. 5 (2.15")	No. 2 (1.5"), No. 3 (1.75"), No. 4 (2"), No. 5 (2.15"), No. 6 (2.35"), No. 7 (2.5")
Wire Diameter	7 Gauge / SWG	7.6 & 5 Gauge / SWG
Production Capacity	90 Nail per Minute	70 Nail per Minute
Motor Required	7.5 H.P.	7.5 H.P.
Net Weight of Machine	2300 Kg.	2600 Kg.
Gross Weight of Machine	2800 Kg.	3200 Kg.



AUTOMATIC FABRICATOR MACHINE (For Point Cutting and Edge Chamfering)



FEATURES

For Point Cutting and Edge Chamfering.



SPECIFICATION

Item Code No.	ABM-FM-6630	ABM-FM-6631
Size of Nail (Length)	No. 2 (1.5"), No. 3 (1.75"), No. 4 (2") & No. 5 (2.15")	No. 2 (1.5"), No. 3 (1.75"), No. 4 (2"), No. 5 (2.15"), No. 6 (2.35"), No. 7 (2.5")
Production Capacity	70 Nails per Minute	50 Nails per Minute
Motor Required	1 H.P.	2 H.P.
Net Weight of Machine	500 Kg.	850 Kg.
Gross Weight of Machine	600 Kg.	1000 Kg.
