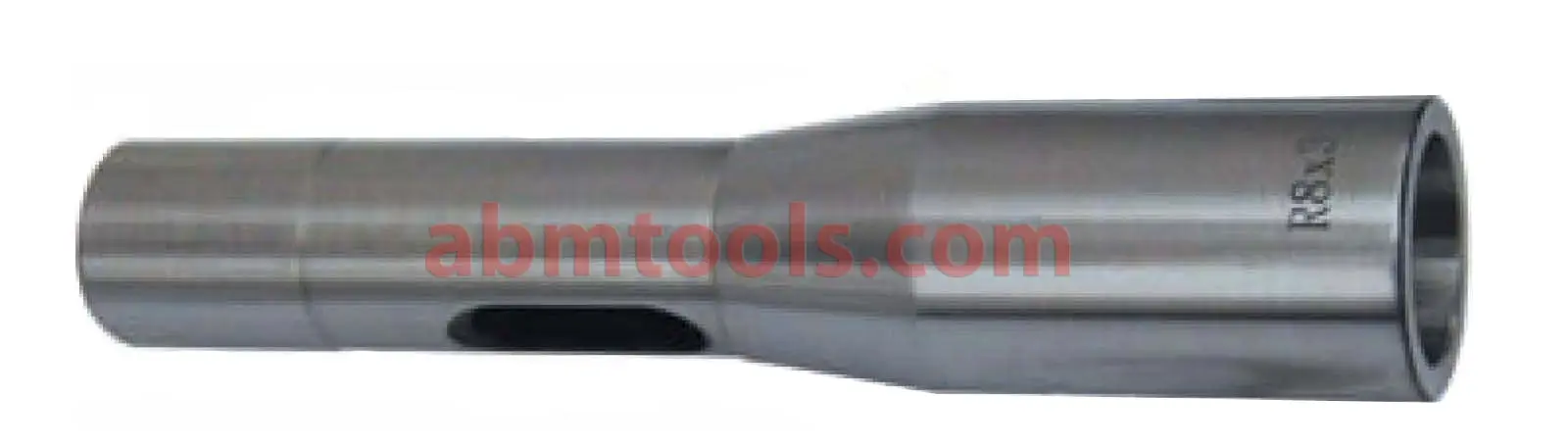

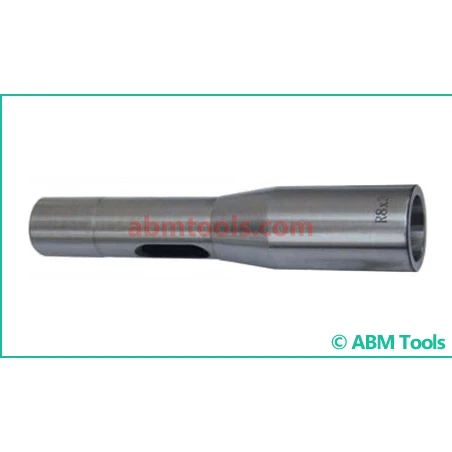

Stub Milling Arbor
US $3.00
Product Overview
Description
• Manufactured to precision from case hardened steel.
• Concentricity within 0.015 mm Internal Taper as per DIN 228 and external Taper R8.
Item Code No. | Outside Taper | Inside Taper | Draw Bar Thread | Overall Length | |
Inch | mm | ||||
ABM-IMT-4140 | R 8 | MT1 | 7/16” UNF | 5 | 125 |
ABM-IMT-4141 | R 8 | MT2 | 7/16” UNF | 5 | 125 |
ABM-IMT-4142 | R 8 | MT3 | 7/16” UNF | 6 | 150 |
ABM-IMT-4143 | ISO 30 | MT2 | 1/2” or 12 mm | 6 | 150 |
ABM-IMT-4144 | ISO 30 | MT3 | 5/8” or 16 mm | 6 | 150 |
ABM-IMT-4145 | R 8 | MT4 | 7/16” UNF | 9-3/8 | 245 |
