LECO 528-018 ceramic carbon sulfur crucible
US $8.00-$12.00
Japan high quality insulation mica machinable ceramics for industry
- Category: Ceramics >>>
- Supplier: YUTAKA CORPORATION
Share on (1700001702404):
Product Overview
Description
Products Description
PHOTOVEEL

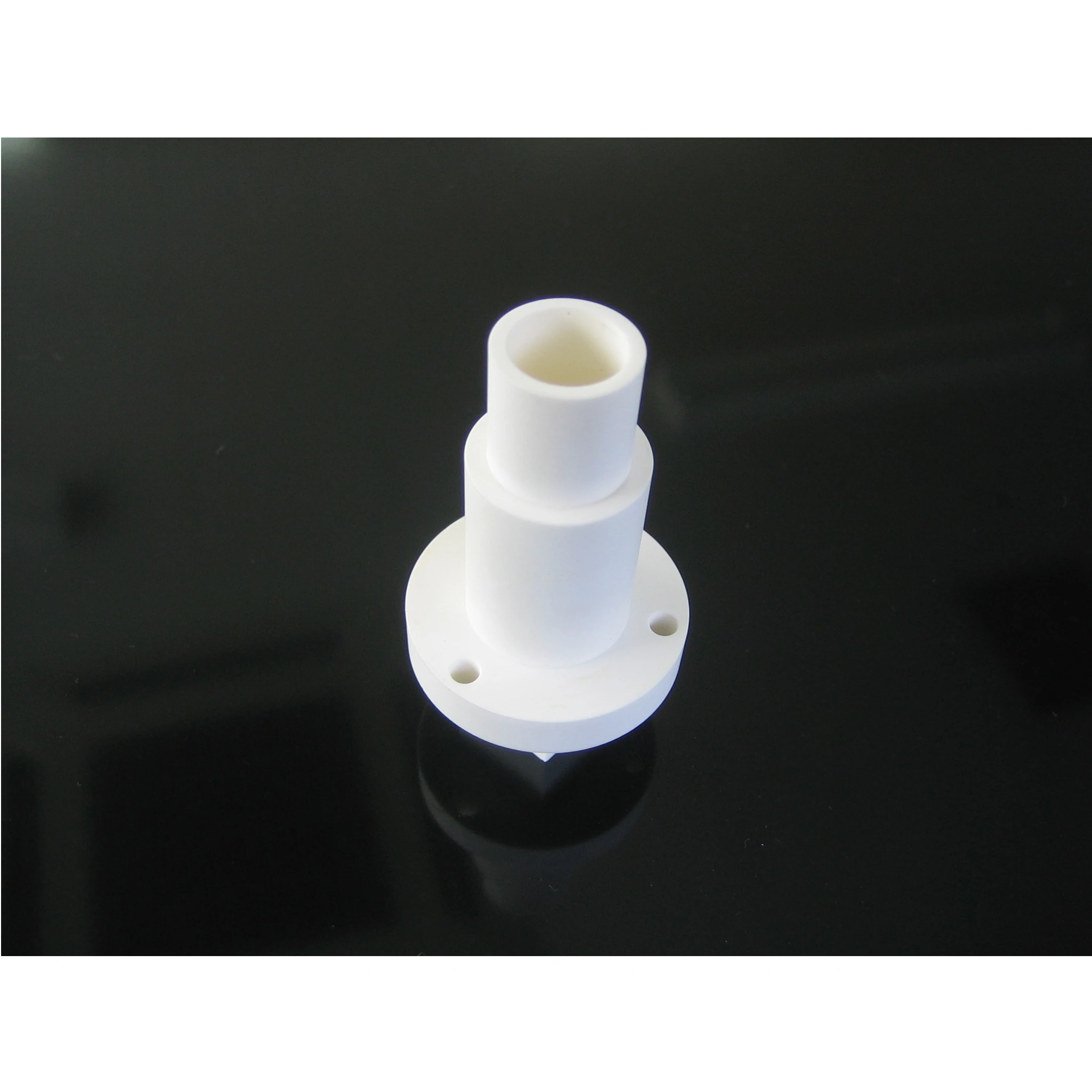

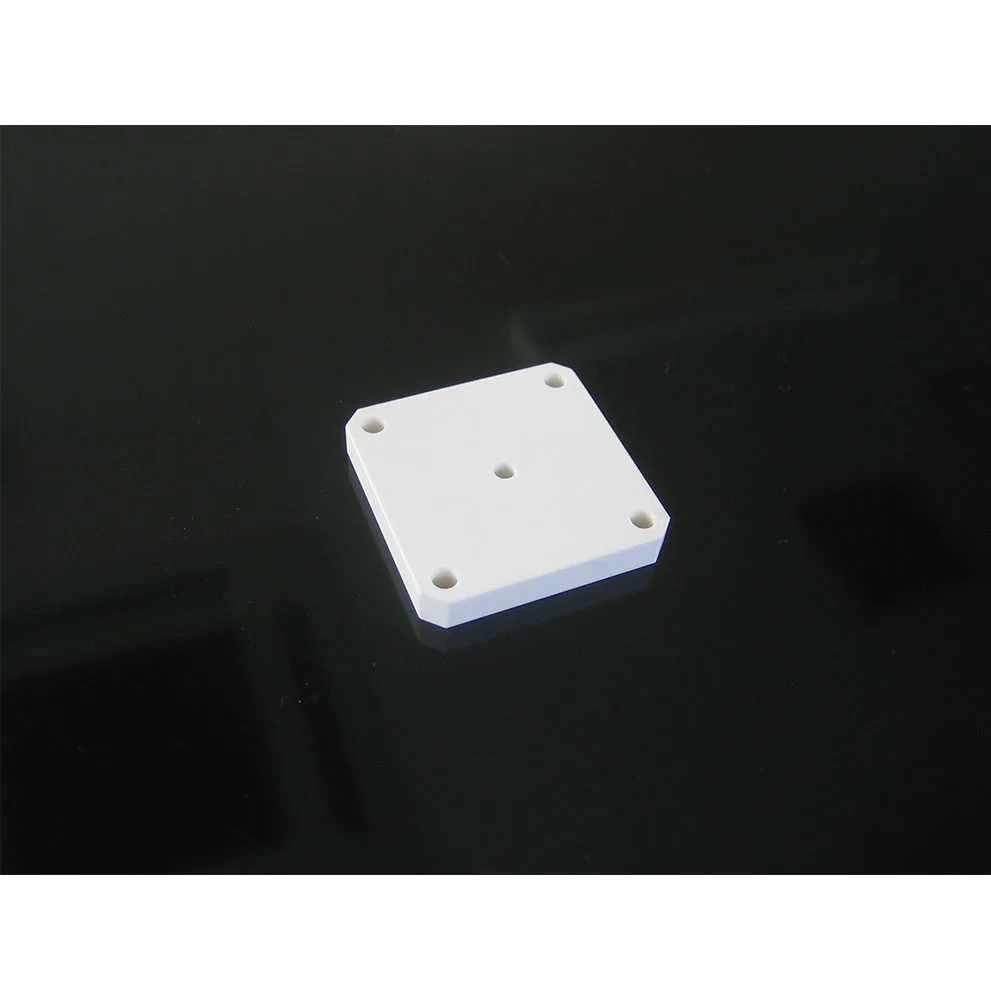

PHOTOVEEL is a mica based machinable ceramics (ceramics with excellent machining characteristics).
The excellent machining characteristics of PHOTOVEEL allows a creation of complex shapes and micron-order accuracy.
Size of Blank Material :
Thickness : 1～50mm
Length X Width : 300X300 mm
Applications :
Semiconductor manufacturing equipment parts
LCD manufacturing equipment parts
Vacuum equipment parts
Analyzer parts
Insulation parts
Delivery Form of PHOTOVEEL :
Please choose from among the following three types of the delivery form of PHOTOVEEL.
Finished Product
Finished product after machining such as cutting, grinding and drilling based on your drawing will be supplied.
Board Cut to Specified Dimensions
Board without machining such as drilling, etc. and in the form of simply cutting the material according to the specified dimensions will be supplied.
Blank Material
Blank material without any machining will be supplied.
The excellent machining characteristics of PHOTOVEEL allows a creation of complex shapes and micron-order accuracy.
Size of Blank Material :
Thickness : 1～50mm
Length X Width : 300X300 mm
Applications :
Semiconductor manufacturing equipment parts
LCD manufacturing equipment parts
Vacuum equipment parts
Analyzer parts
Insulation parts
Delivery Form of PHOTOVEEL :
Please choose from among the following three types of the delivery form of PHOTOVEEL.
Finished Product
Finished product after machining such as cutting, grinding and drilling based on your drawing will be supplied.
Board Cut to Specified Dimensions
Board without machining such as drilling, etc. and in the form of simply cutting the material according to the specified dimensions will be supplied.
Blank Material
Blank material without any machining will be supplied.
Our Advantages
1.MACHINABLE
Can be machined by using Machining Centers and NC lathes
2.HIGH HEAT RESISTANT TEMPERATURE
Heat resistant temperature : 1000 degrees celsius
3.QUICK DELIVERY
Short delivery time because no sintering is required after machining
Can be machined by using Machining Centers and NC lathes
2.HIGH HEAT RESISTANT TEMPERATURE
Heat resistant temperature : 1000 degrees celsius
3.QUICK DELIVERY
Short delivery time because no sintering is required after machining
Product Paramenters
Units | PHOTOVEEL | |
Heat Resistant Temperature | degrees celsius | 1000 |
Coefficient of Thermal Conductivity | W/m・k | 1.5 |
Thermal Expansion Rate | 1/degrees celsius | 7.8X10-6 |
Bending Strength | Mpa | 150 |
Young's Modulus | Gpa | 66 |
Hardness | Gpa | 2.2 |
Electrical Resistivity | Ω・cm | 1015 |
Dielectric Constant | 6.4 | |
Specific Gravity | 2.59 | |
Water Absorption | ％ | 0 |
Listed values are measured, it is not a guaranteed value.
Heat resistant temperature is for reference only, and varies depending on the operating conditions.
Company Introduction
We are experts in manufacturing and supplying plastics, ceramics and heat(thermal) insulation/heat(thermal) resistant materials products mainly for machinery parts.
We use machine tools such as Machining Centers and NC lathes to process a variety of plastics, ceramics and heat(thermal) insulation/heat(thermal) resistant materials.
Our product line encompasses a wide range of plastics, ceramics and heat (thermal) insulation materials and we are especially adept at using materials that are difficult to machine including the following ;
1.Heat (thermal) insulation and heat (thermal) resistant materials (rigid heat insulation boards that are generally made of glass fiber, cement and mica as the main raw material)
2.Composite of glass fiber or carbon fiber and plastics (FRP, GFRP and CFRP).
3.Fine ceramics
We use machine tools such as Machining Centers and NC lathes to process a variety of plastics, ceramics and heat(thermal) insulation/heat(thermal) resistant materials.
Our product line encompasses a wide range of plastics, ceramics and heat (thermal) insulation materials and we are especially adept at using materials that are difficult to machine including the following ;
1.Heat (thermal) insulation and heat (thermal) resistant materials (rigid heat insulation boards that are generally made of glass fiber, cement and mica as the main raw material)
2.Composite of glass fiber or carbon fiber and plastics (FRP, GFRP and CFRP).
3.Fine ceramics
