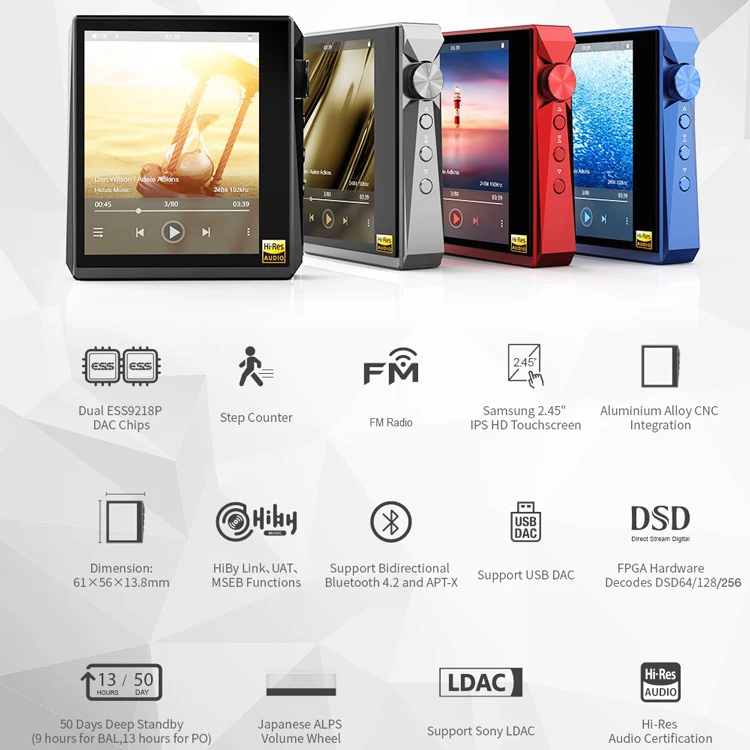

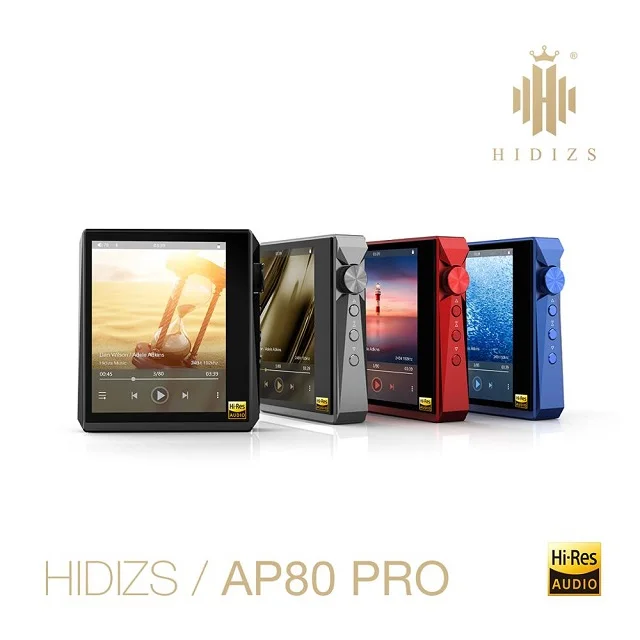

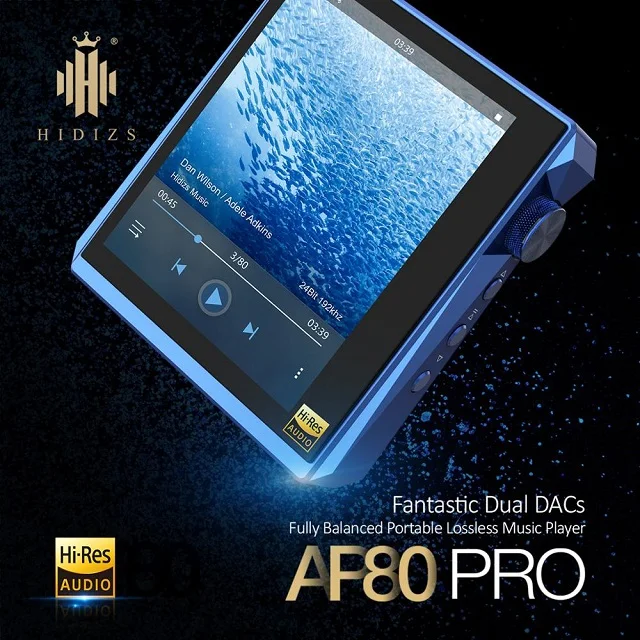

HIDIZS AP80 PRO touch screen bluetooth mini lossless HI FI portable MP3 music player

Difference between single-ended and balanced headpone output

Single-ended Headphone Output

• Rated Output Power: 70mW+70mW@32Ω
• Frequency Response: 20-90kHz
• Total Harmonic Distortion+Noise: 0.0015%(1kHz)
• Dynamic Range & Signal-to-Noise Ratio:115dB & 119dB
• Channel Separation: 70dB(1kHz,A-weight,Rated Output)

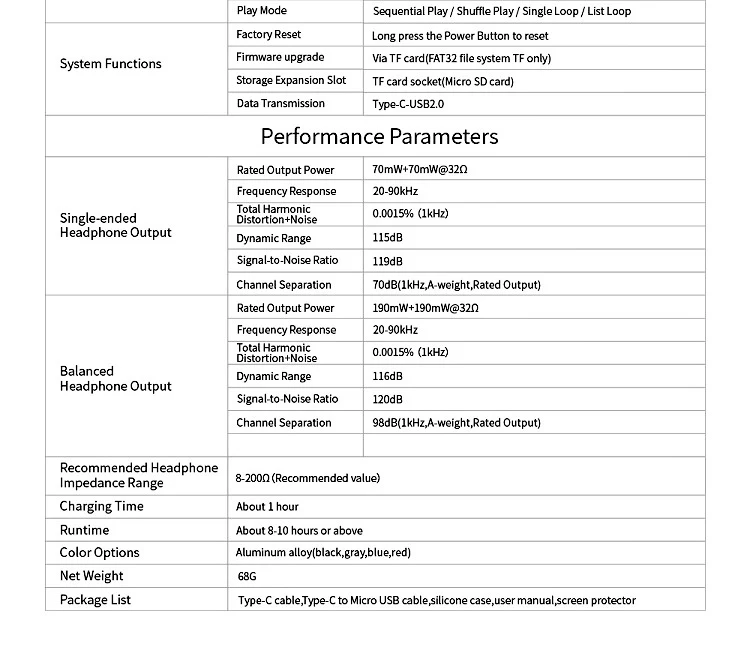

Balanced Headphone Output

• Rated Output Power: 190mW+190mW@32Ω
• Frequency Response: 20-90kHz
• Total Harmonic Distortion+Noise: 0.0015%(1kHz)
• Dynamic Range & Signal-to-Noise Ratio:116dB & 120dB
• Channel Separation: 98dB(1kHz,A-weight,Rated Output)
• Recommended Headphone Impedance Range: 8-200Ω(Recommended value)
• Charging Time: About 1 hour

 Why Should Choose Our AP80 PRO HIFI Bluetooth MP3 Player?

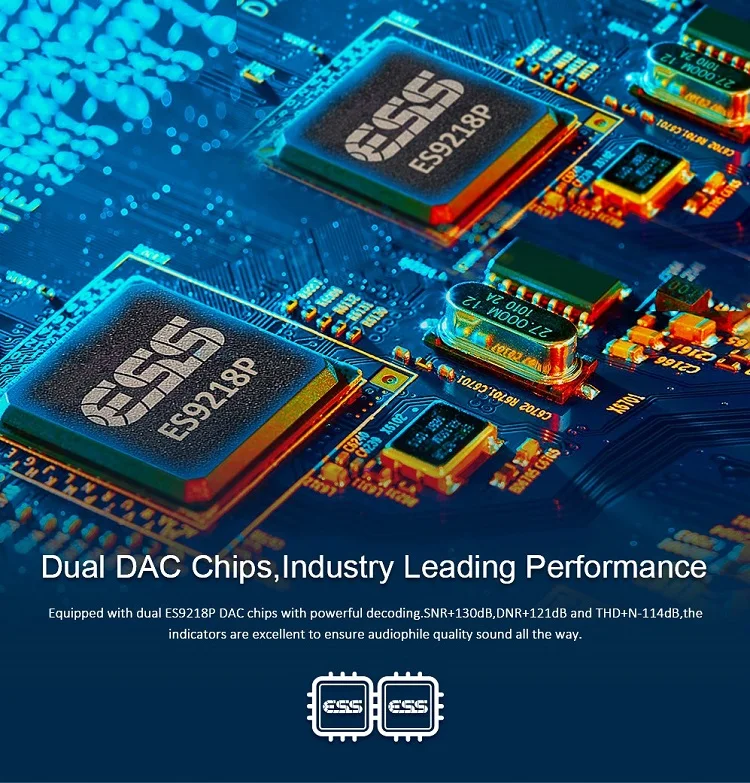

Dual DAC Chips, Excellent Performance

 Equipped with dual ESS9218P DAC chips with powerful decoding.SNR+130dB,DNR+121dB and THD+N-114dB,the indicators are excellent to ensure audiophile quality sound all the way.

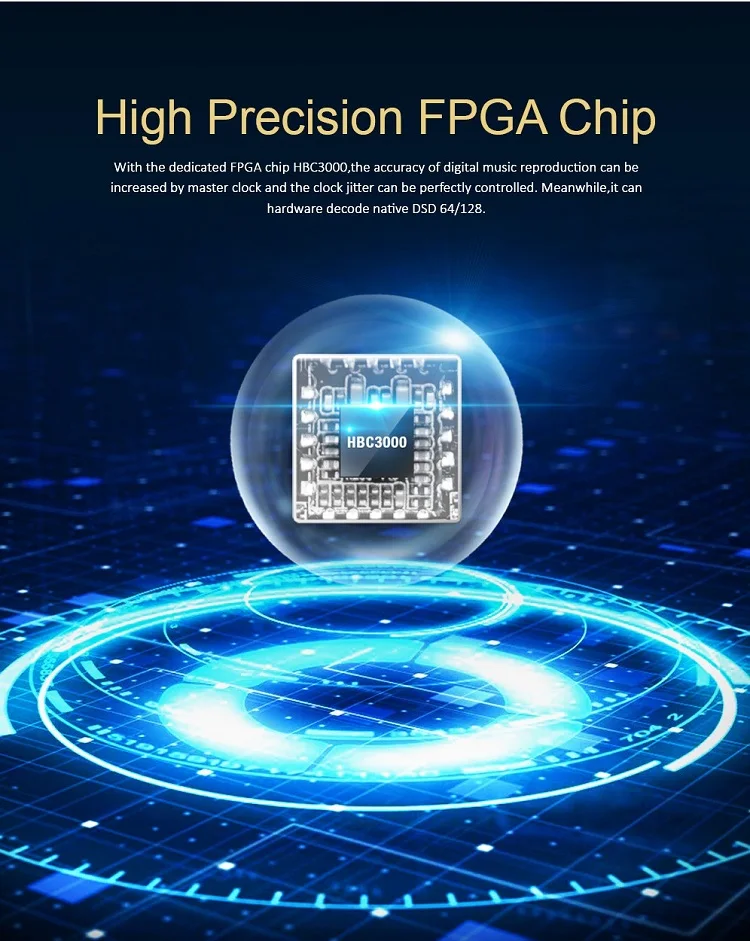

High Precision FPGA Chip

With the dedicated FPGA chip HBC3000,the accuracy of digital music reproduction can be increased by master clock and the clock jitter can be perfectly controlled. Meanwhile,it can hardware decode native DSD 64/128/256.

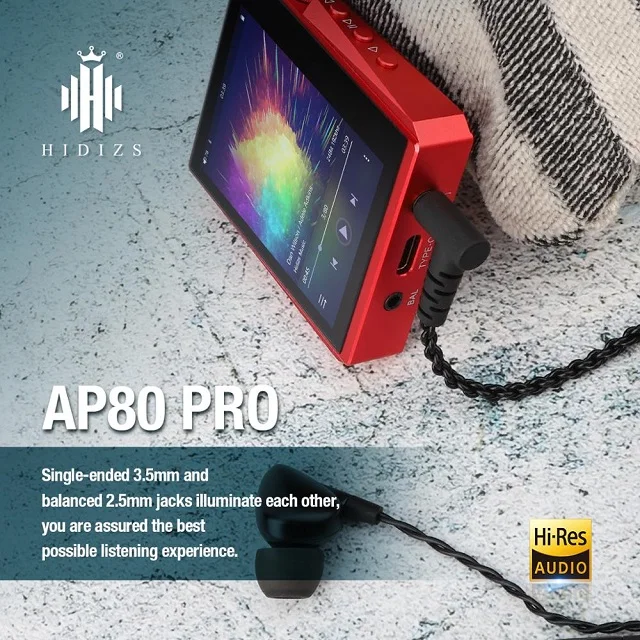

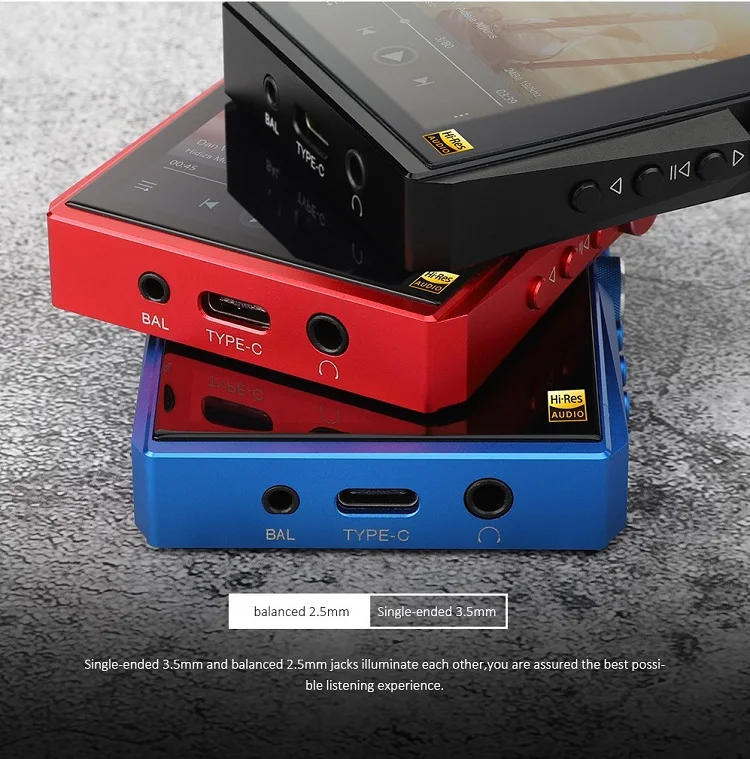

3.5mm Stereo Port & 2.5 Balanced Port

Single-ended 3.5mm and balanced 2.5mm jacks illuminate each other, you are assured the best possible listening experience.

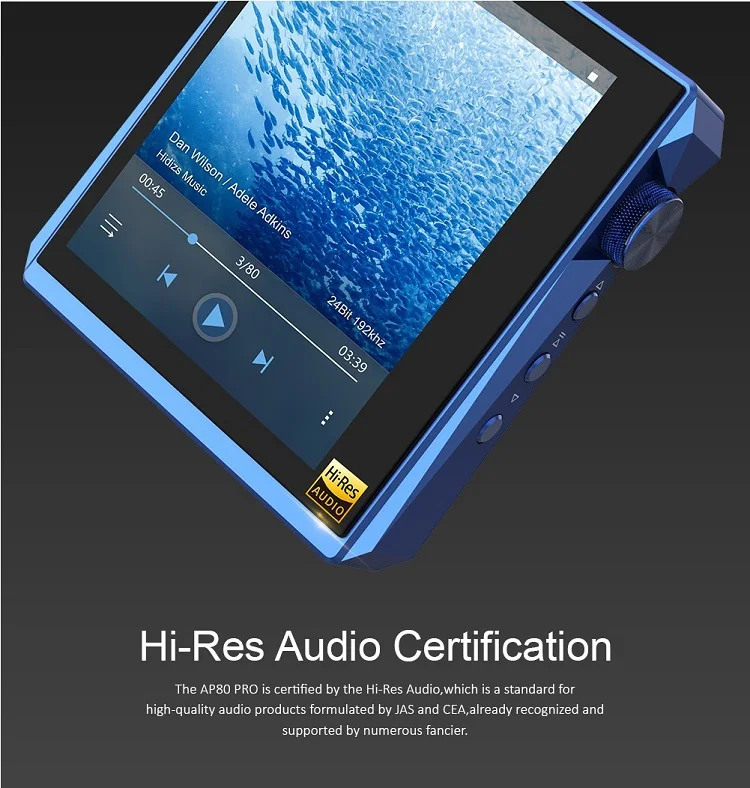

Hi-Res Audio Certification

The AP80 PRO is certified by the Hi-Res Audio,which is a standard for high-quality audio products formulated by JAS and CEA,already recognized and supported by numerous fancier.

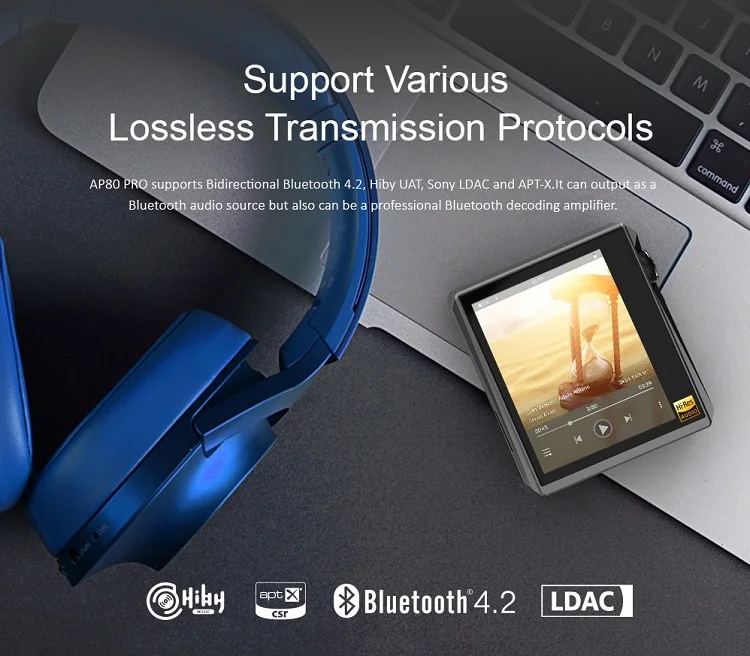

Support Various Lossless Transmission Protocols

AP80 PRO supports Bidirectional Bluetooth 4.2, Hiby UAT, Sony LDAC and APT-X.It can output as a Bluetooth audio source but also can be a professional Bluetooth decoding amplifier.

UAT -Ultra Audio Transmission

UAT is an all-new Bluetooth audio codec developed by HiBy. Supporting an industry-highest sample rate of 192kHz at an industry-highest data bandwidth of 1.2Mbps,even adapt and optimize itself to different music genres.

FM Radio-Listen to The Voice From The World

 Please turn in on radios if lack of interest in music.Massive high-quality radio programs,such as finance,entertainment,health,emotional story,etc.You will never feel lonely and helpless.

Powerful Step Counter Function

 With the high-precision step counter function,AP80 PRO can provide accurate outdoors workouts data to lead to absolute harmony of music, life and sports.

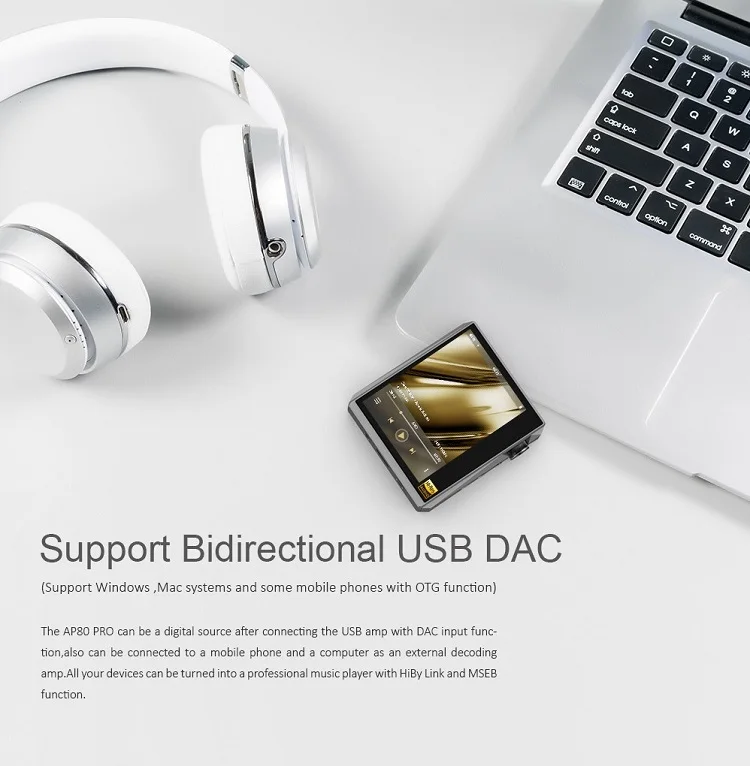

Support Bidirectional USB DAC

 The AP80 PRO can be a digital source after connecting the USB amp with DAC input function,also can be connected to a mobile phone and a computer as an external decoding amp. All your devices can be turned into a professional music player with HiBy Link and MSEB function.

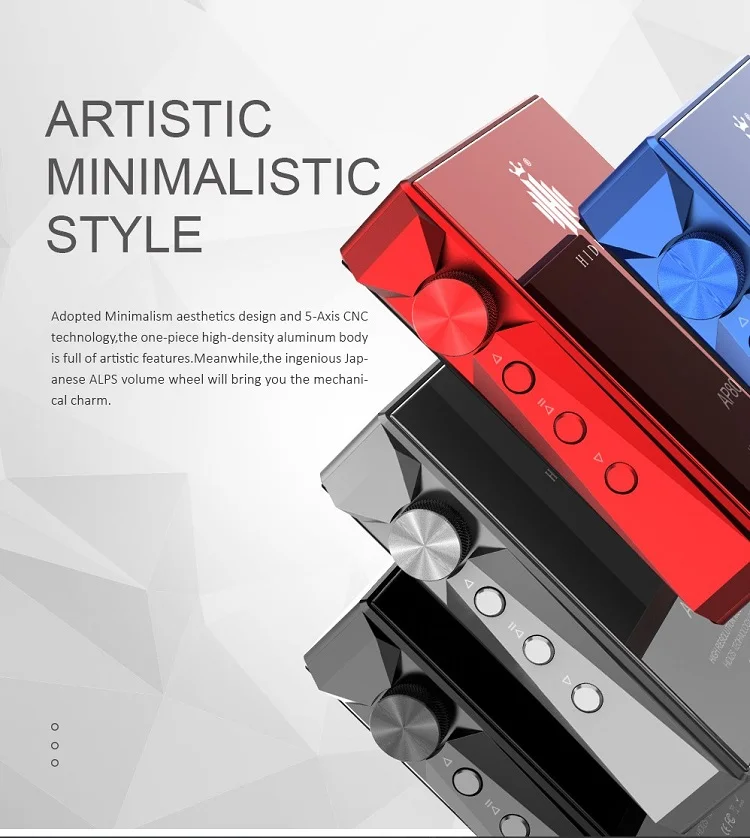

 Artistic Minimalistic Style

Adopted Minimalism aesthetics design and 5-Axis CNC technology,the one-piece high-density aluminum body is full of artistic features.Meanwhile,the ingenious Japanese ALPS volume wheel will bring you the mechanical charm.

Long Battery Life for Long Hours of Fun with You

50 days of deep standby and 13 hours of continuous playback mean no need to take much time and effort for charging. In the music journey.The 80PRO will make all it can to accompany you for a longer time. Note:9 hours for BAL,13 hours for PO.

 Get An Extraordinary Touch-Screen Experience

Samsung 2.45" (480×360) IPS HD touchscreen with clear picture quality,fast response time,rich visual details and comfortable viewing experience.

Product Specification

• Maximum Storage Expansion: 512G; Operating System: HiBy OS 3.0
• Bluetooth: Bidirectional BT4.2,support APT-X and LDAC
• USB Port:Type-C interface, support bidirectional USB DAC
• Remote Operation: Support HiBy Link (Hiby App need to be installed on the mobile phone or tablet)
• Hardware Decodes DSD Support: DSD64/128/256; PCM Support: 384kHz/32Bit
• Single-ended/balanced Headphone Output: 3.5mm stereo port,2.5 balanced port
• Headphones with Mic: Compatible; Power Adapter: DC 5V 2A
• Charging Interface: Type C interface,Type C special cable
• Battery and Battery Life: 800mAh 3.7V Li-Polymer Battery, PO interface:8-11 hours runtime, LO interface:6-8 hours runtime
• Digital Filters: 8 & MSEB mixing console function: 10
• S/Pdif DoP: Support(USB Audio+Native)
• Preset Equalizer: 8 EQ effect+customized EQ setting
• Play Mode:Sequential Play / Shuffle Play / Single Loop / List Loop
• Firmware upgrade: Via TF card(FAT32 file system TF only)
• Storage Expansion Slot: TF card socket(Micro SD card); Data Transmission: Type-C-USB2.0

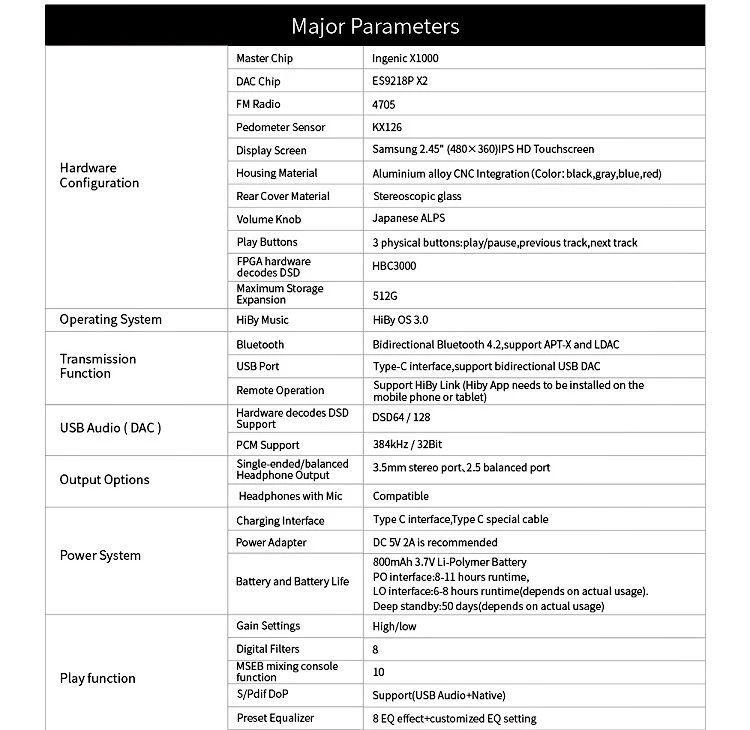

Main Parameters

• Master Chip: Ingenic X1000
• DAC Chip: Dual ES9218P
• FM Radio & Pedometer Sensor: 4705 & KX126
• Display Screen: Samsung 2.45" (480×360)IPS HD Touchscreen
• Housing & Rear Cover Material: Aluminium alloy CNC Integration & Stereoscopic glass
• Volume Knob: Japanese ALPS
• Play Buttons: 3 physical buttons - play/pause,previous track,next track
• FPGA Hardware decodes DSD: HBC3000
