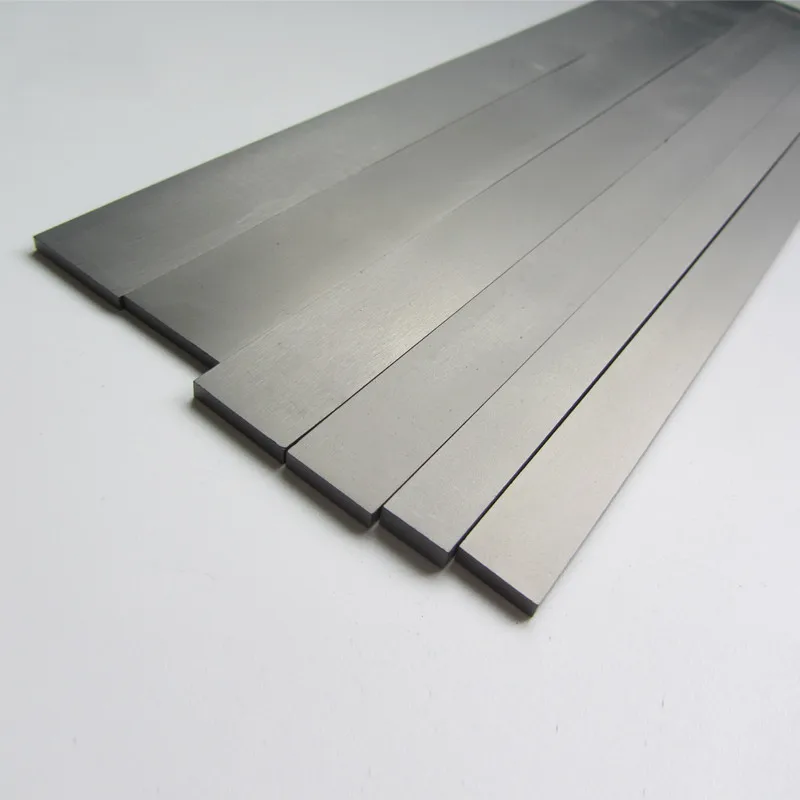

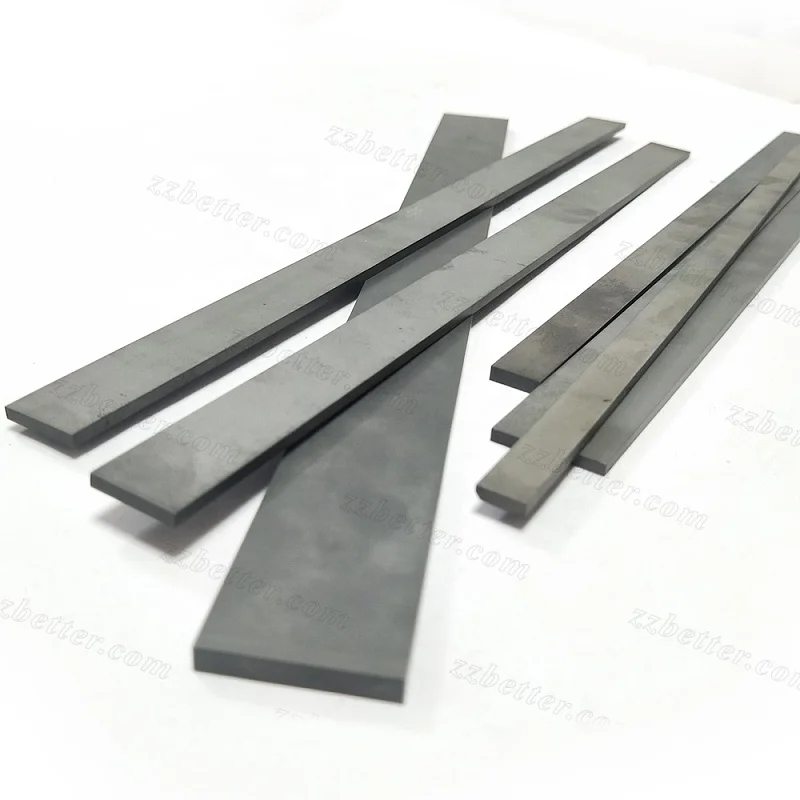

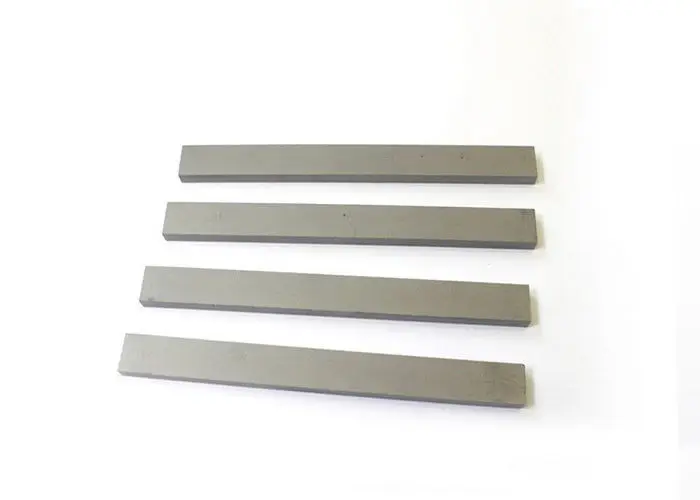

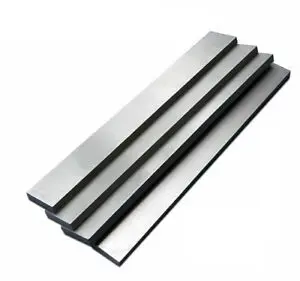

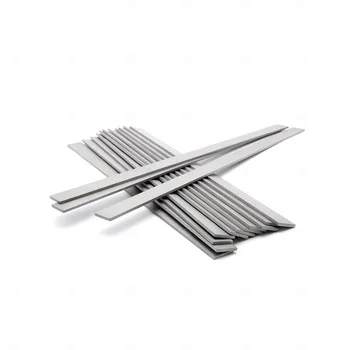

K30 K40 YG15 Tungsten carbide bar cemented carbide bar
- Category: Cemented Carbide >>>
- Supplier: Zhuzhou Meetyou Cemented Carbide Co. Ltd.
Share on (1700005202830):
Product Overview
Description
Product Description
Grade: K05-10/M10-20/P10-30
Size: Customizable
Standard: GB(Chinese industrial standard )
Certification: ISO9001
Product Name | carbide strip flat bar |
Material | 100% Virgin Tungsten Carbide |
Application | Tool making |
Chemical composition | WC/Co |
Property | Hip sintered, high hardness, high wear resistance |
Grain size | 0.5um-1.0um |
Powder compaction | Extrusion/Press |
Sintering | HIP sintering |
Products Show

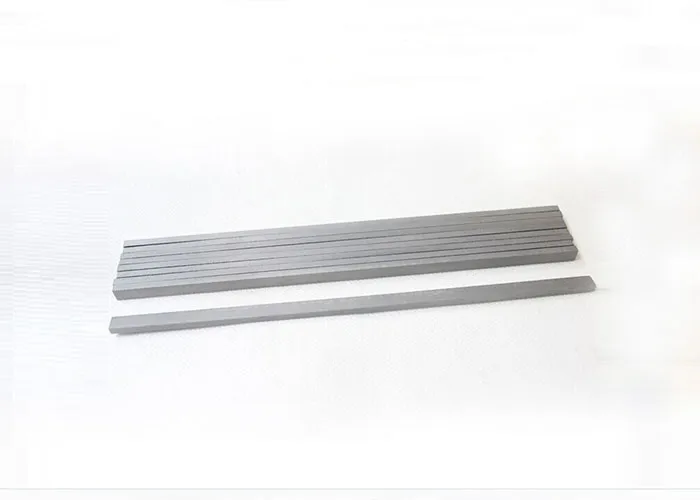

Carbide strip flat bar
Property
Recommened grade：K20(YG6),K30(YG8),YG15,YG20.
density: 14.5-15.0 g/cm³
HRA: 89-92
T.R.S: 2500-3200 N/m㎡
Bending strength can reach 4000N²;
Tolerance can reach to ±0.001mm, straightness can reach to ±0.02mm
These bars are also known as carbide strips.
Tungsten carbide flat strips are mainly used in woodworking, metalworking, molds, petroleum machinery, textile tools and other industries. Solid carbide rectangular bar is mainly used to process solid wood, density board, gray cast iron, non-ferrous metal materials, chilled cast iron, hardened steel, PCB, brake materials, etc.
Sintered carbide wear strips of suitable material should be selected according to the specific application.We can also make as per your special requirements.
Why choose us
We are able to make different kinds of special customized cemented carbide products with ± 0.002mm machining precision. carbide
non-standard products welcome to customize.
1.We are a real factory with very very nice wholesale price with high quality and good after sales service.
2.Reasonable price.
3.Advanced technology , automatic pressing , HIP sintering
4.Longer service life.
5.OEM service available.
6.Short and on time delivery.
7.Samples and small orders are acceptable.
non-standard products welcome to customize.
1.We are a real factory with very very nice wholesale price with high quality and good after sales service.
2.Reasonable price.
3.Advanced technology , automatic pressing , HIP sintering
4.Longer service life.
5.OEM service available.
6.Short and on time delivery.
7.Samples and small orders are acceptable.

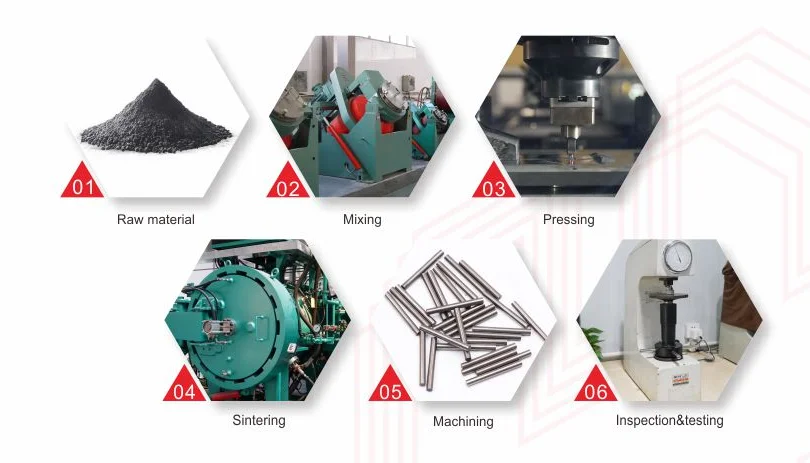

Every part is carefully processed (by grinding, machining, milling, wire-cutting, EDM etc) to the exact tolerances shown on the drawing and carefully checked both in production line and QC room (QC check every dimension of every part before packing and shipping). In this way, we assured the high precision and thus the interchangeability in the tool room of the customers’ factory.
Our Advantages
Complete production line
We possess the entire equipments for production of TC products from R&D to surface-polishing, which allow us to fabricate customized TC products according to different requirement of our clients.
HIP sintering
The traditional vacuum furnace is out of time.HIP sintering furnace is our best way to ensure supreme quality.
Moreover, we design every single process to meet your standards.
100% virgin raw material
We handle everything starting from raw material management.Along with advanced powder mixing techniques, we can make grain size as small as 0.4um. Rods made from it will have longer lifespan and more superior property.
Our Factory
Office
Our office building
Lobby
Clean Lobby
Workshop
4 workshops
HIP furnaces
5 HIP furnaces
Packing & Delivery
Packing Details: Packing, carton box
Lead time: 7-45 days after the order is confirmed or imprest is all duly paid.
Our Certifications
Chinese Famous Brand
As a Chinese Famous Brand and Hunan Provincial brand, Meetyou carbide shares a great reputation both domestically and globally.
Customer Photo
Great Customer Service
ISO 9001 certified in design, manufacturing, and developing tungsten carbide blanks for carbide tool, Meetyou Carbide proudly provides you with the direct-from-factory tungsten carbide price.
Excellent efficiency and expertise
To assure of the excellent carbide quality and good service, from the beginning of product development to mass production, we have complete Quality Management System to handle every detail processes.
Constantly supreme quality
Meetyou Carbide focuses on everything from design, manufacturing, development, and marketing of hard metal and tungsten carbide tool.We only use the best high quality 100% virgin materials along with the advanced high-tech computer controlled HIP furnaces to produce tungsten carbide blanks for both standard and special sizes or grades at your requirements.
We also provide customized solutions for your needs.
FAQ
Q: Are you trading company or manufacturer ?
A: As one of the biggest manufacturer of tungsten carbide products in Zhuzhou, we will do our best to provide you with our top quality material.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: How can we contact you in a short time and learn more about your company?
A: Please just visit our site for tools: www.mcctcarbide.com and sites for customized items: www.meetyoucarbide.com
Or you can just send a message to the mail box: sales@meetyoucarbide. c om. We will reply you soon.
