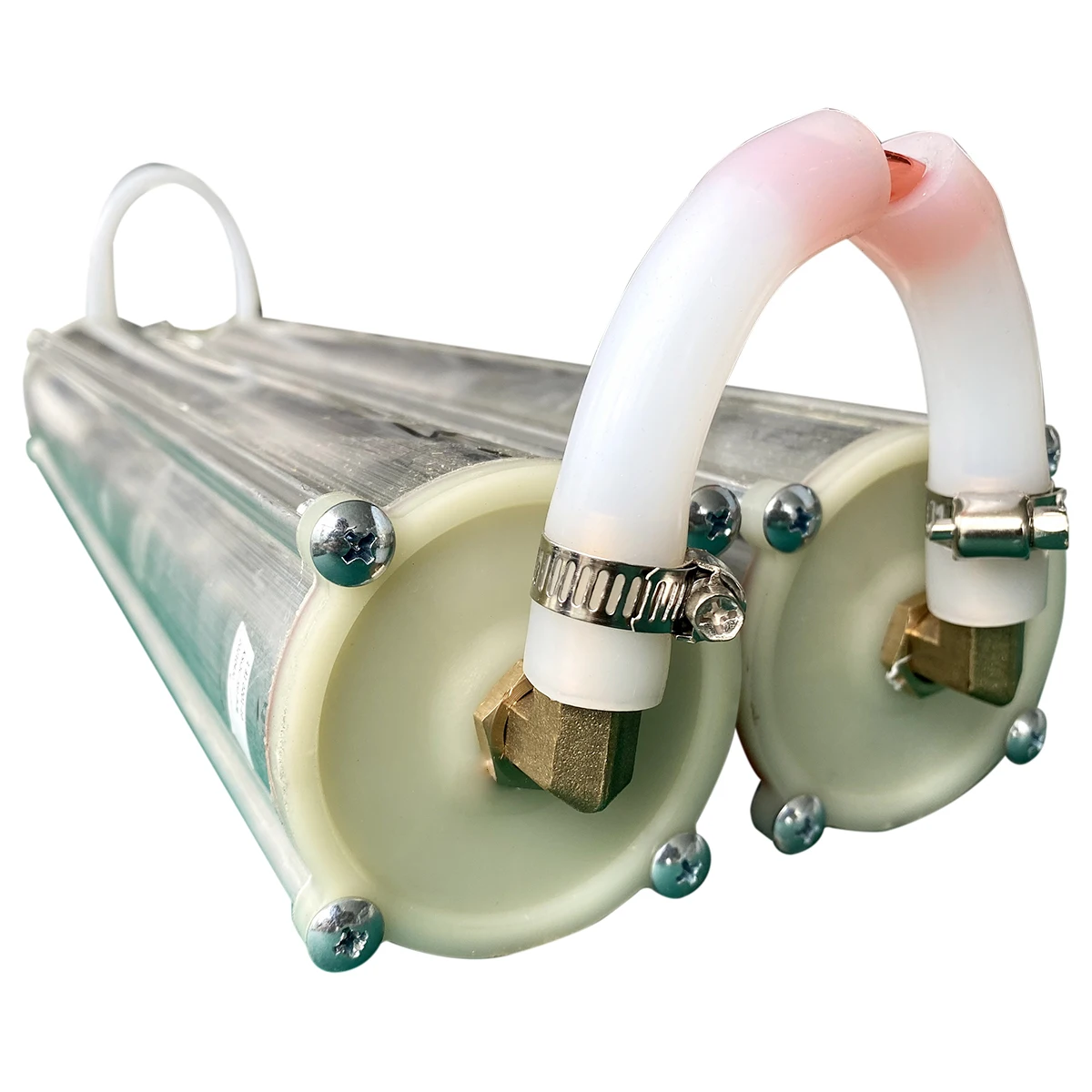

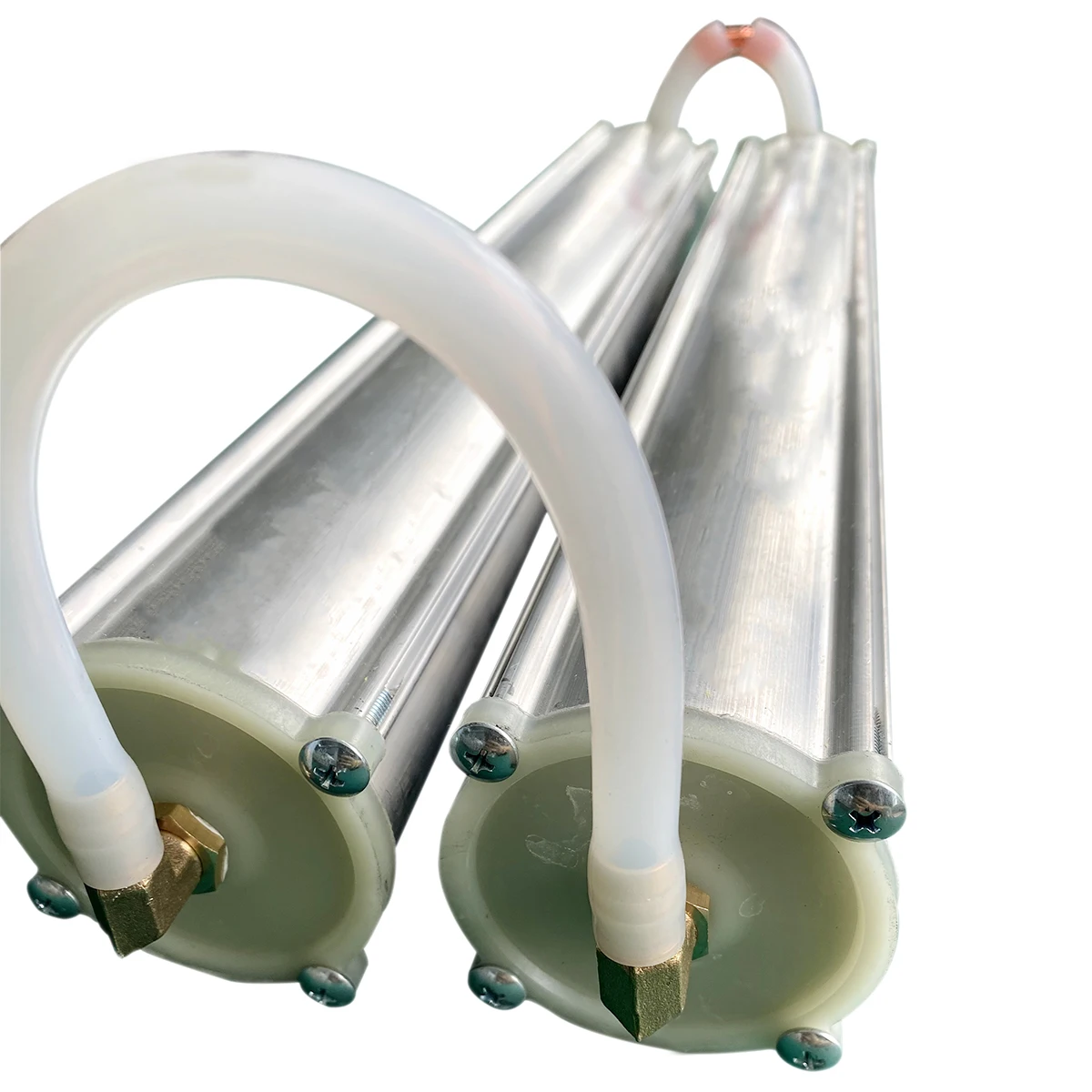

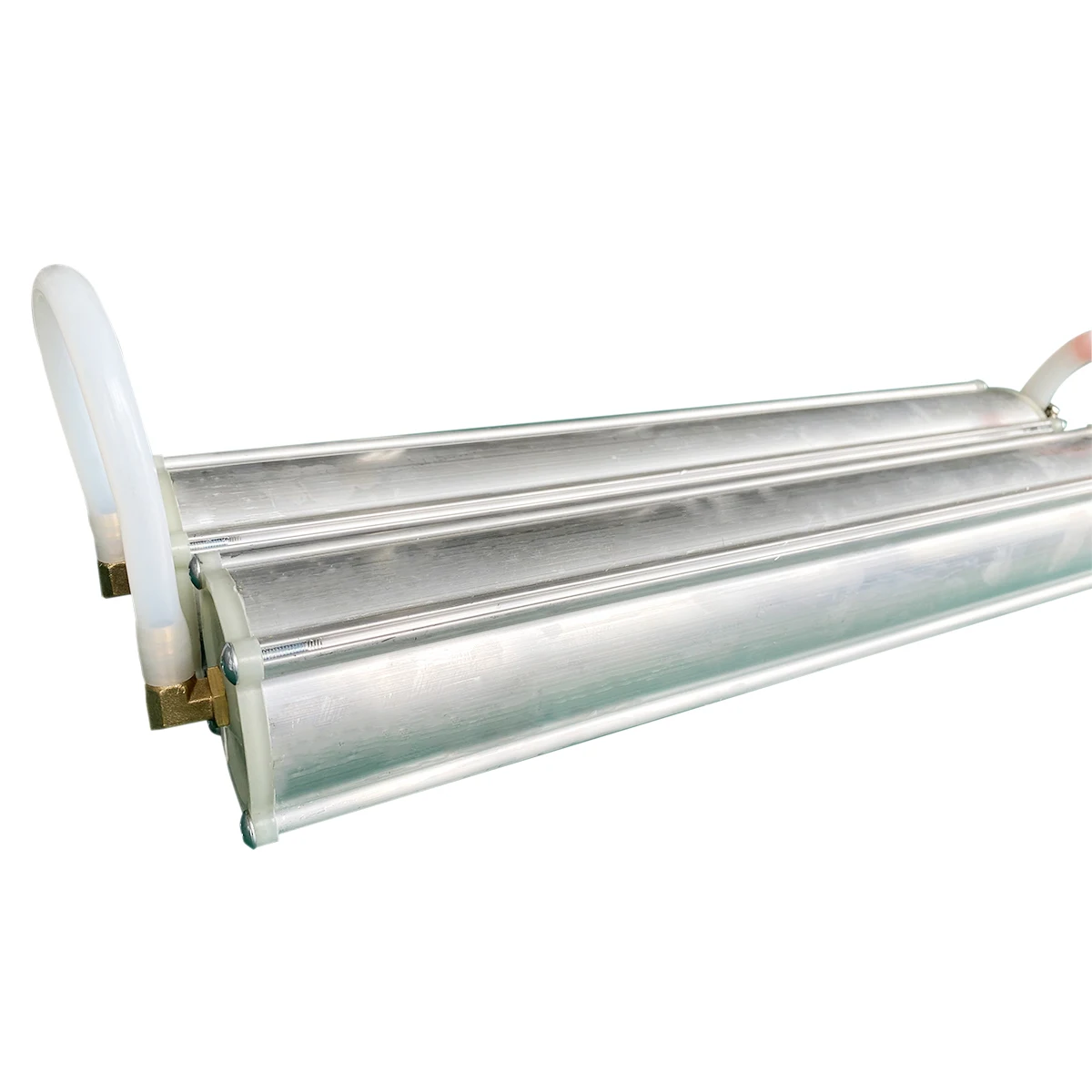

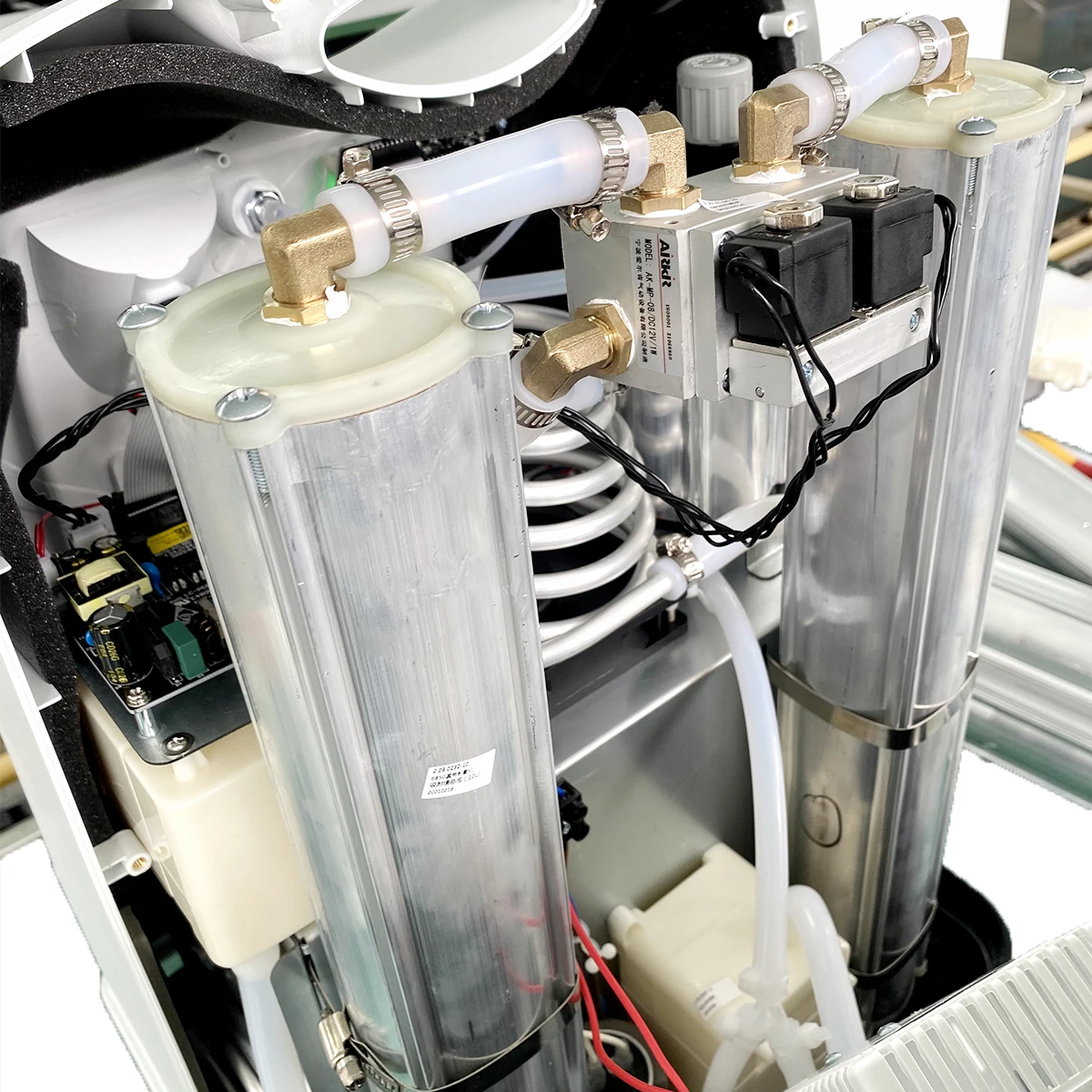

KSOP5 9 PSA industrial oxygen zeolite molecular sieve bed for 5L oxygen concentrator
- Category: Gas Generation Equipment >>>
- Supplier: Jiangsu Konsung Bio-Medical Science And Technology Co. Ltd.
Share on (1700007279027):
Product Overview
Description
Product Description

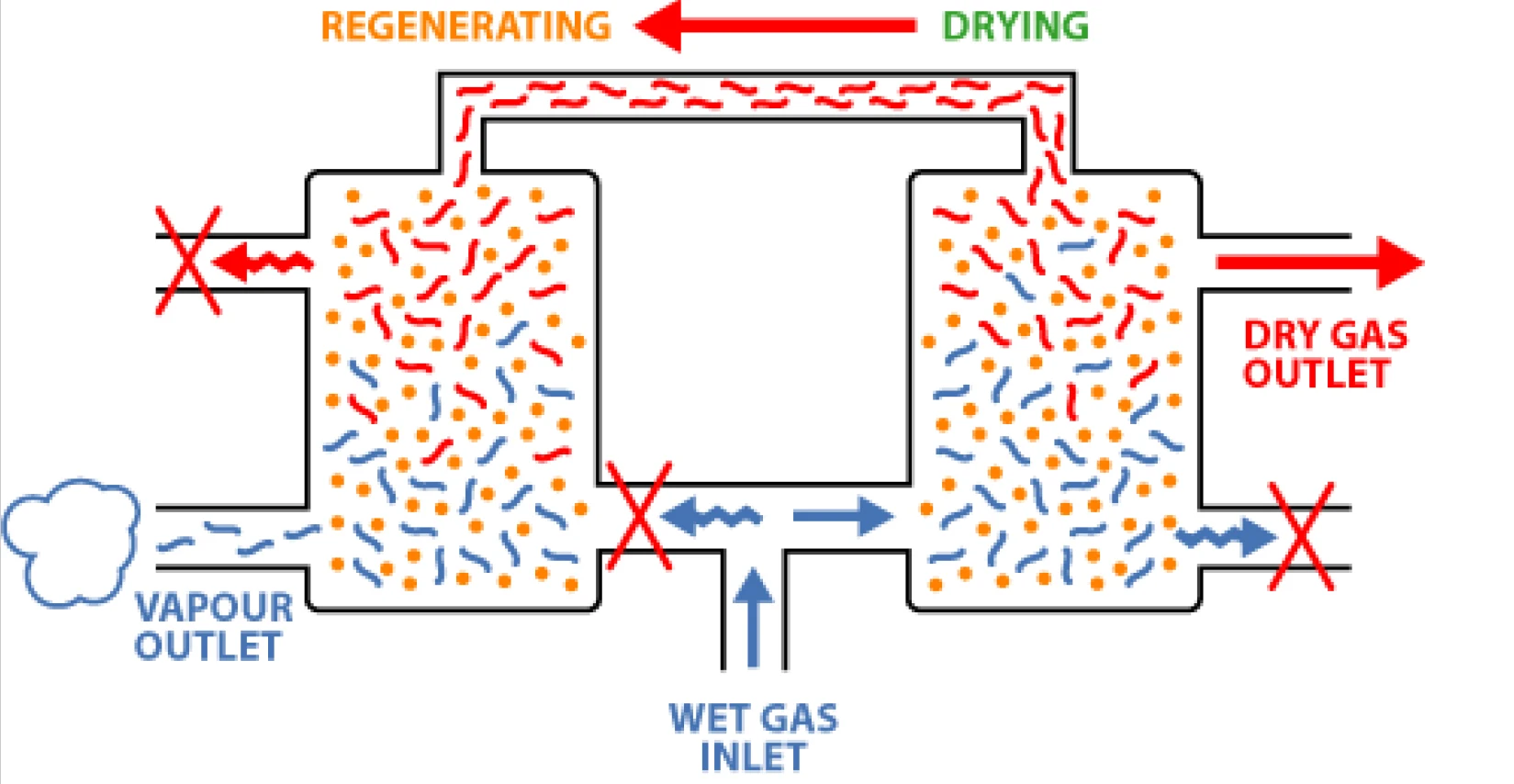

Deep drying
Deep drying of general industrial gases.
Purification in air
The purification in air separation plant. Remove H2O and CO2 and some hydrocarbons.
France imported molecular sieve.
Adopted by France imported molecular sieve. Special filling technology accompanied with reasonable absorption, tower structure design and strict producing management to guaranteeing.
5 level filter guarantee
There are 5 level filter guarantee the oxygen purity reach to medical level in oxygen concentrator.

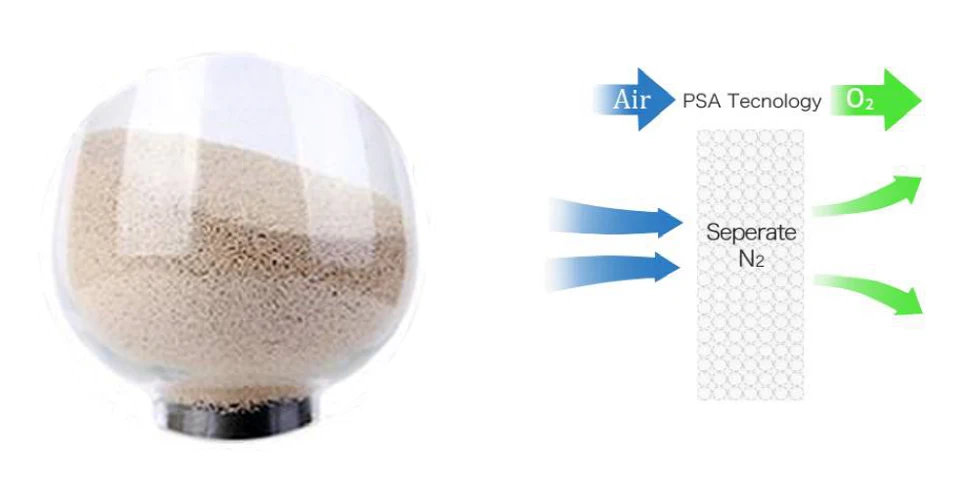

PSA technology
Production of bulk oxygen in PSA technology.
Specification
Product Name | Molecular Sieve |
Flow | 1-5L |
Noise | less than 52dB |
Purity | 93 ± 3 %(1-3LPM) |
Outlet Pressure | 10 ± 0.5 PSI |
Power consumption | <8(AVER) |
Operating Altitude | 0 to 2000 m |
Operating Humidity | 30%~75% |
Operating Temperature | 5℃~40℃ |
Storage/Transport Humidity | ≤93% |

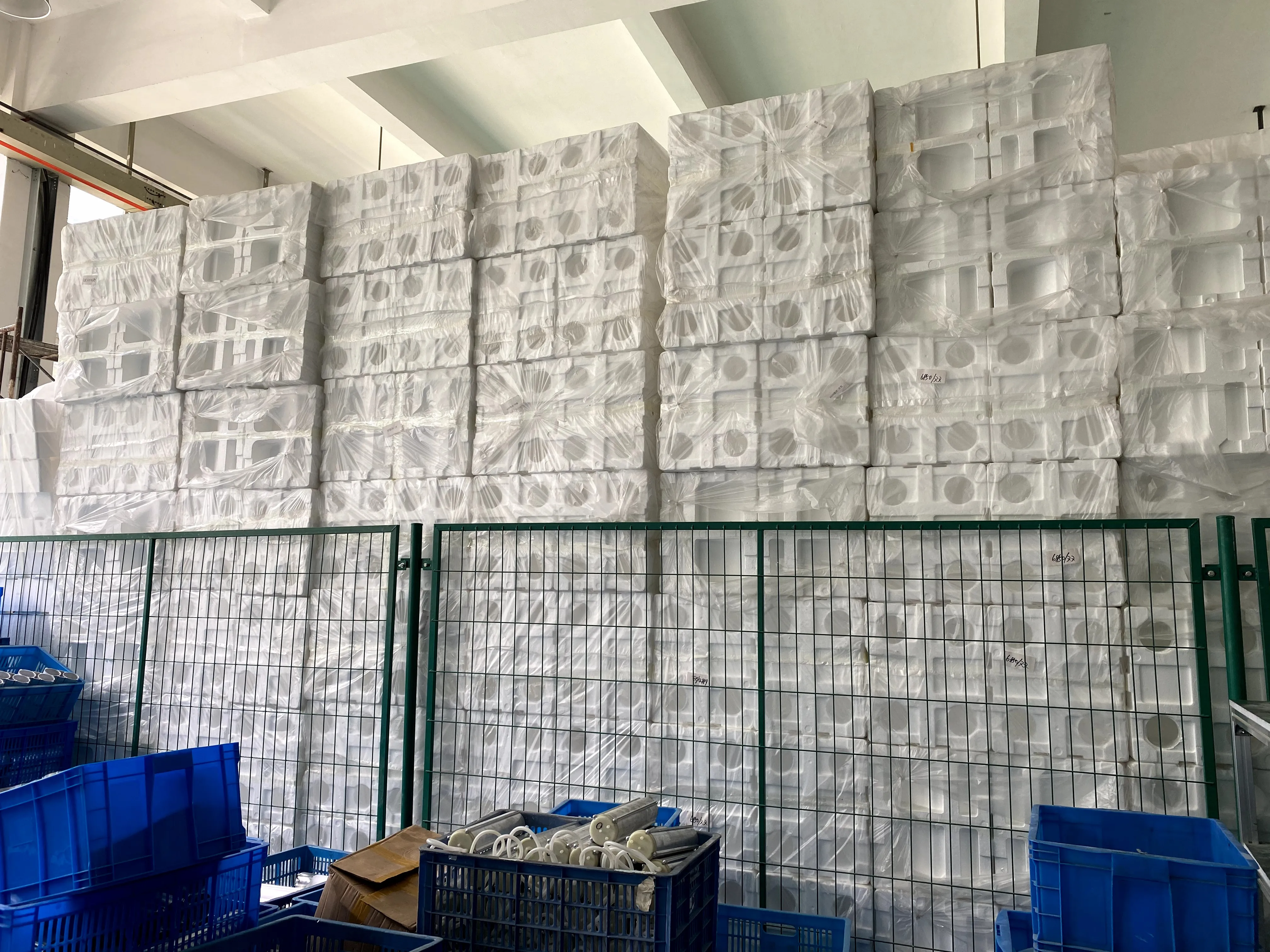

Packing & Delivery
Packing in carton, there are packing for 1 person and 20 persons/antigen kit
Company Profile
Jiangsu Konsung Bio-medical Science and Technology Co., Ltd established in 2005. Konsung has a production base in Danyang, Jiangsu, and R&D center in Shenzhen.
The main products of Konsung includes the multi parameter monitor, mobile health monitor, urine analyzer, oxygen concentrator, blood pressure monitor, wearable health equipment...
Konsung also provide one stop solution service for Tele-medical system.
Konsung has been approved by complete medical qualified certification.
ISO9001: 2008 Quality management system certification
ISO13485: 2003 Medical management system certification
ISO14001 Environmental management system certification
CE certification by TUV/SGS and other authoritative approved
Konsung staffs will be full of passion and energy, adhere the sacred mission of public health and smile!
The main products of Konsung includes the multi parameter monitor, mobile health monitor, urine analyzer, oxygen concentrator, blood pressure monitor, wearable health equipment...
Konsung also provide one stop solution service for Tele-medical system.
Konsung has been approved by complete medical qualified certification.
ISO9001: 2008 Quality management system certification
ISO13485: 2003 Medical management system certification
ISO14001 Environmental management system certification
CE certification by TUV/SGS and other authoritative approved
Konsung staffs will be full of passion and energy, adhere the sacred mission of public health and smile!
FAQ

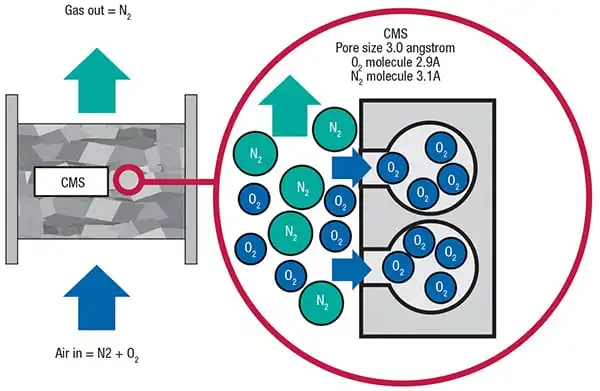

1.What are the molecular sieve?
Molecular sieves are zeolites. Zeolites are crystalline three-dimensional aluminosilicates with cavities inside the crystal
lattice. These cavities are connected by channels, the so-called pores. The pores have an exactly defined diameter which is the most important parameter for the application of zeolites. That means just molecules having a diameter smaller than the diameter of the pores reaching the cavities. Thereby an accurate separation (selectivity, molecular sieve effect) between absorbable and non-absorbable molecules is possible.
lattice. These cavities are connected by channels, the so-called pores. The pores have an exactly defined diameter which is the most important parameter for the application of zeolites. That means just molecules having a diameter smaller than the diameter of the pores reaching the cavities. Thereby an accurate separation (selectivity, molecular sieve effect) between absorbable and non-absorbable molecules is possible.
2.Various grade and size available
According to their pore Grade like 3A, 4A, 5A and 13X are available in Beads and Pellet Forms.
3. Whether molecular sieve can be regenerated or not?
Yes, you can regenerate. There are some methods of Regeneration of Molecular Sieve include pressure change, heating and purging with a carrier gas or vacuum Pressure Swing Adsorption. Regeneration temperatures depend on Molecular Sieve type.
4. What is the life of molecular sieves?
Life of Molecular Sieves is around 5-6 years. However, Molecular Sieves life is reduced by oil and any other impurities in the air. Therefore, it is essential to provide special pre-filters if lubricated air is used.
5. What is the difference between the various molecular sieve?
The main difference between them is pore size. The nominal pore sizes for 3A, 4A, 5A, and 13X are 0.3, 0.4 and 0.5 nanometers,respectively.
3A is mainly applied to absorb water molecules in drying natural gas and oil gases, especially in drying Catalytic Splitting
Decomposition Oil gases and Alkenes.
4A is mainly used to make dehydration in a liquid system or airtight gas. In addition, it can also remove the molecules of
hydrogen sulfide, ethyl alcohol, carbon dioxide, and ethylene.
5A is mainly used to separate the isomerism alkanes. Meanwhile, it can also be able to absorb the molecules which can pass through molecular sieve 3A and molecular sieve 4A and whose diameters are less than 0.5 nm.
3A is mainly applied to absorb water molecules in drying natural gas and oil gases, especially in drying Catalytic Splitting
Decomposition Oil gases and Alkenes.
4A is mainly used to make dehydration in a liquid system or airtight gas. In addition, it can also remove the molecules of
hydrogen sulfide, ethyl alcohol, carbon dioxide, and ethylene.
5A is mainly used to separate the isomerism alkanes. Meanwhile, it can also be able to absorb the molecules which can pass through molecular sieve 3A and molecular sieve 4A and whose diameters are less than 0.5 nm.
