SF 469B wine cabinet price digital humidity and temperature controller
- Category: Test Instruments >>>
- Supplier: Zhongshan Shangfang Instrument Meter Co. Ltd.
Share on (1702929378):
Product Overview
Description
SF-469B wine cabinet price digital humidity and temperature controller
Product Description
Features
Mini-sized and integrated intelligent control
Temperature Control / Humidity control
SelfTesting / ParameterLocking
Value storing
Technical Data
Rangeofdisplayed: — 45~120°C(—49~248°F)
Accuracy:±rC(±2°F)
Humiditydisplayrange: 1~99%RH
Accuracy: ±3%RH

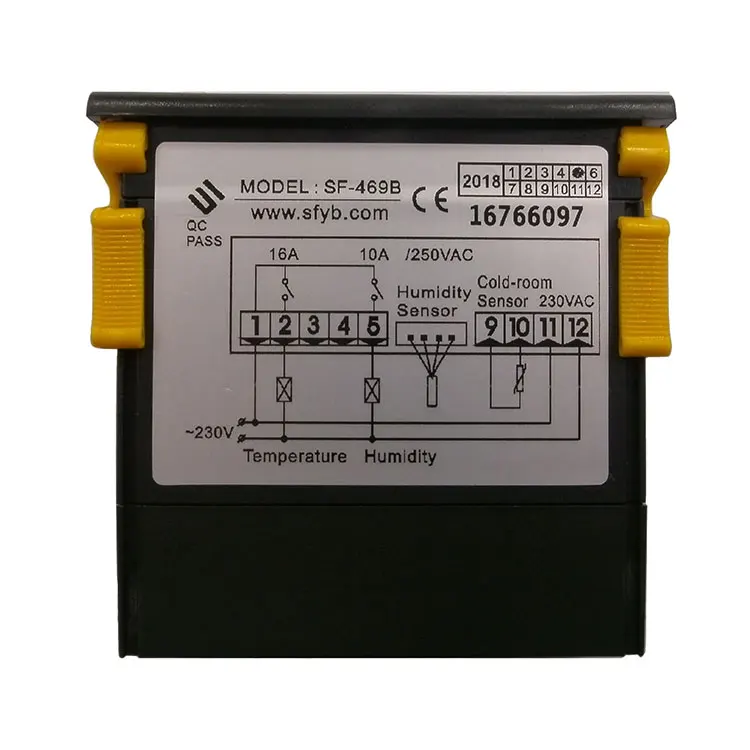

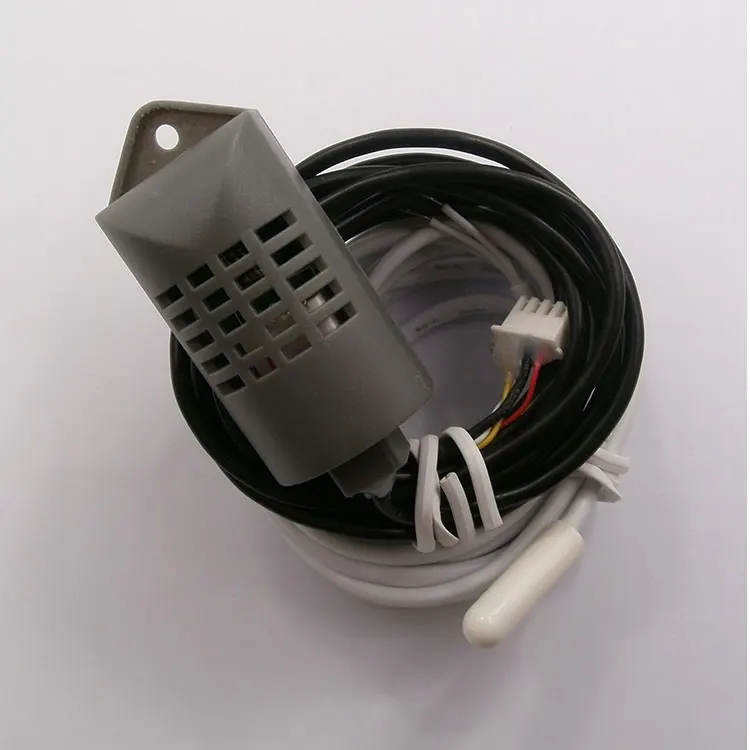

Temperature sensor,1pc; Humidity Sensor(SHT11),1pc
Temperature control: N.O.16A/250VAC
HumidityControl: N.O.10A/250VAC
Dimension:77(Length)X35(Width)X60(Depth)mm
Mounting hole dimension:71 (Length) X 29(Width)mm
Parameters
| Paramete | Function | Set range | Default |
| E1 | Lower setpoint limit | -45℃/-49℉~Set temp. | -35℃/-31℉ |
| E2 | Lower Higher setpoint limit | Set temp.~110℃/230℉ | 45℃/104℉ |
| E3 | Temp.hysteresis | 1~10℃/2~18℉ | 4℃/7℉ |
| E4 | Comp.start delay time | 0 — 10Min | 2Min |
| E5 | Offset on room temp. | -20~20℃ / -36~36℉ | 0 |
| C1 | High temperature alarm | Set—115℃ —OFF Set—239°F — OFF | 40℃/104℉ |
| C2 | Low temperature alarm | OFF— —44℃ —Set OFF— — 47°F —Set | OFF |
| C3 | Alarm time delay | 0—90Min | 30Min |
| CF | Temperature unit | C=Celsius F=Fahrenheit | C |
| CH | Temperature control mode | C=Cooling H=Heating | C |
| H1 | Humidity hysteresis | 1— 70%RH | 20%RH |
| H2 | Humidity offset | — 10 —30°%RH | 0%RH |
| H3 | Dehumidify&Humidity switch | 0=Dehumidify 1=Humidify | 0 |
