U Type dump mine cart, railway coal mine truck,tramcar

Product Overview

Description

 Product Introduction

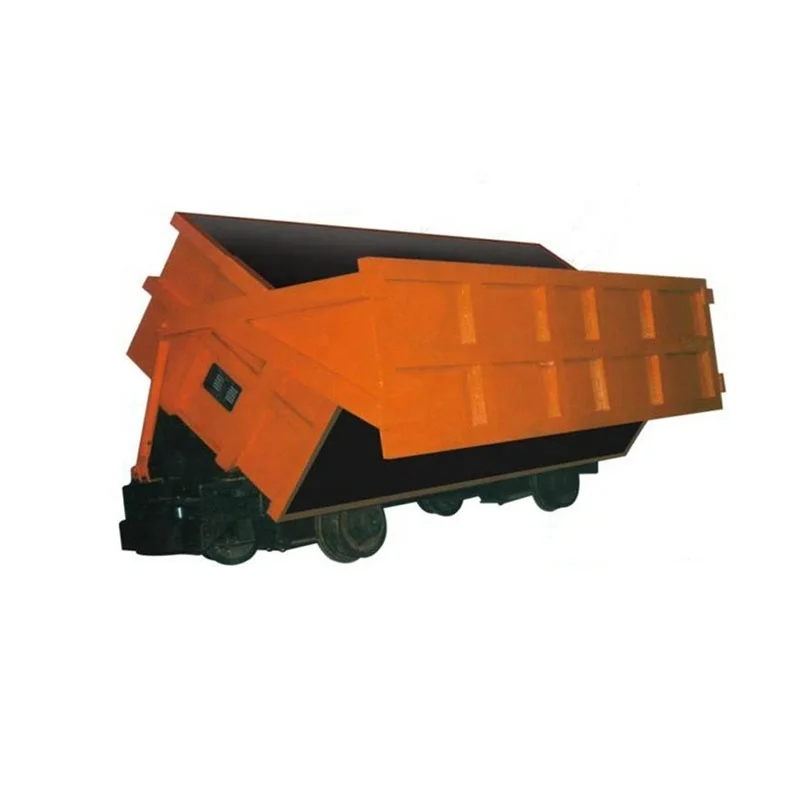

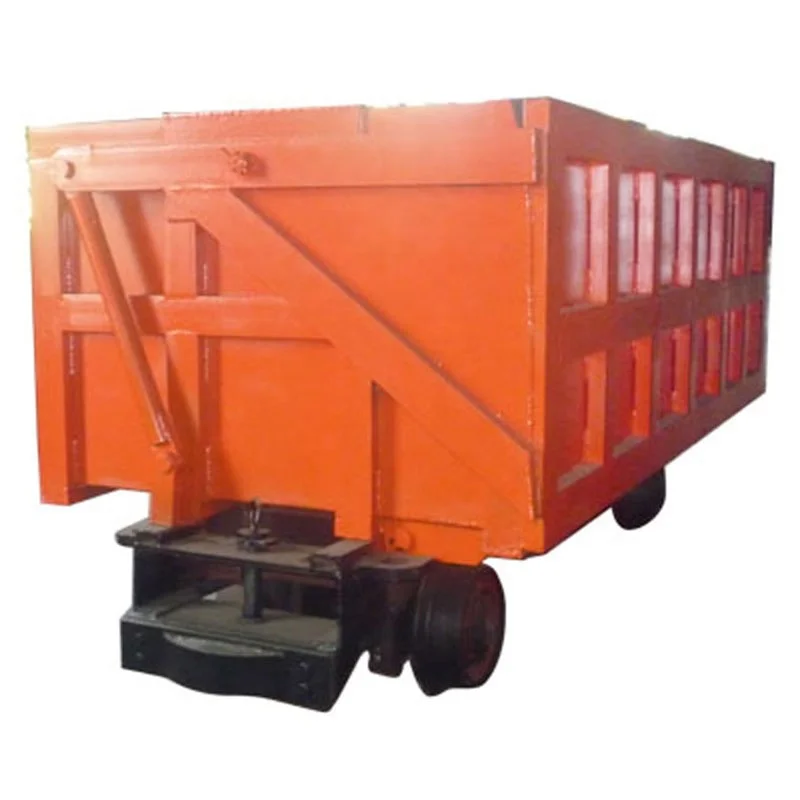

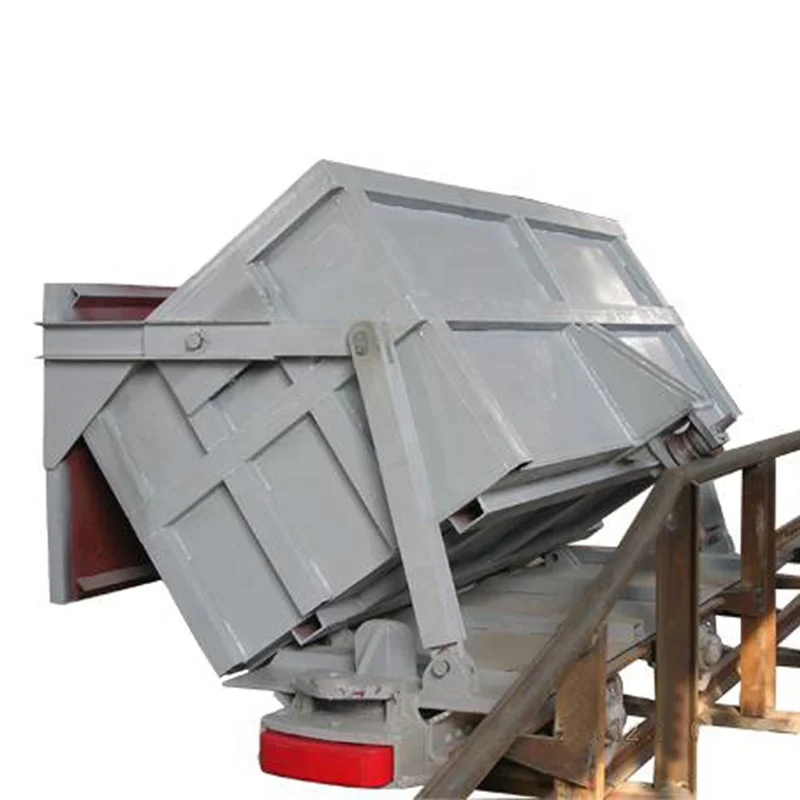

U-Type dump mining cart, railway coal mine truck,tramcar         zmwm01



Main Parameter

Model	Volume (m³)	Capacity(T)	Gauge (mm)	Length (mm)	Width(mm)	Height (mm)	Wheel base(mm)	Dia of wheel (mm)	Traction height (mm)	Traction force (KN)	Discharge Angle (°)	Weight (kg)
KC1.6-6A	1.6	4000	600	2500	1200	1300	800	350	385	60	42	1670
KC2-6A	2	5000	600	3000	1250	1300	1000	400	360	60	42	1830



Figure Photos

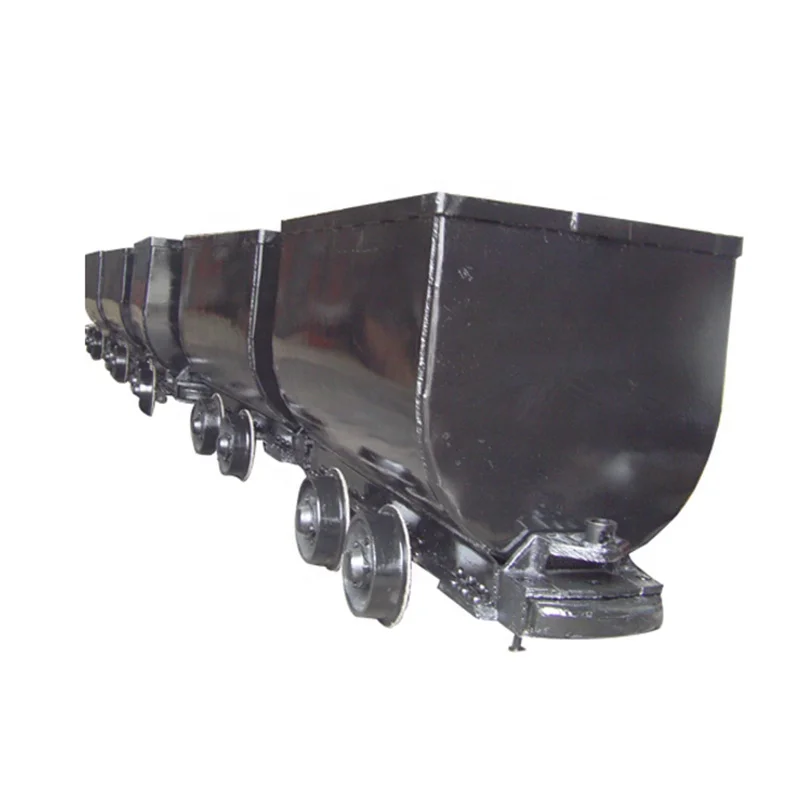

					Fixed Mine Car
Model	Volume(m³)		Theoretical Capacity(T)	Max. Load(T)	Gauge(mm)	Wheel Base(mm)		Wheel Diameter (mm)		Traction(KN)	Traction Height(mm)	Overall Size(LxWxH)		Weight(≤kg)
MGC1.7-6	1.7		1.5	2.7	600	750		300		60	320	2400x1050x1200		720
MGC1.7-9	1.7		1.5	2.7	900	600		350		60	320	2100x1150x1300		970
MGC1.1-6	1.1		1	1.8	600	550		300		60	320	2000x880x1150		610
MGC3.3-9	3.3		3	5.3	900	1100		350		60	320	3450x1320x1300		1320



					Bucket-tipping Mine Car
Model	Volume(m³)		Load(T)		Gauge(mm)	Wheel Base(mm)		Wheel Diameter (mm)		Traction(KN)	Traction Height(mm)	Overall Size(LxWxH)		Weight(≤kg)
KFU0.75-6	0.75		1.88		600	600		300		60	320	1700*980*1250		740
KFU1.0-6	1		2		600	650		300		60	320	1910*1070*1320		760
KFU1.2-6	1.2		3		600	650		300		60	320	2060*1150*1300		610
