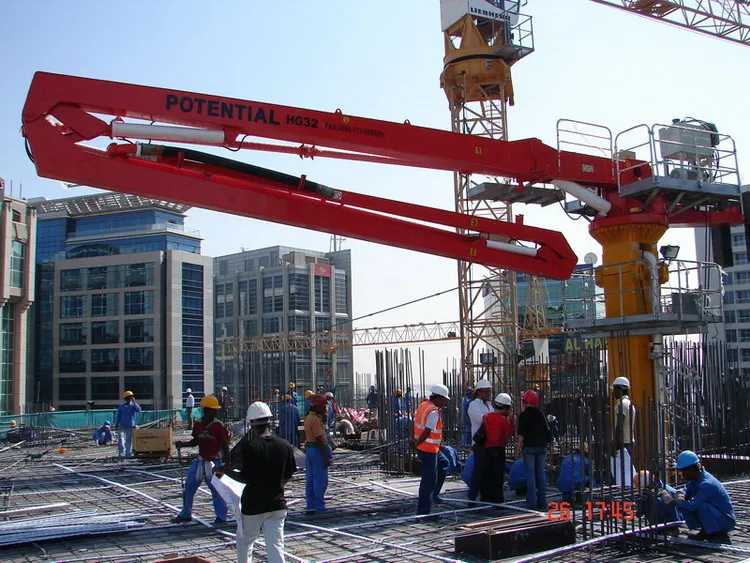

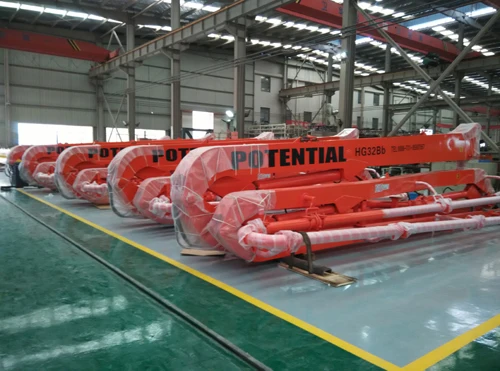

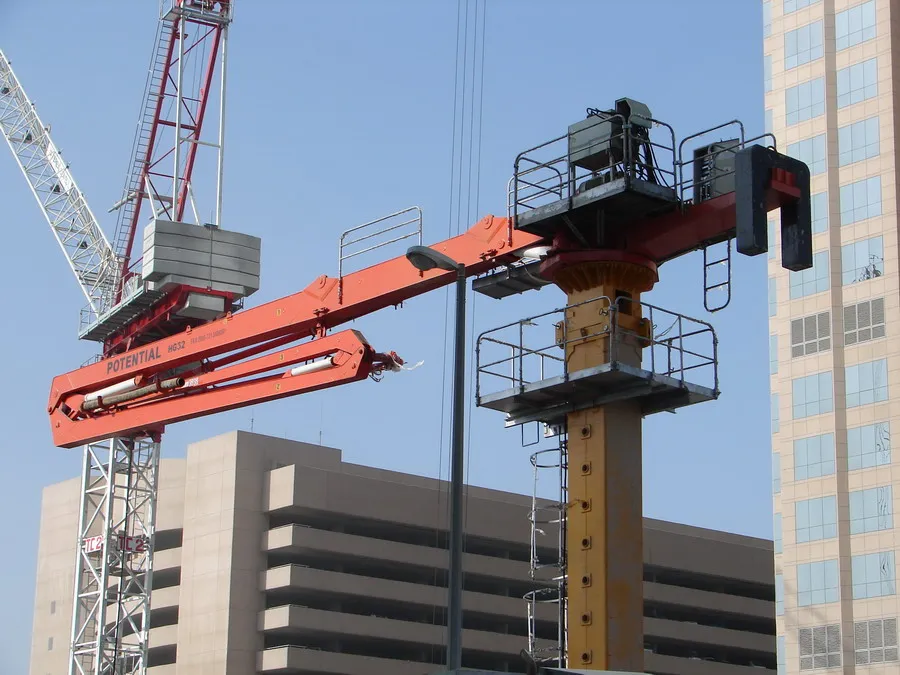

HG32B: 32 meters concrete pump placing boom

Price:RUB 1,883,447.50 - RUB 6,027,032.00

Quantity:

HG32B: 32 meters concrete pump placing boom

Product Description

Name:

32meters 4section concrete placing boom for sale, model HG32B

Features

1) Max. placing radius: 32m, 4 section booms;

2) Counterweight: two options, with or without counterweight ;
3) Control: wire and wireless

4) Installation: freestanding , floor climbing, elevator shaft climbing;
5) Not PM type slewing base but same as Zoomlion and SANY

concrete pump placing boom

Advantages:

1) Stable quality: main components from OMRON,SCHNEIDER,REXROTH;

2) Counterweight is optinal ;

3) PM slewing base: working more effeciently; concrete placing boom

4) Proportion Valves;

5) Columns, platform, main parts common with ZOOMLION, means ZOOMLION booms can be installed in my columns, etc.

Detailed specs:

Model		HG32B
Delivery pipe dimension (outside diameter × thickness) (mm × mm)		Φ133×4
Delivery hose dimension (inside diameter × length) (mm)		5" ×3000
Radius of placing boom (m)		31.7
Stationary height (to the joint between the end of the boom and Swivel table) (m)		22.9
Four hydraulic foldable arms	1st section arm	9.1m
	2nd section arm	7.7m
	3rd section arm	7.5m
	4th section arm	7.4m
Boom articulation	1st section arm	-4.2°~+82.5°
	2nd section arm	0°~180°
	3rd section arm	0°~180°
	4th section arm	0°~180°
Slewing range (°)		360
Power of motor (kW)		15
Pressure of hydraulic system (MPa)		28
Type of hydraulic oil		ESSO NUTO H46
Interval of climbing frame (m)	Climbing	3.0~4.2
	Placing concrete	6.0~8.4
	Resting
Mode of operation		1. cable remote control 2. radio remote control
Power		380V/50Hz
wind speed	Placing concrete	≤60 km/h
wind speed	climbing	≤28 km/h
working temperature		0~48
