Construchtion equipment for road and bridge concrete delivery placing spider
- Category: Concrete Spreader >>>
- Supplier: Qingdao Jiuhe Heavy Industry Machinery Co. Ltd.
Share on (62491493070):
Product Overview
Description
Product Description
1 Introduction of

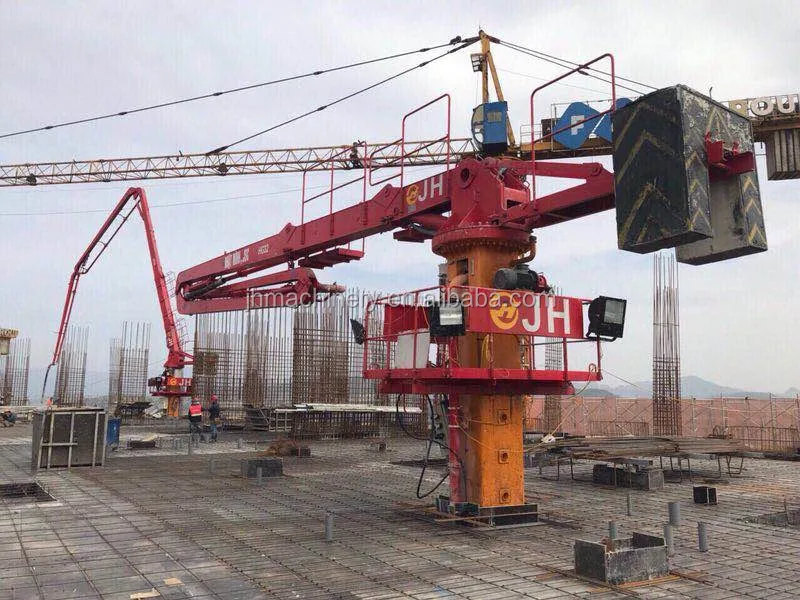

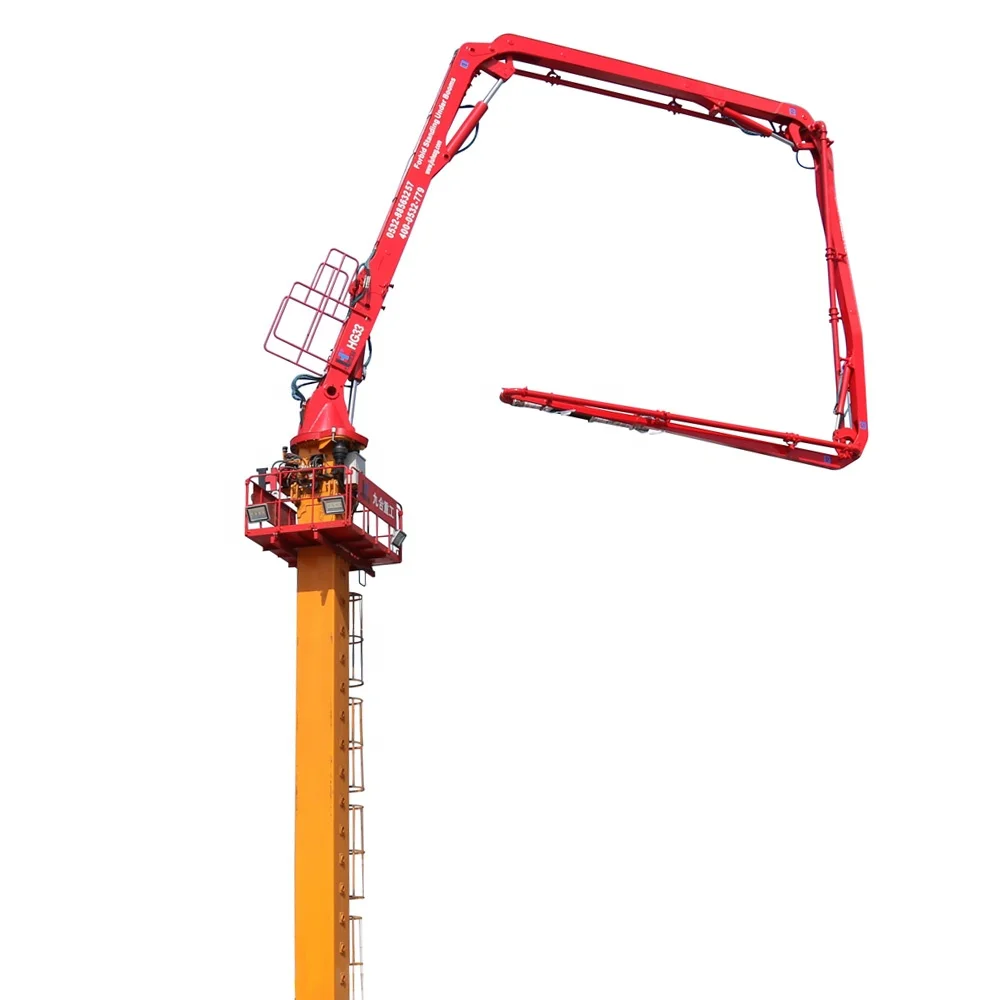

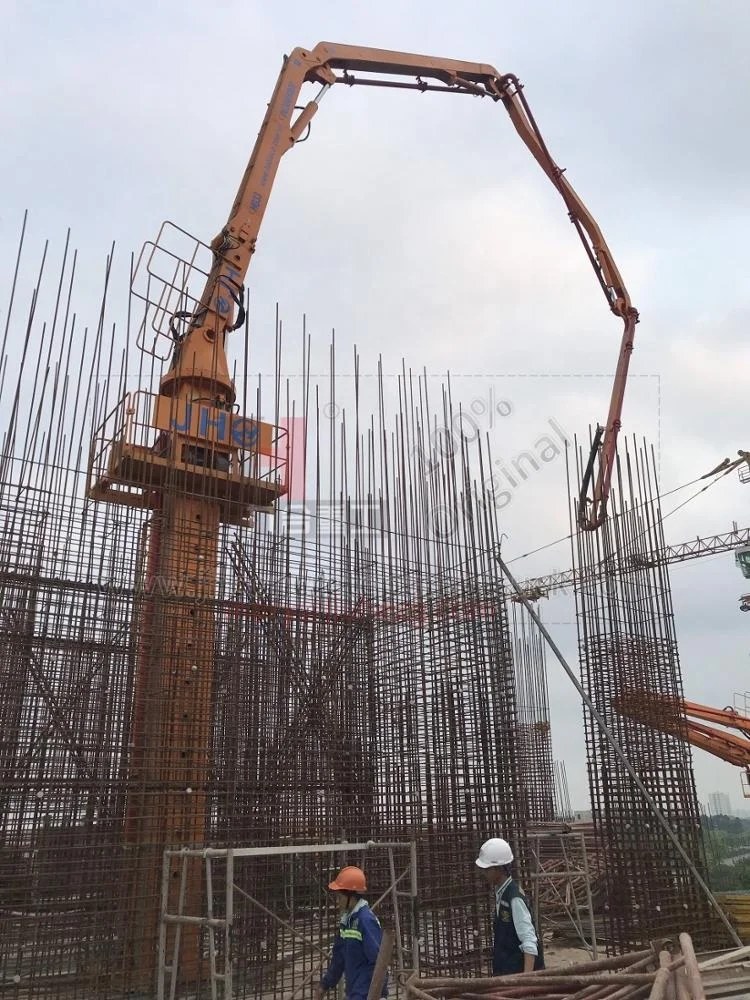

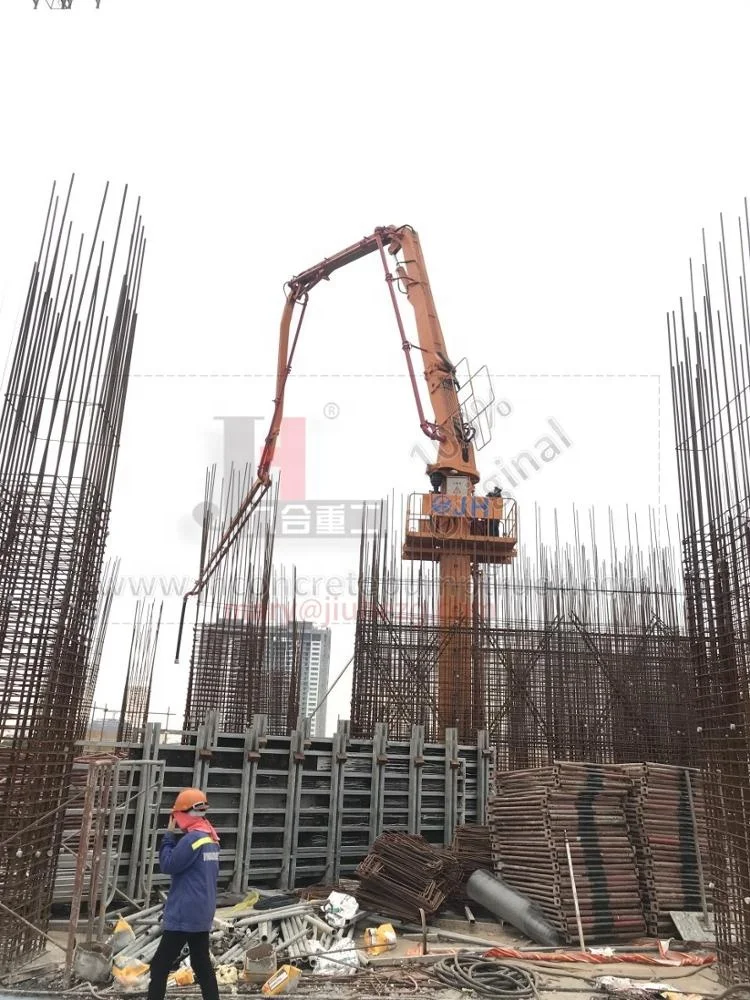

HGY Series climbing concrete placing boom could be floor fixed climbing type or elevator well shaft climbing type. The boom length could be 28m, 32m with 3 foldable arms or 33m, 36m with 4 foldable arms. This kind of climbing concrete placing booms could be also used as stationary concrete placing boom fixed on foundation and widely used for high building projects.
2 Features
1 Floor climbing type, Elevator well shaft climbing type
2 Could be also used as stationary concrete placing boom fixed on foundation
3 Saving labor and high efficiency
4 Easy installation, easy operation, low cost maintenance
5 Good quality with high reliability and reliability
6 Separate modular with light weight for easy installation (4m, 5m, 6m for tubular column mast)

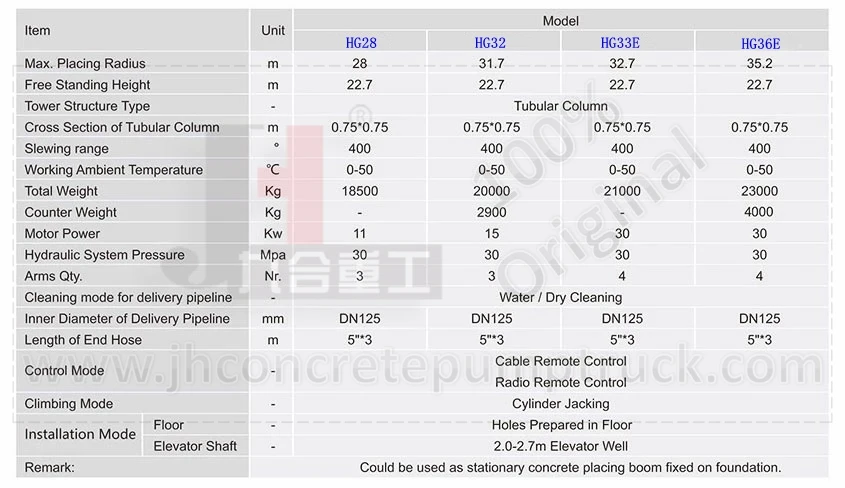

3.Technical Parameters.
4. Detailed for each system of Concrete Placing Boom

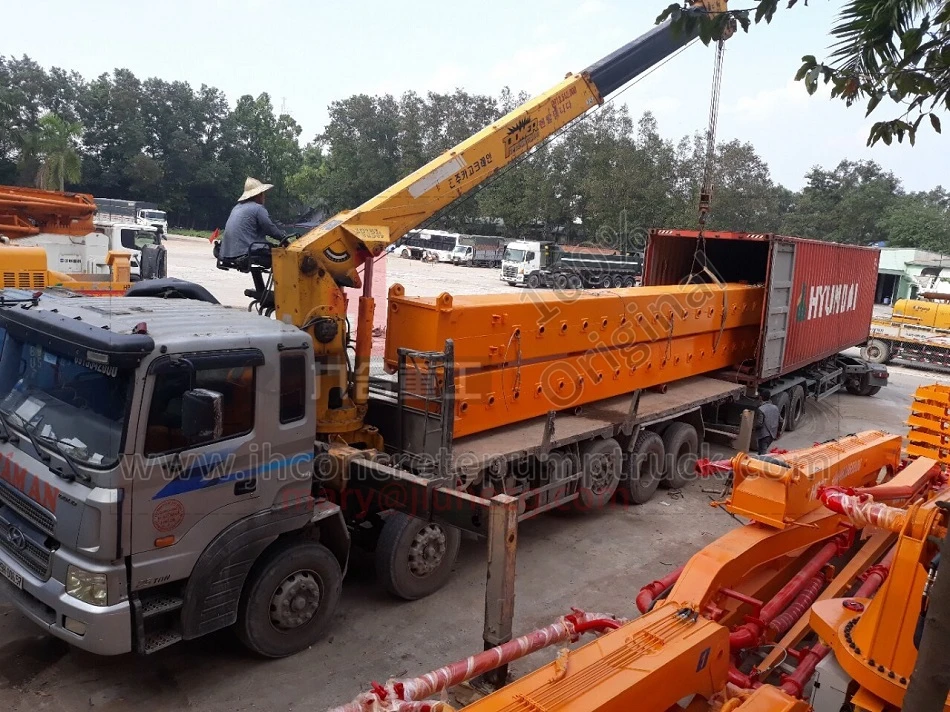

4.1 Boom System
Boom system relies on the advanced boom technology of concrete boom pump truck. It is specially designed on the concept of Finite Element Analysis, Dynamics Simulation Analysis, Modal and Dynamic Response Analysis, and strictly tested by Anti-fatigue Service. Life Test and Flaw Detection Test which effectively decrease peak value of boom stress and ensure longer service life and higher reliability.

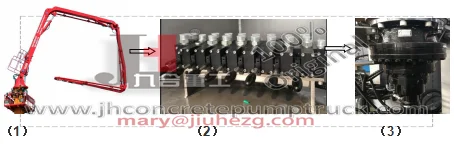

4.2 Hydraulic system
Hydraulic pump and valves are Rexroth from Germany with excellent performance, low noise and high reliability.
4.3 Slewing Mechanism and Gearbox
Slewing gearbox is Comer from Italy with steady, reliable performance and longer service life.
Boom system relies on the advanced boom technology of concrete boom pump truck. It is specially designed on the concept of Finite Element Analysis, Dynamics Simulation Analysis, Modal and Dynamic Response Analysis, and strictly tested by Anti-fatigue Service. Life Test and Flaw Detection Test which effectively decrease peak value of boom stress and ensure longer service life and higher reliability.
4.2 Hydraulic system
Hydraulic pump and valves are Rexroth from Germany with excellent performance, low noise and high reliability.
4.3 Slewing Mechanism and Gearbox
Slewing gearbox is Comer from Italy with steady, reliable performance and longer service life.

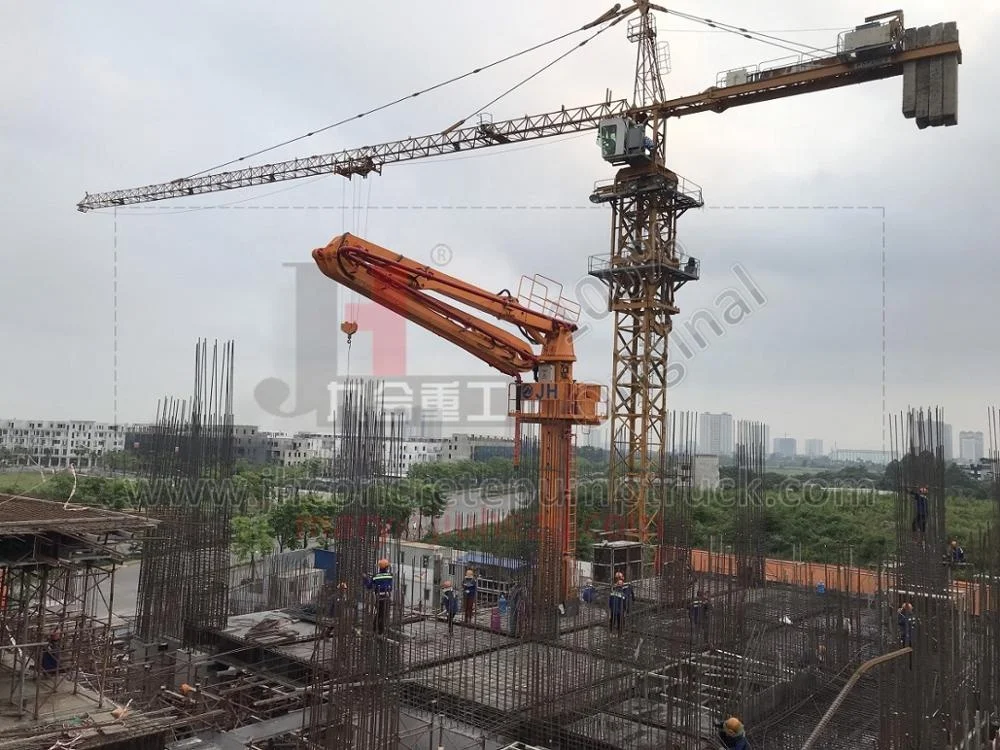

4.4 Climbing Device
The climbing device is with two jacking oil cylinders and adjustable supporting legs which could be easily dismantled and installed, very flexible and reliable. There are two kinds of climbing device for choice, floor type climbing or elevator well type climbing.

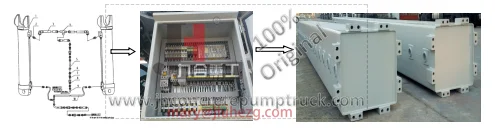

4.5 Electric Control System
Main components are Schneider from France or Omron from Japan, steady and reliable. Wire remote controller and wireless remote controller are equipped for remote and safe operation.
4.6 Tubular Column
Tubular column is made of high strength steel and could be modularized with light weight for installation according to client’s demands on site.
The climbing device is with two jacking oil cylinders and adjustable supporting legs which could be easily dismantled and installed, very flexible and reliable. There are two kinds of climbing device for choice, floor type climbing or elevator well type climbing.
4.5 Electric Control System
Main components are Schneider from France or Omron from Japan, steady and reliable. Wire remote controller and wireless remote controller are equipped for remote and safe operation.
4.6 Tubular Column
Tubular column is made of high strength steel and could be modularized with light weight for installation according to client’s demands on site.
FAQ
Q: How many kinds of concrete placing booms you have?
A: We have below series.
1:15/17m Mobile Hydraulic Spider Concrete Placing Booms
2: 28/32m/33m/36m Floor Climbing Type and Elevator Shaft Climbing Concrete Placing Booms (Tubular Column)
3: 21/24/28/32 Elevator Well Shaft Climbing Concrete Placing Booms (Mast Section)
Q: Do you have concrete placing booms with boom length over 36m?
A: Yes, boom length over 36m needs to be customized by order.
Q: Is there any proportional multiway valve for concrete placing boom?
A: Proportional mutiway valve is optional for more smooth operation like pump trucks.
Q: Our tower crane is not big enough to lift tubular column for installation, how can we do?
A: We can make the tubular column separate for light weight such as 5m, 6m 7m, fast and easy installation.
