large reduction travel spur gear module 22 for transmission

Product Overview

Description

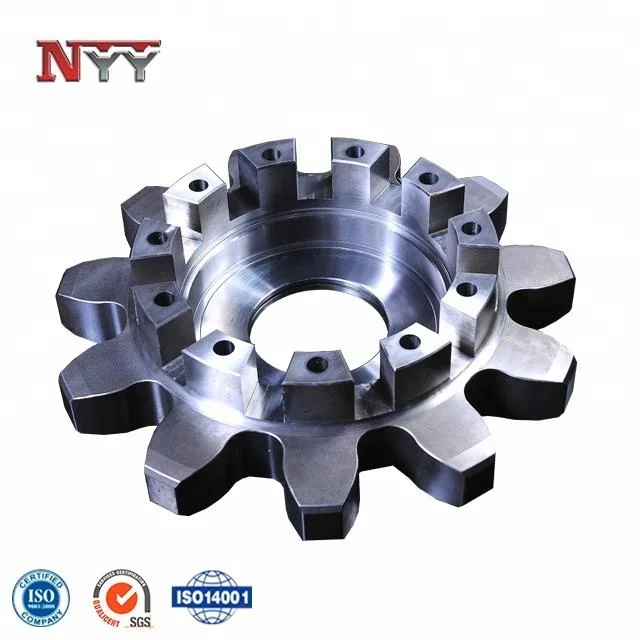

large reduction travel spur gear module 22 for transmission



Tooth trace	involute
material	40CrNiMoA
Process	forging, lathing, plane grinding, hobbing, drilling, inner grinding, tooth grinding
Pressure angle	20°
Quality level	AGMA 11
Type	Mn=22,Z=12,β=0°,α=20°, B=51;
Brand	NYY





	Application	This spur gear can be used in textile machinery industry
	Tooth Trace	Involute
	Material	40CrNiMoA
	Process	Forging, quenching and tempering, drilling, plane and internal grinding, tooth grinding
	Pressure Angle	20°
	Quality level	AGMA 11
	Gear data	Dp=4,Z=54,a=20°,x=0.3
	Brand	NYY

Other Spur Gear Specifications



	Application	This spur gear DIN3962 Grade 6, can be used for deepwater pile driver,the keyway position with the alveolar degree requirements
	Tooth Trace	Involute
	Material	34CrNiMo6
	Process	Forging, nitrided, tooth grinding, line cutting
	Pressure Angle	20°
	Quality level	DIN 7
	Gear data	Mn=12, Z=30, a=20°; keyway ceter aligns to tooth space center
	Brand	NYY





1) In-house capability: OEM service as per customers' requests, with in-house tooling design & fabricating

2) Professional engineering capability: on product design, optimization and performance analysis

3) Manufacturing capability range: DIN 3960 class 8 to 4, ISO 1328 class 8 to 4, AGMA 2000 class 10-15, JIS 1702-1703 class 0 to 2, etc.

4) Packing: Tailor-made packaging method according to customer's requirement

5) Just-in-time delivery capability



Primary Competitive Advantages

• Professional gear manufacturer
• Experience in Cooperate with Fortune 500 Companies
• Professional Engineering Capability
• Stable Quality
• Reasonable Price
• Small Orders Accepted
• Continuous Improvements
• High Product Performance
• Prompt Delivery
• Professional Service



Our Main Product

1. Spur Gear

2. Planetary Gear

3. Metal Gears Small

4. Gear Wheel

5. Ring Gear

6. Gear Shaft

7. Helical Gear

8. Pinion Gear

9. Spline Shaft

10. V Belt Pulley



Gear and Gear Shaft Specifications

Material	Alloy Steel	Casting Steel	Weldment	Gray cast iron	Ductile Iron
	20CrMnTi			HT200	QT400-18
	20CrMnMo			HT250	QT400-15
	20 CrMo
	35CrMo
	42CrMo
	20Cr2Ni4A
	20CrNiMo
	20CrNi2Mo
	40CrNiMo
	18CrNiMo7-6
	17CrNiMo6
	34 CrNiMo6
	18Cr2Ni4WA
	18Cr2Ni4WE
	45 C
	40Cr
	38CrMoAl
	16Mn
	16MnCr5
	GCr15
Modulus	1-50mm
Accuracy	DIN Class 4, ISO/GB Class 4, AGMA Class 13, JIS Class 0
Standard	DIN, ISO/GB, AGMA, JIS
Heat treatment	Quenching and tempering, gear teeth induction quenching, nitriding, carburization
Application	Wind turbine,locomotive,feeding machinery,metallurgy machinery,mining machinery
Gear shaft length	2500mm max.
Weight	15 tons max.





Product Process Introduction

The spur gear wheel manufacturing process as follows:



Capabilities of Gears/ Splines

Item	Internal Gears and Internal Splines			External Gears and External Splines
	Milled	Shaped	Ground	Hobbed	Milled	Ground
Max O.D.	2500 mm
Min I.D.(mm)	30		320	20
Max Face Width(mm)	500					1480
Max DP	1		0.5	1		0.5
Max Module(mm)	26		45	26		45
AGMA/ DIN Level	DIN Class 8		DIN Class 4	DIN Class 8		DIN Class 4
Tooth Finish	Ra 3.2		Ra 0.6	Ra 3.2		Ra 0.6
Max Helix Angle	±22.5°		±45°



With the professional inspection team and strict testing process, we make sure to provide you high quality spur gear wheel.



Company Profile

1.21 years experience in high quality Spur Gear's production, sales and R&D

2.Our product, the Spur Gear is certificated by ISO9001:2008 and ISO14001:2004.

3.NYY has more than 50 patents in high quality Spur Gear manufacturing and R&D fieles.

4.NYY products are exported to Asia, America, Europe, Australia, Middle-east and Africa.









Q&A:
Service and quality information:



1. Q: Can you make as per custom drawing?
A: Yes, we can do that.



2. Q: If I don’t have drawing, what can you do for me?
A: If you don’t have drawing, but have the sample part, you may send us. We will check if we can make it or not.



3. Q: How do you make sure the quality of your products?
A: We will do a series of inspections, such as:
    a. raw material inspection (includes chemical and physical mechanical characters inspection),
    b. machining process dimensional inspection (includes: 1^st pc inspection, self inspection, final inspection),
    c. heat treatment result inspection,
    d. gear tooth inspection (to know the achieved gear quality level),
    e. magnetic particle inspection (to know if there’s any cracks in the gear).
    We will provide you the reports 1 set for each batch/ shipment.
