45 Degree Double Blade Angle Cutter

Product Overview

Description

JC-355-2AS2-45 Degree Double Blade Angle Cutter

Feature



1.Just step on the foot pedal switch,the machine will pressure and cut the materials automatically,operation is safety and easy

2.Fast double blade sawing,save time and improve production efficiency

3.Any long or short material can be trimmed

4.Two sets of four oil sprayer provides proper lubrication to sawblade,spouting oil automatically when cutting,tangent plane is smooth,sawblade is long use life

5.Sawblade is driven by independent motor,powerful cutting

6.Apply upper and lateral pressure 2 group pressure material method,the materials become firmly established,pressure can be adjusted causes no deformation the hollow material

7.Install 2.4m feeding and discharging racks in the left and rght of the machine,discharging rack is equipped with positioning baffle makes set-inch cutting

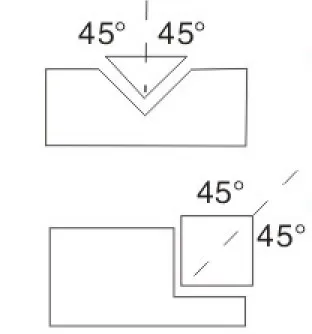

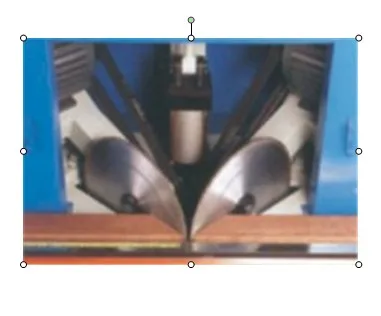

8.Double sawblade device can finish 45° sawing on both ends of door and window frame at one time,convenient and efficient



Technical parameter



Modle	JC-355-2AS2
Cutting angle	45º
Maximum cutting width	100mm
Maximum cutting height	150mm
Spindle speed	3300RPM
Size of sawblade	Ø14´´×Ø1´´×3.0×120T
Height of working table	800mm
Host motor	1HP×2
Length of feeding rack	870×260mm
Length of discharging rack	1300×670×1270mm
Weight	280/360KG

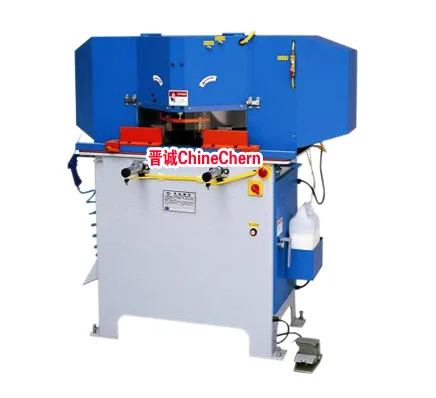

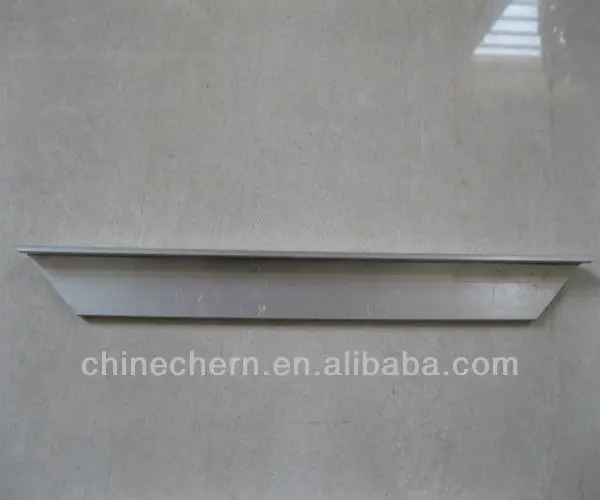

Machine photo and sample

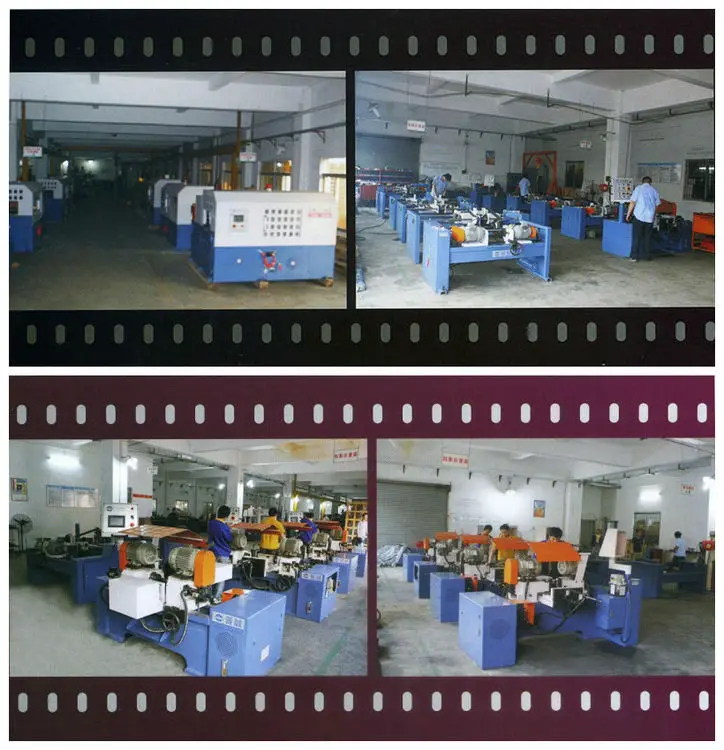

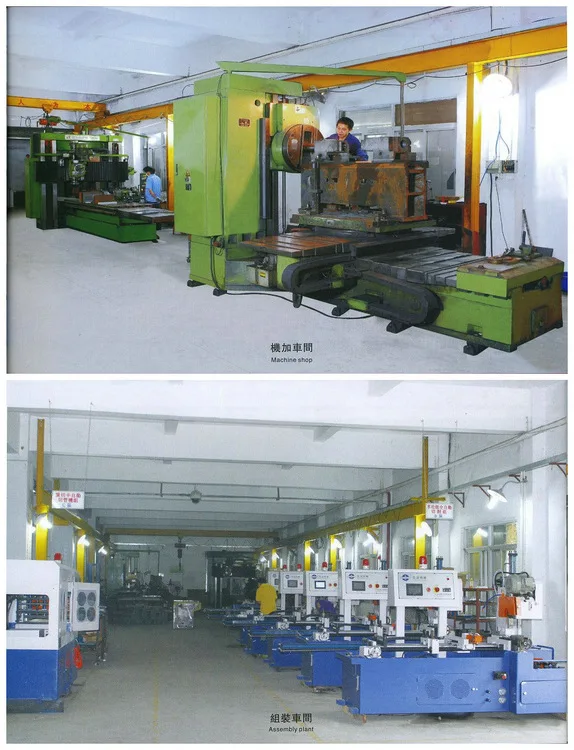

Our company
