Высококачественный гидравлический угловой высекальный станок с регулируемым углом

Product Overview

Description

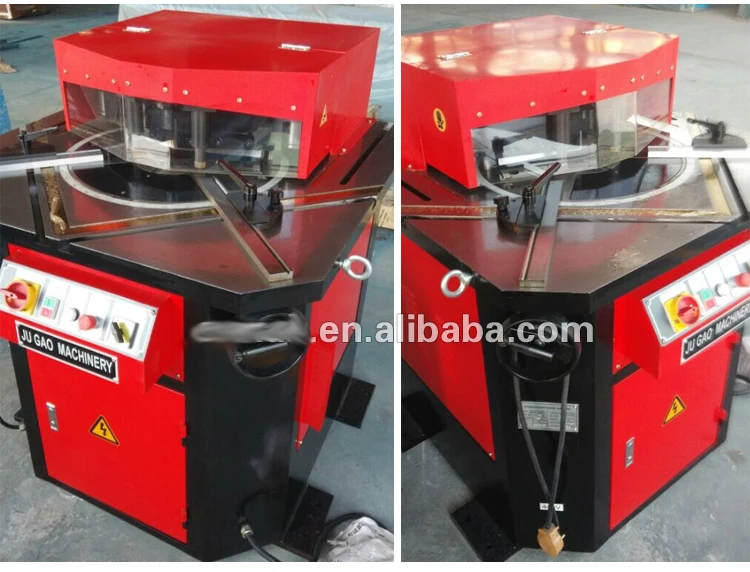

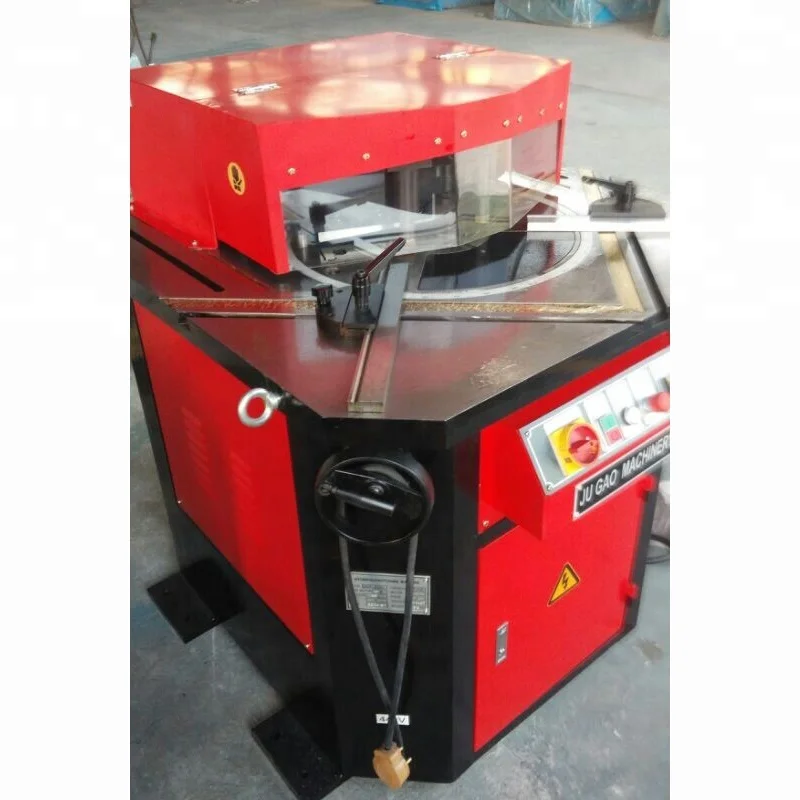

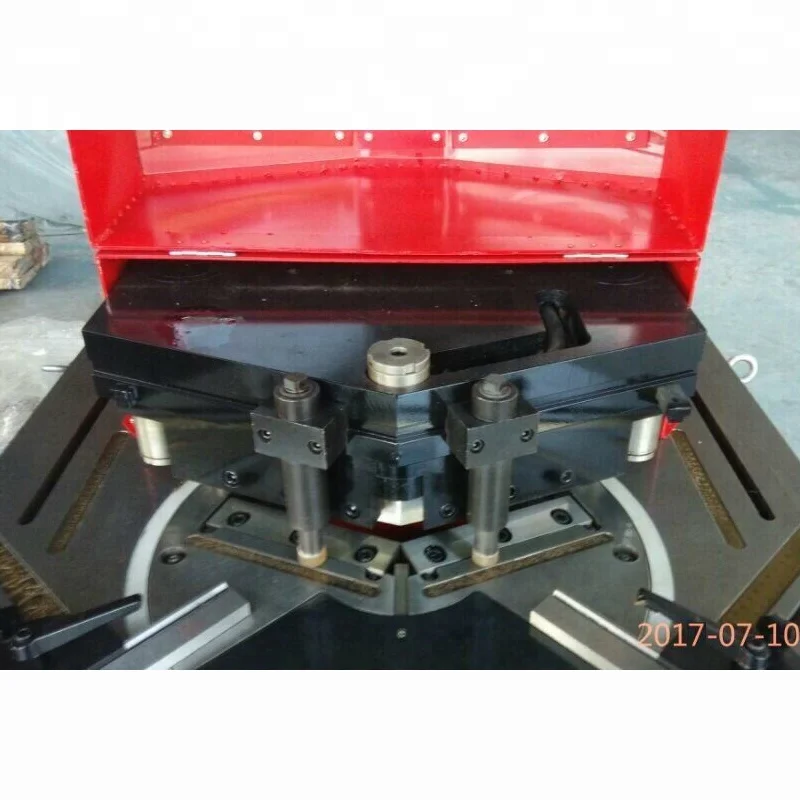

High quality Adjustable Angle Hydraulic corner notcher angle cutter machine

Notching machine for cutting sheet metal, which is widely used in many fields of automobile manufacturing, boating, elevators, electrical equipment, plumbing, cooking utensils and stainless steel products.

Notching machine mainly divided into angle-fixed notching machine and angle-adjustable notching machine, performance characteristics are as follows:

• Compact structure, mechanical structure ensures the machine rigidity, with solid guide to ensure the best cutting accuracy and the cutter life.

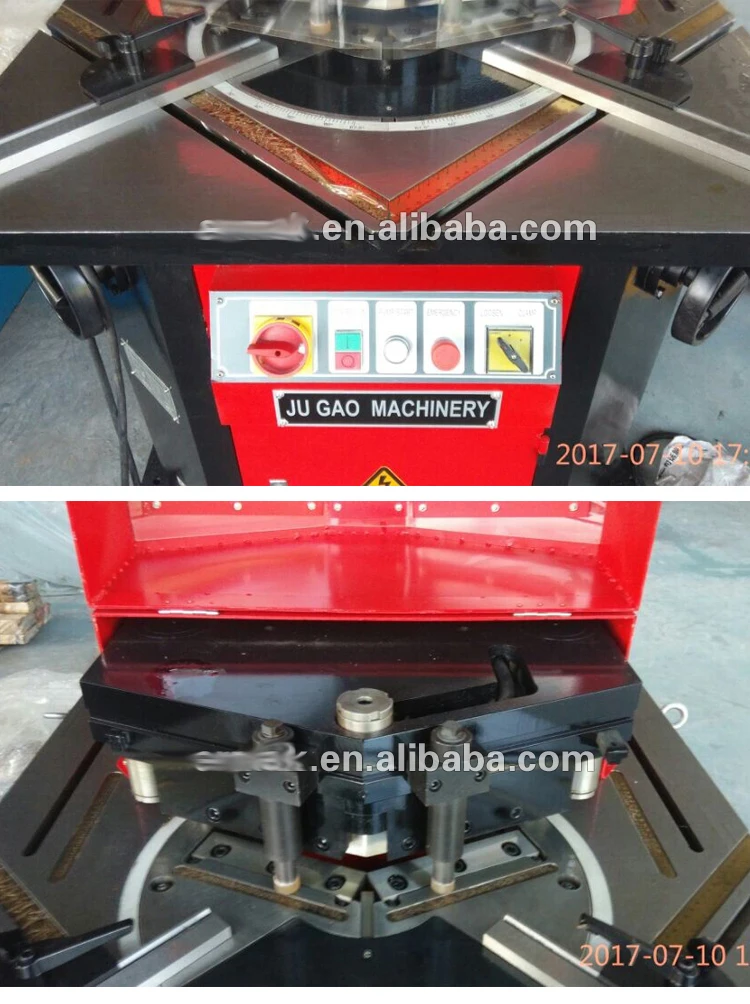

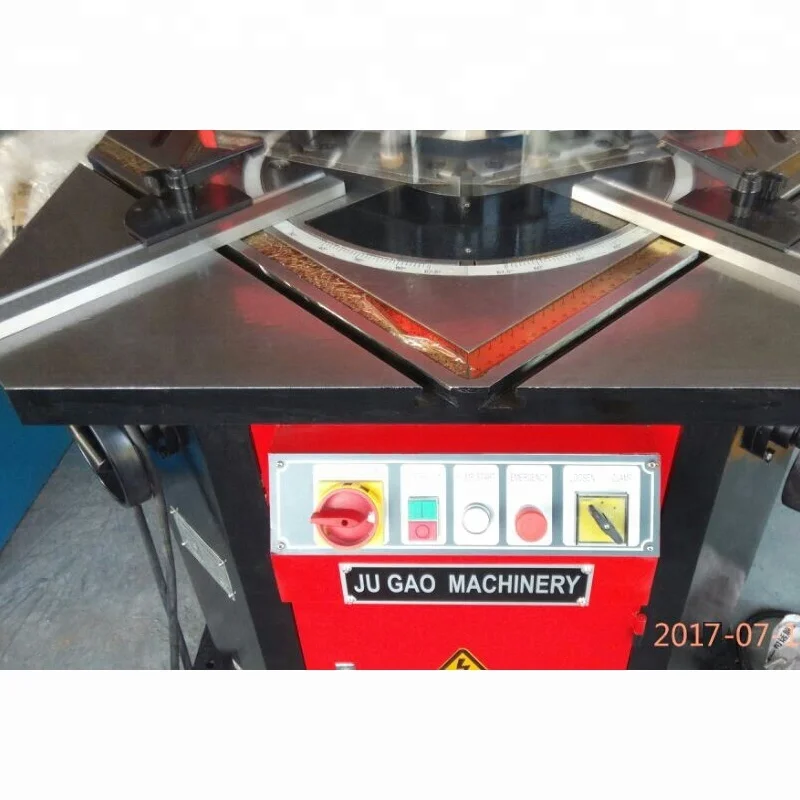

• Pedal switch control, easy operation; manual and cycle work modes are available for your choice.


•


  Calibration indicates angle, through hand wheel adjust the angle, very convenient.





•


  Stroke is adjustable, improve the cutting speed.

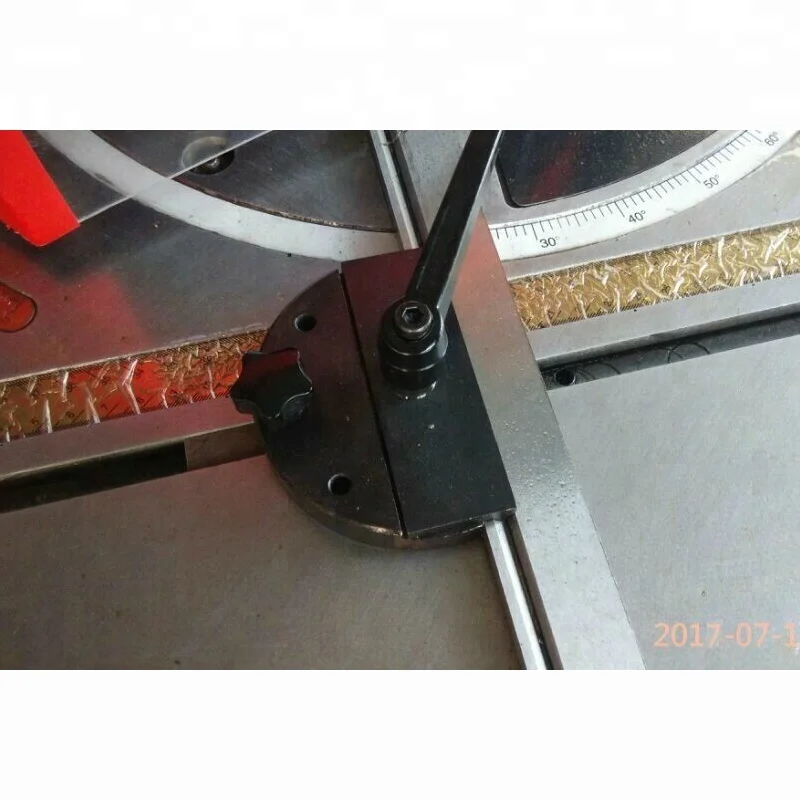

• Equipped with cutting length ruler, can adjust the position of positioning stopper, and set the cutting length.


• Polished workbench surface, smooth and level, not hurts workpieces.


•


   The cutter is suitable for cutting CS (Carbon Steel) and SS (Stainless Steel).

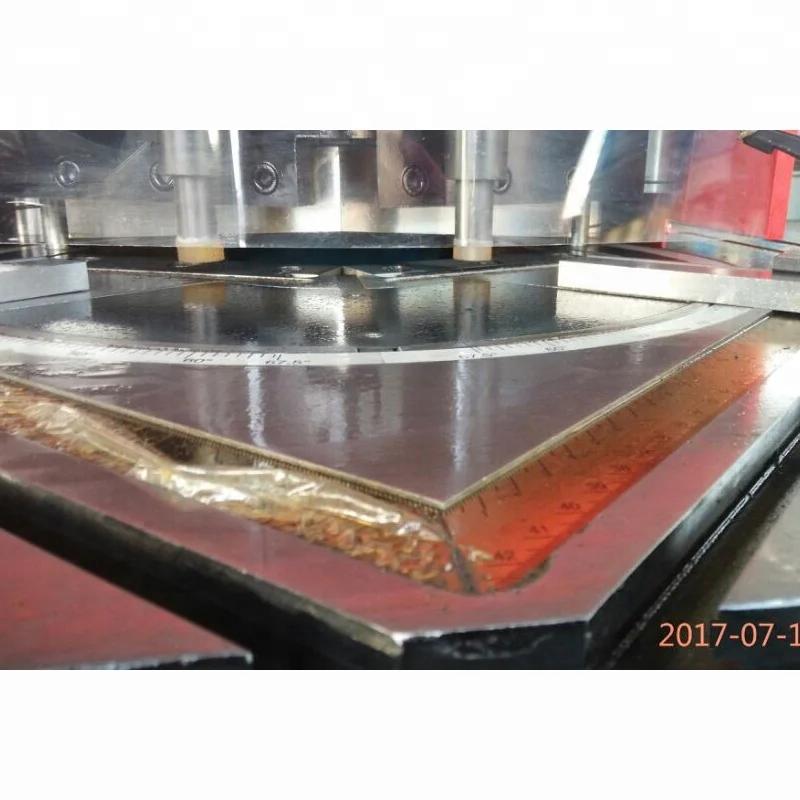

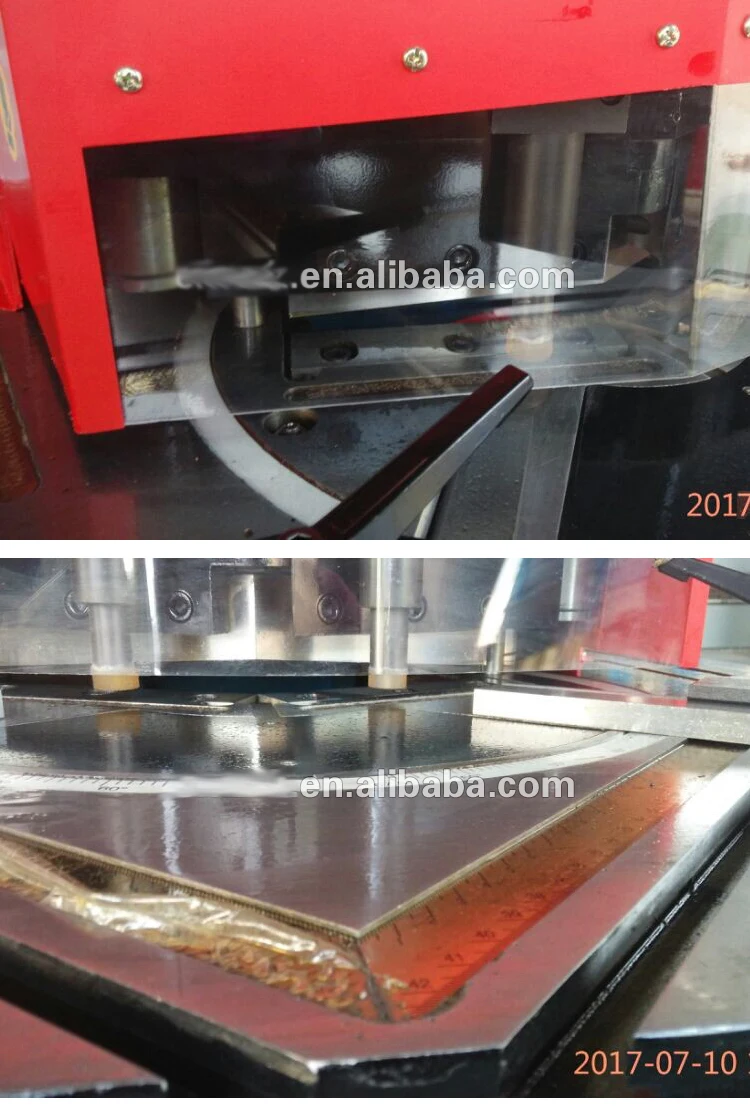

• Equipped with material pressing foot to prevent plate from distorting and deforming.

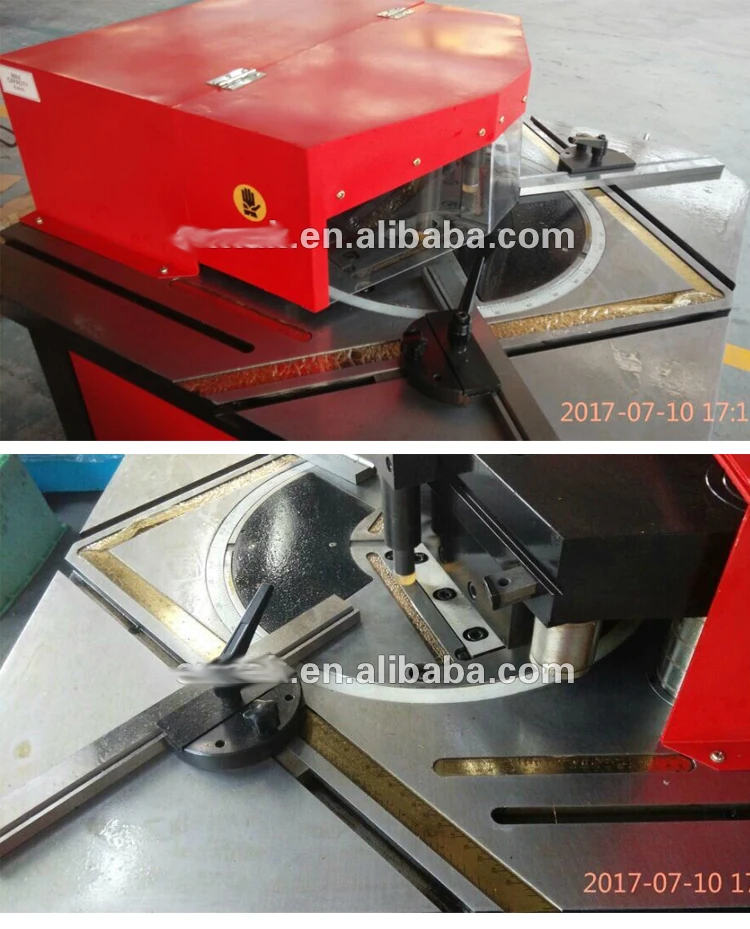

• Plastic protective cover avoid contact with the cutting parts, ensure the safety of operators and equipment.


•


  Guide column automatic lubrication system reduces maintenance needs.




Model		QC28Y-3X200	QC28Y-4X200	QC28Y-6X200
Max Notching  Thickness  (mm)	Mild Steel	3	4	6
	Stainless Steel	1.5	2	3
Min Notching  Thickness  (mm)	Mild Steel	0.5	0.5	0.5
	Stainless Steel	0.5	0.5	0.5
Notching Length (mm)		200	200	200

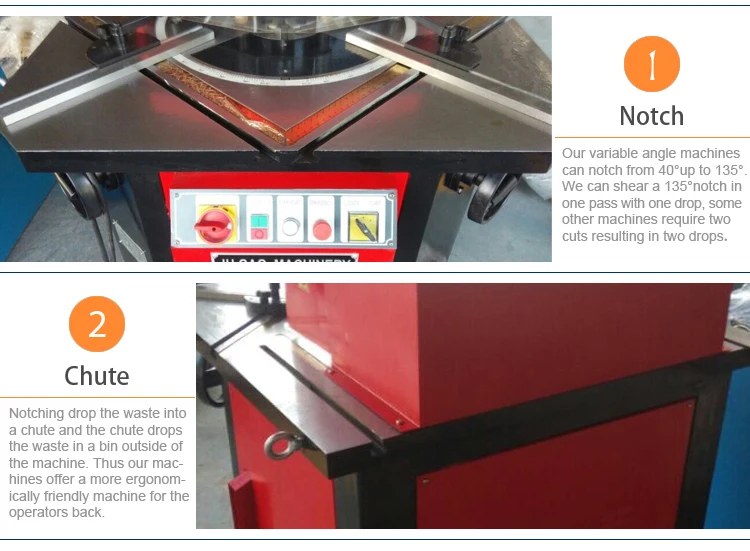

Notching Angle Range		40°~135°	40°~135°	90°
Main Motor Power (kw)		4	4	5.5
Dimension (mm)		1500x1000x1400	1500x1000x1400	1500x1000x1400
Net Weight (kgs)		1100	1350	1500

Guarantee period:
Our product quality guarantee period is 12 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by customers’ incorrect operations, we will provide customers spare parts at cost price. We also can offer flexible extended warranties according to the actual situation.
After-sales services:
Our engineer can go to your factory for installation and showing operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our factory for learning the installation, operation and maintenance for free.
Why Choose Us:
1. We will run the machine for a few days, and use your materials to do the test. Only guarantee the machine shows best performance, and then we will ship out.
2. Our elite teams can provide you professional, customized, and all-round services around the clock. If you need any help, contact us by WHATSAPP, Skype, Email or Telephone.
How can we provide you efficient services (metal processing solution):
There are Three Steps as following:
1. Gather your requirements based on your real working situation.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional recommendations; reg. non-standard products, we can offer professional designing.
