2020 Новая машина для переработки золота электрическая индукционная плавильная печь для золота
- Category: Mineral Separator >>>
- Supplier: Jiangxi Province County Mining Machinery Factory
Share on (1730749467):
Product Overview
Description
Product Description
2014 New Gold Refining Aque Regia Melting Machine
gold melting furnace type:
1. High frequency power
2. medium frequency power
operation conditions of Gold melting furnace:
1. single molten metal quantity: 1g to 100 kgs.
2. single melting time: 2 minutes to 40 minutes
3. Maximum temperature:1500-2000 degrees.
Advantage of Gold melting furnace:
1. Adopts all-solid-state power conversion module Siemens IGBT technology.
2. full range of protection features such as: over-current, water shortages, overheating, over-voltage, short circuit, lack of protection, greatly improving the reliability of the equipment and convenient equipment maintenance.
3. Portable, Small, space-saving,light weight,easy to move.
4. No need debug, After connectting through electrical&water can be used.
5. Easy operation, suitable for factory, family, institute & Laboratory smelting experiments
6. melt various kinds of metals.
7. 24 hours continuous smelting capacity.
Application of Gold melting furnace:
1. Used for melting ,refining,purfication, reverse mold by casting crucible, spinkle beads granulation process
2. Gold melting furnace is used to melt metal : platinum, palladium, rhodium, gold, silver, copper, steel, aluminum,
activated carbon gold gray, Sands, electrolysis mud, gold and silver powder, tin ash dross ect
Technical Data
Model | 15A | 25A | 35AB | 45AB | 60AB | 80AB | 100AB | 120AB | 140AB | ||||||||
Input Voltage(V) | 220 V/single phase | 380V /3 phase | |||||||||||||||
Power(KW) | 4 | 5 | 10 | 15 | 25 | 35 | 45 | 70 | 90 | ||||||||
Input Current(A) | 4 | 6 | 12 | 23 | 36 | 51 | 68 | 105 | 135 | ||||||||
Oscillation Frequency (KHZ) | 1-15 | ||||||||||||||||
Cooling water pressure (Mpa) | 0.07-0.2 | 0.07-0.2 | 0.07-0.2 | 0.1-0.2 | 0.15- 0.2 | 0.3 | 0.3 | 0.5 | 0.5 | ||||||||
machine weight(KG) | 20 | 25 | 35 | 60 | 70 | 90 | 120 | 140 | 160 | ||||||||
Capacity for Gold/copper/silver (KG) | 2 | 4 | 8 | 10 | 20 | 30 | 50 | 100 | 120 | ||||||||
Capacity for Steel/Iron (KG) | / | / | / | 2 | 4 | 10 | 18 | 25 | 40 | ||||||||
Capacity for Aluminum Alloy (KG) | / | / | / | 3 | 6 | 12 | 21 | 30 | 40 | ||||||||
Smelting time(≤Min) | 5 | 5 | 10 | 20 | 20 | 30 | 40 | 50 | 50 | ||||||||
Packing&Shipping
Packing：Standard parts use wooden case to pack, whole machine is directly loading on the container.

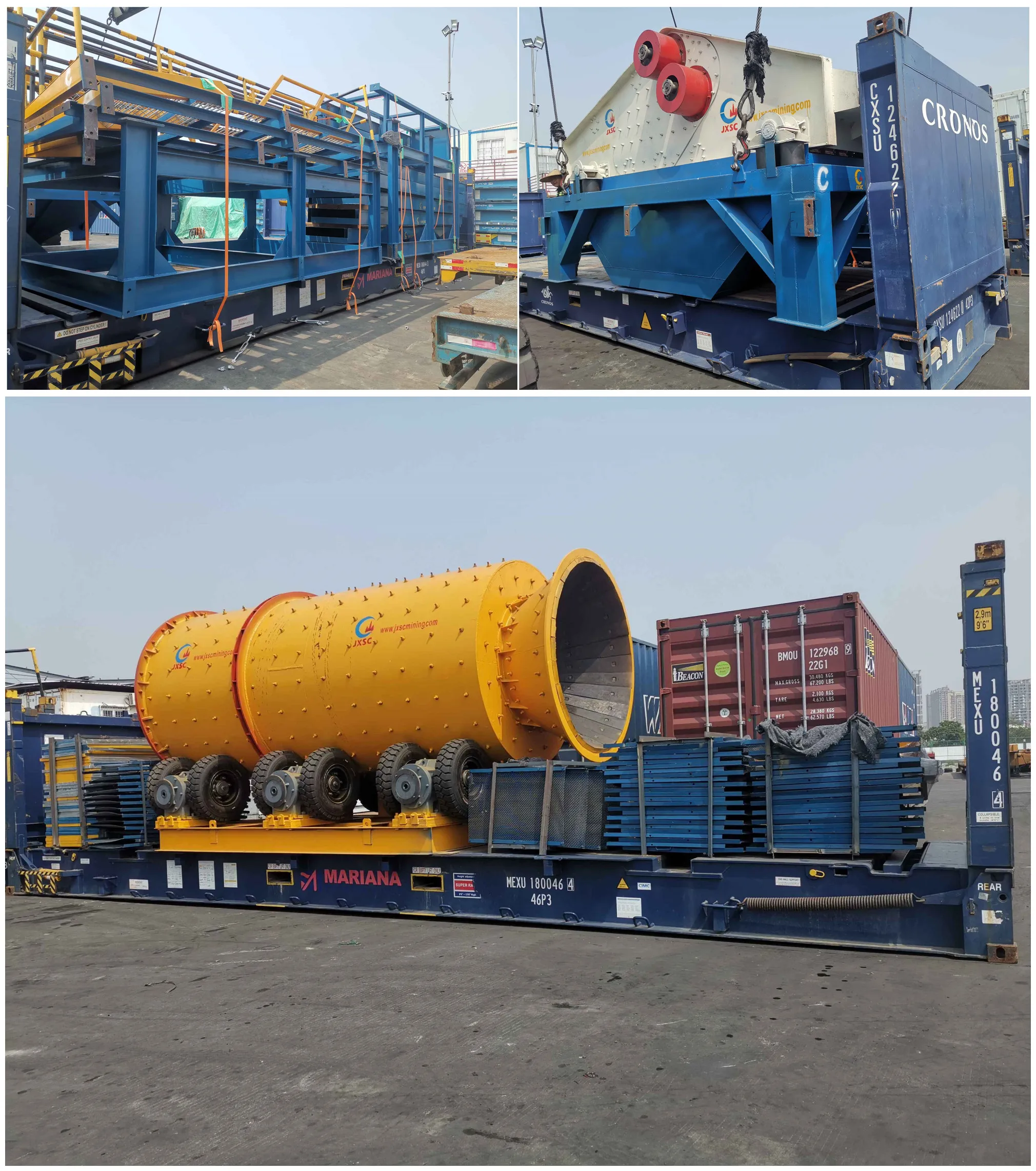

Shipping: BY sea,use 20'GP container or 40'HQ container or Flat rack container.
Company Introduction
\t\t\t\t\t\t\t\t\tOur Service \t\t\t\t\t\t\t
Pre-Sales Service
*Inquiry and consulting support
*Ore sample testing support
*View our Factory
*Design Flowchart
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* 1 year warranty
* Engineers available to service machinery overseas.
FAQ
Q: Are you mining machinery manufacturer? can I visit your factory?
A: Yes, we are mining machinery manufacturer, our factory is located in Ganzhou City Jiangxi province, it has direct flight to Beijing,Shanghai,Guangzhou,Shenzhen Airport. Welcome to visit our factory!
Q:Can you produce as specific size?
A: Yes, most of our products are customized as per customer's requirements.
Q: What is the leading time?
A: For shaking table and laboratory mining equipment ,we can send out within 7 days after receiving full payment.
For large scale mining equipment and customized machine, the lead time is about 30-35 days.
Q: Do you supply oversea service?
A: Yes, we do. Engineers available to service machinery overseas.
Q: How about the warranty?
A: We will supply you one year warranty and lifelong technical support.
A: Yes, we are mining machinery manufacturer, our factory is located in Ganzhou City Jiangxi province, it has direct flight to Beijing,Shanghai,Guangzhou,Shenzhen Airport. Welcome to visit our factory!
Q:Can you produce as specific size?
A: Yes, most of our products are customized as per customer's requirements.
Q: What is the leading time?
A: For shaking table and laboratory mining equipment ,we can send out within 7 days after receiving full payment.
For large scale mining equipment and customized machine, the lead time is about 30-35 days.
Q: Do you supply oversea service?
A: Yes, we do. Engineers available to service machinery overseas.
Q: How about the warranty?
A: We will supply you one year warranty and lifelong technical support.
Q: What is the payment term?
A: 100% TT or 40% advanced payment before factory production,60% balance shall be paid before factory delivery.
Q: Do you have office abroad?
A: Yes,we have office in Tanzania. There are some regular machines in stock for sale.
JXSC Factory provide one-stop gold mining solution,diamond mining solution,coltan mining solution and turn-key service! Welcome to inquiry!
