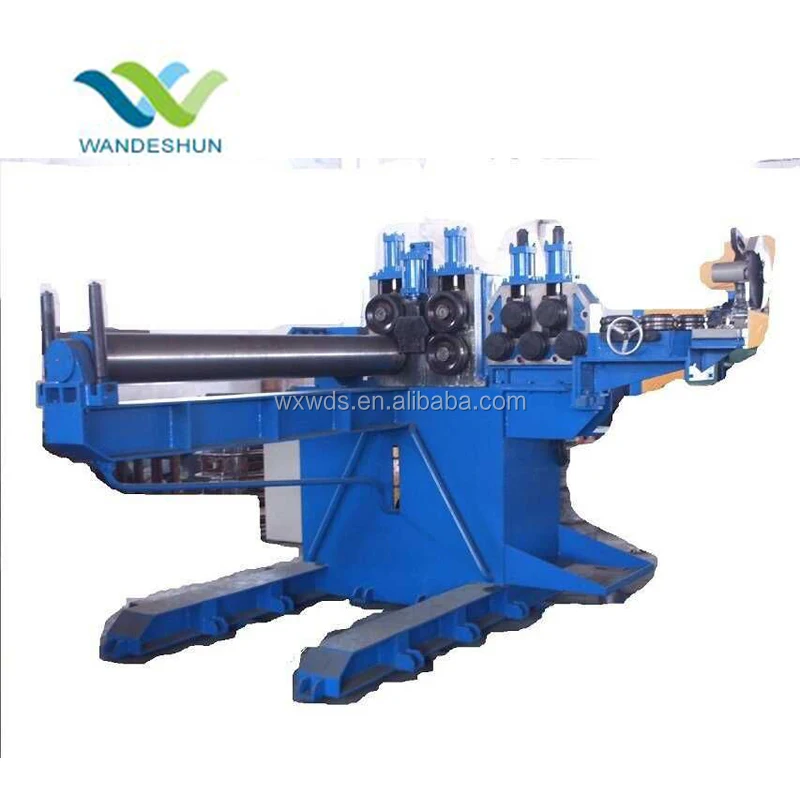

Inverted Vertical wire making /pulley type wire drawing machine welding machine

Product Overview

Description

Specifications

1.15 years experience
2.ISO9001:2008,CQBC,etc.
3.Delivery in time
4. Good quality

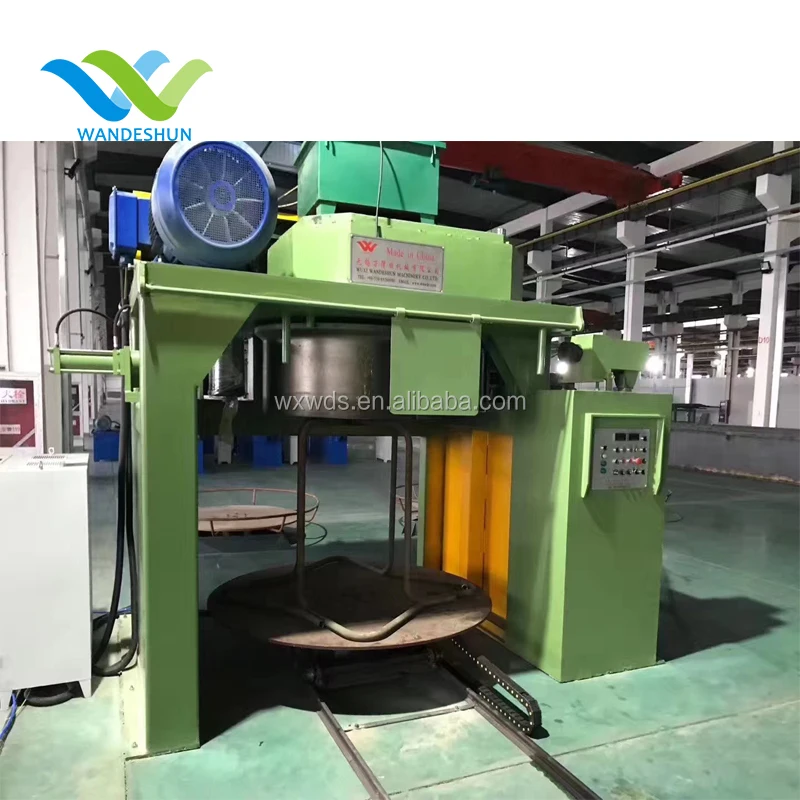

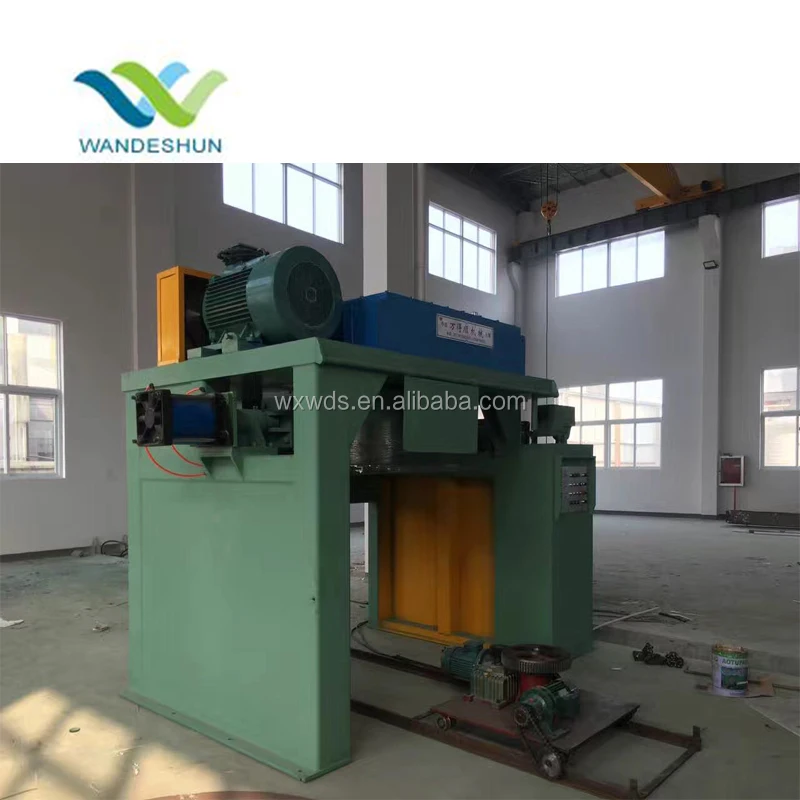

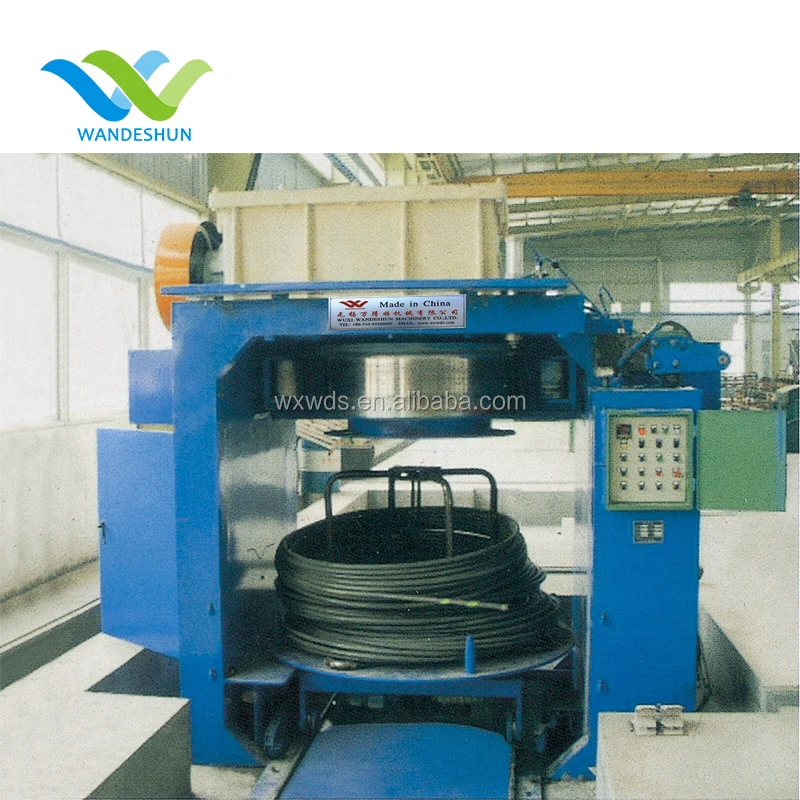

Inverted vertical wire drawing machine



...................................................................................................................

Description





    Inverted Vertical Drawing Machine is developed for the non-slip drawing of medium&low carrbon steel wire, special shaped steel wire and nonferrous metals with thick & medium diameters.



   It is especislly suitable for the drawing of medium & low carbon steel wire in standard parts and supermaket shelf industriy.



    The maximum inlet diameter can reach 40mm and diameter of capstan is 550-1400mm.



    Transmission part of the system can apply cycloidal speed reducer, harden gear surface reducer or rocker reducer. Its electric system applies international famous brand frequency converter with performance.







Warmly welcome chat online





Features of the equipment





1. It is applicable for continuous production process of coil with heavy charing box.



2. Easy operation and reliable control enables safe production and conveninent maintenance.



3. Application of 3-phase AC variable-frequency speed adjustment realizes smooth stepless speed regulation and saves more than 30% electric power.





Specification



  carbon steel wire making machine





Items	Unit	Type
Diameter of Capstan	mm	Φ550-Φ1400
Max diameter of inlet wire	mm	Φ40
Intensity of material	M pa	≤1200
Compression rate	%	15-30
Wire drawing line	m/s	2.5
Single motor power	Kw	11-110

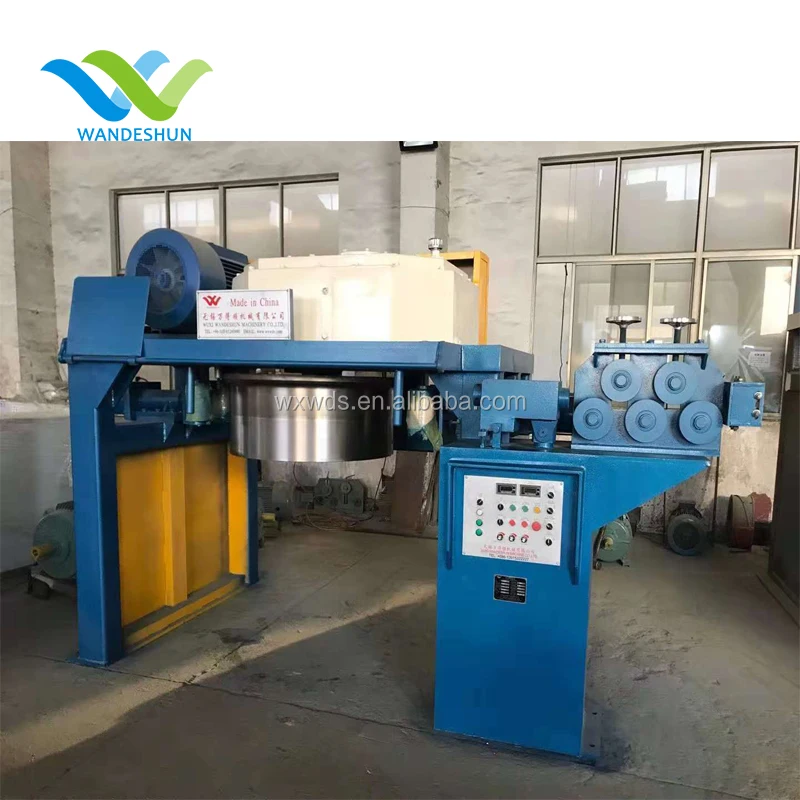

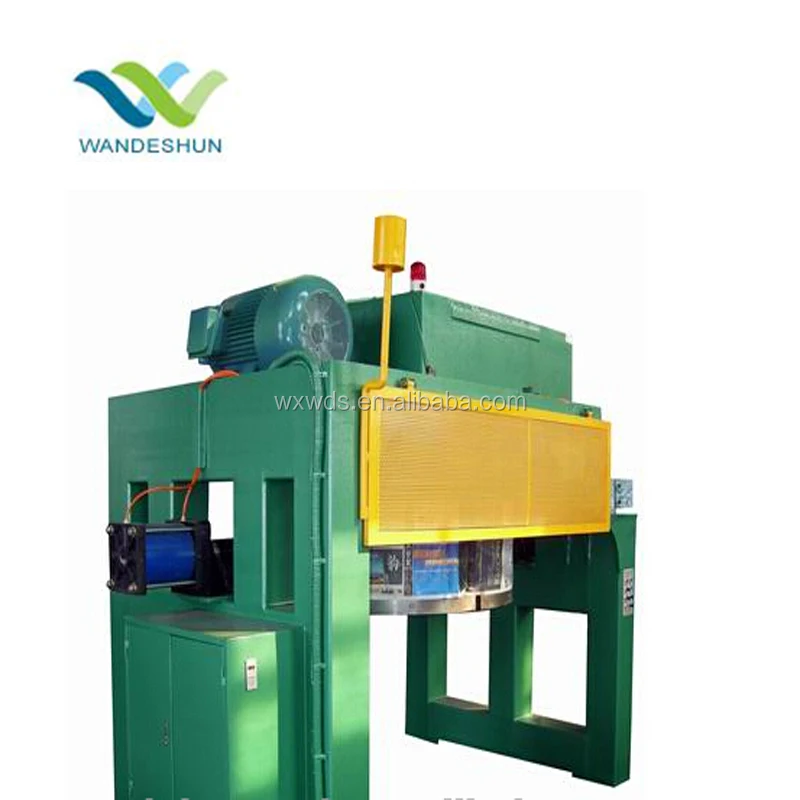

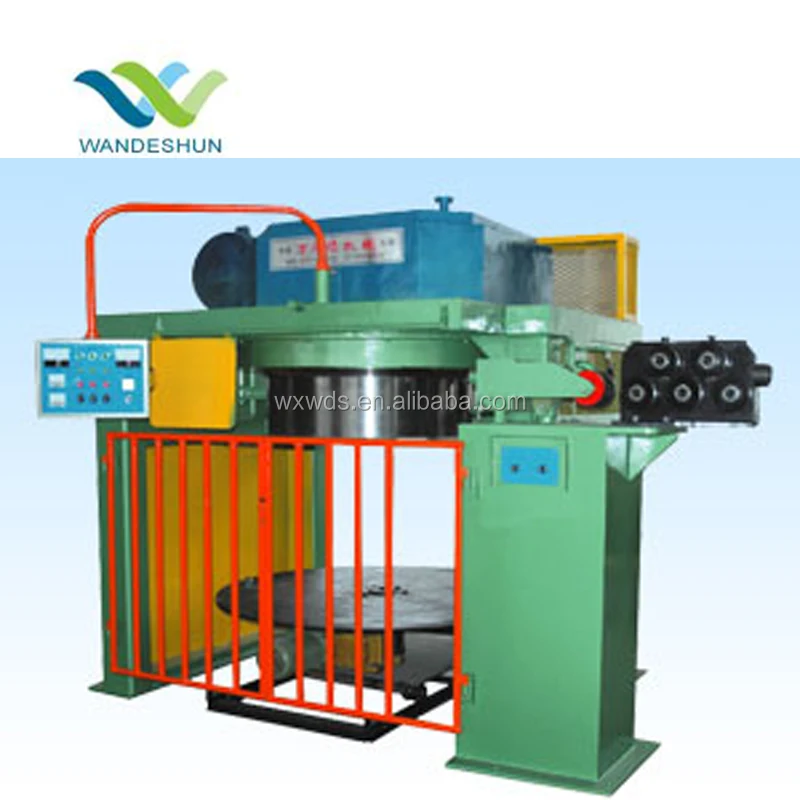

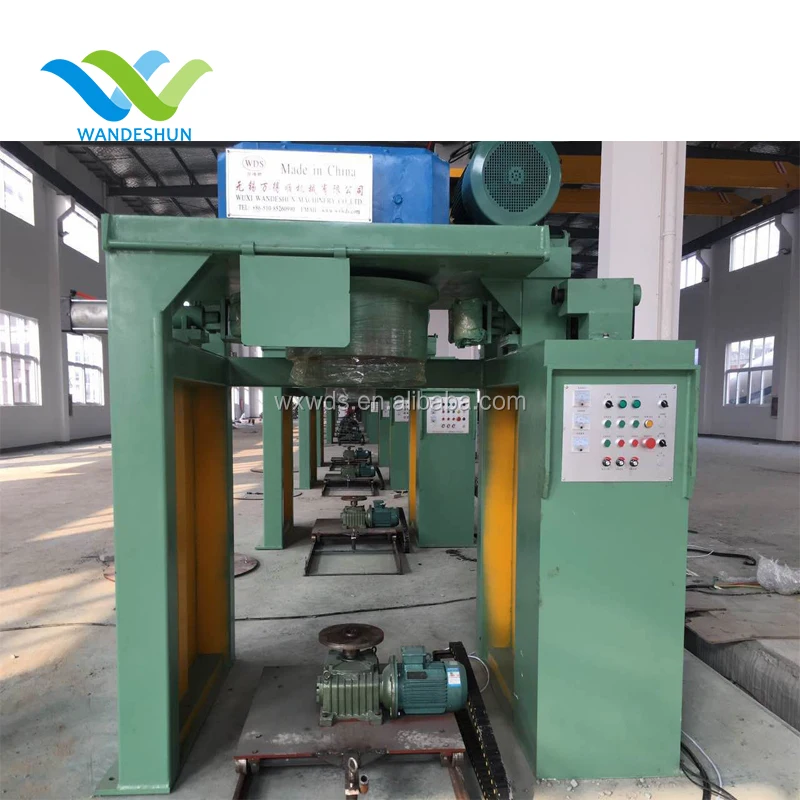

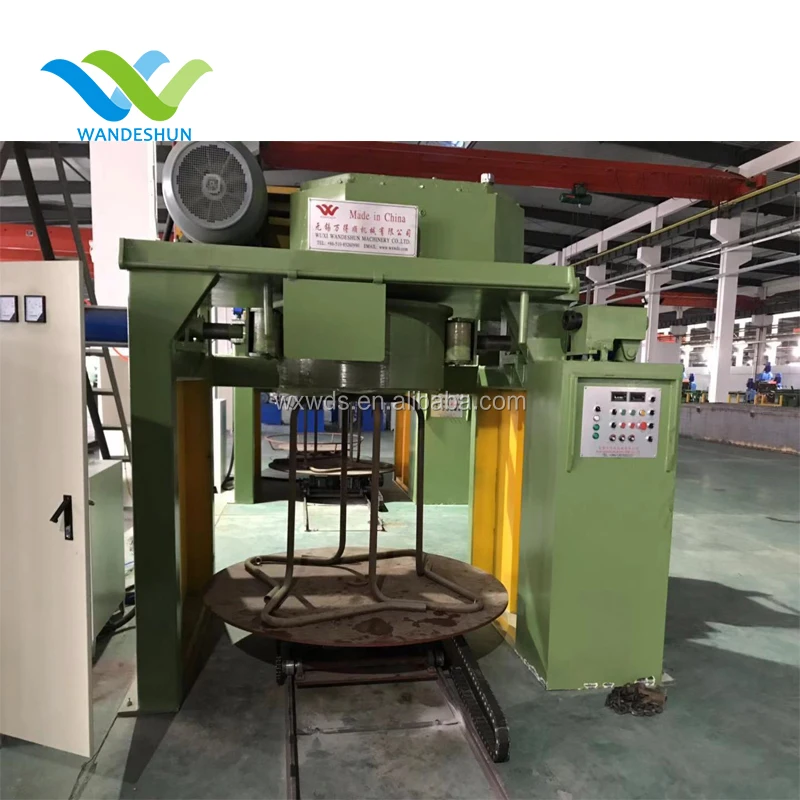

Our new prodcuts of INVERTED VERTICAL DRAWING MACHINE









About us

Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.

Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia, Uzbekistan Kenya, South Africa,Algeria,Egypt, Iran,Turkey and so on.

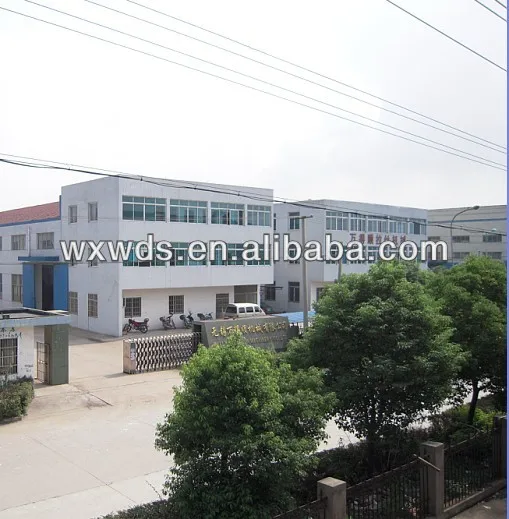

Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.



Main products:

Straight line drawing machine

Water tank wire drawing machine

Aluminium wire drawing machines

Vertical wire drawing machine

Pulley wire drawing machine



We have a professional technical team, a good after sale service team, an excellent production management team. We can design and produce various wire drawing machines,

auxiliary equipment according to customers’ special requirements.
