4kg Small Brass Copper Melting Furnace

Product Overview

Description

4kg Small Brass Copper Melting Furnace



1200C/2192F Small Brass/Copper Melting Furnace

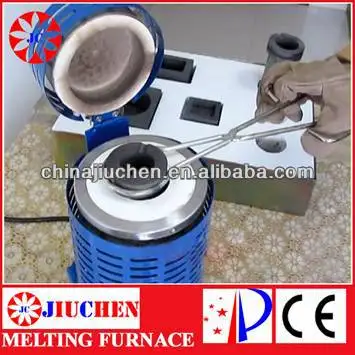

JIU CHEN furnace is designed for handheld pouring directly from the specially designed crucible and tongs.
The crucible is grooved at the top for easy removal from the furnace using the specially designed tongs that are provided with the furnace.





This furnace meets the needs for individuals who are melting small to medium jobs. The unit is light and compact for easy travel.

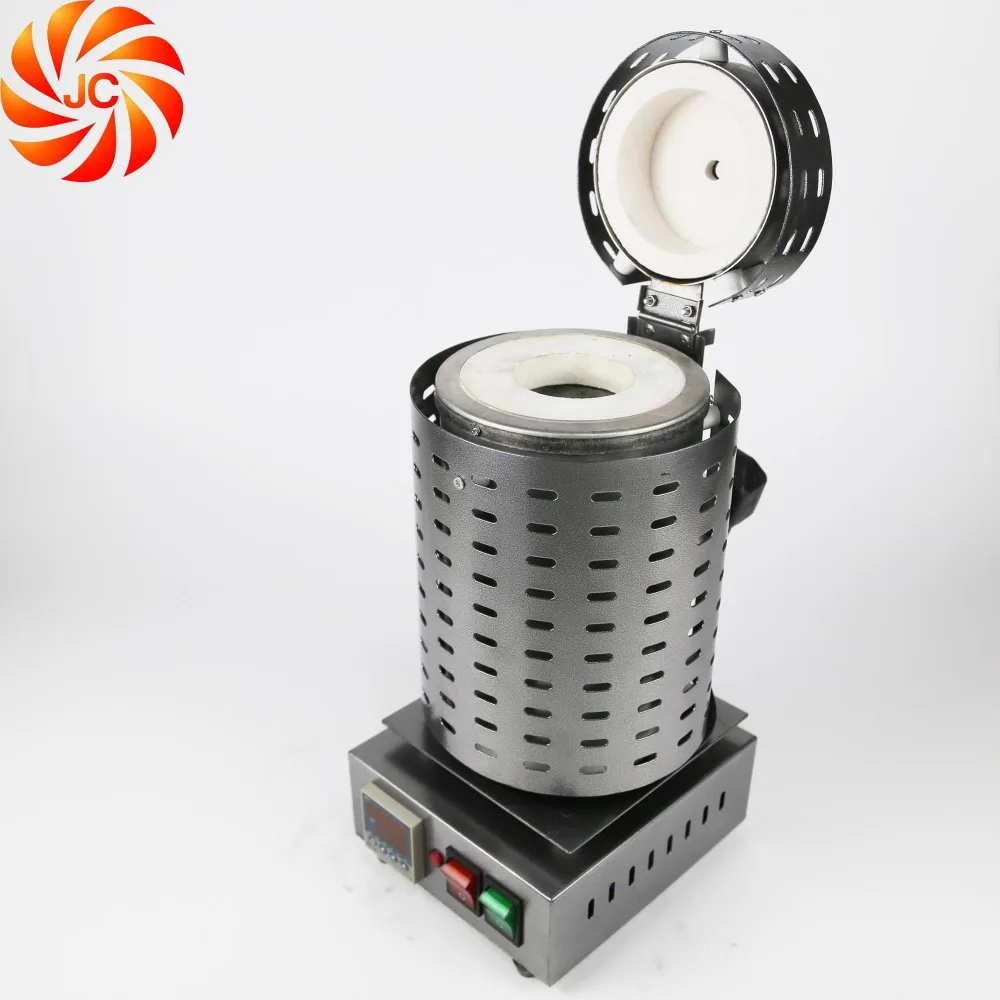

Insulated lid holds heat in and keeps oxygen out for a cleaner melt.





 The furnace is an energy-efficient heating equipment with small size, high precision, easy operation, fast heating, and high efficiency.The unit is widely used in melting gold, silver, copper and other metals; Research projects of schools, laboratories; melting and heat treatment projects of non-flammable, non-explosive materials; melting and heat treatment of materials which need precise temperature controlled.It is a best choice for small heating , melting equipment.







Some of the Metals that can be melted with this Furnace;
Aluminum, Gold, Copper,Brassl,Lead, Silver, Sterling Silver, Tin & Zinc







MODEL	Int.Vol(L)	Acceptable Mass(kg)	Crucible Dim.(Øxh)(mm)	Power (kW)	Weight (kg)	Heating Speed (mins)
JC-K-110-1	0.14	1KG	Ø38X115	1	4	25-30
JC-K-110-2	0.23	2KG	Ø44X140	2	4.3	15-20
JC-K-220-1	0.32	3KG	Ø50X150	1	4.8	25-30
JC-K-220-2	0.34	4KG	Ø60X121	2	5	15-20































One set of Furnace Comes with:



Model JC-K-220-1(220V 1kw) Blue color

1-1kg graphit crucible

1-crucible tongs.

1-100g Mould.

1-replacement fuse.

1-insulating heat glasses.

1- gloves.

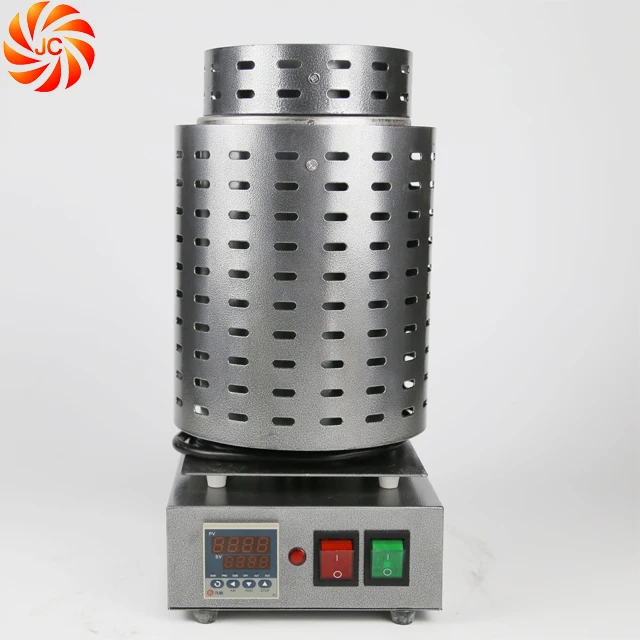

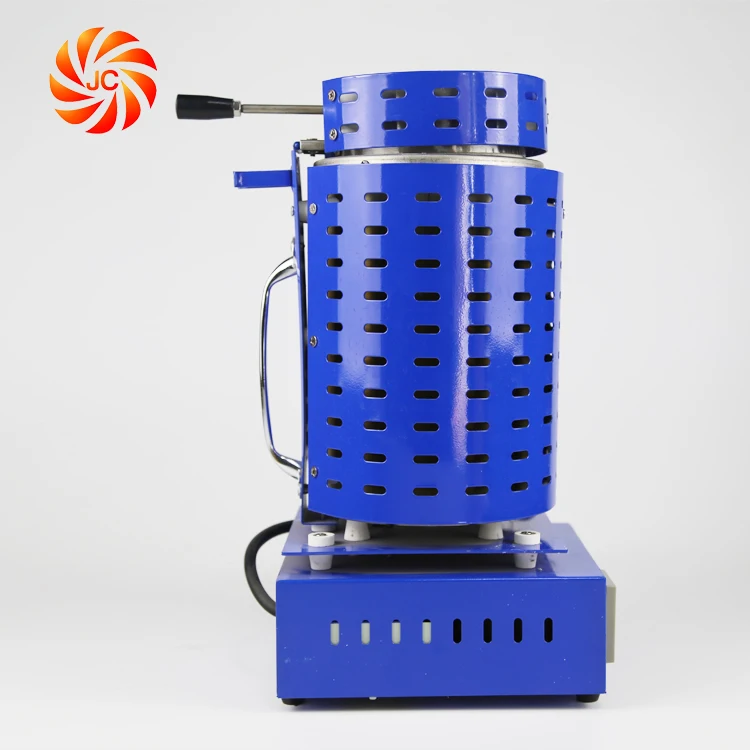

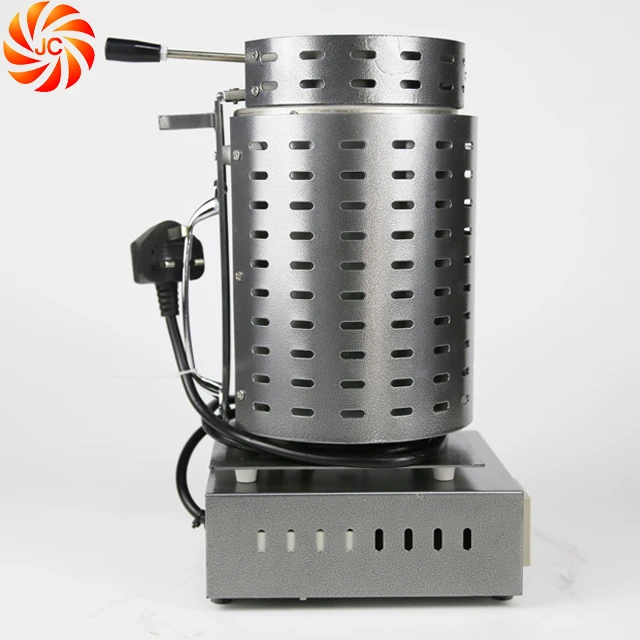

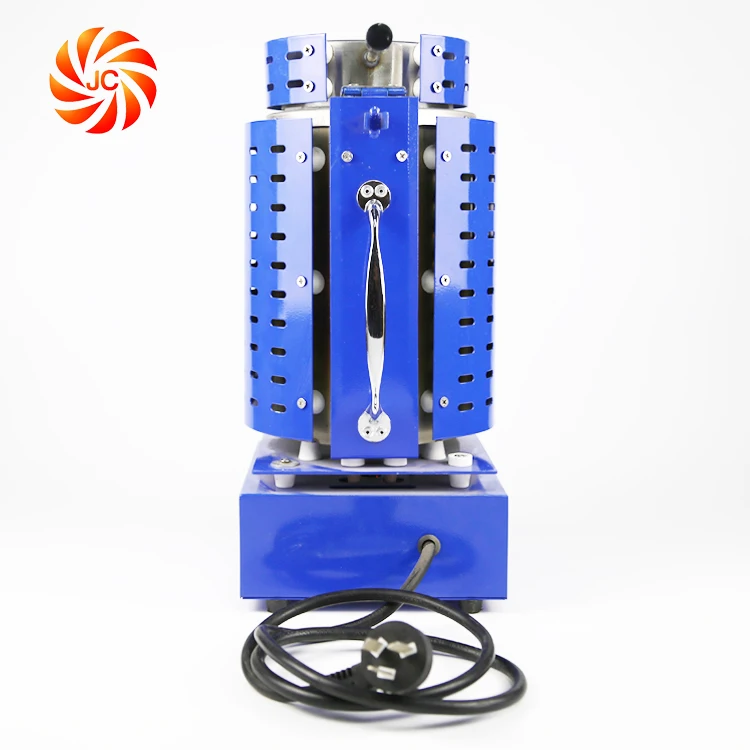

Product Display:

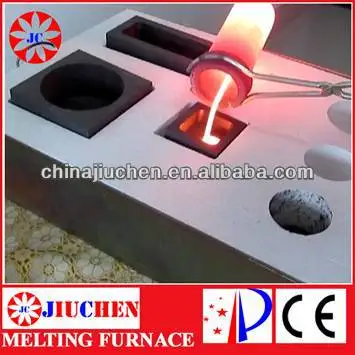

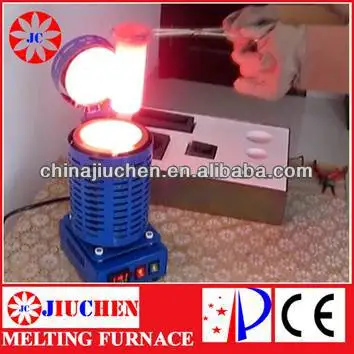

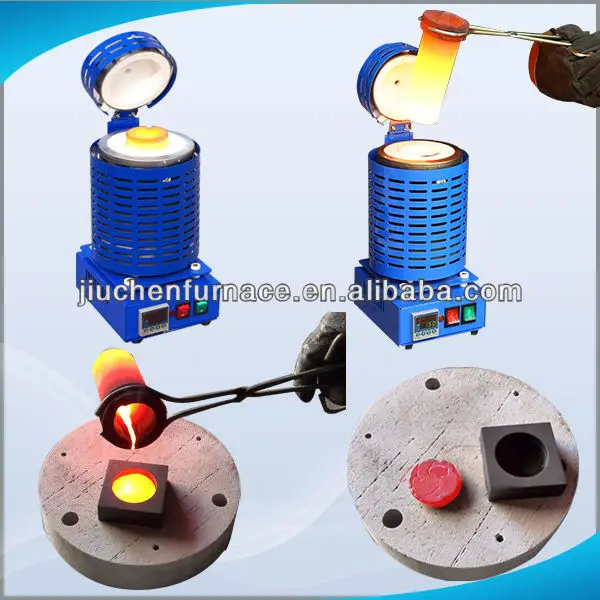

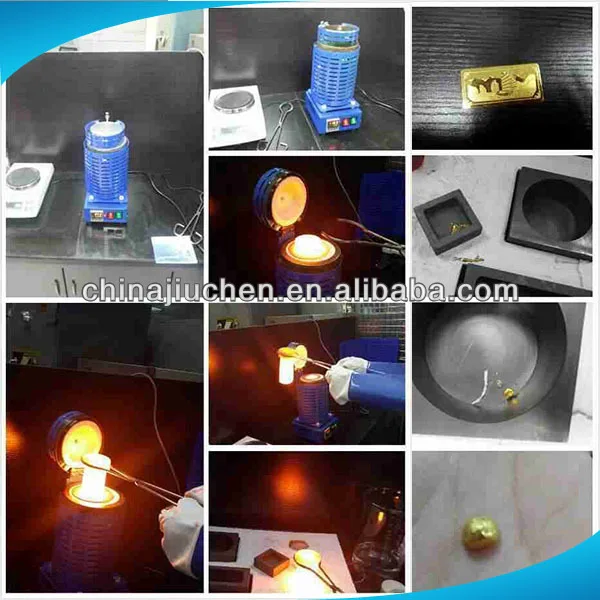

 Operation Details Picture





Advantages of This Product:
1. Light weight and small volume;
2. High efficiency of refining;
3. Easy installation and operation;
4. Fast speed of raising temperature, the temperature is constant;
5.Safe and environment-friendly operation;
6.Complete Protection:Equipped with over-voltage,over-current,over-heat,water shortage device which control and protect automatically;



7.Insulated lid holds heat in and keeps oxygen out for a cleaner melt.



8. You can melt pure silver & gold or alloys such as sterling silver, 14k gold 18k gold up to pure.



9. It takes 4-5 Minutes to first warm up depending on the metal your melting and 11-15 minutes to fully melt your metal depending on the form of material. Shot or small parts melt faster than large bars or blocks.



10. Insulated lid holds heat in and keeps oxygen out for a cleaner melt.







Note:the crucible is grooved at the top for easy removal from the furnace using the specially designed   tongs  that are provided with the furnace.

Characteristic:

1. Exquisite& Convenient:

Small size(170x220x370mm),light weight(N.W.:4.5KGS),independent operation.

2 .Easy operation:

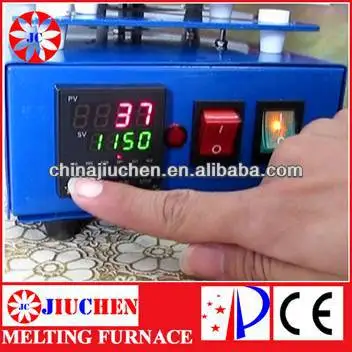

The parameters can be changed conveniently by pressing arrow buttons.

The setting temperature and surveyed temperature can be shown at the same time.

3.Accurate temp control:

Microprocessor PID control, PID auto-tuning function ensure the

accuracy of the temperature control in any state

 4.High efficiency:

 Fast heating, high efficiency ,good insulation effect,lowpower.

 Packages:





Related Certificate:



Payment and Delivery:
