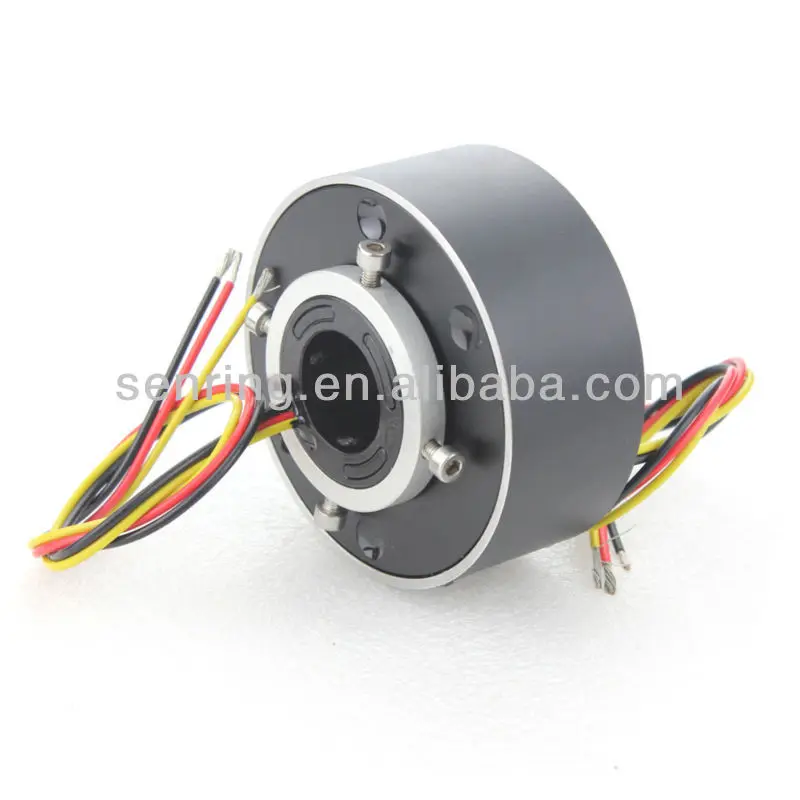

Electrical conductive slip ring 2 wires 10A with hole size 25.4mm of through bore slip ring

SNH025 Specifications(Standard)

• Contact Material


  Precious metal brush,Silver plated rings





• Current Rating


  10A/per circuit





• Number of Circuits


  2





• Operating Speed


  600 rpm* continuous





• Lead Wire


  UL Teflon® Awg28,Awg22,Awg16,Awg10 (200 mm)





• Voltage


  600 VAC





• Operating Temp.


  -40°C to 80°C





• Working Humidity


  60%RH





• Torque


  Approx. ≤8.75 g·m (for reference )





• Dielectric Strength


  ≥1000V@50Hz between each circuit





• Insulation Resistance


  1000MΩ@ 600VDC





• Noise


  Less than 10 mΩ @ 6 VDC, 50 mA, 5 rpm





• Housing Material


  Aluminum Alloy





• Protection


  IP51




• 25.4mm(1 inch) through-bore size.


• Compact 86mm(99mm when circuits>48) outside diameter; smaller OD, customized on request


• 2,3,4, 6, 12, 18, 24, 30, 36, 48, 56 circuits are standard, others,need to be customized


• Signals, 5Amp, 10Amp, 20Amp current version; >24Amp, customized on request


• Speeds up to 600 rpm continuous, >600rpm, need to be customized


• Steel bearings and machined shaft and housing for harsh environments


• Collar mounting is standard; flange mounting is optional


• Various lead exits are available


• Silver plated rings are standard. Gold plated, optional.


• precious metal brush are standard. gold alloy brush, optional.


• Awg28,Awg22,Awg16,Awg10, 200mm lead wire are standard, >200mm is optional.


• Continuous 360° rotation of power or data signals


• Protection grade IP54 is standard, IP65,IP68, optional


• Aluminum alloy housing material

• Transfers control and data signals


• Fiber brush technology provides maintenance-free operation (no lubrication required)


• Modular design meets special requirements through off-the-shelf manufacturing techniques


• Customized configurations for your application


• Quick shippments
