PID VALVE GATE HOT RUNNER MOLDING TEMPERATURE CONTROLLER SYSTEM

Product Overview

Description

1. DXC-HMTC-Touch screen Mould temperture control system SPECIIATIOS:     PRODUCTS ADVANTAGES
1.Auto-tuning+phase angle fired output,deliver smooth and exzct power                                                 2.Mold monitor(preventive diagnotics                                                                                               3.Softstart function for smooth start-ups                                                                                                 4.Mold doctor(troubleshoot your mold)                                                                                      5.Synchronous tracks all zones temperature                                                                                         6.Non-touch transfer                                                                                                                             7.From 2 zone to 256 zone available                                                                                                           8.A completely modular design for easy maintenance                                                                           9.Output module rating:15A/30A optional                                                                                                             10.A user friendly interfacce with touch screen
Performance Specifications
Control Mode	Auto & Manual
Transmit temp:	-40 F to 158 F (-40°C to 70°C)
Temperature Range	50°C-537°C
Control Accuracy	1±0.3% of span
Temperature Stability	±0.5%
Compensated Manual Control	yes
Thermocouple type	J/K optional
Advance diagnostics Indicators	yes
Temperature unit	c or F
Temp control range	45°C to 550°C
Repeat test precision:	±0.1%
Calibration Accuracy	0.1% of span
T/C cold junction copensation	Dynamic tracking
1 Point Load	15A,3500W/220V or 1650W/110V
2) Relative humidity	10%-95%
Cycle Time	200ms
Temperature Reset	Yes
Ramp Start TM(RS)	yes
RS Duration	10mins
RS Override temperature	1% of span
Operational Mode Priority	OFF MODE
Electrical Power Specifications
Input Voltage	AC185V-245V
Frequency	50/60HZ
DC Power Supplies	NO
Module Power Usage	NO
Pakage & shippment
Payment: 30% deposit by T/T,the balanced T/T before shippment Delivery:: 5 working days after confirm the deposit. Shippment: EXPRESS,SEA,AIR Package: International standard wooden case

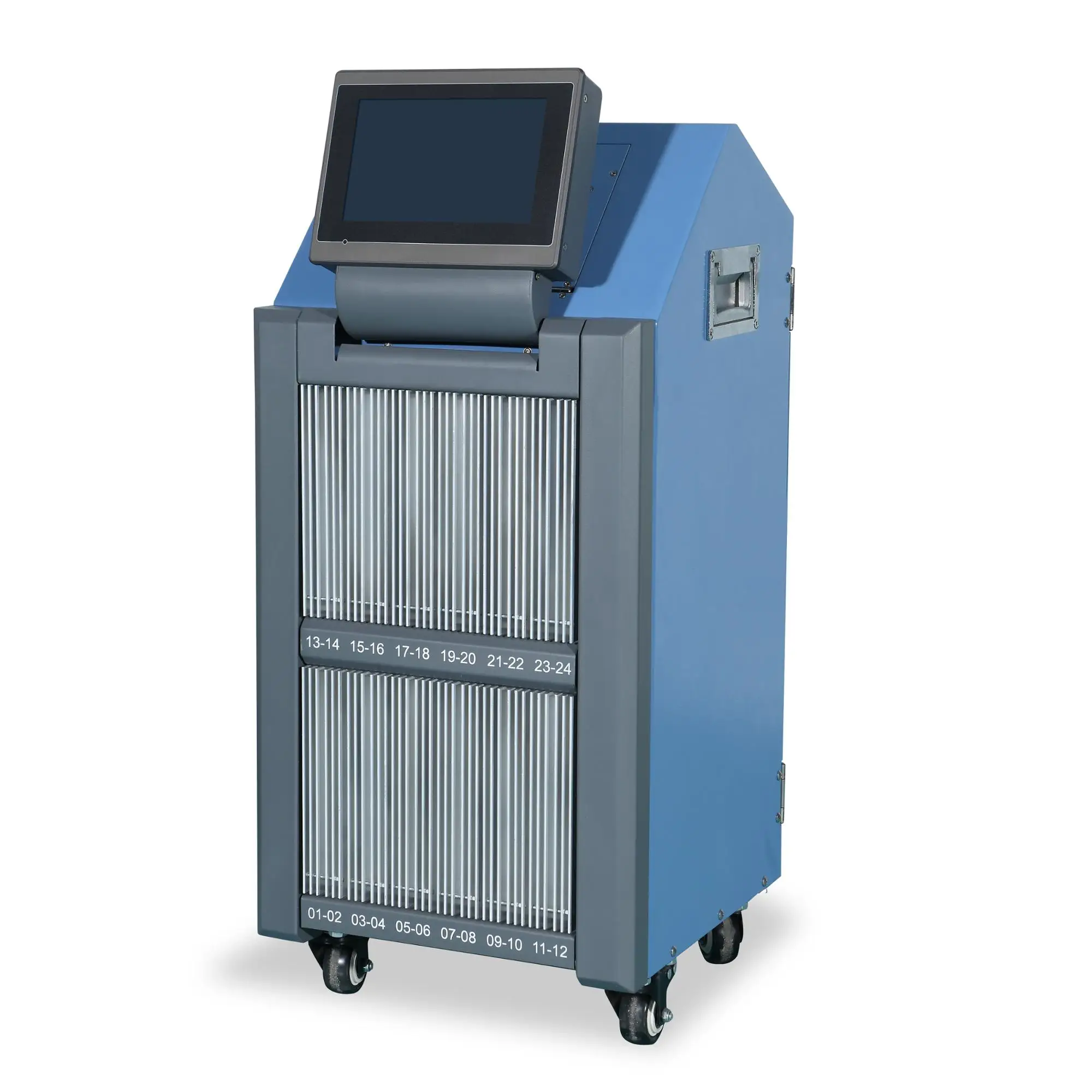

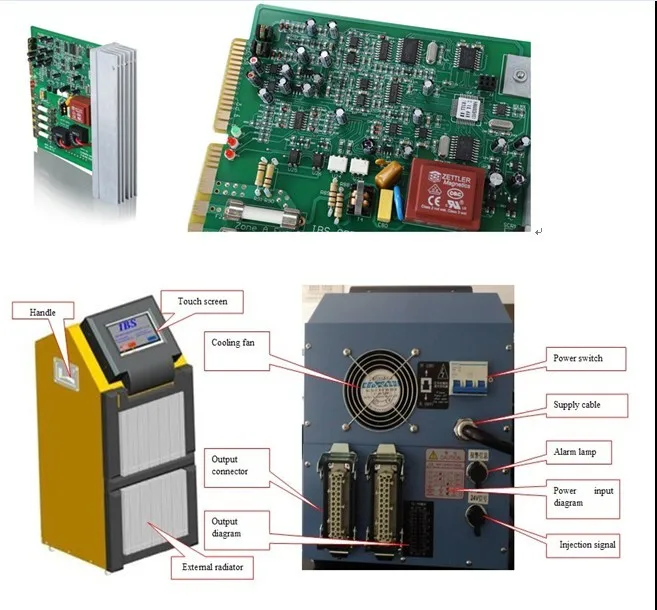

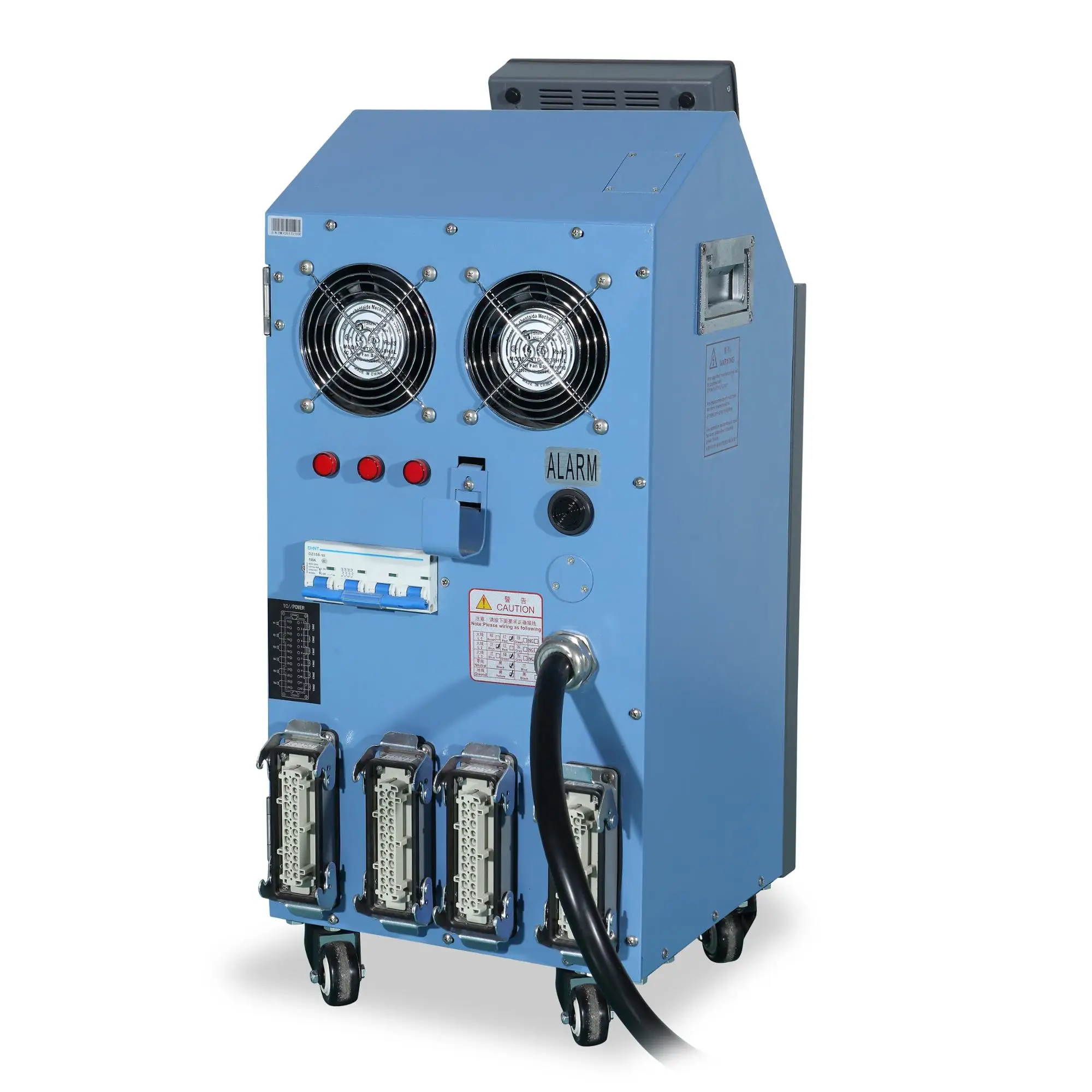

 2. DXC-HMTC-Touch screen Mould temperture control system PICTURES:



3. DXC-HMTC-Touch screen Mould temperture control system package and accessories:







 4. DXC-HMTC-Touch screen Mould temperture control system CERTIFICATE :





7.Things need to be pay attention when operating the controller:

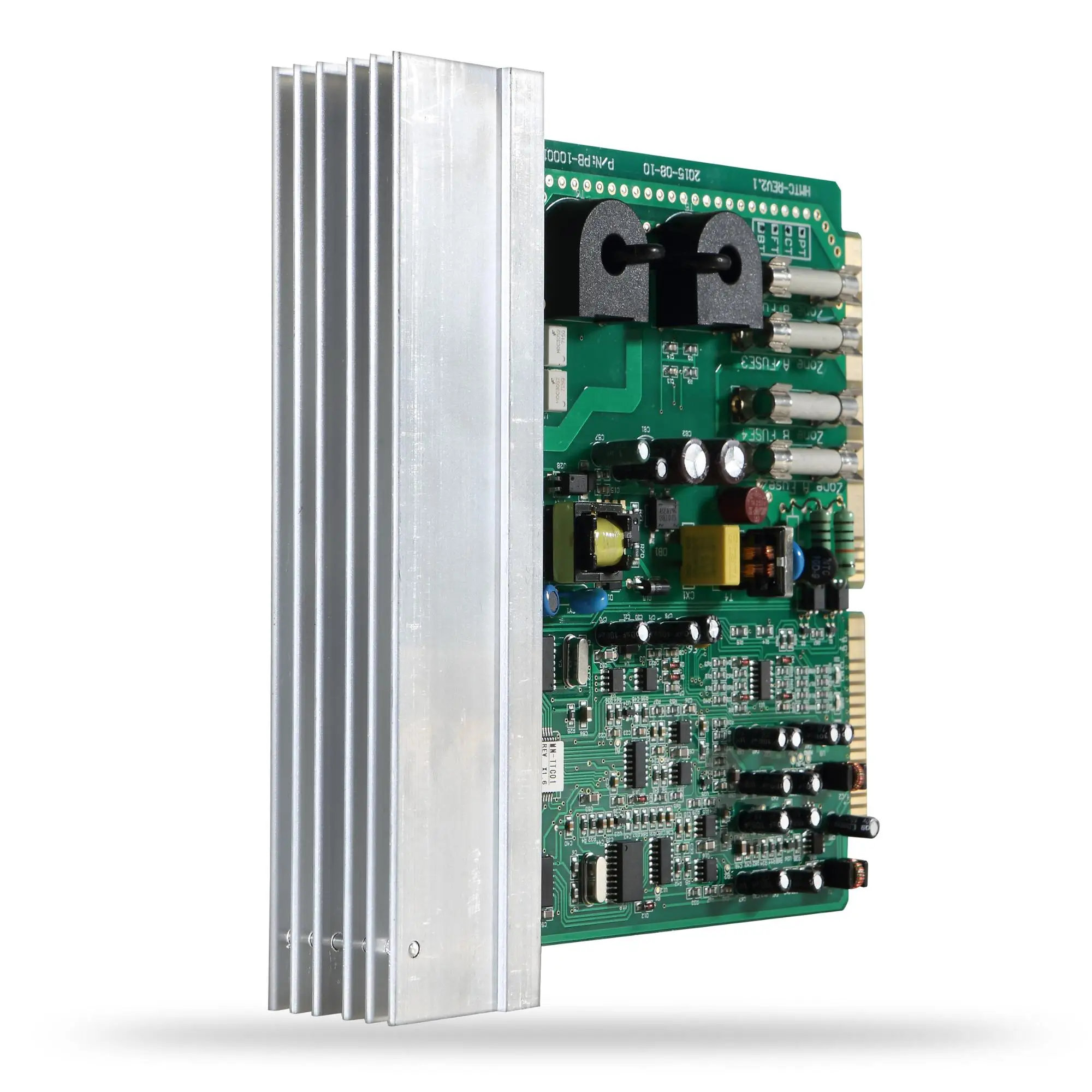

 a.The load of card is 15A,Please don’t work over load;

 b.Select T/C type correctly,Or testing temperature will have big deviation.

 c.Please check supply power frequency F.XXX when temperature is not stable.If frequency is not      stable,please change Output mode to PID,if still not stable ,please change to PID tuning;

 d.Please Turn off controller when pull & plug  cards,align at the slot when plug cards;

 e.Please regular clear card,especially PCB part;

 f. Please regular checking the screw and confirm tight fix,especially the screw for triac;

 g.Please pay attention to moistureproof and anti Oxidation when save the card;
