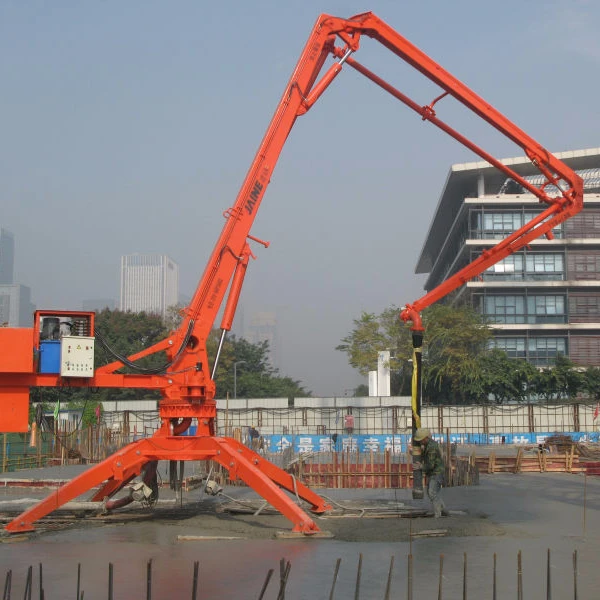

HGY17 mobile Type concrete placing boom

Product Overview

Description



JAINE HGY17 Mobile Concrete Placing boom





The placing boom has a Z-shaped boom assembly with three foldable sections, which can swing through 360 degrees while luffing, folding/unfolding, thus allowing it to place concrete to form walls, pipes, columns, piles and other vertical structures without confined placement areas.



Main Specification:





Model		HGY13		HGY15	HGY17
Horizontal reach (m)		13		15	17
Length of hose (m)		3
Rotation      ()		360
Elevation angle ()		-2-84.4	0-90
Elevation angle (Mpa)		20
Hydraulics output (kW)		4		4	5.5
Mode of drive		Hydraulic
Total weight (t)	Without counterweight	2.7		3.2	4.94
	Counterweight	1.6		2.2	2.1
