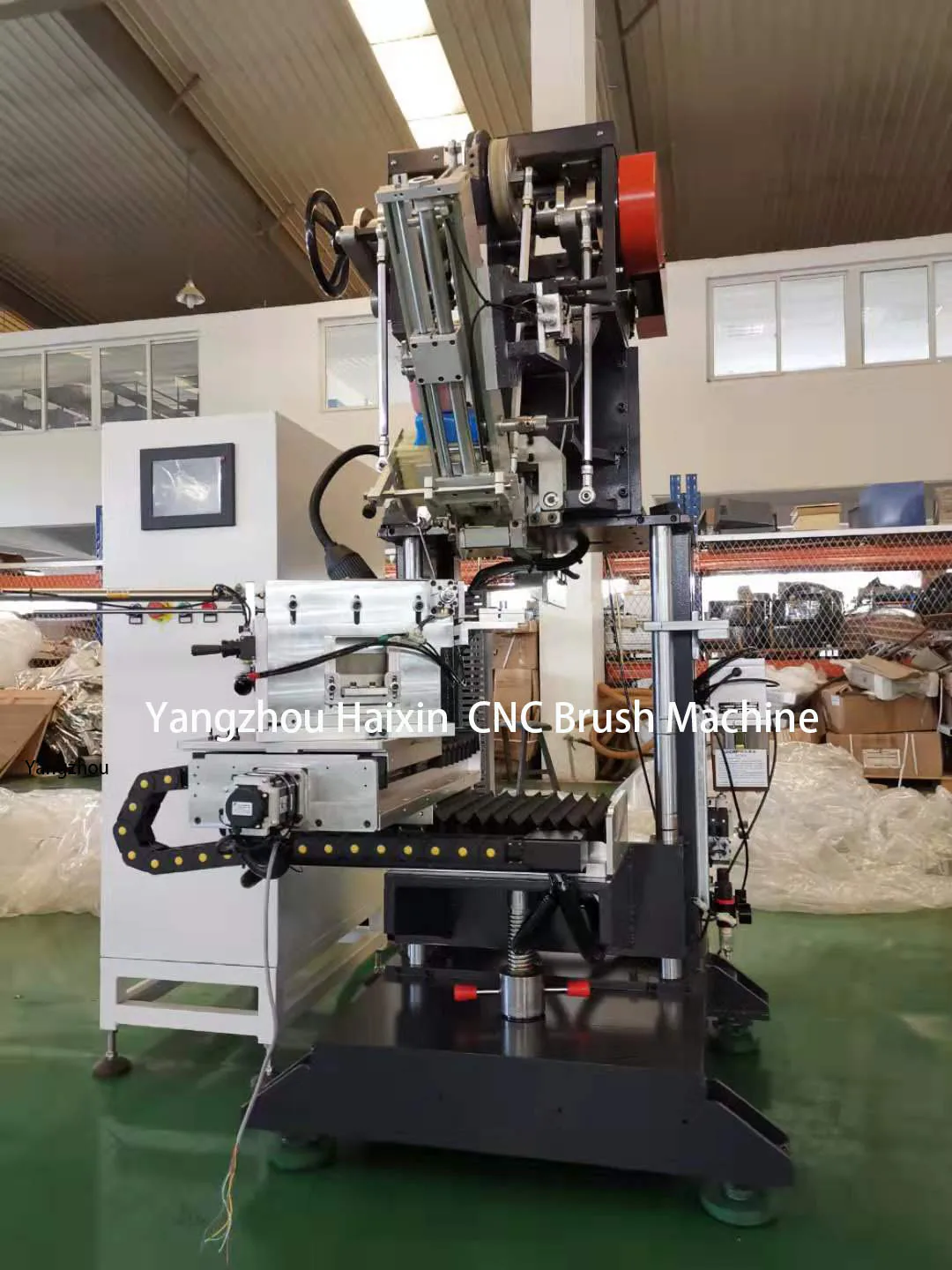

2 Axis Double Heads Brush and Broom Anchor Tufting Machine/ Paint Brush Making Machine

Product Overview

Description















Machine introduction

  This machine is suitable for all kinds brush of the diameter from 2.2mm-4.0mm and within the height of bristle is 40mm for tufting.

  Bored with two tufting head, high-speed processing, high-volume, cost-effective.

  Panel control system of man-machine, Chinese or English display, simple to understand

  Wearing parts and spare parts are standardized designs to reduce hair mechanic technology dependence;

  Hair by: flat style.

  Largest wool length: 40mm

Models can be stored: 100(expandable)

Input methods: Chinese or English display, menu-driven operation, handheld encoder or key board input.



Technical parameters

description	unit	parameters
Max speed	Holes/min	≤1200
Hole diameter	mm	1.8-4.0
Axis quantity	axis	2-4
Journey X axis	mm	300
Journey Y axis	mm	300
Maximum program quantity	piece	100
Air pressure	Mpa	6
Power voltage, frequency	V,Hz	220V,50Hz
Machine power	KW	2
Contour size	mm	1200*1350*1830
weight	KG	1200



Control system	CNC controller
Disturbance display	English edition
Safety protection	Overload, short circuit protection
Lubrication	Auto lubrication system
Main speed control	Frequency inverter
Fiber box	Frequency inverter





















5 axis 5 heads drilling and tufting machine      5 axis 3 heads drilling and tufting machine        Eevator brush drilling tufting and trimming machine
