Anti Corrosion FRP structural beam(152*152mm,200*200mm etc) and 500mm deck panel for FRP platform

Product Overview

Description

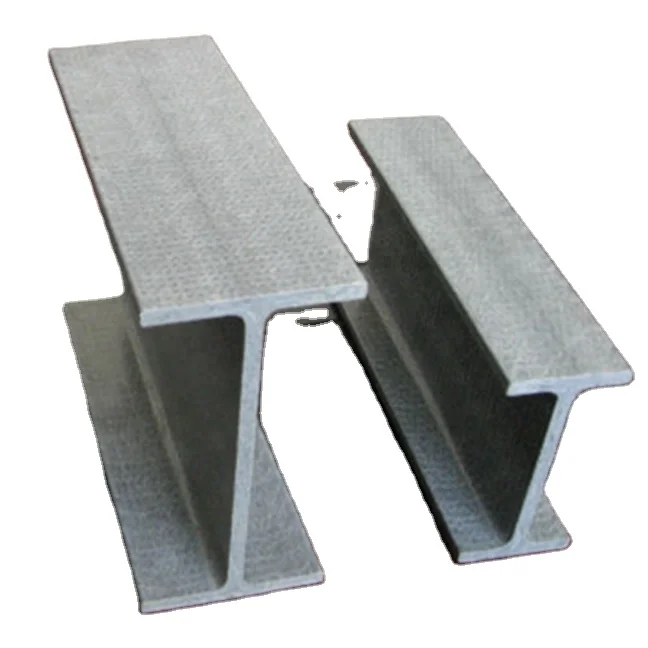

1.FRP beam,FRP pultrusion beam, pultruded frp i beam, FRP structural beam

FRP Structural beams are a kind of fiberglass reinforced plastic products with uniform cross section. The reinforced materials include fiberglass roving, continuous fiberglass mat, stitched fiberglass mat and surface veil etc. Unsaturated polyester resin, vinyl resin, phenolic resin are the major matrix materials. Pultruded frp beams are formed continuously after being heated by high temperature. They are widely used as the structure frame material when making the platforms and shelves.





2.Why choose frp profile ?

1. High tensity, high strength

2. Light weight

3. Anti-corrosion

4. Anti-aging

5. Electric & thermal insulation

6. Flame Retardancy

7. Non-electromagnetic

8. Low coefficient of thermal expansion

9. Low temperature resistance

10. Easy to design

11. Good appearance

3.Pultruded FRP beam showing





4.Pultrusion process

Pultrusion profile is a kind of compound materials which is formed by taking fiberglass as the reinforced material, and taking thermosetting resin as base, the fiberglass continuous roving enable the product to have the extremely high longitudinal strength, the fiberglass mat (continuous strand mat, knitted mat and so on) makes the product have the good transverse strength. The thermosetting resin base is usually the unsaturated polyester resin, the vinly resin, or the epoxy resin and the phenolic resin, the resin base enable the product to have the good anti-corrosion property, the different resin enables the product to be suitable for various corrosion environment, to add the ultraviolet inhibitor and fire retardant may enable the product to have the outstanding anti-aging property and the different rank anti-flammable property.



Pultrusin is a continuous process to produce the random length FRP profiles with alike section, first to get the fiberglass continuous roving and mat on creels through the resin bath under the traction of pultrusion machine, then take shape through a pre-molding with a kind of section shape, and cured by heating die and finally cooling and auto-sawing.





5.Application of frp profiles

1.  FRP profiles are widely used as structure in the chemical and corrosion resistance industry,cooling tower,parking lots,sidewalk of bridge,farming shed and so on.

2. FRP profiles are used in different areas for platforms, ladders, handrails, support profiles and other load structures.
