tire shredder for sale plastic crushing machine scrap rubber emulsion Wire sheath
- Category: Rubber Recycling Machinery >>>
- Supplier: Chaozhou Longhe Plastic Machinery Co. Ltd. Guangzhou Branch
Share on (1797671974):
Product Overview
Description
Product Description
Product Application

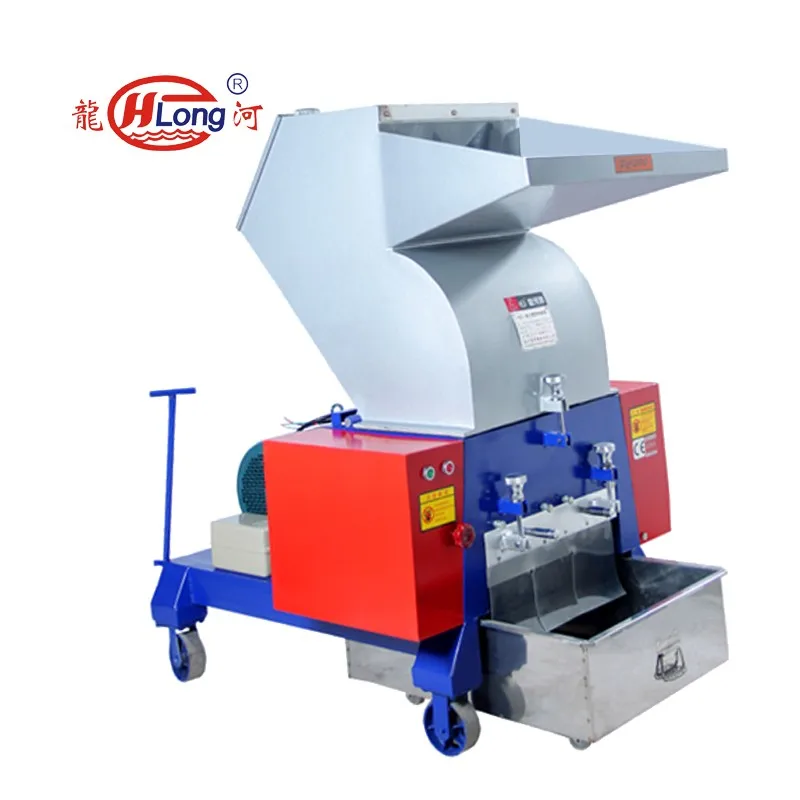

PY Series Granulating Machine features wide application and is used for granulating and recycling various plastic drink bottle and oil bottle. The cutter adopts famous brand with precise manufacturing and is ultra solid and durable,and is capable of easily crushing various plastic bottle.It is widely used to crushin the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
LH-PC series powerful granulating machine | ||||||
Model | PC-500A | Fixing blades(pcs) | 4 | |||
Diameter of Crushing chamber(mm) | 510*285 | Flexible blades(pcs) | 15 | |||
Crushing Ability(kg/h) | 360-720 | Mchine Dimension(mm) | 1110*970*1450 | |||
Motor Power(kw) | 11 | Weight(kg) | 750 | |||
Detailed Images
Machine Parts

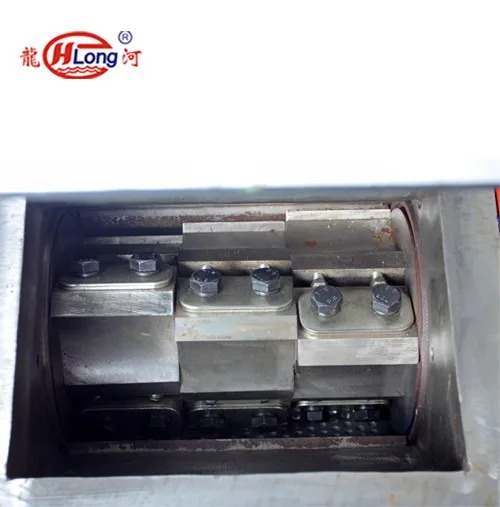

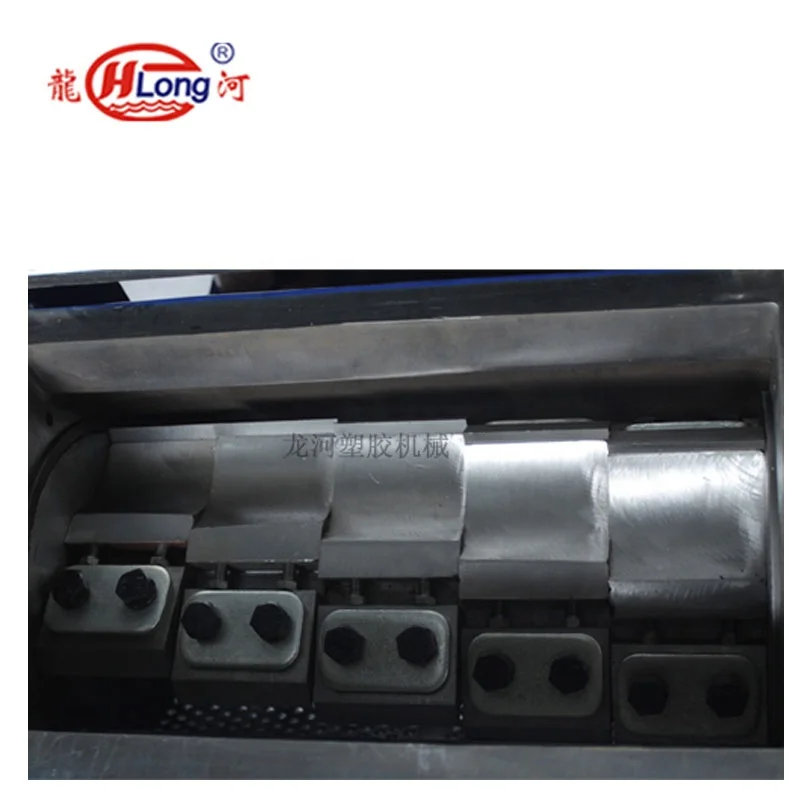

Name: Blades
Brand: LONGHE
Original: CHINA
It can produce efficiently. It can change the blade material according to the different crushing material.For details, please contact customer service
Main Features

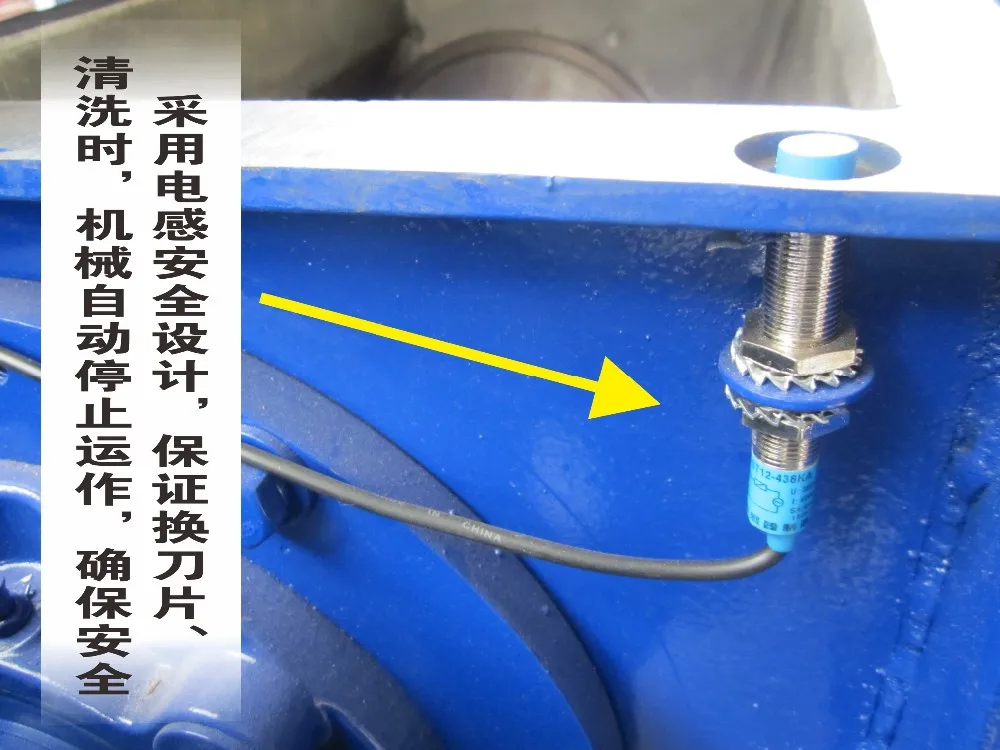

Name: Safety device
Brand: LHONGHE
Original: CHINA
Mechanical design is ergonomic, Safety system ensures usage safe and avoid accidents caused by operational errors
Machine Parts

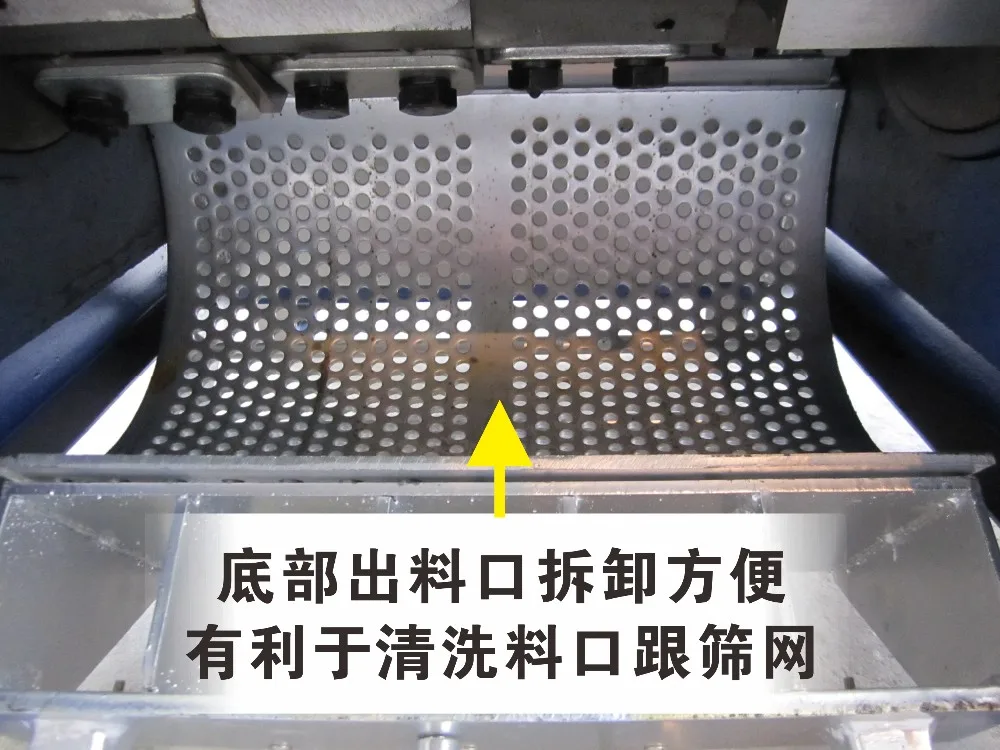

Name: Screen mesh
Brand: LONGHE
Original: CHINA
Screen made of thick steel plate, can accurate control of output size. It is adjustable for the hole dia. size according to needs.
Main Features

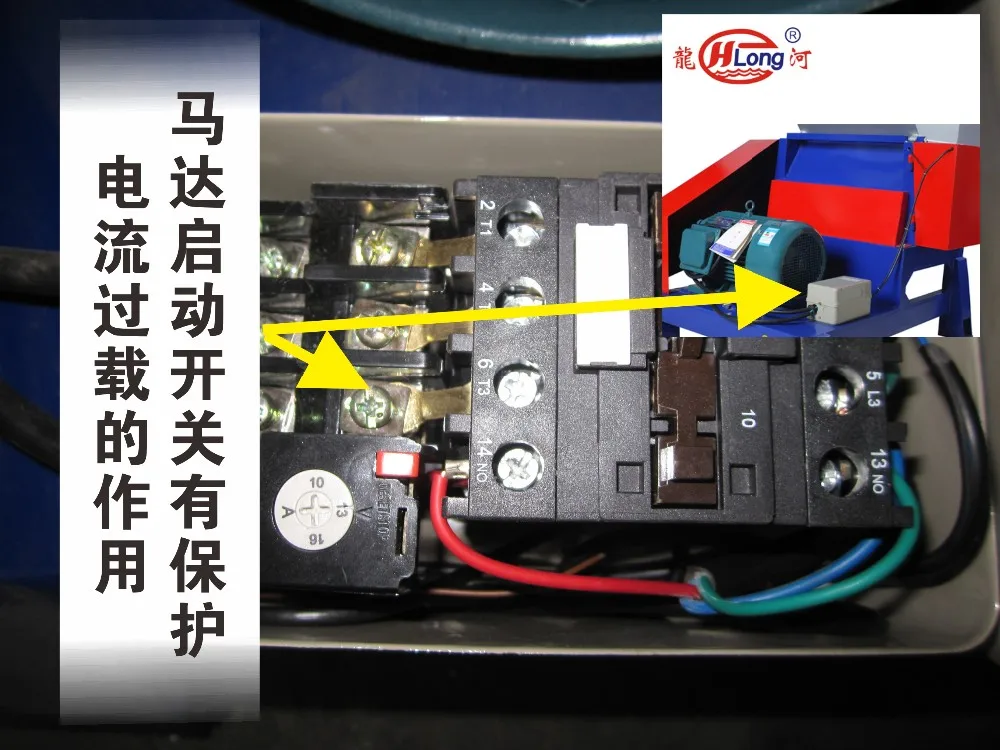

Name: control box
Brand: LONGHE
Original: CHINA
Well-known brand electronic accessories. High efficiency and safety Long service life, all of them make high production efficiency
Main Features
1) Combine front and rear noise isolating design with extremely low noise.
2) Concise design eith ultra small occupation and easy maintenance.
3) Door hinge type separated design ,easy for cleaning.
4) Adopt electric control safety design,motor is installed with overload protective and power supply interlock protecive device for protecting the motor,cutter and operator.
5) Mature manufacturingtechnique,main parts such as machine body and cutter frame adopt integrated processing for assuring high precision.
model | Diameter of Crushing chamber(mm) | Crushing Ability(kg/h) | Motor Power(kw) | Fixing blades(pcs) | Fixing blades(pcs) | Mchine Dimension(mm) | |||||
PC180A | 190*165 | 30-50 | 2.2 | 2 | 3 | 650*530*980 | |||||
PC230A | 210*235 | 50-110 | 4 | 2 | 3 | 750*610*1200 | |||||
PC300A | 310*245 | 100-250 | 5.5 | 2 | 3 | 900*760*1200 | |||||
PC400A | 410*260 | 150*350 | 7.5 | 2 | 6 | 950*860*1330 | |||||
PC500A | 510*285 | 200-350 | 11 | 4 | 6 | 1110*970*1450 | |||||
PC500B | Advisory Service | ||||||||||
PC500C | |||||||||||
PC600A | 610*285 | 180-400 | 15 | 4 | 6 | 1100*1070*1450 | |||||
PC600B | 610*285 | 500-870 | 18.5 | 4 | 6 | 1350*1200*1700 | |||||
PC600B2 | Advisory Service | ||||||||||
PC600B3 | |||||||||||
PC600C | |||||||||||
PC650C | |||||||||||
PC700B | |||||||||||
PC800B | |||||||||||
PC800C | 810*525 | 800-1000 | 30/37.5 | 4 | 18 | 1700*1410*2250 | |||||
PC1000-1200 | Advisory Service | ||||||||||
model | Diameter of Crushing chamber(mm) | Crushing Ability(kg/h) | Motor Power(kw) | Fixing blades(pcs) | Fixing blades(pcs) | Mchine Dimension(mm) | |||||
PC180A | 190*165 | 30-50 | 2.2 | 2 | 3 | 650*530*980 | |||||
PC230A | 210*235 | 50-110 | 4 | 2 | 3 | 750*610*1200 | |||||
PC300A | 310*245 | 100-250 | 5.5 | 2 | 3 | 900*760*1200 | |||||
PC400A | 410*260 | 150*350 | 7.5 | 2 | 6 | 950*860*1330 | |||||
PC500A | 510*285 | 200-350 | 11 | 4 | 6 | 1110*970*1450 | |||||
PC500B | Advisory Service | ||||||||||
PC500C | |||||||||||
PC600A | 610*285 | 180-400 | 15 | 4 | 6 | 1100*1070*1450 | |||||
PC600B | 610*285 | 500-870 | 18.5 | 4 | 6 | 1350*1200*1700 | |||||
PC600B2 | Advisory Service | ||||||||||
PC600B3 | |||||||||||
PC600C | |||||||||||
PC650C | |||||||||||
PC700B | |||||||||||
PC800B | |||||||||||
PC800C | 810*525 | 800-1000 | 30/37.5 | 4 | 18 | 1700*1410*2250 | |||||
PC1000-1200 | Advisory Service | ||||||||||
usage notice
Ⅰ.The tools need to be removed and polished regularly to ensure that the tools are sharp when used, and need to be replaced in time after long-term use.
Ⅱ.Regularly add Runhuo to the bearing lubricating nozzles at both ends of the main shaft to keep the machine running well.
usage notice
Ⅳ.Adjust the center distance regularly to prevent the belt from being used for a long time, which will reduce the transmission power.
Ⅲ.If the material is not enough, it will occasionally be blocked in the crushing room. You can open the rear top door and stir it with a small wooden stick. The body should not touch the room to prevent accidents.
Country or region | Main models | Monthly average sales（sets） | Annual total amount（USD） | Proportion of sales(%) |
Philippines | plastic shredder | 65 | 89733.00 | 35.50 |
Mexico | plastic crusher | 54 | 67690.41 | 34.44 |
United States | scrap shredder | 30 | 45200.00 | 51.45 |
India | Bottle Recycling Line | 15 | 92514.74 | 41.51 |
Thailand | powder mixer | 48 | 45216.00 | 51.51 |
Spain | mixer | 50 | 65412.02 | 25.40 |
Korea | shredder | 12 | 24612.51 | 27.10 |
Japan | paper shredder | 22 | 35486.21 | 13.11 |
Italy | film crusher | 31 | 52246.64 | 23.15 |
United Arab Emirates | recycling rubber and plastic crusher | 35 | 52464.44 | 35.58 |
Other Asian countries | Recycling shredder | 104 | 153054.15 | 42.00 |
Other European countries | hard plastic crusher | 92 | 134624.45 | 45.50 |
Use of units or individuals | model | Elapsed time | Machine state | Case information |
Mr. J** | PC600 crusher*1set | 5 years 2month | great | view more |
J** W** | TM-100 mixer*1set | 2 years | nice | view more |
D** G*** | PC300 crusher*10sets | 5 years 6month | well done | view more |
C** B** | VM-200 mixer*4sets | 6 years | good | view more |
M** D** | PF400 crusher*1set | 4 years 1 month | fine | view more |
M** K** | PC800 crusher*2sets | 8 years 4 month | great | view more |
B** J** | LS-30 crusher*4sets | 3 years | nice | view more |
B** World Co.,Ltd | PC180-600 crusher*60sets | 2 years 7month | nice | |
S** Te** sdn.Bhd. | RFC-150 dryer*6sets vm-150 mixer*4sets | 1 years | great | view more |
F** AU** | vm-100 mixer*10sets | 4 years 2month | well | view more |
.... | ... | ... | ... | ... |
