Standard configuration: Three-phase asynchronous motor:22kw
2
Suitable material
Cold-rolled steel strip and heat-treated galvanized steel strip ,Q235,Q295
3
Thickness of raw material
1.0-3.0mm
6
Hydraulic motor power
5.5kw(depend on final design)
7
Hydraulic pressure
16Mpa
8
De-coiler type
Manual de-coiler
9
Weight capacity of de-coiler
6.0T
10
Control system
PLC vector inverter:Voltage:380V, 3 phase 50Hz.
Dimensions:700mm(L)x1000mm(H)x300mm(W)
11
Control type
Full-automatic
12
Material of main shaft
40Cr
13
Diameter of main shaft
ø75mm
16
Material of cutting die
Cr12 with quenched treatment
18

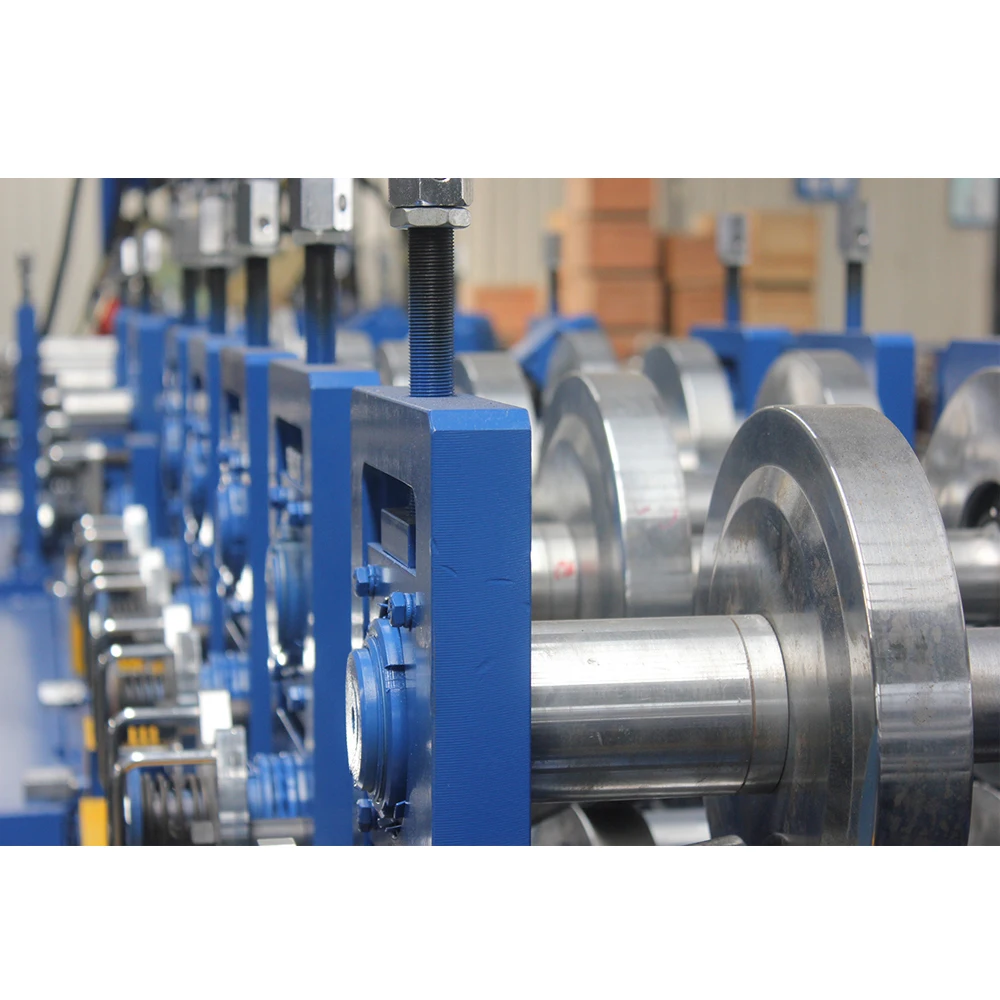

Forming station
18 stations
SPECIFICATION OF CZ PURLIN
C120-300 / z120-300 also could be design.

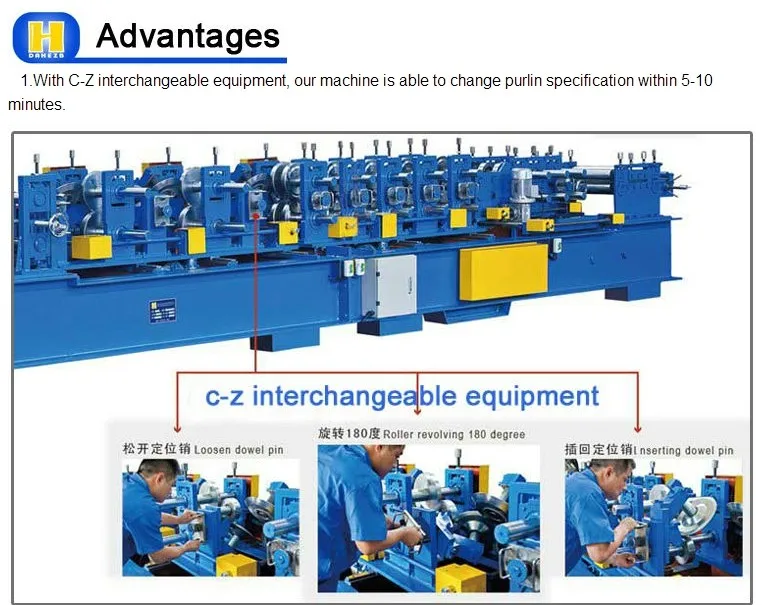

2. In addition, all of our machines are equipped with Fourth generation C/Z quickly cutting and punching system, purlin in any size can be made without changing cutting mold. It's different from traditional cutting device.
3. Traditional cutting device need to change cutting mold frenquently,it wastes much time to exchange cutting mold, also occupy lots of spaces.
4. After 4 years' development, we have solved the problem.Fourth generation C/Z quickly cutting and punching system is a new cutting system, only need to input the purlin's parameter on the PLC control pannel, the blade will move around to match purlin's size.
