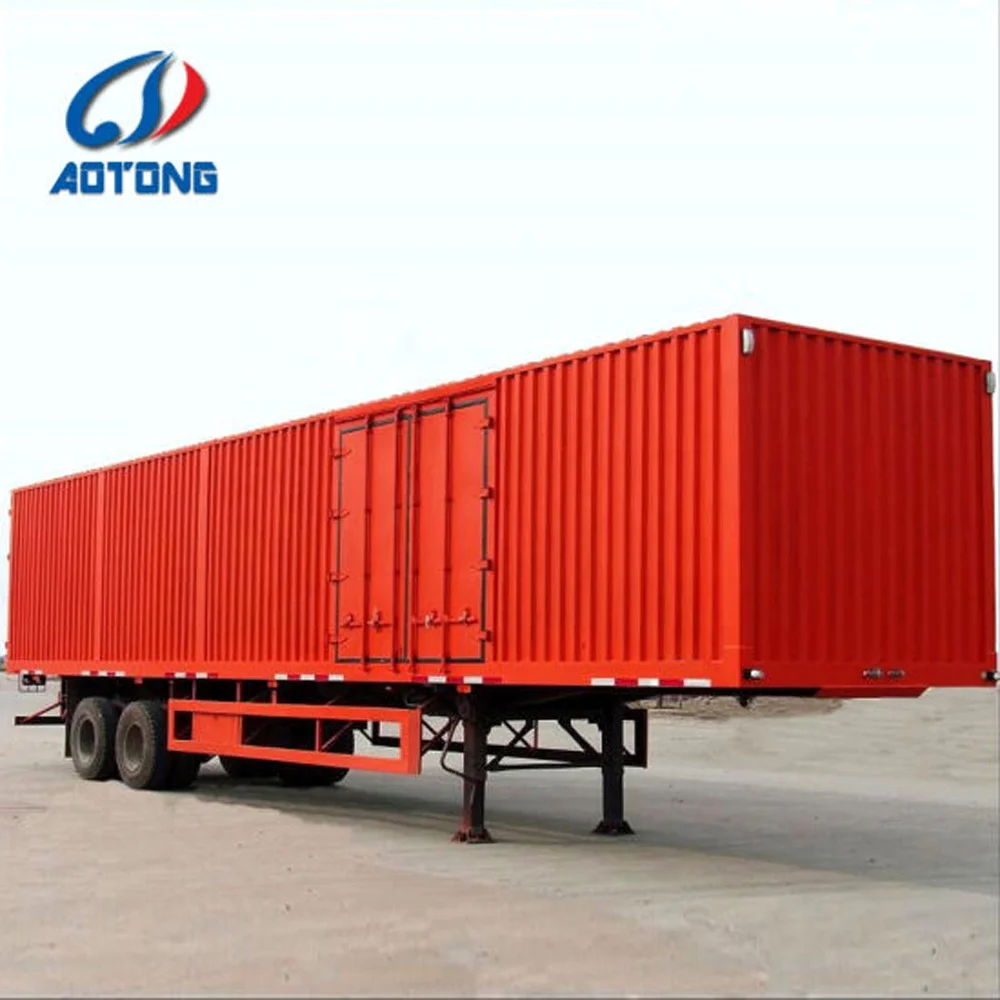

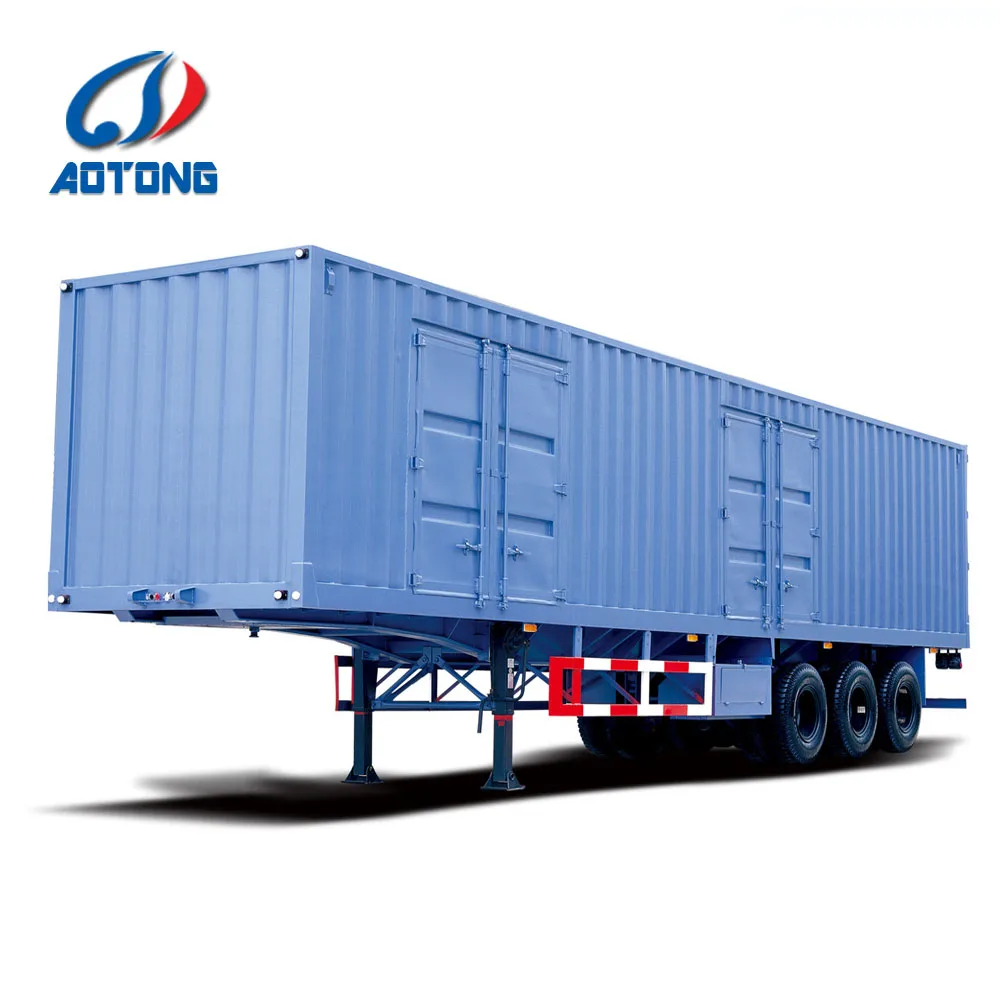

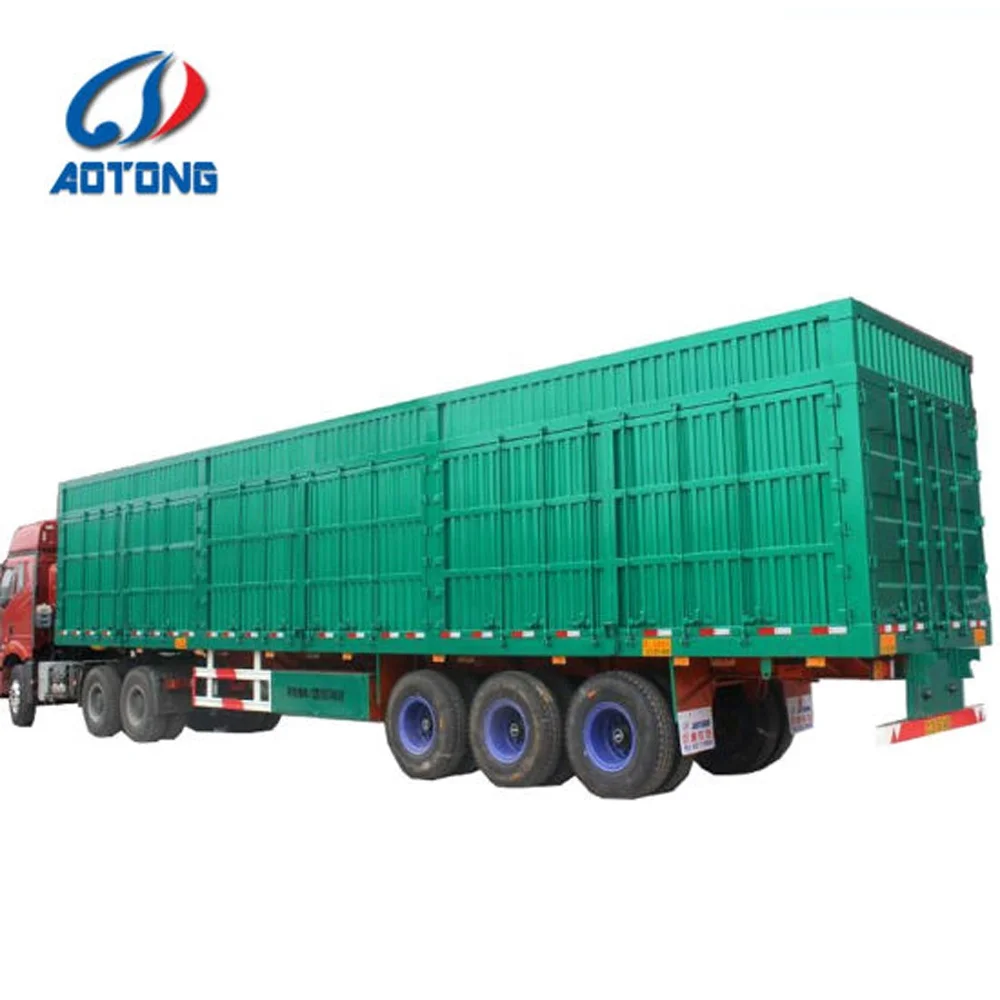

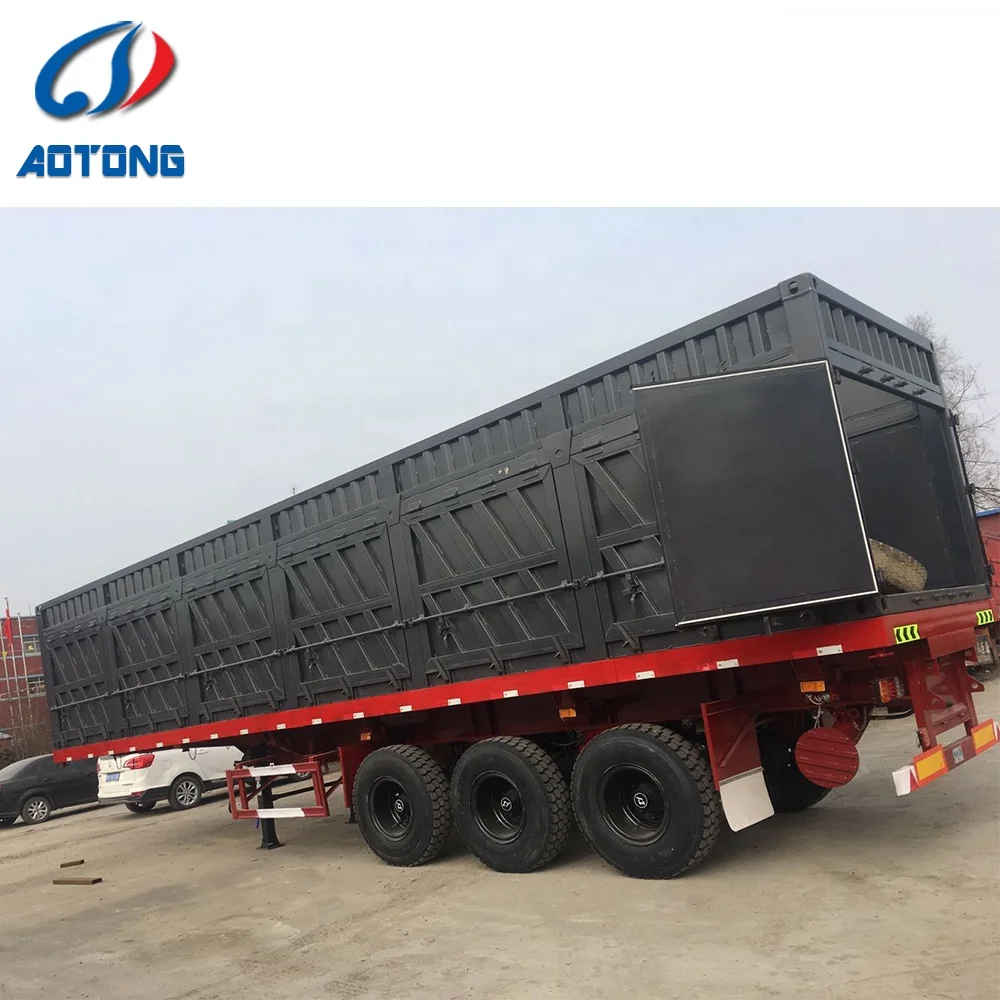

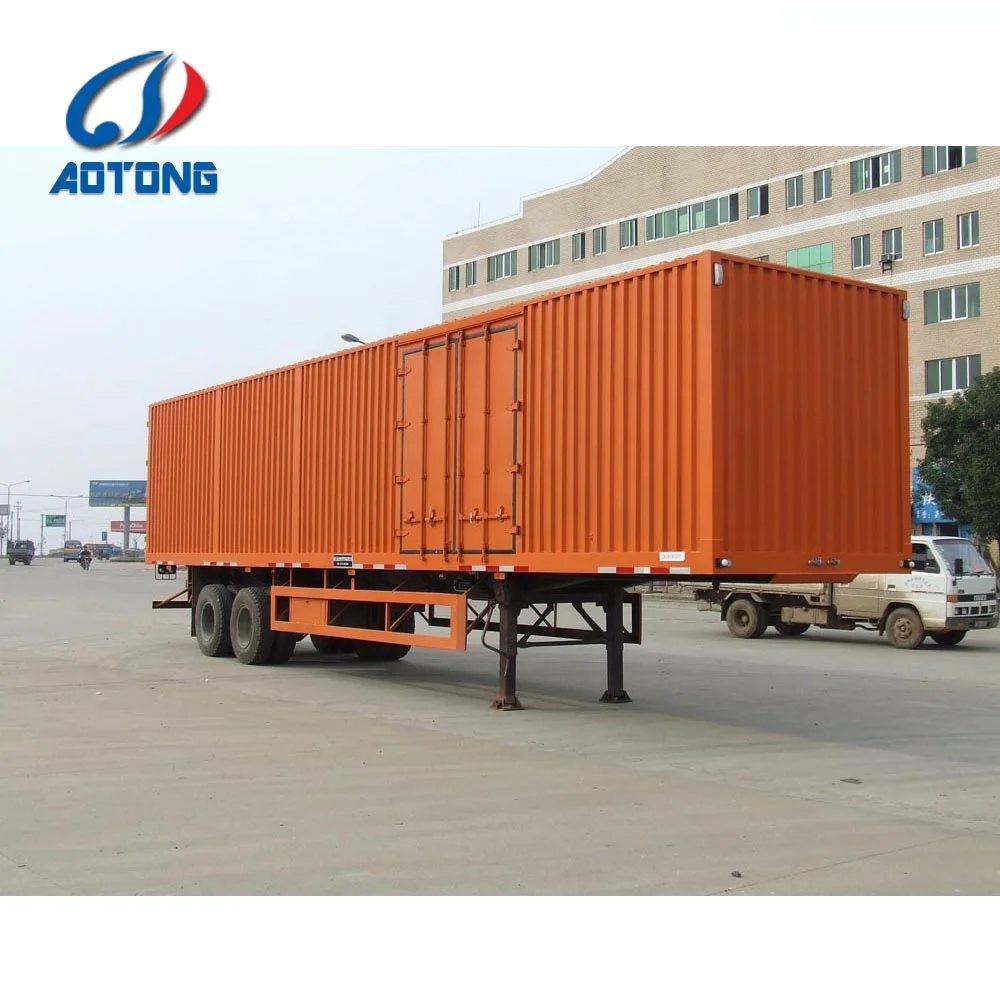

side wall house van type cargo transport box semi truck trailer van cargo truck

Product Specifications

Model Number

LAT9405XXY

Rated Load

50000 kg

Tare Weight

8500 kg

Wheel Base

8280+1310+1310 (mm)

Tyre Specifications

1100R20-18/12R22.5-18

No. Of the Tyres

12

Axle Brand

FUWA (BPW optional)

No. Of the Axles

3

King Pin

50#/90#

Landing Leg

28ton

Pieces of leaf-spring

10 (8)

Suspension

is constitute by tandem steel plate spring and bearing legs.

Departure Angle

12.7

Front/Rear Overhang

2400 mm

Outside Dimensions (LxWxH)

14600X2550X3950,3750,3550,3350 (mm)

Interior Dimensions (LxWxH)

14450X2350X2400,2200,2000,1800 (mm)

Material of the Main Beam

Q345B manganese plates, automatic submerged arc welded

Brake System

Dual line braking system /ABS

Brake Air Chamber

Six double chamber

Electrical

24V 7 ways(7 wire harness)

Usage

Applicable to the transportation of the household appliance, textile goods, coal, dinas, and other building materials.

Other Descriptions

box shell uses the corrugated steel plate (anti-wave) or flat type steel plate with high intensities. The interior part adopts a skeletonless structure, maximizing the carrying capacity. X-shape tension brace fixed the box shell a very strong unit.

The side guard adopts close-ended design to reduce the crosswise risks effectively, and energy consumption, running with high speed. And reasonable trailer accessories were placed at the rear guard box for convenience.

Other Specifications

The top of the box is be close-ended (pull/push open-ended, open-type, or open-type with cloth tent poles optional)
