scientifc instrument GCMS for Phthalates RoHS2.0 testing

Product Overview

Description

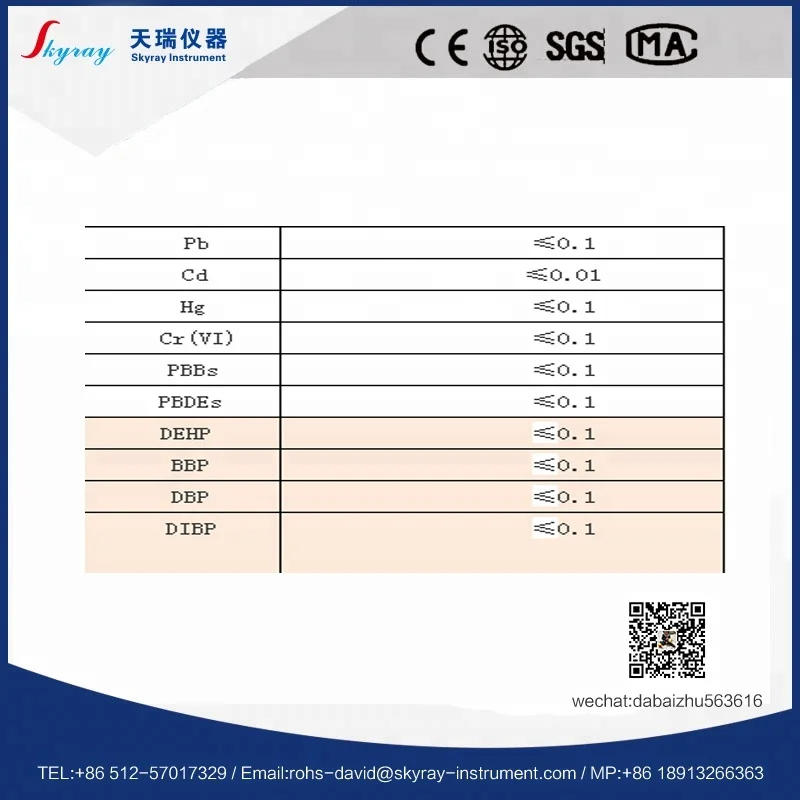

 RoHS2.0 testing for  Phthalases DIBP,DEHP,DBP and BBP

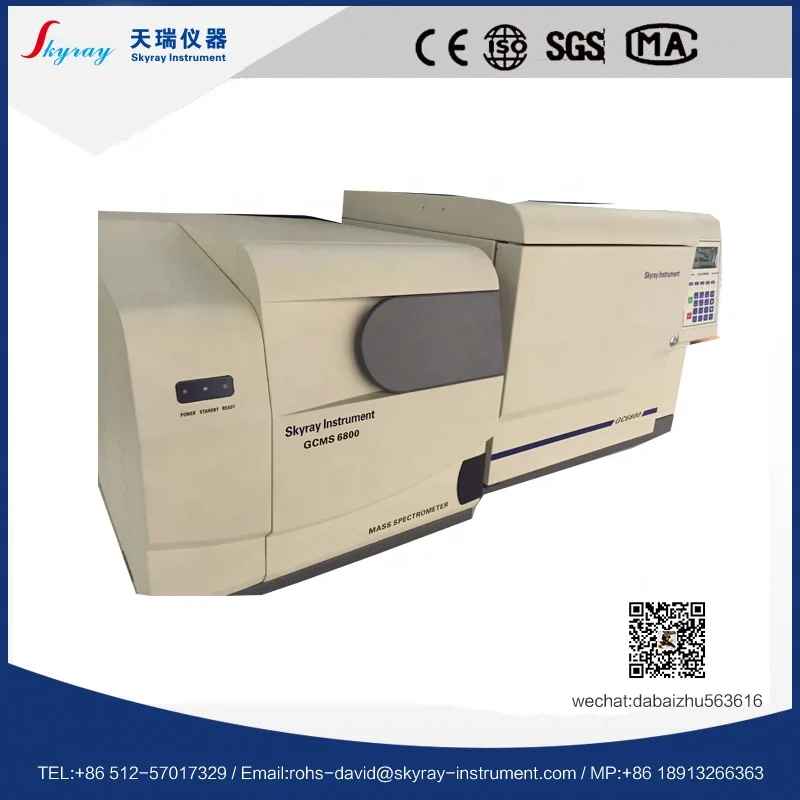

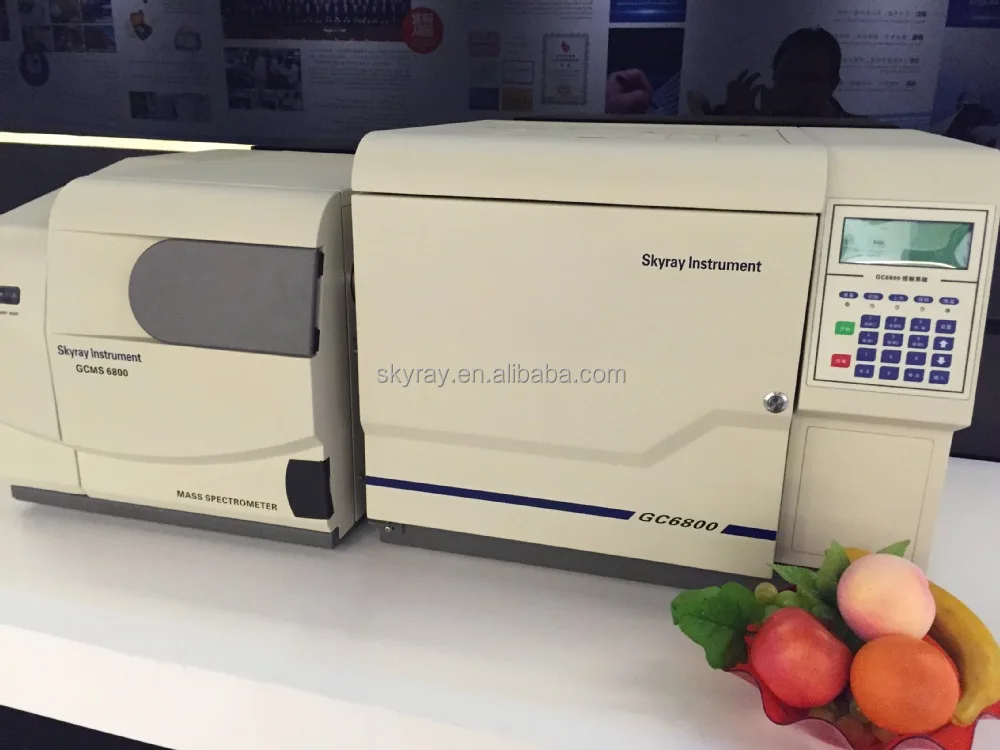

GC-MS 6800 is a cost-effective gas chromatograph mass spectrometer provided by Skyray Instrument. The products hold several patented technologies, and are widely used in industrial inspection, food hygiene, environments



Hardware Features

EPC/EFC	Patented EI filament
Pre-filter quadrupole	Quality mass analyzer
quality mechanical	turbo molecular pumps
Full scale gauges monitor	High-energy dynode electron multiplier
Self protection system	RF power supply digital compensation
Column	30/15meters





Software features:

NIST/EPA/NIH library	high-speed network
Full Scan and selective Ion Monitoring (SIM) modes	qualitative and quantitative analyze

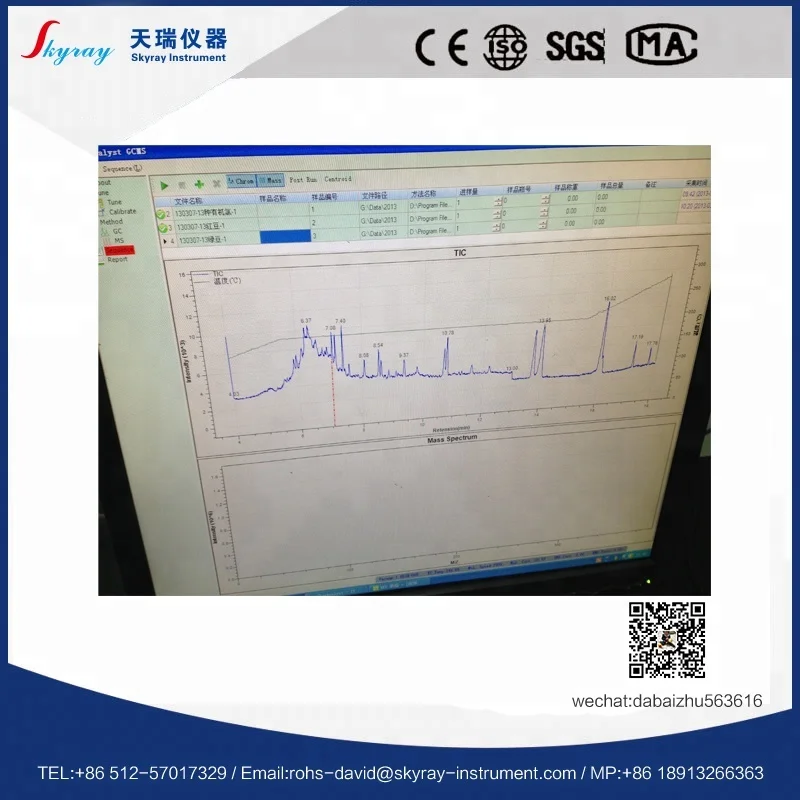

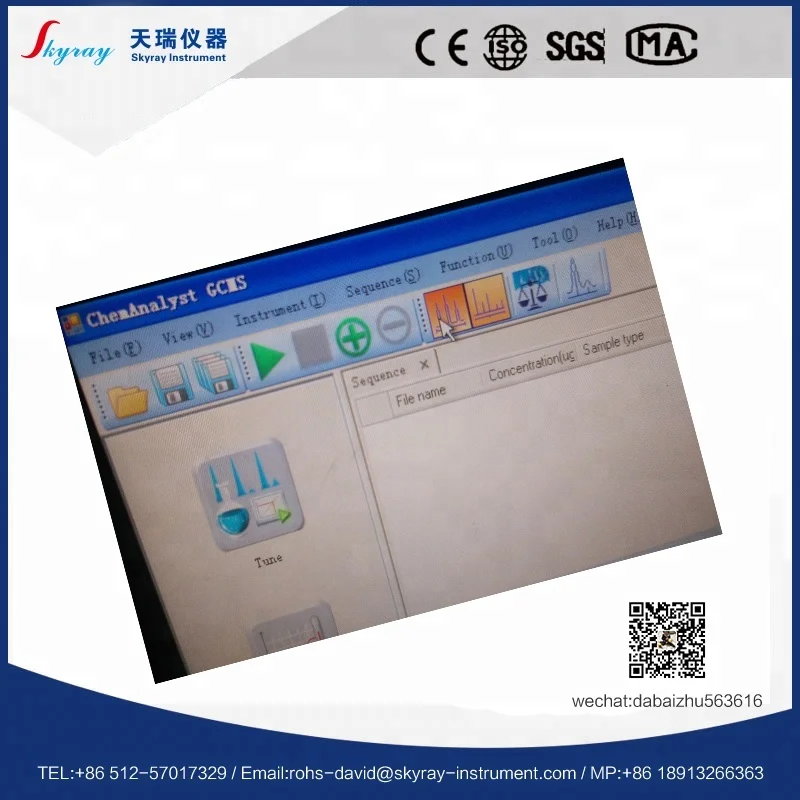

TIC/MC	ChemAnalyst
Real target ions	RoHS2.0 application
Water Vocs	PAHs





GC Specification

Inlet temperature: Max. 450oC
Pressure range: 0-100psi,±0.002psi
Pressure control mode: Electronic pressure control (EPC), support CV and CC
Split mode: Split/splitless, max. split ratio: 1000:1
Column oven working temperature: Room temperature+4°C~450°C
Heating rate: Up to 120°C/min
Temperature programming: 7 stages/ 8 platforms
Auto Sampler: Optional

MS specification

EI source ionization energy: 5 eV ---250 eV (Adjustable)
Mass range: 1.5- 1000amu
Resolution: Unit resolution (full width at half maximum)
Ion source temperature: 100—350°C
Filament emission current: 0-350 μA
GC-MS Interface Temperature: Max. 450°C
stability: ±0.10 amu/48 hrs
Sensitivity: Full scan, 1pg OFN at m/z 272 with S/N ≥30:1 (RMS)
Scan rate: Up to 10000 amu/s
Vacuum: Turbo molecular pump(67 L/s)
Detector: High-energy dynode electron multiplier
