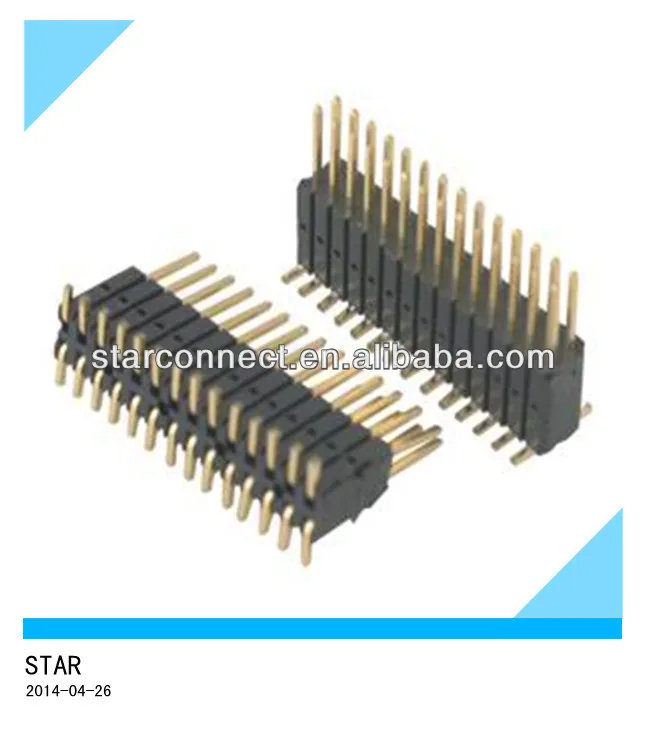

SMD SMT Pin Header 2.54 2.0 1.27 Pitch Right Angle Connector 2.0mm Pitch Original Manufacturer

Product Overview

Description

SMD pin header smt header

2.54 pitch 2.0 pitch 1.27 pitch

 Specification
Current Rating      :1AMP
Operation Temperature           :-40°C to+105°C
Contact Resistance        : 20mW Max
Insulation Resistance       :1000MW Min
Withstanding Voltage       :AC500V
Insulator Material             :Polyester(UL94V-0)
                                Standard :Nylon-66
Contact Material      :Brass
Contact plating         :Au or Sn over 50u'Ni
We have 2x2P-2x50P
Insulator Height                     H=1.0/1.5/1.6/2.0/2.5



SMD pin header smt header
