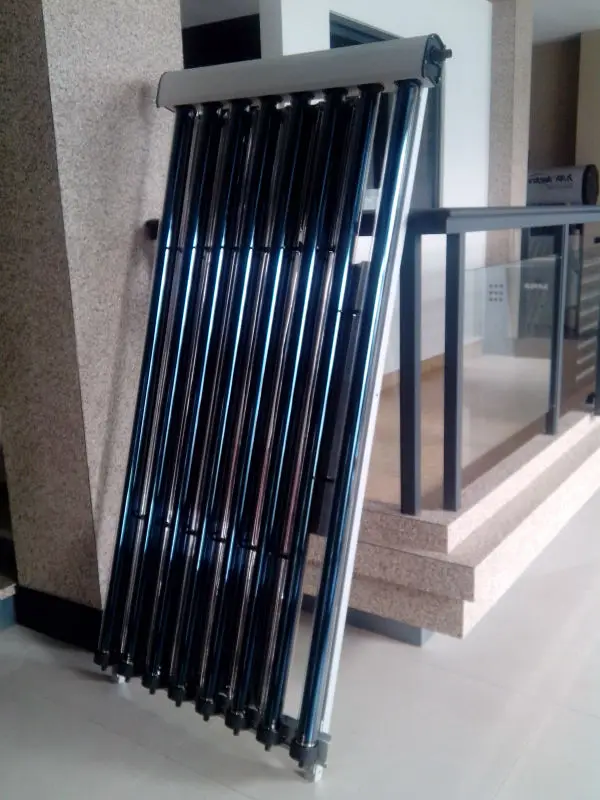

Suntask 123 CPC Heat Pipe Solar Collector SHC24 with Solar Keymark Certificate
- Category: >>>
- Supplier: Zhejiang Shentai Solar Energy Co. Ltd.
Share on (1832818585):
Product Overview
Description
Product Description

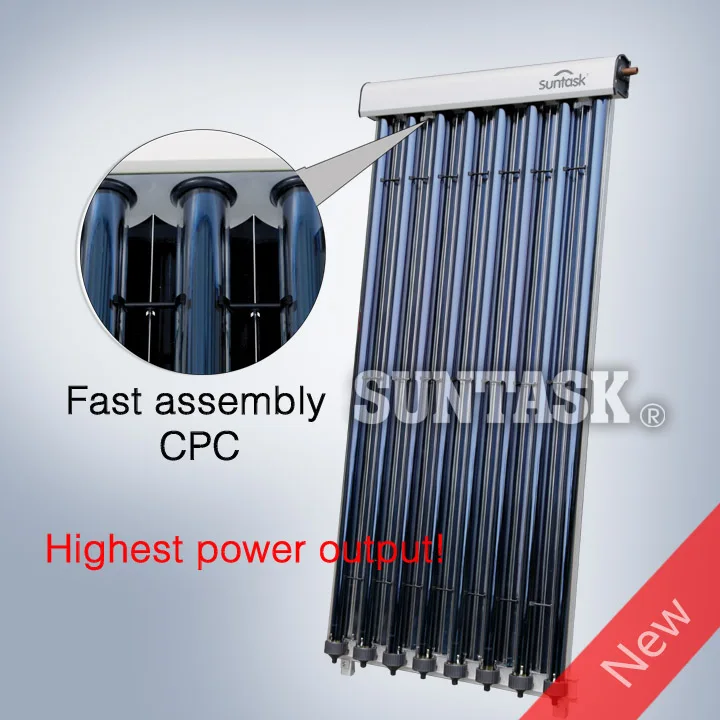

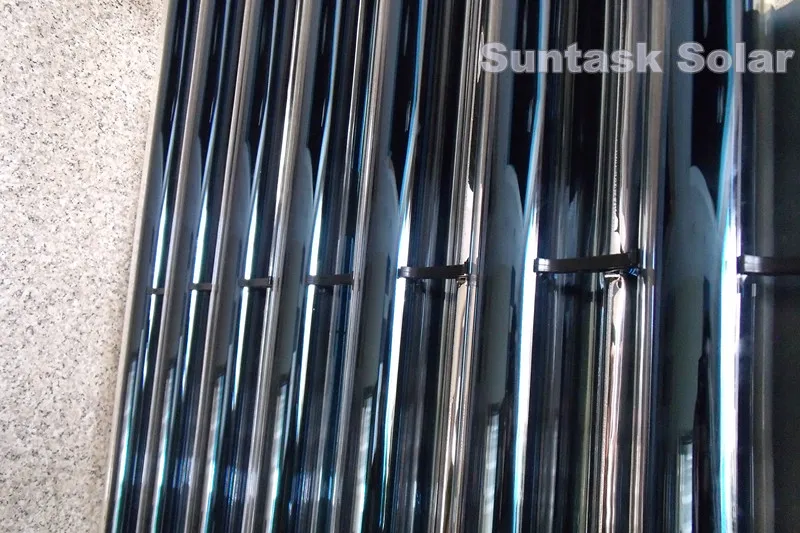

Suntask 123 Solar Keymark certified heat pipe solar collector with CPC reflector
Features:

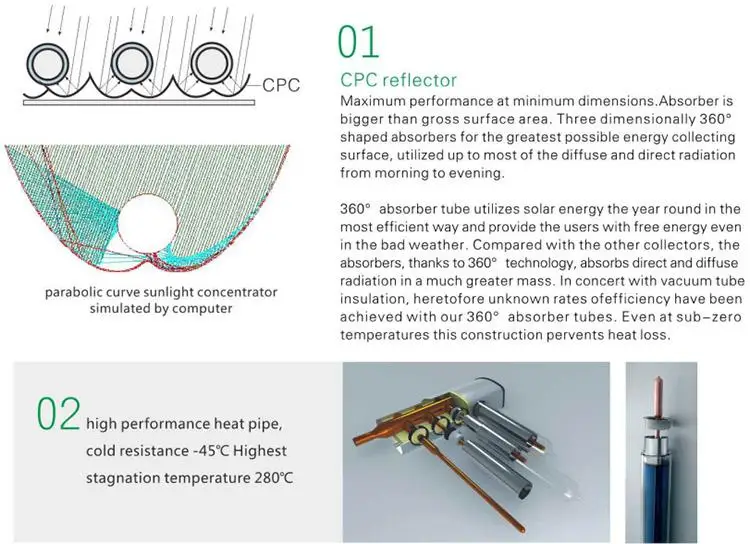

1. sunlight concentrators make the efficiency doubly increased

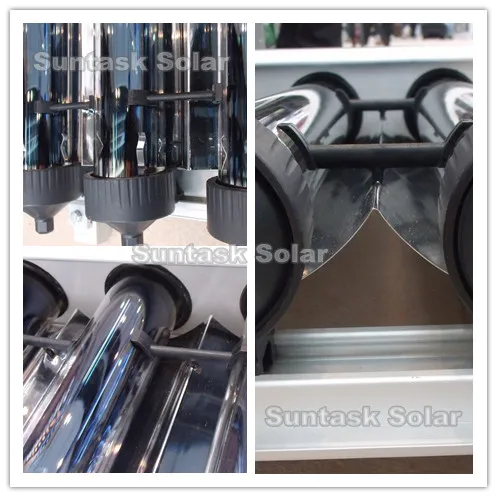

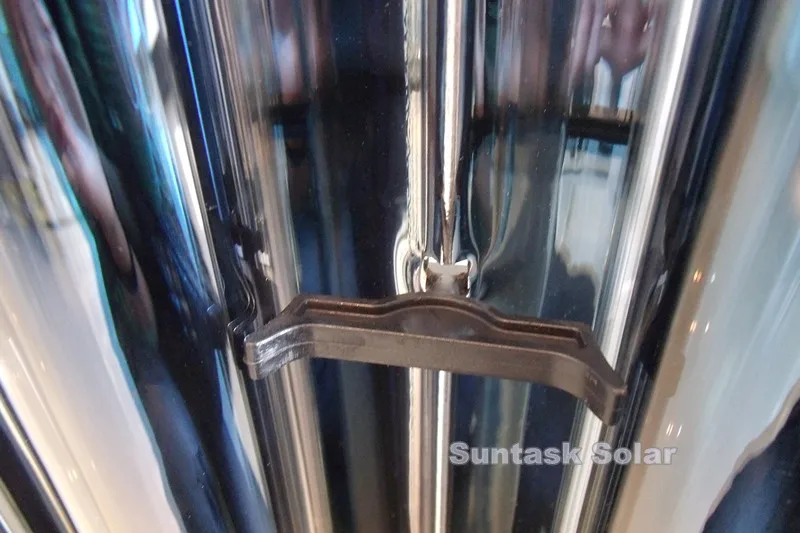

2. fast assembly CPC concentrators more easy installation and transportation
3. 360° sunlight absorber, hot water in cloudy
4. overheating protection just disassembly the CPC concentrators in sumer
5. temperature startup more faster than the normal solar thermal collectors
6. applicable for the industry heating
7. more thermal production based on the same aperture area
8. EN12975/solar keymark
Product Description
| Model no. | SHC SHC-X |
| Manifold(interior) | red copper |
| Manifold(exterior) | aluminum alloy |
| Tube | 58mm*1800mm three target vaccum tube with heat pipe and AL fin |
| Hail resistance | 25mm |
| Max pressure | 12 bar |
| Condenser | dia.14mm |
| Frame | AL alloy |
| Insulation | glass fiber |
| Relector | CPC reflector |
Specifications
| manifold (inner) | red copper |
| manifold (exterior) | aluminum alloy |
| glass tube dimensions | 58mm * 1800mm |
| daily efficiency | ≥55% |
| heat preservation | 72 hours |
| hail resistance | 25mm |
| max pressure | 7 bar |
| coating of vacuum tube | ALN/AIN-SS/CU |
| heat pipe | anti-freezing > -35 degree |
certificate | Solar Keymark, EN12975, CE |
Data sheet
| Models | L*W*H mm | Vacuum tube | Power output | Efficiency | Header mm | Frame | container loading 20FT/40HQ sets | Gross Weight kg |
| SHC-8 | 1917*910*133 | 58*1800*8pcs | 939W | 0.668 | Φ35/1.0 | AL alloy | 185/445 | 27 |
| SHC-10 | 1917*1130*133 | 58*1800*10pcs | 1189W | 159/385 | 33 | |||
| SHC-12 | 1917*1350*133 | 58*1800*12pcs | 1440W | 149/358 | 40 | |||
| SHC-15 | 1917*1680*133 | 58*1800*15pcs | 1815W | 120/290 | 49 | |||
| SHC-18 | 1917*2010*133 | 58*1800*18pcs | 2191W | 100/242 | 59 | |||
| SHC-20 | 1917*2230*133 | 58*1800*20pcs | 2442W | 87/210 | 66 | |||
| SHC-22 | 1917*2450*133 | 58*1800*22pcs | 2692W | 83/202 | 72 | |||
| SHC-24 | 1917*2670*133 | 58*1800*24pcs | 2943W | 77/188 | 79 |
Trade Terms
| Payment | T/T with 30% deposit, balance against the copy of B/L 100% T/T in advance for sample |
| MOQ | 1 Set |
| Loading port | Shanghai / Ningbo |
| Package | Standard carton |
| Delivery | 7-10 days after payment for sample 15-20 days after payment for container |

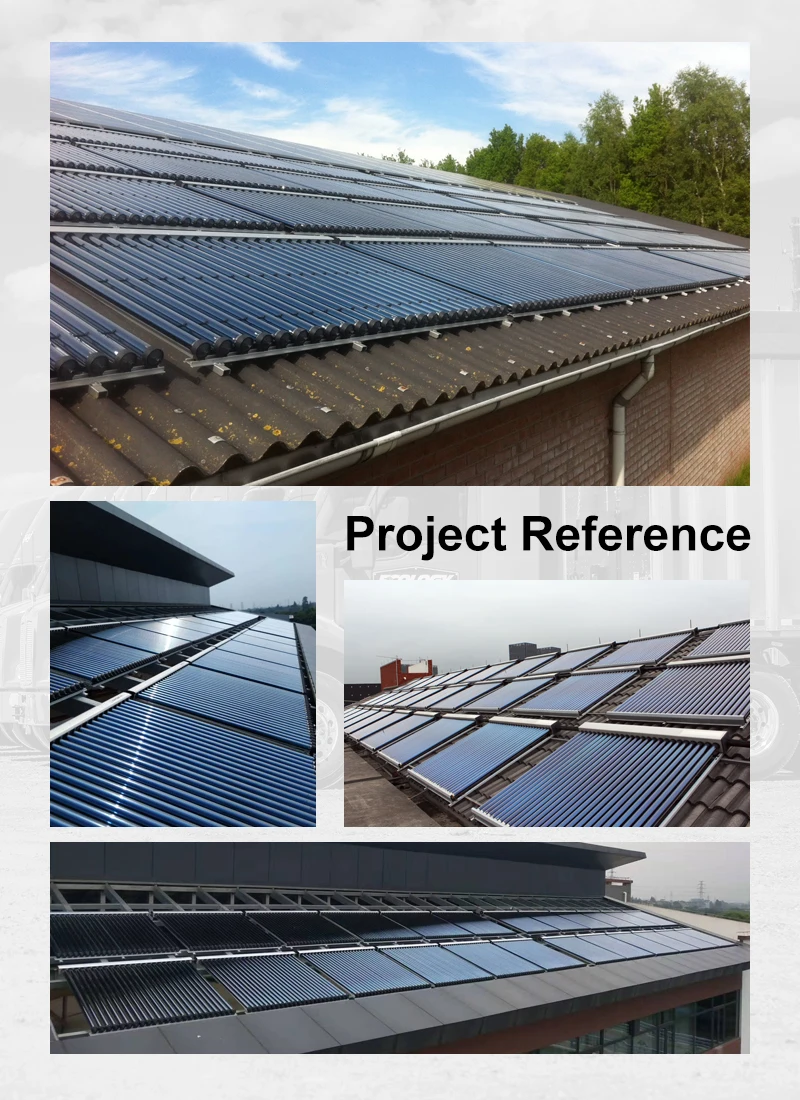

Applications:
Certifications
Exhibitions
About us
Pre-sale Service
1. Sample can be offered with sample charge and courier fee by buyer's side.
2. OEM and ODM order are accepted, any kind of logo printing or design are available.
3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4. All of our products are produced by our professional workman and we have our high-work-effect foreign
trade team, you can totally believe our service.
5. We have rich experience of design, manufacture, and sell solar water heaters.
After you choose
1. We will count the cheapest shipping cost and make an invoice to you at once.
2. Check quality again, then send out to you at 7 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrives you.
After-sale service
1. If you have any questions, please feel free to contact us by E-mail or Telephone.
2. Customer gives us some suggestions for price and products are highly appreciated.
