PV combiner box for solar string protection and controlling
- Category: Solar Related Products >>>
- Supplier: ZHEJIANG BENYI NEW ENERGY CO. LTD.
Share on (1839206370):
Product Overview
Description
Why Choose Us
BENY with 30+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.
With over 10 production lines, we produce over 200w annually and receive out orders at any volume. We also carry out quality testing that determines the durability of our combiner boxes under extreme conditions. Talk with us today for fast development and negotiable prices.
WE PROVIDE COMPREHENSIVE & PROFESSIONAL SERVICE
Consulting & Designing
We have a professional team that can assist you in knowing your particular solar panel combination box requirements. You can expect that we are here to support and guide you in every custom combiner box manufacturing stage, starting from designing up to laying the materials and costing.
Quality Control
Each of our PV combiner boxes is checked thoroughly to ensure that we only deliver IP-rated string combiner boxes. This means that our custom electrical enclosures are waterproof, dustproof, and can even resist corrosion that harsh weather conditions can cause.
Engineering & Assembly Support
BENY custom combiner box solutions are tailored-fit to provide output with efficiency and speed. Our company utilizes the latest tools to automize our manufacturing process. This is why BENY is outstanding in terms of production speed, aiming to fulfill bulk orders while ensuring the function and quality of our PV protection products.
5-year warranty
What’s more interesting, we offer a 5-warranty service to your solar combination boxes. Just reach us through our technical support hotline that is available 24/7.
We have a professional team that can assist you in knowing your particular solar panel combination box requirements. You can expect that we are here to support and guide you in every custom combiner box manufacturing stage, starting from designing up to laying the materials and costing.
Quality Control
Each of our PV combiner boxes is checked thoroughly to ensure that we only deliver IP-rated string combiner boxes. This means that our custom electrical enclosures are waterproof, dustproof, and can even resist corrosion that harsh weather conditions can cause.
Engineering & Assembly Support
BENY custom combiner box solutions are tailored-fit to provide output with efficiency and speed. Our company utilizes the latest tools to automize our manufacturing process. This is why BENY is outstanding in terms of production speed, aiming to fulfill bulk orders while ensuring the function and quality of our PV protection products.
5-year warranty
What’s more interesting, we offer a 5-warranty service to your solar combination boxes. Just reach us through our technical support hotline that is available 24/7.
Products Description

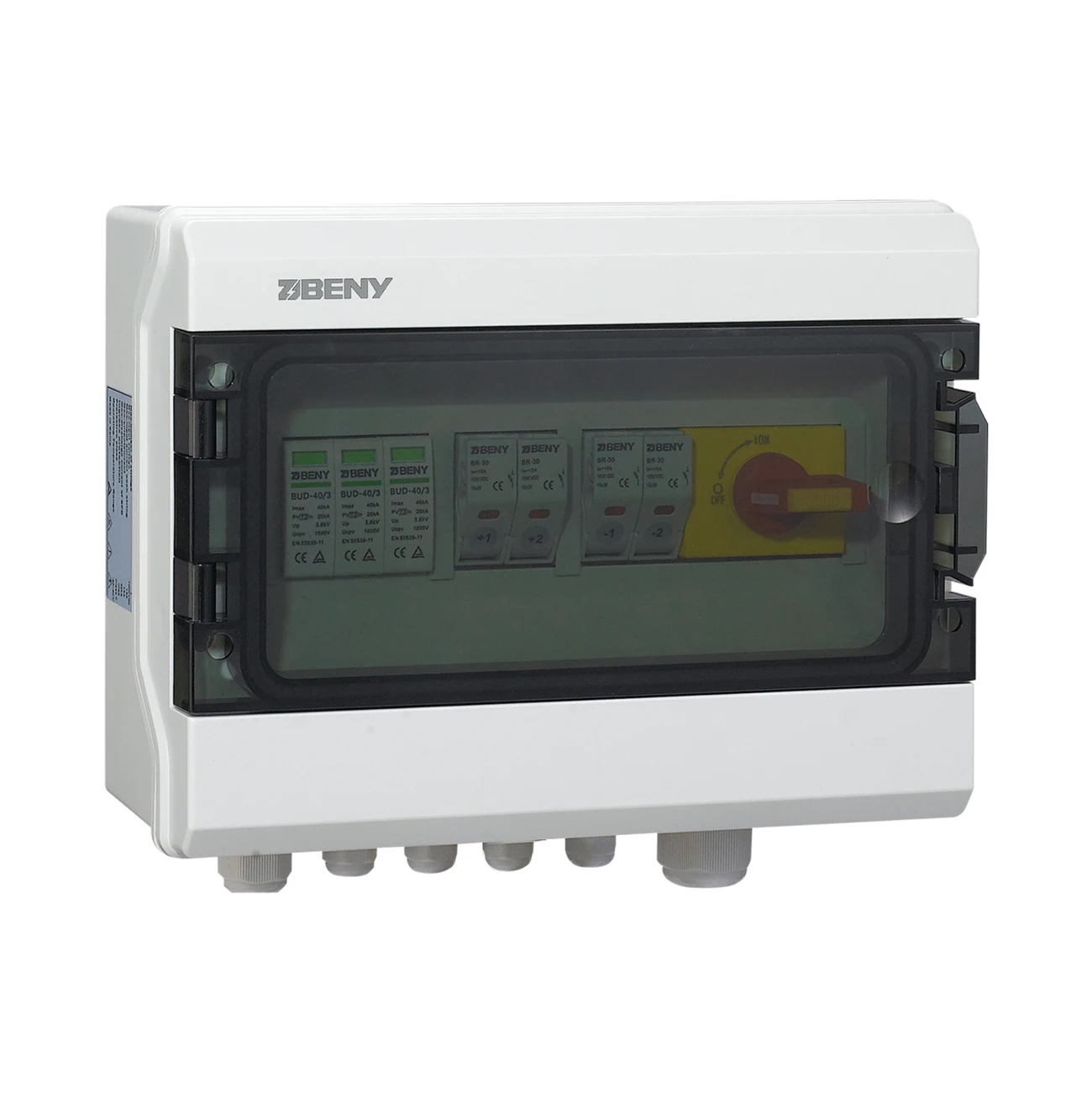

BHS-2/1 1000V DC Combiner Box for Solar PV
-Installed between solar panels and solar inverter.-Protections including over-voltage, over-load for longer the solar system working life.
-Equipped with the most reliable DC components bring maximum protection.

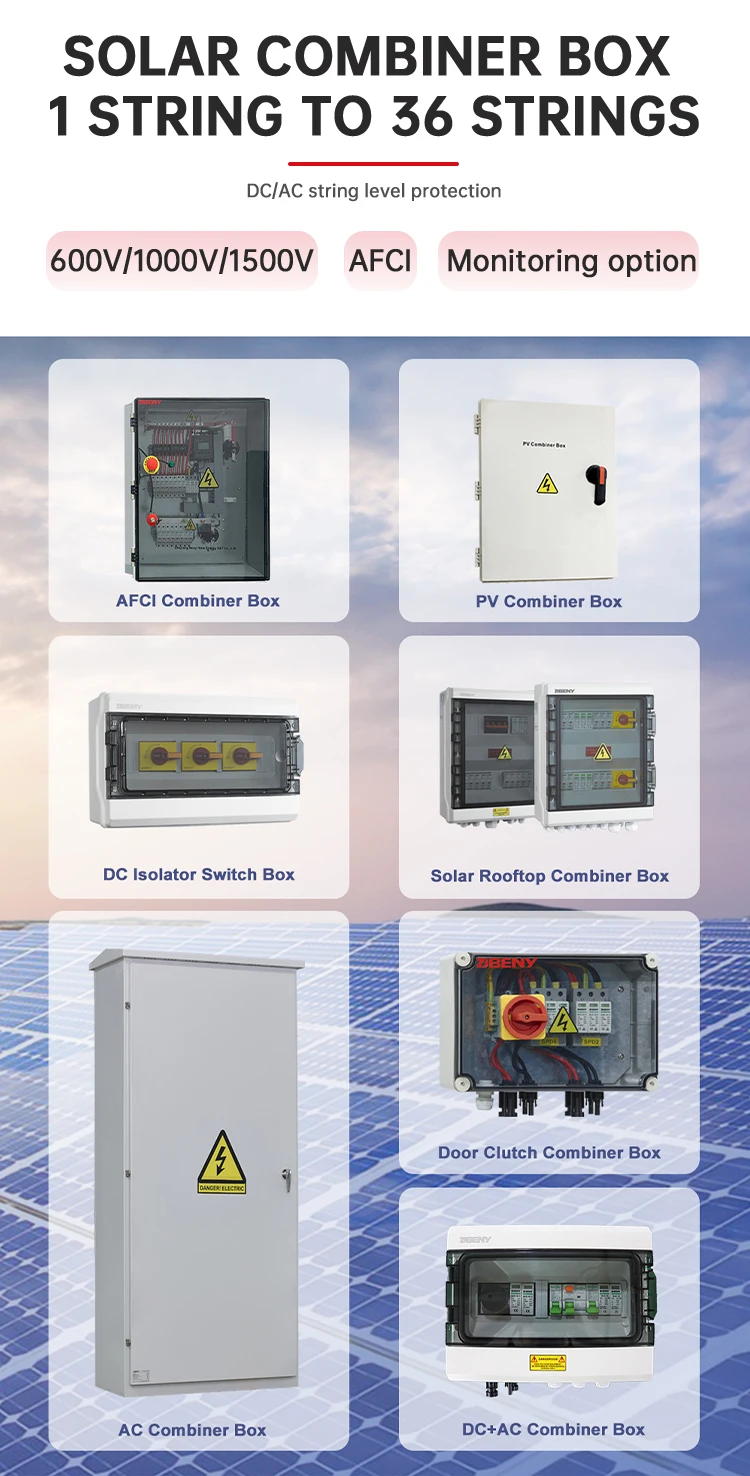

BENY Electric Solar Combiner Box 1 Strings to 36 Strings
600V/1000V/1500V/AFCI/Monitoring Option
BENY Electric with 30+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.*5 Years warranty
*600V/1000V/1500V
*AFCI Combiner Box
*IP65 Waterproof Enclosure
*Build-in UL98B listed DC switchgears
*From 1 to 24 strings customized solutions
*Design and customized at IEC 62109-1 with CE, and TUV certificates.
*Over-voltage, over-load, lightning protection; Real-time detection, long-distance communication.
Product Paramenters
General Data | ||
Model No. | BHS-2/1 | |
Input | 2 strings | |
Output | 1 string | |
Maximum Voltage | 1000V | |
Max DC Short Circuit Current Per Input（Isc） | 15A（Changeable） | |
Maximum Current Output | 32A | |
Enclosure | BX-13 | |
Material Type | Polycarbonate/ABS | |
Degree of Protection | IP65 | |
Degree of Resistance to Impacts | IK10 | |
Dimension（W*H*D） | 292*220*120mm | |
Cable input Entry | PG09 Cable Gland,2.5-16mm² | |
Output Cable Gland | PG21 2.5-16mm² | |
DC Switch Disconnector | BYT.2-32 | |
Rated Insulation Voltage （Ui） | 1000V | |
Rated Current（Le） | 32A | |
Certification | UL,TUV,KEMA,SAA,CE | |
DC Surge Arrester | BUD-40/3 | |
Max Operation Voltage（Ucpv） | 1000V | |
Maximum Discharge Current | 40KA | |
Certification | TUV,CE | |
DC Fuse Holder | BR-30 | |
Rated WorKing Voltage | 1000V | |
Fuse Link | 10*38mm Littel 15A | |
Certification | UL,CB,CE | |

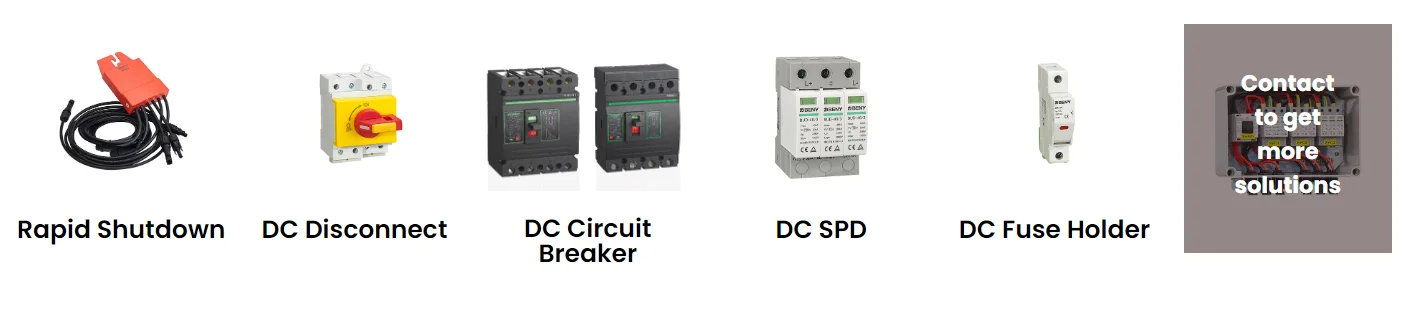

CUSTOMIZATION OPTIONS
WHAT CAN YOU CUSTOMIZE FOR A COMBINER BOX
A solar combiner box is an electrical enclosure where multiple Solar circuit components are housed. Here in BENY, we offer custom solar combiner boxes to ensure that our clients’ preferences are met. We provide custom features that introduce the general inverter requirements, including your logo, box measurement, components, DC inputs and outputs, and chosen over-voltage protection degree. Send us your requirements.
To improve rooftop fire protection in residential and commercial applications, we offer numerous custom features that cover all common inverter concerns, from logo to components . Each of our combiner boxes has different numbers of DC inputs and outputs and 3 MPPT variants.
Choose from class I or II variants of overvoltage protection, along with voltage level and IP protection functions that fit into your specific application.
Choose from class I or II variants of overvoltage protection, along with voltage level and IP protection functions that fit into your specific application.
Details Images
OUR QUALITY SELECTION OF SOLAR COMBINER BOXES
WHY CHOOSE BENY SOLAR COMBINER BOX
Grade IP 65/66
Our combiner box is waterproof, dustproof and anti-corrosion, resisting harsh conditions for long-term and uninterrupted use.
PV Solar String Current Aggregation
We offer multiple strings input up to 24 solar strings, with a maximum of 30 A per string.
Effective Isolating
Series Isolator Switches with a max voltage up to 1500V DC widely meet various demands from PV power systems.
Lightning Protection
We install a pluggable BU-40/3 Surge protector device, providing lightning protection for your PV power system.
Over-current Protection
A BR-30 touch-safe fuse with LED indicator light offers over-current protection for stable performance.
Short-Circuit Protection
BD and BB1 series circuit breakers provide short-circuit protection, preventing damages and accidents.
Our combiner box is waterproof, dustproof and anti-corrosion, resisting harsh conditions for long-term and uninterrupted use.
PV Solar String Current Aggregation
We offer multiple strings input up to 24 solar strings, with a maximum of 30 A per string.
Effective Isolating
Series Isolator Switches with a max voltage up to 1500V DC widely meet various demands from PV power systems.
Lightning Protection
We install a pluggable BU-40/3 Surge protector device, providing lightning protection for your PV power system.
Over-current Protection
A BR-30 touch-safe fuse with LED indicator light offers over-current protection for stable performance.
Short-Circuit Protection
BD and BB1 series circuit breakers provide short-circuit protection, preventing damages and accidents.

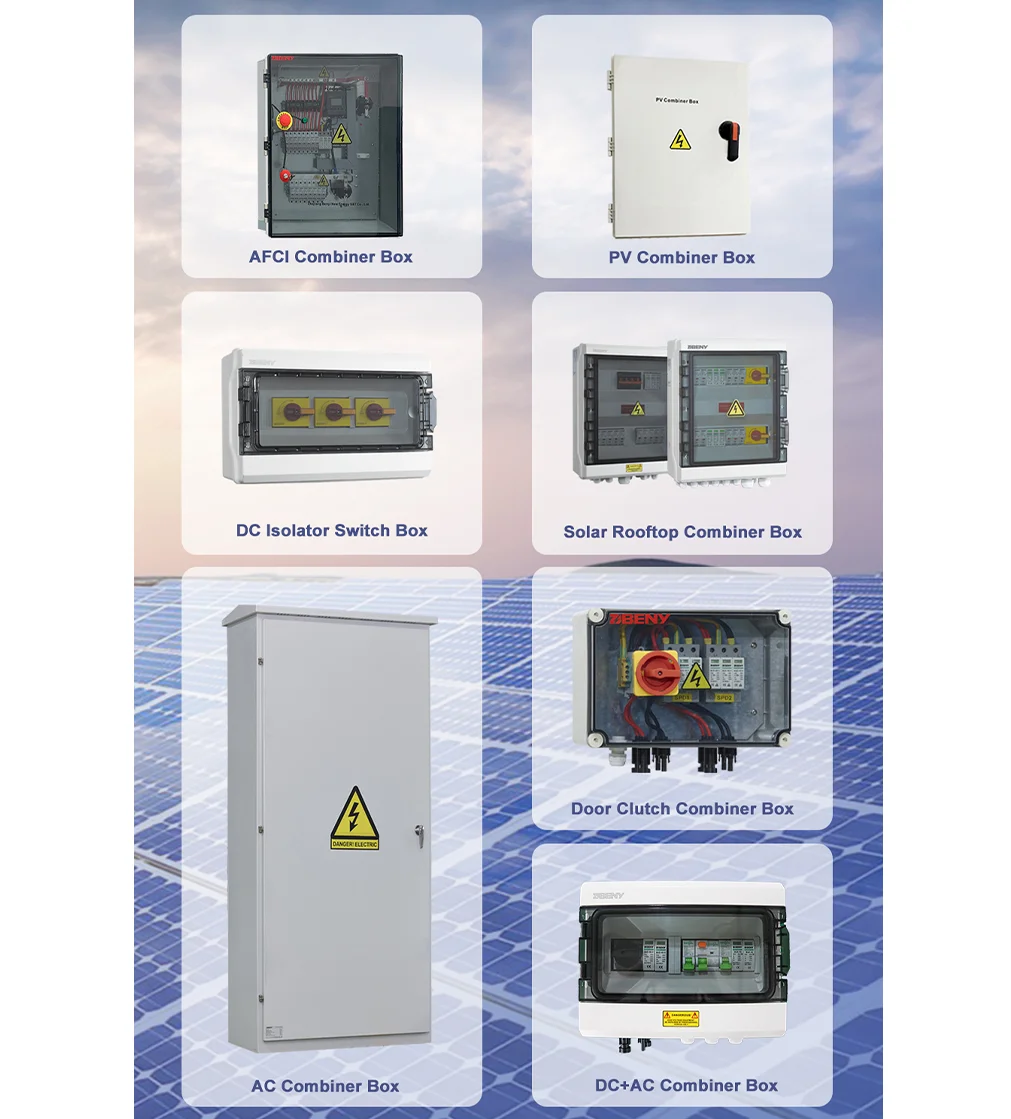

600V DC COMBINER BOX
With one or two true solar DC disconnect switches and type 2 surge arrestors, our combiners prevent over-voltage and ensure consistent functionality for specified solar PV systems.
DC ISOLATOR BOX
IP65 PC enclosure with two or more isolators build-in, for the solar system which requires multiple strings and isolators.
1000V DC COMBINER BOX
Designed with different numbers of strings inputs and string outputs, our combiners are equipped with the latest DC-PV2 disconnect switch for added protection from over current.
1500V DC COMBINER BOX
A compact and affordable solution, our 1500V DC combiners have 2P fuse holders and other disconnect components that guarantee full
over-current and over-voltage protection.
over-current and over-voltage protection.
AFCI SOLAR COMBINER BOX
BENY Electric’s AFCI solar combiners detect wide ranges of electrical arc faults to keep power systems from igniting, improving action responses against fires.
DC+AC COMBINER BOX
Our DC+AC combiner boxes come with over-voltage and over-current protection for solar DC sides, and RCBO and AC SPD for AC side protection.
AC COMBINER BOX
Each AC combiner comes with AC MCCB build-in for AC inputs and type 2 AC SPD for over-voltage protection.
AC DISTRIBUTION BOX
Our distribution boxes reduce system connection cable length and provide great switching isolation.
MODULAR ENCLOSURE
Made of high thermal stability plastic, our modular enclosures possess UV resistance and flame retardance, working at operating temperatures from -25 to 100 degrees.
