silicone profile extruding and vulcanizing line
- Category: Rubber Extruders >>>
- Supplier: Qingdao Everfine Machinery Co. Ltd.
Share on (1839290265):
Product Overview
Description

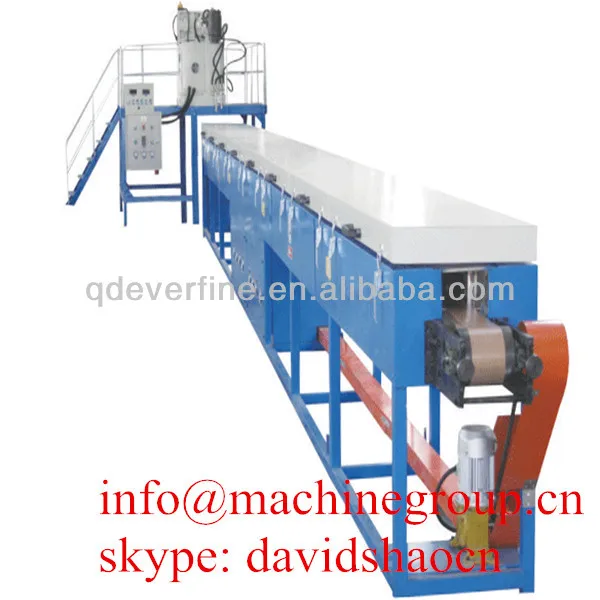

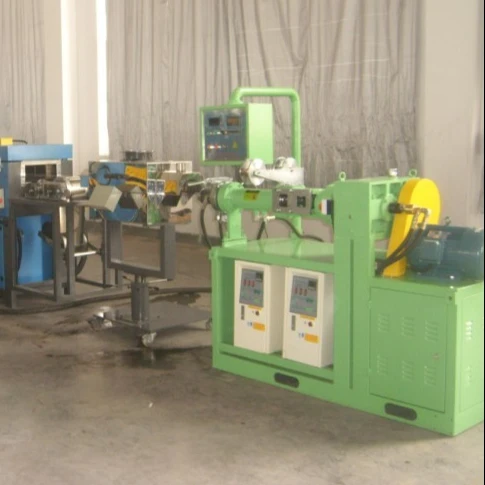

Silicone profile extruder and vulcanizing line
Product Description

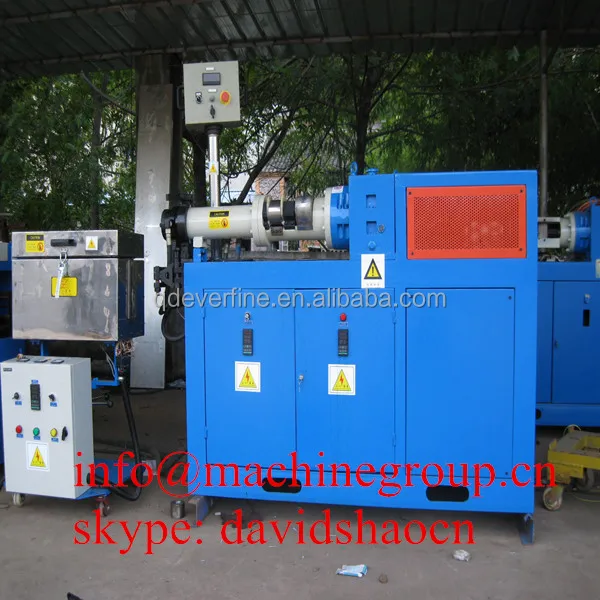

Silicone rubber extruder vulcanizing line is mainly used to extruder and vulcanize the slicone rubber and slicone rubber strip and tube etc.
Technical information:
Model | Screw diameter (mm) | L/D Ratio | Screw speed (r/min) | Motor Power (kw) | Capacity (kg/h) |
XJG-30 | φ30 | 6~12:1 | 75 | 2.2~5.5 | 40 |
XJG-45 | φ45 | 6~14:1 | 70 | 3.2~7.5 | 60 |
XJG-50 | φ50 | 6~14:1 | 68 | 5.5~7.5 | 80 |
XJG-65 | φ65 | 6~18:1 | 68 | 11~30 | 120 |
XJG-75 | φ75 | 6~18:1 | 60 | 15~37 | 180 |
XJG-90 | φ90 | 10~18:1 | 55 | 22~45 | 300 |
XJG-120 | φ120 | 10~18:1 | 45 | 37~90 | 600 |
XJG-150 | φ150 | 10~18:1 | 42 | 55~110 | 1200 |
XJG-200 | φ200 | 10~18:1 | 33 | 90~160 | 2200 |
XJG-250 | φ250 | 4~12:1 | 26 | 110~315 | 3000 |
