Горячий Кормление резиновый экструдер с другой экструдер головы

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description

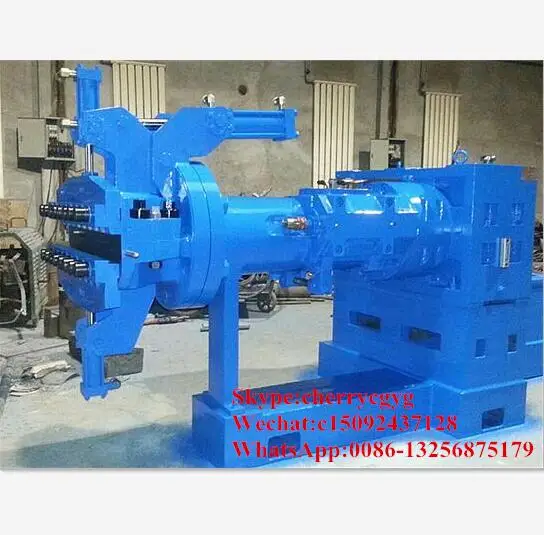

Hot feeding rubber extruder with different extruder head





Type :


hot feed rubber extruder , cold feed rubber extruder , Pin barrel cold feed rubber extruder , exhaust cold feed rubber extruder , rubber strainer extruder  . Lab extruder





Model :





hot feed rubber extruder :XJ-30, XJ-65, XJ-85 , XJ-115 , XJ-150





Normal cold feed rubber extruder :xjw-65 , xjw-85 , xjw-115





Pin barrel cold feed rubber extruder :xjd-50 , xjd-65 , xjd-75 , xjd-90 , xjd-120





exhaust cold feed rubber extruder : xjd-90





we can also design for your need





Extruder head and  die :


this can be designed according to your need





Features


1. Screw is made of best 38CrMoALA, its hardness is higher generally than HRC62 ( 60-65 ), Depth of nitrogen is higher than 0.55-0.7 mm ( 0.4-0.7 )





2. Bush is also made of 38CrMoALA, its hardness is generally higher than HRC66( 65-70 ), Depth of nitrogen is generally higher than 0.55-0.7 mm ( 0.4-0.7 mm )





3. Feeding device is made of feeding roller and feeding barrel, Feeding roller is driven by gears and its structure resembles Italy type. The rubber will never leak out, then it is never impossible for that the rubber enters into the bearing bush.








Parameters of hot feeding rubber extruder machine





The machine is hot-feed and single screw extruder. The rotation speed could be changed. With the headpiece changing, we can give different filtering and rubber covering of press plate of semi-product for contant outline, so the machine has many uses.










































































































Model


Item



XJ-65



XJ-85



XJ-115



XJ-150



XJ-200



XJ-250



Screw dia



mm



65



85



115



150



200



250



L/D ratio







4



4.8



4.8



4.4



4.4



4.5



Screw speed



r/min



20,27,35,47



28,40,52,72



20~60



27~81



3~64



3~56.3



Motor power



kW



7.5



15



30



55



90



110



Capacity



kg/h



50~80



62~270



100~420



800



1500~2200



3600






Overall dimensions






L



mm



1594



2065



2770



3411



4549



4950



W



mm



604



760



655



814



1140



1150



H



mm



1053



1154



1350



1470



1750



1483



About weight



t



~1.2



~2.6



~4.0



~4.8



~5



~9






.jpg





Cold feed rubber extruder




 .jpg

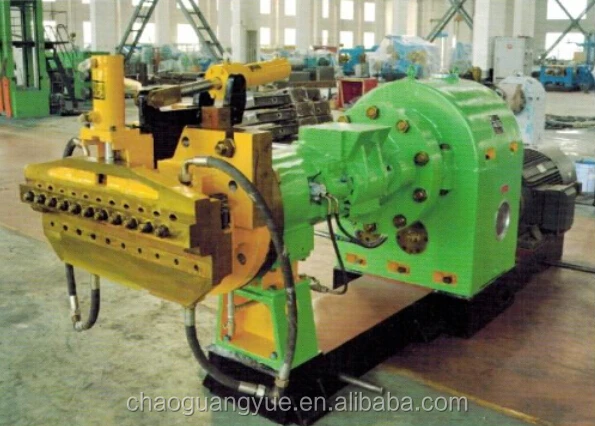

Pin-barrel cold feed rubber extruder


.jpg


.jpg





Rubber strainer


.jpg
