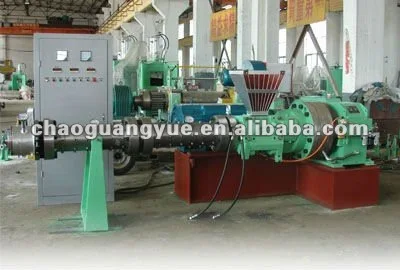

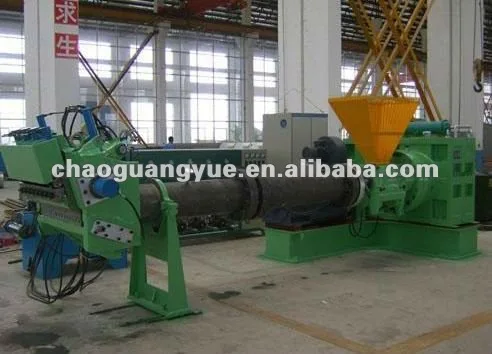

Pin barrel cold feed rubber extruder / rubber extruder machine / twin screw extruder

Product Overview

Description

  Pin-barrel cold feed rubber extruder / rubber extruder machine / twin screw extruder



Type :

hot feed rubber extruder , cold feed rubber extruder , Pin barrel cold feed rubber extruder , exhaust



cold feed rubber extruder , rubber strainer extruder,Lab extruder



Model :



hot feed rubber extruder :XJ-30, XJ-65, XJ-85 , XJ-115 , XJ-150



Normal cold feed rubber extruder :xjw-65 , xjw-85 , xjw-115



Pin barrel cold feed rubber extruder :xjd-50 , xjd-65 , xjd-75 , xjd-90 , xjd-120



exhaust cold feed rubber extruder : xjd-90



we can also design for your need



Features



1. Screw is made of best 38CrMoALA, its hardness is higher generally than HRC62 ( 60-65 ), Depth of nitrogen is higher than 0.55-0.7 mm ( 0.4-0.7 )



2. Bush is also made of 38CrMoALA, its hardness is generally higher than HRC66( 65-70 ), Depth of nitrogen is generally higher than 0.55-0.7 mm ( 0.4-0.7 mm )



3. Feeding device is made of feeding roller and feeding barrel, Feeding roller is driven by gears and its structure resembles Italy type. The rubber will never leak out, then it is never impossible for that the rubber enters into the bearing bush



 Parameter



model Item			XJD-90	XJD-120	XJD-150	XJD-200	XJD-250
Screw dia		mm	90	120	150	200	250
L/D Ratio			12-14	12-14	16	12-18	12-18
Max.Screw speed		r/min	60	55	45	33	26
Hopper		mm	130*100	164*130	220*130	260*180	310*220
Row QTY of pin			8	10	10	12	12
Pin QTY of each row			6	6	8	10	12
Power supply			380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Power		KW	75	90	220	220-355	355-480
Zone of hot water circulation			4	4	4	4	4
Total power of hot water circulation heating		KW	32	32	44	48	48
Capacity		Kg/h	250-360	600-900	1000-1500	1600-2600	~3000
Overall dimensions	L	mm	2570	3010	4000	7250	7980
	W	mm	1335	1320	1810	2100	2400
	H	mm	1500	1855	1620	2035	2090
About weight		t	~4.5	~6	~7.25	~12	~17



 Our Services

One year guarantee period, we could install and debug the machine in customer's plant.

We are testing equipments' manufacturer and production machines' service provider.

Our main testing instruments include:
Rotorless Rheometer with CE certificate, Mooney Viscometer with CE certificate, Tensile with CE certificate and other testing devices in rubber fields.

Production Machines include:
Mixing Machines: Internal Mixer, Dispersion Mixer, Open Mill, Rubber Refiner, Rubber Crusher, etc;
Extruding Machines: Cold Feed Extruder, Hot Feed Extruder, Rubber Strainer, etc;
Other Machines: Calender, Batch-off Cooling Machine and Vulcanizing Machines, etc.
