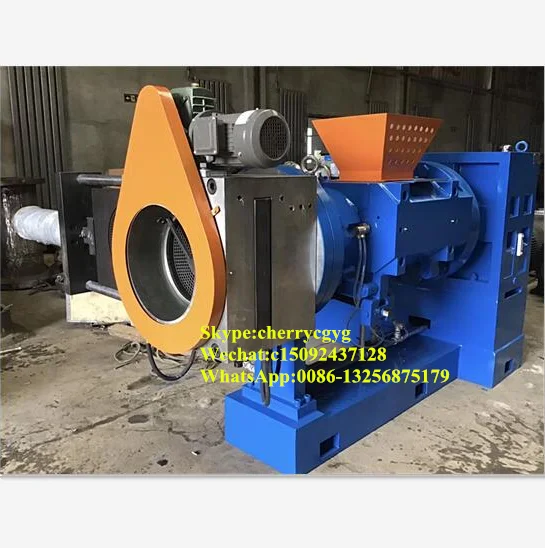

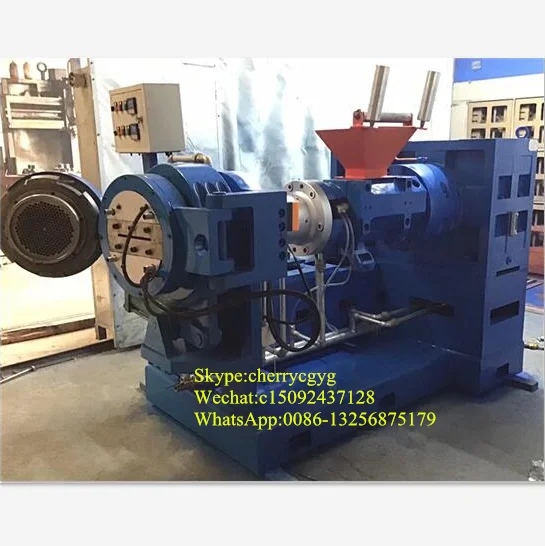

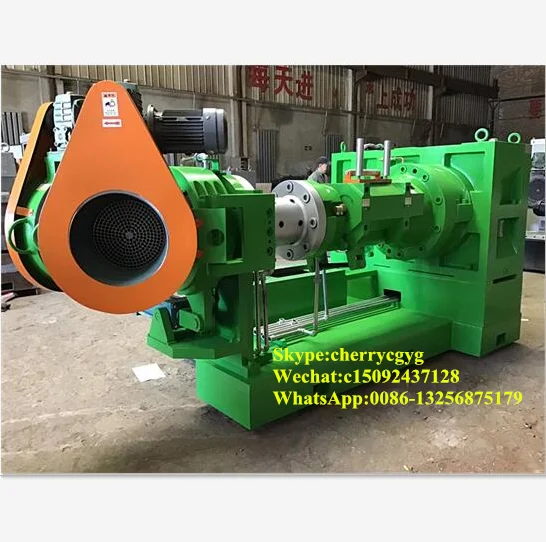

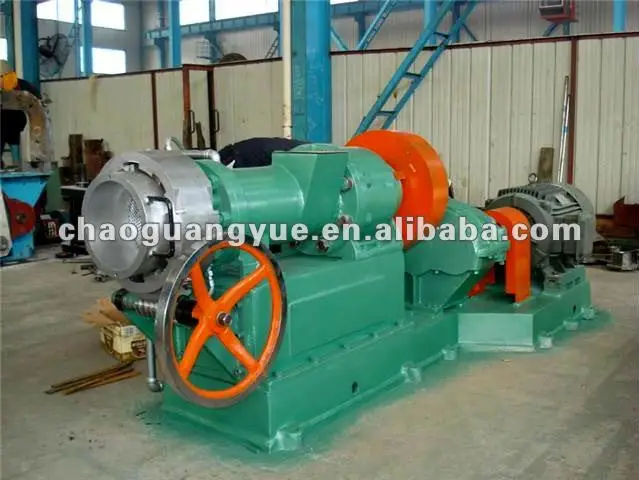

XJL 115 Rubber strainer / rubber filter extruder / rubber strainer extruder

Product Overview

Description

   XJL-115 Rubber strainer / rubber filter extruder / rubber strainer extruder











1.The use introduction





The machine is used for extrusion of various rubber products and rubber feeding .





2. Main technical parameter







Model Item			XJL-115	XJL-150	XJL-200	XJL-250
Screw dia		mm	115	150	200	250
L/D ratio			4.8	5.2	5	4.8
Screw speed		r/min	40	42.5	44	40
Cutting equipment speed		r/min	15	17	16	6
Motor power		kW	22	45	75	110
Steam pressure		MPa	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Cooling water pressure		MPa	0.2	0.2	0.2	0.2
Capacity		kg/h	100~280	400	800	1200
Overall dimensions	L	mm	2770	3600	4229	4220
	W	mm	655	820	2120	1400
	H	mm	1350	1500	1493	1528
About weight		t	3.5	~4.5	~8	~9



3.Structure introduction





 A- The machine is composed of head, frame, pedestal,pipeline,lubricating system and electrical control system.





 B- Screw is made of 38CrMoALA, the reducer transfers drive through the motor, and screw speed

can’t be adjusted. In order to heating or cooling screw, screw is hollow, add steam or cooling water

through the rotated joint.



 C- Screw is a dicephalous isometry screw thread, and screw thread is wearable owing to the

surface of screw thread is heating nitrous treatment. Screw works when the frame is in pressure, and

the axial drive is supported by thrust roller axletree in thrust axletree bedplate .





  D- There is a hollow interlayer inside the frame, and it is convince in heating and cooling. In front of the frame, there are some bushes installed. According to abrasion degree of the bushes, we can exchange some new bushes.



  E- The clearance between screw and frame measured in diameter should be 0.330-0.447mm, it will affect the normal operation if less than 0.330-0.447mm , it will reduce capacity if more than 0.330-0.447mm.





  F- There is a quadrate feed door in the back of airframe , the rubber material input airframe, screw rotation presses it to the head, press strip through filtration web.

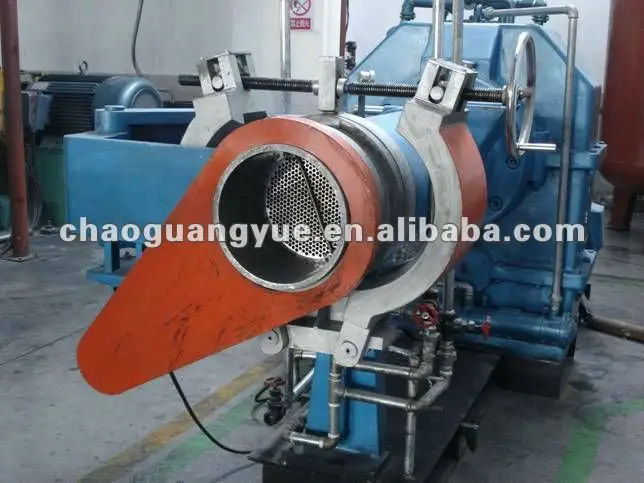

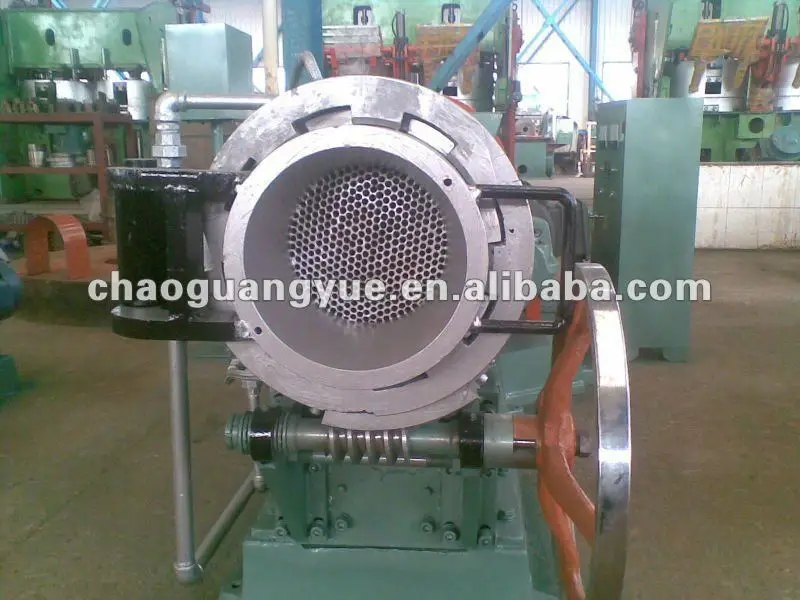

  G- The head is wrong tooth type , manual opens, open the nose replacement filtration web when use .uses the certain time or filtration web brusted ,or else effect the throughput .In order to decrease extrude resistance ,the front head makes expands out taper mouth .





  H-The head section is loaded with the thermometer , measure the temperature of the head , control the temperature of head .
