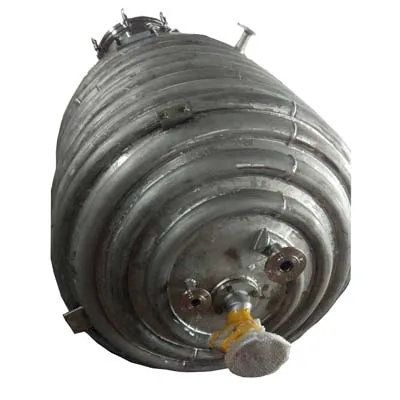

Внешний катушечный реактор из нержавеющей стали

Product Overview

Description





Advance And Mature Reaction And Heat Exchanger Technology



Competitive price and 12 months guarantee 1. Agitation efficient 2. Ready-to Use 3.Durability 4.functionality 5. 50- 60000 liter , explosion proof motor, mechanical sealing6.Economic efficient 7.Easy install and require minimal maintenance 8. 12 month free supply alternative components.

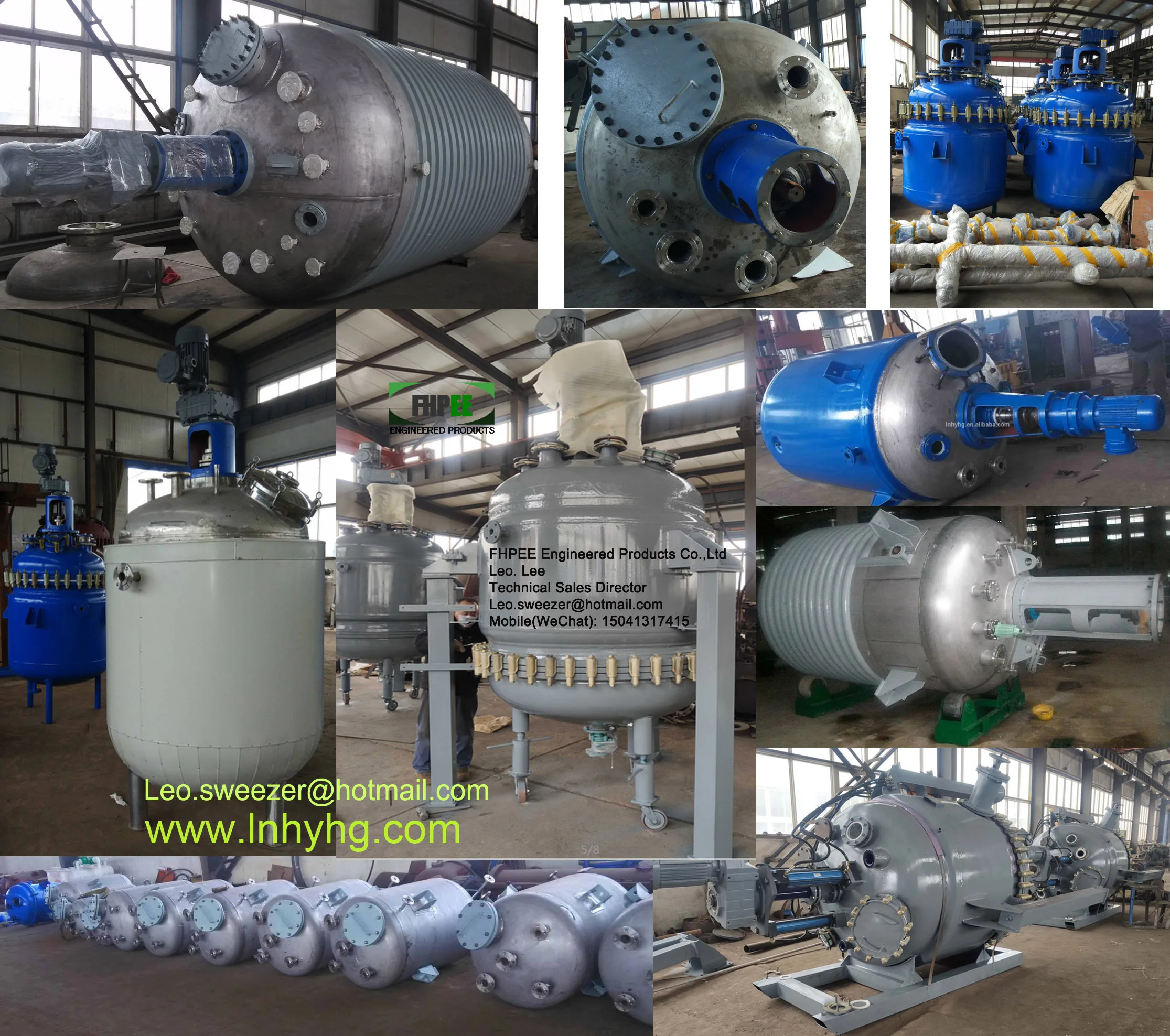

We, FHPEE Engineered Products Co.,Limited a Chinese professional and government Pressure Vessel approval manufacture since 1998 years and ISO9001-2000 approval for 8 years of Glass-Lined steel and 304, 316L stainless steel chemical reactors and customer designed fabricated Chemical reactors, Storage Tanks, Blenders, Condensers and all its accessories, pipes, fittings and sections. All the Reactors are available with all Standards Testing Facility. Which jacketed, agitated, limpet coil, complete with gear box explosion proof motor and glass lined or stainless steel heat exchanger and complicated process system, those can operate under pressure or vacuum.



Main equipment manufactured by FHPEE	Volume Vpecification
Glass Lined Reactor	20-35000L
Glass Lined Jacketed Reactor	20-35000L
Glass Lined Electric Heating Reactor	20-35000L
Glass Lined Storage Vessel	20-60000L
Glass Lined Tank	20-35000L
Glass Lined Heat Exchanger	suitable for 20-35000L reaction system
Glass Lined Condenser	suitable for 20-35000L reaction system
Glass Lined Agitation Vacuum Filter	suitable for 20-35000L reaction system
Glass Lined Agitated Nutsche Filter	suitable for 20-35000L reaction system
Glass Lined Agitator	suitable for 20-35000L reaction system
Glass Lined Thermowell	suitable for 20-35000L reaction system
Glass lined Accessories	suitable for 20-35000L reaction system
Mechanical Sealing	suitable for 20-35000L reaction system
stainless steel SS304 316L Reactor	20-60000L
Glass Lined Electric Heating Reactor	20-60000L
stainless steel SS304 316L Jacketed Reactor	suitable for 20-60000L reaction system
stainless steel SS304 316L Storage Vessel	20-60000L
stainless steel SS304 316L Tank	suitable for 20-60000L reaction system

Fabrication Code and Standard

Glass Lined Equipments are manufactured to the highest Quality Standard of workmanship and material. The Reactors are generally as per GB Standards 28136 and manufactured with 100% nondestructive examination (radiographic inspection, Penetrate testing, magnetic particle testing and ultrasonic inspection). All Clamps and Flanges Compile with GB / DIN/JIS Standard, Equipment are also specially designed and constructed to the client’s own specifications. Glass Lining Inspection and Testing are as per ISO standard by 20000 volt electric spark testing the Electrical properties of glass lining layer.

The Glass Lined Equipment manufactured by our workshop is all:

1) Resistant to corrosion for acids and alkalis temperature up to 180 C degree often higher depends on
2) Withstanding mechanical stress
3) Withstanding thermal shock
4) Resistant to adhesion
5) Favorable price, high quality and excellent after-sales service

6) Jacketed or limpet coil straight side for product heating and cooling

7) Complete with a sight glass

8) Easy and fast to clean internal surface

9) Glass lining with steel outside for structural strength is an inert material. There is no contamination of product purity. Color and taste are not affected. Sticky materials such as latex and resins do not readily cling to the fire-polished smooth surface.

10) Our tanks and receivers provide the many advantages of glass with the durability and strength of steel.

The glass lining surface eliminates contamination to increase product purity and allows an easy, fast and thorough cleaning. With steel outside for structural strength. FHPEE can provide custom designs if these standard sizes do not meet your specific process conditions.

The technical details descriptions of our Glass lined Equipment Performance:

1.     Max. Design Pressure:1.6 Mpa

2.     Max. Design Temperature: -28 C degree To 350 C degree

3.     Elliptical, dished, flat or conical head

4.     Domestic/industrial uses

5.     Material: austenitic stainless steel, 304, 321, 316l. / cladding

6.     plate of austenitic stainless steel

7.     Max. Volume: 100M3

8.     agitator speed at 0-600 rpm

9.     Custom designs available

10.   Heated with inside-coil, outside-coil, jacket or U-tube

11.   The Glass-lining Thickness: 1.0-2.8 mm

12.   Final Hydrostatic Test: 1.6 Mpa

13.   The High Voltage- sparking test to Glass-lining: 20KV

14.   Radiography Shell / Head: welding Spot / Full

15.   Penetrate testing Shell / Head: welding Spot / Full

16.   Magnetic particle testing Shell / Head: welding Spot / Full

17.   Ultrasonic inspection Shell / Head: welding Spot / Full

18.   Joint Efficiency: 0.85 / 1.0

19.   Corrosion Allowance 1.0

20.   Water, steam or oil heating

21.   Mechanical sealing

22.   Explosion proof motor with Cycloid reducer orExplosion proof motor with gear box system

23.   Flameproof motor with gear box

24.   Impeller/anchor/paddle and customized glass lined/stainless steel agitator

General terms and conditions:

Original: P.R China

Brand: FHPEE

Type : FHKF,FHK

Voltage: 220/240/380 volt 50/60 Hz

Power: 1.0-22 Kw

Dimension(L*W*H): Upon ordered equipment, OEM service

Weight: 50- 15000 Kgs

Qualification: Complicate FAT report-certified with A1 and A2 Rating by the Center Special Equipment Licensing Office (SELO) of the General Administration of Quality Supervision, Inspection and Quarantine (AQSIQ) of the Peoples Republic of China to manufacture stationary pressure vessel product.

Guarantee Period: 12 months, free supply components according contacted indicated

According Specific Requirement/Order, OEM service

Loading port: FOB Dalian port or CIF C.A.D payment term

Delivery timeline: 20-60 days dispatch to loading port

Packing: Ocean transfer suitable strong steel frame riveted clad plates

We also done export our products to Asian country, such as high-request area, Taiwan area, Japan, South Korean, Turkey, Indoneisa, Amercia for several years, so, we know the India market well, kindly, feel free to contact us, and send us your requirement. We confident offer you the more competitive price as well as quality provable as best services!

Please contact for more technical data and dimensions as well as our products catalogue for your reference.

If any help we can do for you, please contact us anytime.
