W11F series mechanical 3 roller unsymmetrical plate rolling machine

Product Overview

Description

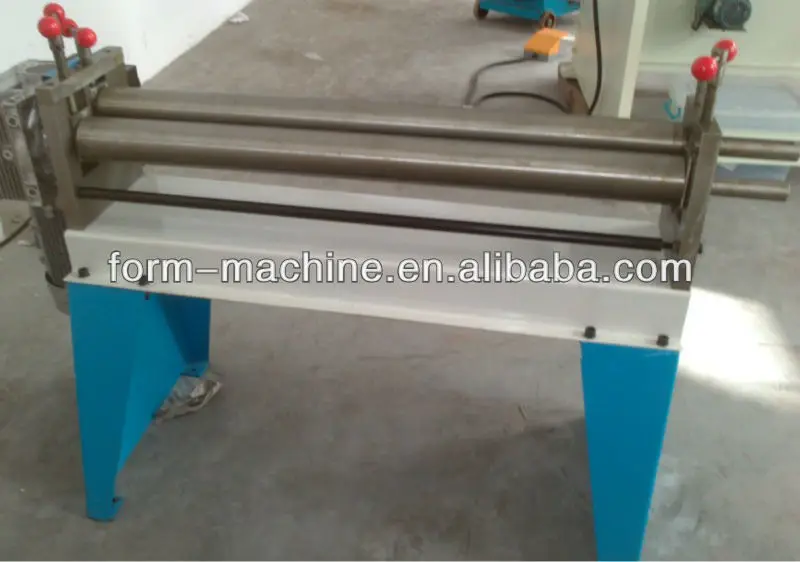

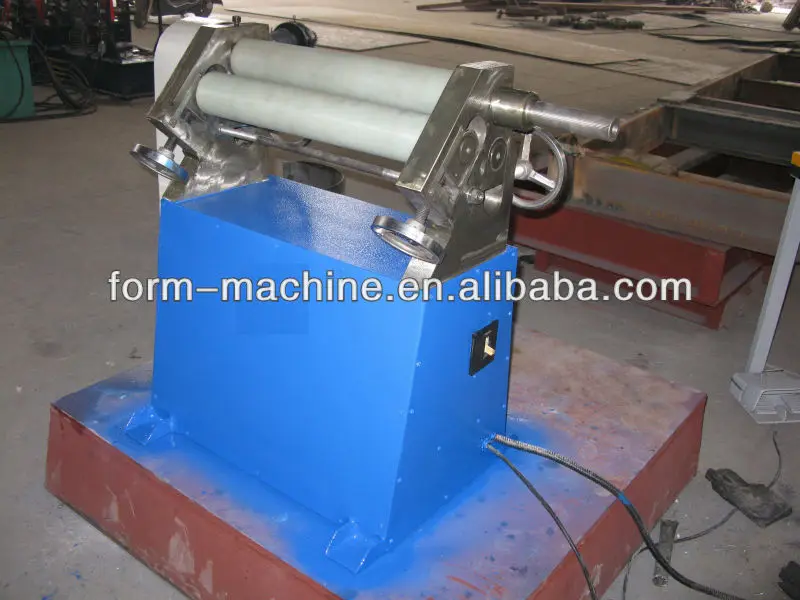

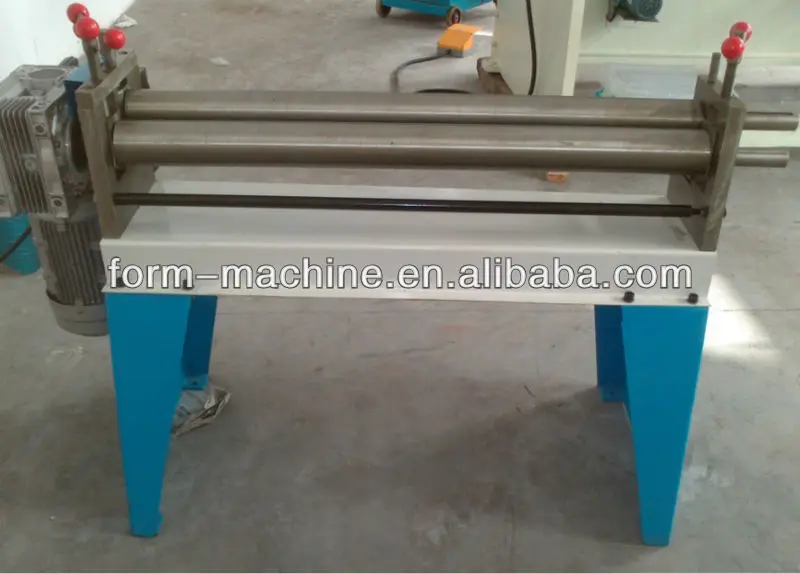

 Small type mechanical roll bending machine FM-2x1300

1)       Description and Technical Specification

The machine is asymmetric 3-roll mechanical and asymmetric type. It is easy for operation and maintenance.

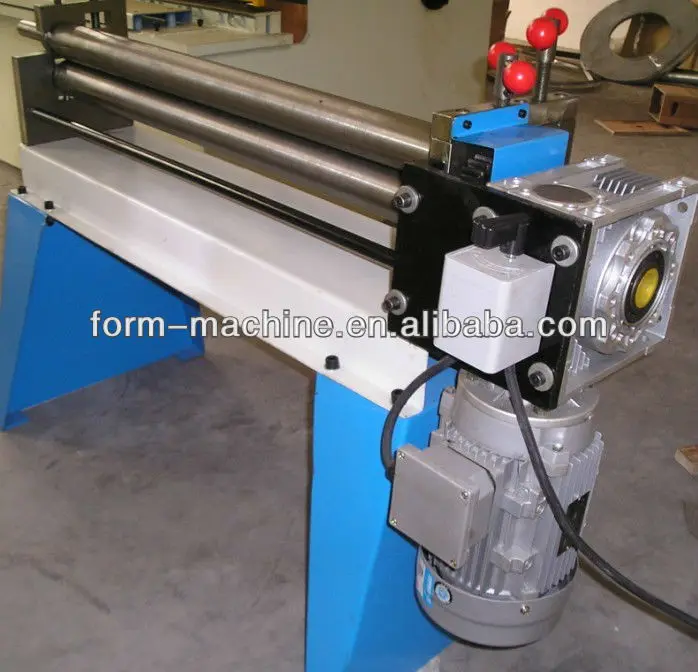

Upper roll is driven by motor by means of reducer. And lower roll is moved vertically while the side roll is moved upper and down at an angle. It is capable of round rolling and pre-bending.

With beading rolls for groove making.



Model FM2.0*1300



Capacity: Max. Thickness :         2.0 mm

Max. Width:                       1300mm

Min. Diameter with full length:      100 mm

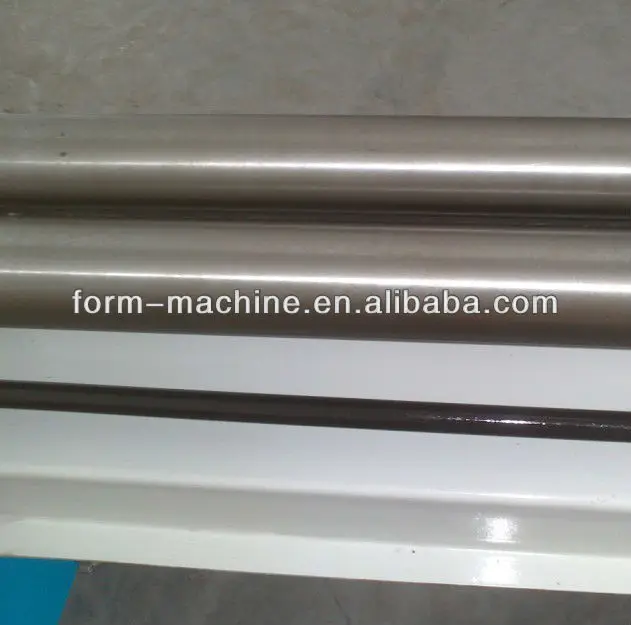

Rolls made of forged steel 42 Cr Mo4(SCM420),surface hardened HRC50

Diameter:            90 mm

Top roll swings out

Working Speed:                      4.5 m/min
main motor power:                       1.5 kw







Model FM2.5*1020

Capacity: Max. Thickness :         2.5 mm

Max. Width:                       1020mm

Roller working length:               1200

Yield strength:                     <245Mpa

Min. Diameter with full length:       80 mm

Dia. Of upper roller:                 64

Dia. Of bottom roller:               64

Dia. Of side roller:                   68
Working Speed:                    4.5 m/min
main motor power:                       2.2 kw
Rolls made of forged steel 42 Cr Mo4(SCM420),surface hardened HRC50

Top roll swings out











Q:How to get a accurate quotation from us?

A:provide us the detail of the material such as metal thickness and width

Q:what’s the shipping cost from China to your country?

A:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe,convenient and timely delivery.

Q: How to check imported charges or tax ?

A:Call your Customer.tell them machine HS code.

Spiral duct forming machine is 8455229090

Press brake and rolling machines are 84622990. shearing machine is 84623990.rolling machine is 8455229090,seam welding machine is 85152900

Q:Payment terms,MOQ,warranty,FOB...

A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery

minimum order quantity:1 set,FOB Shanghai.

delivery time :20days after receipt of formal order and 30% deposit.

warranty:12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc .You can contact us any time,if urgently,please call us.

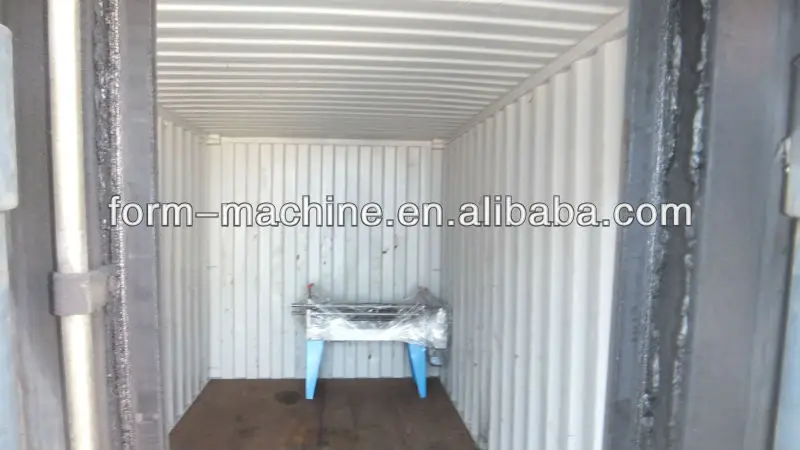

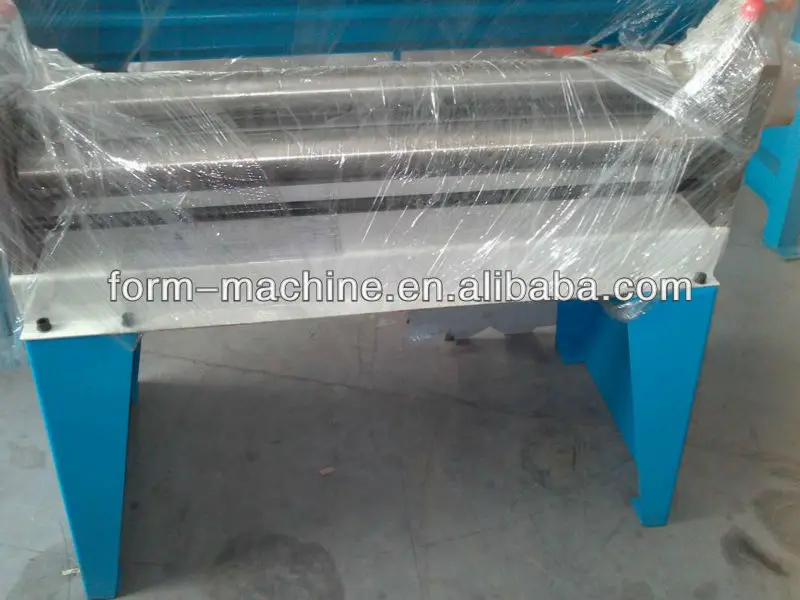

Q: what’s the package?

 A:fumigation-free plywood case or without package

Q:How to operate this machine ?

 A:video link of our factory .......or we send you the movie directly

Q:what about commissioning service ?

 A:we can offer commissioning service,the buyer need to afford plane tickets

Q:Do you offer teaching&training ?

A:Training at supplier’s plant

Q: what’s policy for guarantee and broken parts?

A:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.
