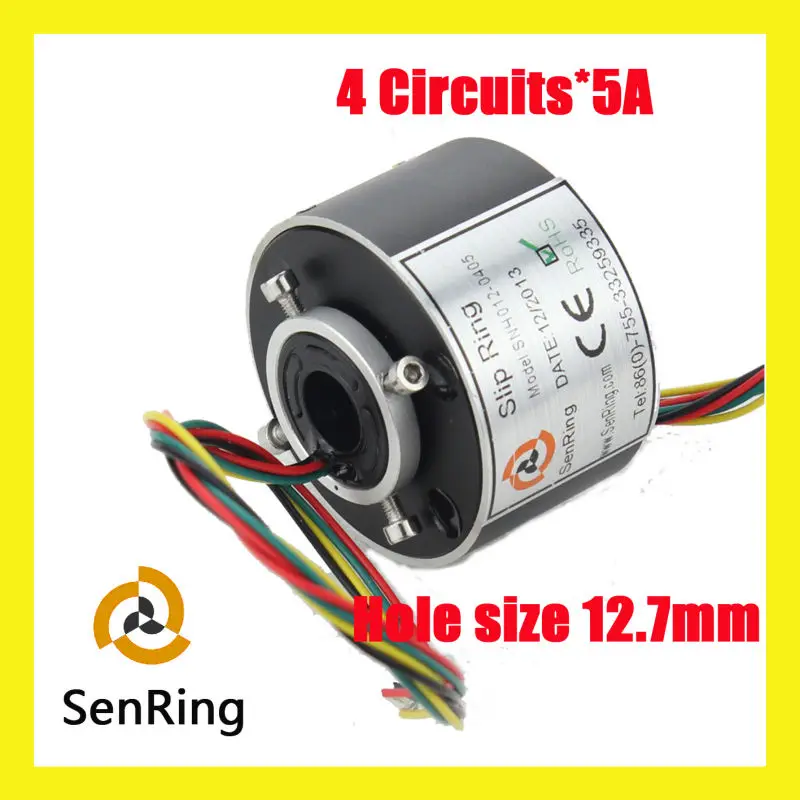

Лидер продаж, скользящее кольцо SNH012 с 4 проводами/цепями 5A, сквозное скользящее кольцо

Product Overview

Description

The SNH012, with 12.7mm through bore size and compact 56mm outside diameter, uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.





SNH012(Standard) Dimensions

SNH012 Specifications(Standard)

• Contact Material


  Precious metal brush,Silver plated rings





• Current Rating- 5A


• Number of Circuits--4


• Operating Speed


  300 rpm* continuous





• Lead Wire


  Awg28,Awg22,Awg16(200 mm)





• Voltage


  400 VAC





• Operating Temp.


  -40°C to 80°C





• Working Humidity


  60%RH





• Torque


  Approx. ≤8.25 g·m (for reference )





• Dielectric Strength


  ≥800V@50Hz between each circuit





• Insulation Resistance


  700MΩ@ 400VDC





• Noise


  Less than 50 mΩ @ 6 VDC, 50 mA, 5 rpm





• Housing Material


  Aluminum Alloy





• Protection


  IP54
