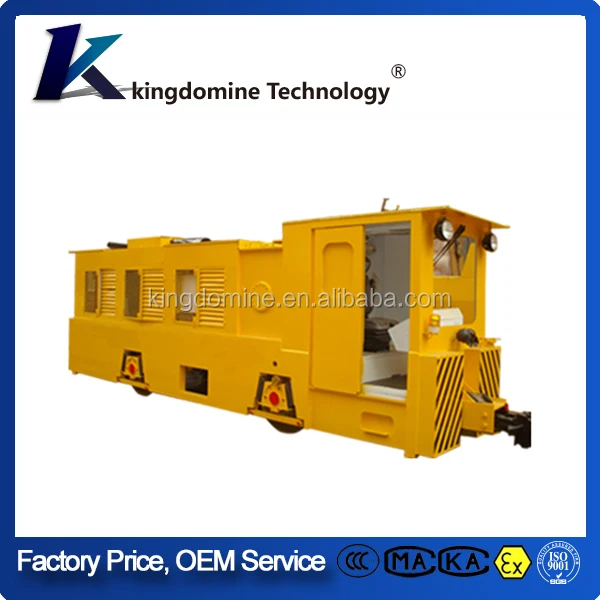

20T Mine Electric Diesel Locomotive
20T Diesel Locomotive Parameters
| Whole Locomotive | |||||||
| Specifications/ Parameter | Value | ||||||
| Dimension(L×W×H) | 6360×1400×1750mm | ||||||
| Centre Distance of Coupling Pin to track | 430mm | ||||||
| Track Gauge | 750 mm | ||||||
| Cohesive Operation Weight | 15 Ton | ||||||
| Starting Traction | 57 KN | ||||||
| Continuous Traction | 30 KN | ||||||
| Speed | 10 km/h | ||||||
| Diesel Motor | |||||||
| Specifications/ Parameter | Value | ||||||
| Model | WP6.180 | ||||||
| Cylinder*cylinder diameter*stroke | 6*105*120MM | ||||||
| Displacement | 6.24L | ||||||
| Rated Power | 132KW | ||||||
| Rated Rotated Speed | 2300rpm | ||||||
| Max Torque | 680N.M/1200~1600rpm | ||||||
| Hydrodynamic Transmission System | Model :YD13 | ||||||
| Working Type | Single stage , Single-track,Radial Inward Turbine | ||||||
| Circulation Diameter | 350mm | ||||||
| Reversing&Shift model | Electric& Hydrodynamic Control | ||||||
| Gear | 2 forward gear/2 reverse gear | ||||||
| Weight | 410kgs | ||||||
| Min.Curve Radius | 25m | ||||||
| Suspension | Chevron Designed Rubber Spring | ||||||
| Type of Control for Locomotive | By Hydrodynamic Driving System | ||||||
| Braking type | Mechanical;Electrical;Pneumatic (air) | ||||||
| Braking Multiple | 7.5 | ||||||
| Type of Braking Shoes | Tread brake;Cast Steel Brake Shoes | ||||||
| Braking Distance | 50m | ||||||
| Type of Emergency Braking | Pneumatic (Air) Braking | ||||||
| Diameter of Wheel | 630mm | ||||||
| Loading Capacity of Axle | 7.5 Ton | ||||||
| Coupling | TBD (should match the muck car ) | ||||||
| Wheelbase | 2600mm | ||||||
| Fire Extinguisher | Two pcs | ||||||
Professional Solution Provider For Mining Locomotive
![]() | ![]() | ![]() |
![]() | ![]() |

Locomotive Type | Model | PRICE (USD)/PC |
1.5T trolley | CJY1.5/5, 6,7,9G(B) | 6066--12057 |
3.5T trolley | CJY3.5/5, 6,7,9G(B) | 8567--14507 |
7T trolley | CJY7/6,7,9G(B) | 12987--18099 |
2.5T battery | CTY2.5/5, 6,7,9G(B) | 12076--16997 |
5T battery | CTY5/5,6,7,9G(B) | 22976--26987 |
8T battery | CTY8/6,7,9G | 27690--30885 |
2.5T diesel | KT-SQY2.5 | 8200--12200 |
3T diesel | KT-SQY3 | 8568--12568 |
3.5 diesel | KT-SQY3.5 | 9000--12223 |

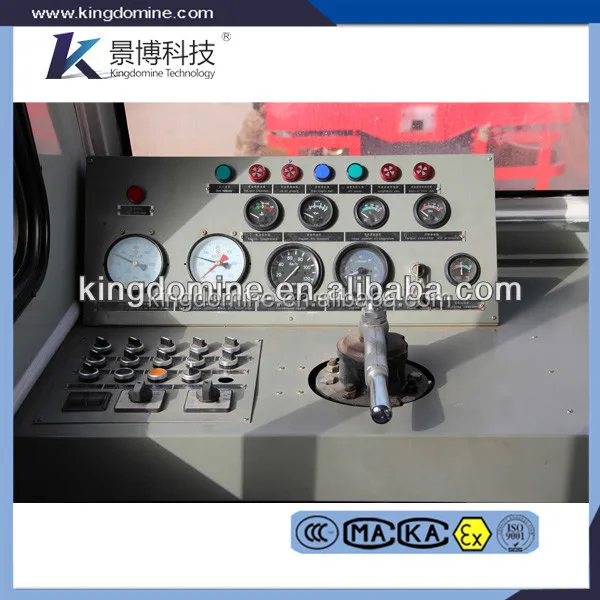

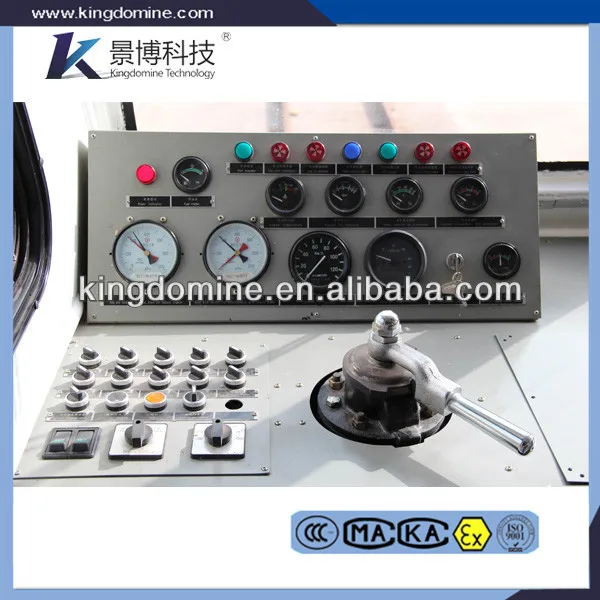

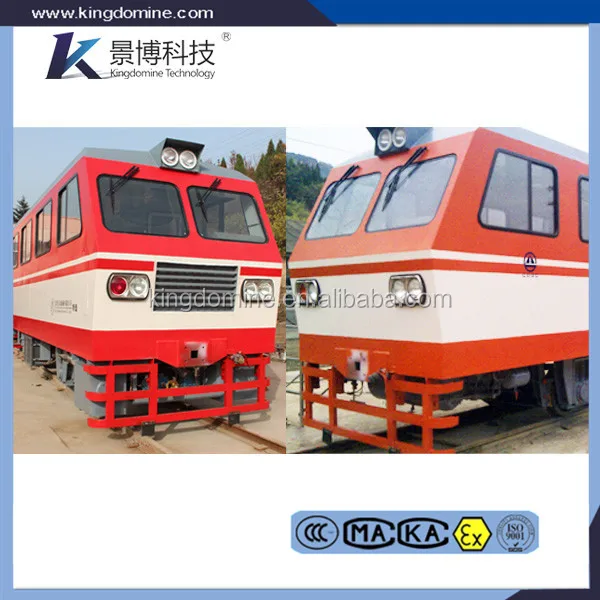

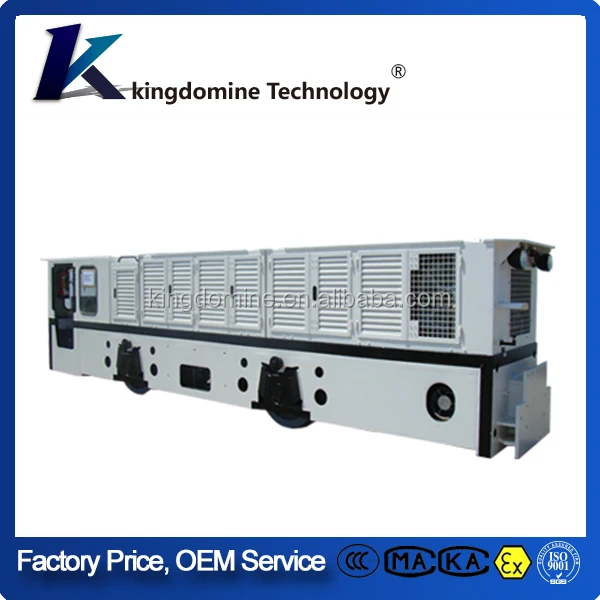

Detail Images




Pre-sales Service:
The wide product range enables us to provide our customers with individual machines or complete processing plants.Based on our customers'request and budget, our experts make efficient and reliable solutions, and we produce strictly follow customers' order. What's more, every customer has the chance to visit the working machine in the site before placing the order.
After-sales Service:
Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the quarry site to help install the customers'plants.Necessary training about machine daily maintenance to local workers is provided also.
T/T (Telegraphic Transfer) or Western Union or L/C at sight
Handling time for an order:
Within 10 days supplied from stock
Shipping method:
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
Quality Control:
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
c. Free replacement will provide once the failure confirmed caused by our product quality
About Us:
Our factory has been specialized in manufacturing locomotives and spare parts since 1980.
We have advanced technology and equipment.
Our technician has more than 25 year’s professional working experience.
Locomotives are exported throughout the world. Main market: Norway, Turkey, USA,Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
