Product Overview

Description

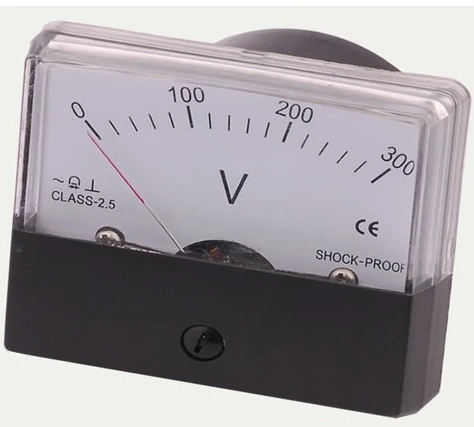

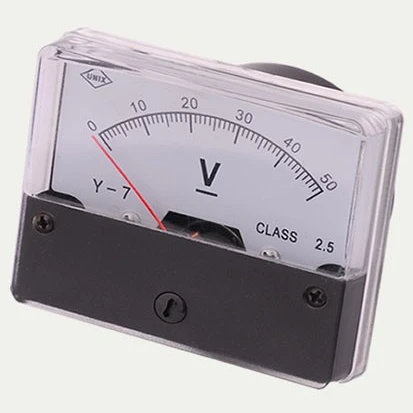

 Analog Panle voltmeter 670

QQ20150625102510

670 1.jpg670 2.jpg670ACV.jpg



QQ20150625103106

Case: PMMA plastic material is used for making this series'external case,and  Non-combustile ABS plastic material is used for base; Also, Non-combustible PC plastic material can be used for this series'external case and base. Both of which will not suffer deformity under long-term use at 70°C and 120°C respectively.



IMHOO ALSO CAN DO OEM.  SUCH AS: Range, Changeablescale, waterproof...can be customized.



TP-80/670/60/50/45 Ammeter Specifications



 AC ADC A
uA50uA,100uA,150uA,500uA50uA,100uA,150uA,500uA
mA1mA 2mA 5mA 10mA 20mA 30mA 50mA 75mA 100mA 150mA 200mA 250mA 300mA 500mA1mA 2mA 5mA 10mA 20mA 30mA 50mA 75mA 100mA 150mA 200mA 250mA 300mA 500mA
A1A 2A 3A 7.5A 10A 20A 30A 50A 1A 2A 3A 7.5A 10A 20A 30A 50A
with external CT(ACA)
with external Shunt(DCA)		X1A10/1A 15/1A 20/1A 30/1A 40/1A 50/1A 60/1A 75/1A 100/1A 150/1A 200/1A 300/1A 400/1A 500/1A 600/1A 1000/1A More Ranges can be customized50mV
60mV
75mV		10A 15A 20A 30A 40A 50A 60A 100A 150A 200A 250A 300A 400A 500A 600A 800A 1000A 1500A 2000A 2500A 3000A
X5A10/5A 15/5A 20/5A 30/5A 40/5A 50/5A 60/5A 75/5A 100/5A 150/5A 200/5A 300/5A 400/5A 500/5A 600/5A 1000/5A More Ranges can be customized

TP-80/670/60/50/45 Voltmeter Specifications



 AC VDC V
V50mV 60mV 75mV 100mV 5V  10V 15V 20V 30V 50V 75V 100V 120V 150V 200V 250V 300V 400V 450V 500V 600V50mV 60mV 75mV 100mV 5V 10V 15V 20V 30V 50V 75V 100V 120V 150V 200V 250V 300V 400V 450V 500V 600V



QQ20150625102503
