Flexible aluminum foil duct forming machine




Product Description


 The Flexible aluminum foil duct forming machine  is mainly used to produce the flexible air duct from aluminum strip by spiral lock forming process. The suitable material cab be aluminum foil or stainless steel strip, both single and doube layer will be suitable for our machine design.

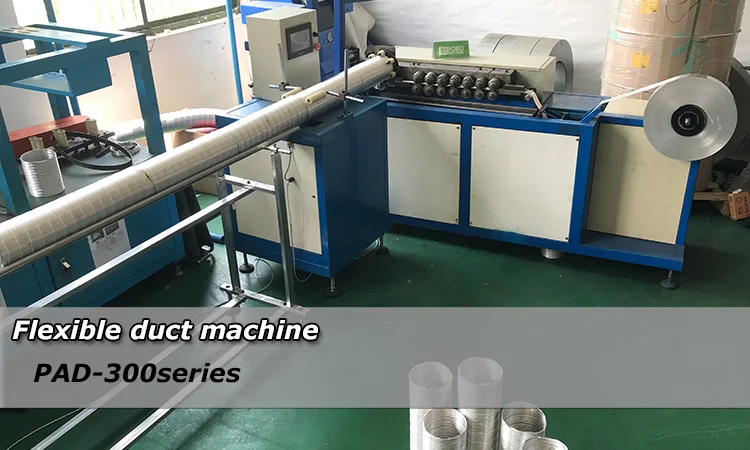

flexible duct machine d13.jpg

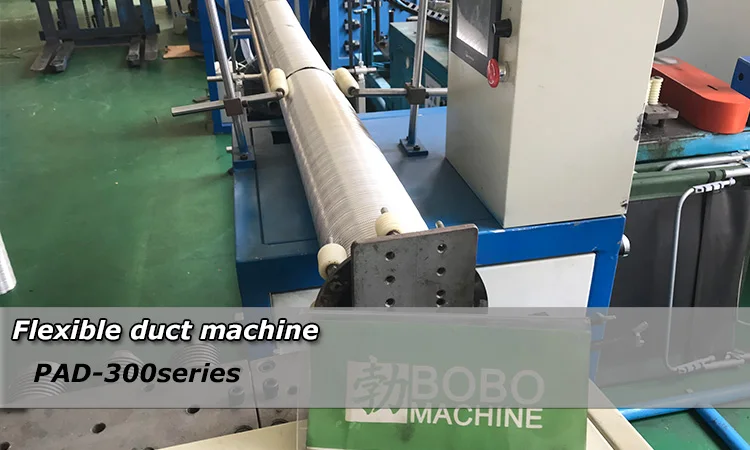

flexible duct machine d15.jpg


Feature of Flexible aluminum foil duct forming machine



  • Quick change mould for different diameter

  • Automatic lubrication and forming process.

  • Speed control by inverter for easy operation.


flexible duct machine d05.jpg


Main Technical data of Flexible aluminum foil duct forming machine








































 1 Duct Diameter 80-300-450mm
 2Duct length Unlimited
 3Aluminum strip size

0.05-0.15mm thick


40-55mm wide


 4Forming speed 1-5m/min
 5 Main motor power1.5KW
 6 Dimension1200 x 550 x 1200 mm
 7 Weight

850 KG

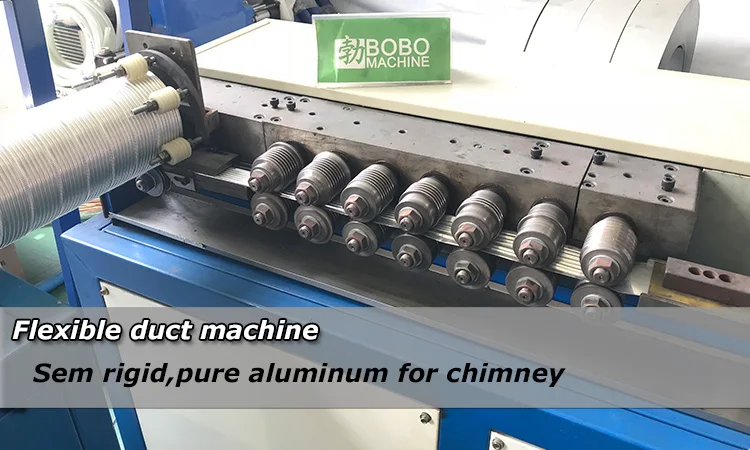

flexible duct machine d08.jpg flexible duct machine d18.jpg
