Flexible aluminum duct manufacturers machine





Product Description


The Flexible aluminum duct manufacturers machine is mainly used to produce the flexible air duct from aluminum foil by spiral forming with polyurethane adhesive. The suitable material can be metailized plastic film, PVC material also.

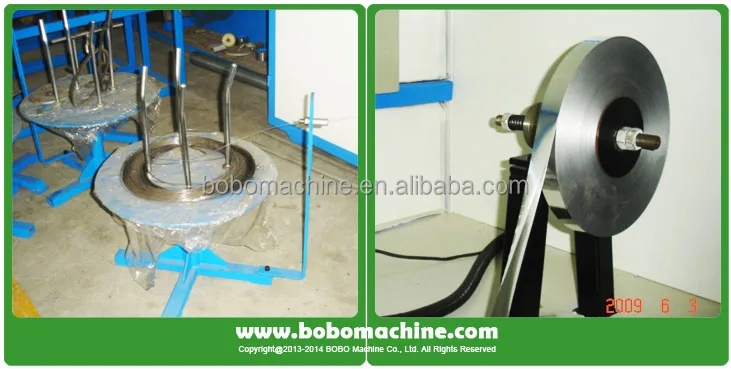

Flexible dut machine-2


Feature of Flexible aluminum duct manufacturers machine



  • Diameter changeable from 80-600mm by forming mould easy.

  • With or withou wire reinforcement for both inner core duct and outer jacket duct.

  • Double layer with aluminum foil, metalized pet fim, PVC tape will be suitable.

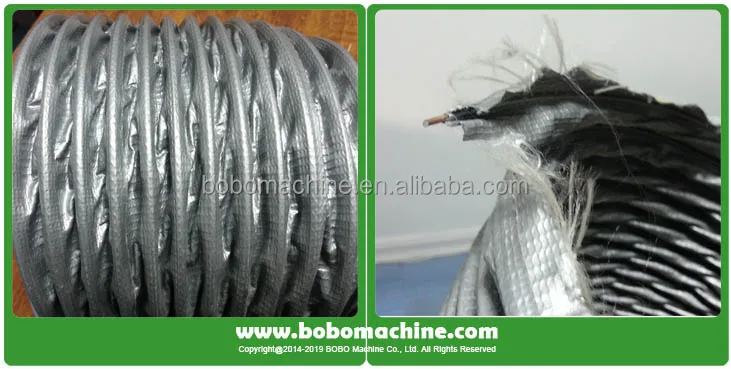

Flexible dut machine-10


Main Technical data of  Flexible aluminum duct manufacturers machine








































 1 Diameter range80-600mm
 2Duct length Unlimited
 3Aluminum tape size

0.025-0.035mm thick


30-50mm wide for Aluminum


0.012mm for PVC


 4Forming speed 1-35meter/min
 5 Main motor power 1.5KW
 6 Dimension2200 x 850 x 1400 mm
 7 Weight

500KG

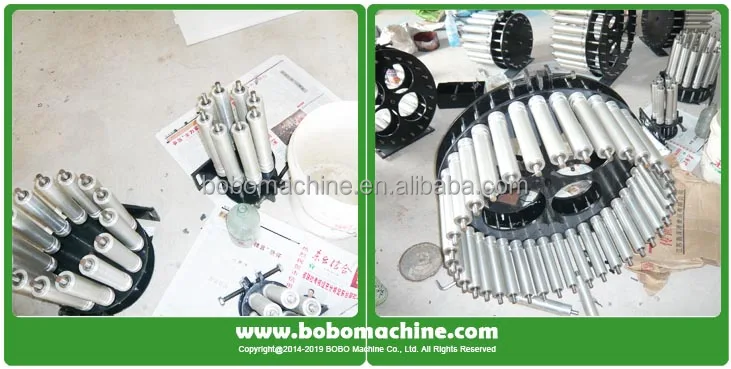

Flexible dut machine-12
