Flexible Aluminum Spiral Flexible Air Foil Duct Forming Making Machine Manufacture

Product Overview

Description

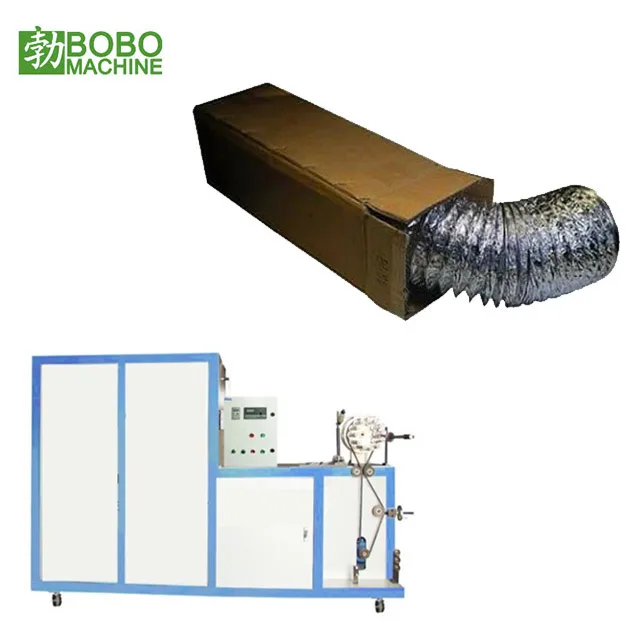

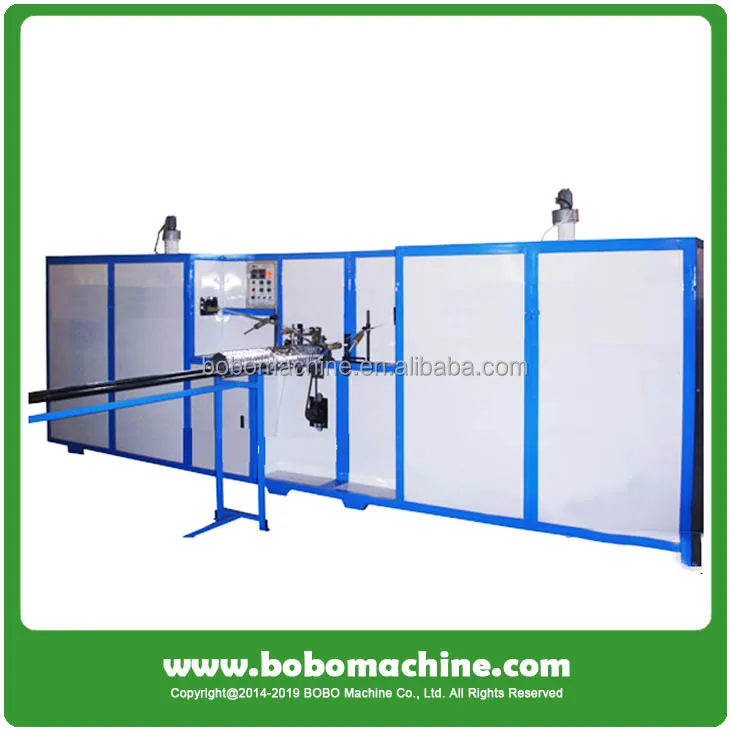

Flexible aluminum duct forming machine manufacture

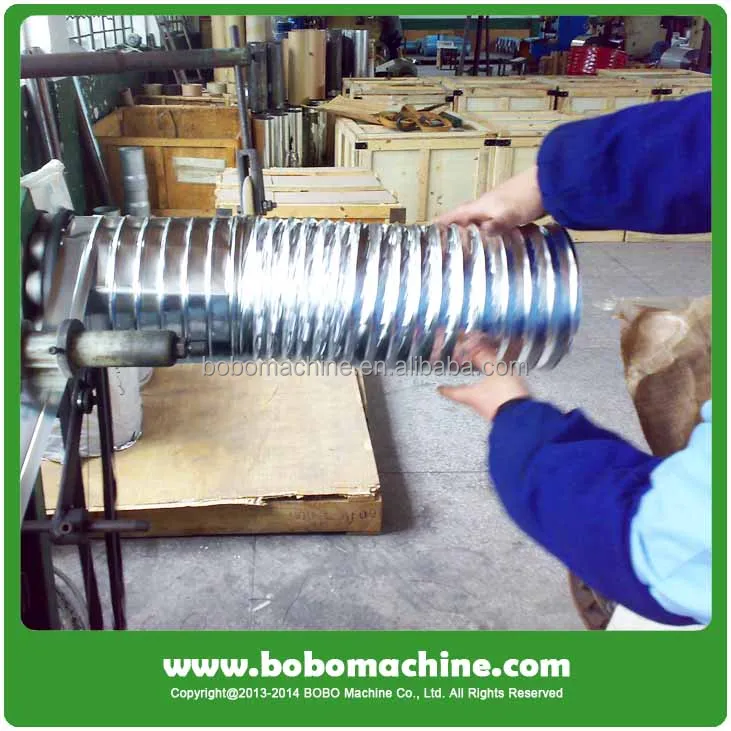

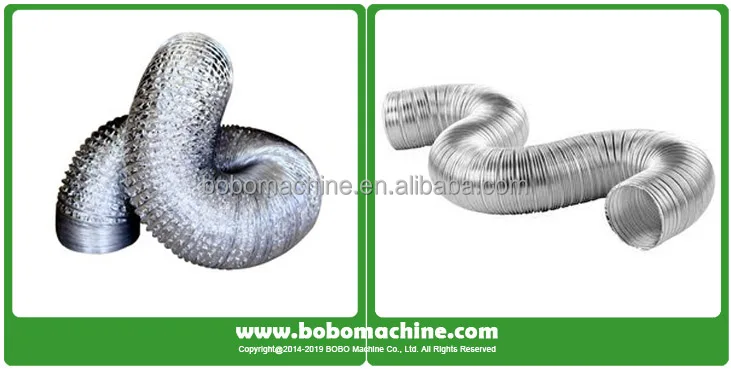

The Flexible aluminum duct forming machine manufacture is mainly used to produce the flexible air duct from aluminum foil by spiral forming with polyurethane adhesive. The suitable material can be metailized plastic film, PVC material also. And the wire reinforcement can be optional for both inner core duct and outer jacket duct.

Feature of   Flexible aluminum duct forming machine manufacture

• Diameter changeable from 80-600mm easy.

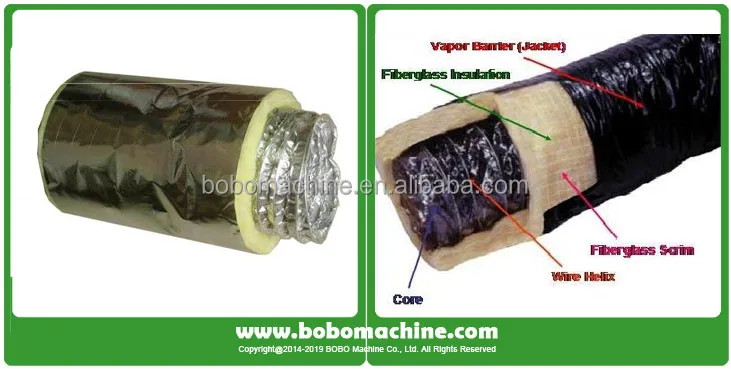

• With or withou wire reinforcement for both inner core duct and outer jacket duct.


• Double layer with aluminum foil, metalized pet fim, PVC tape will be suitable.

Main Technical data of  Flexible aluminum duct forming machine manufacture

1	Diameter range	80-600mm
2	Duct length	Unlimited
3	Aluminum tape size	0.025-0.035mm thick 30-50mm wide for Aluminum 0.012mm for PVC
4	Forming speed	1-35meter/min
5	Main motor power	1.5KW
6	Dimension	2200 x 850 x 1400 mm
7	Weight	500KG
